MSI 650GLMS Manuel utilisateur

Version 1.1

G52-M6721X2-G22

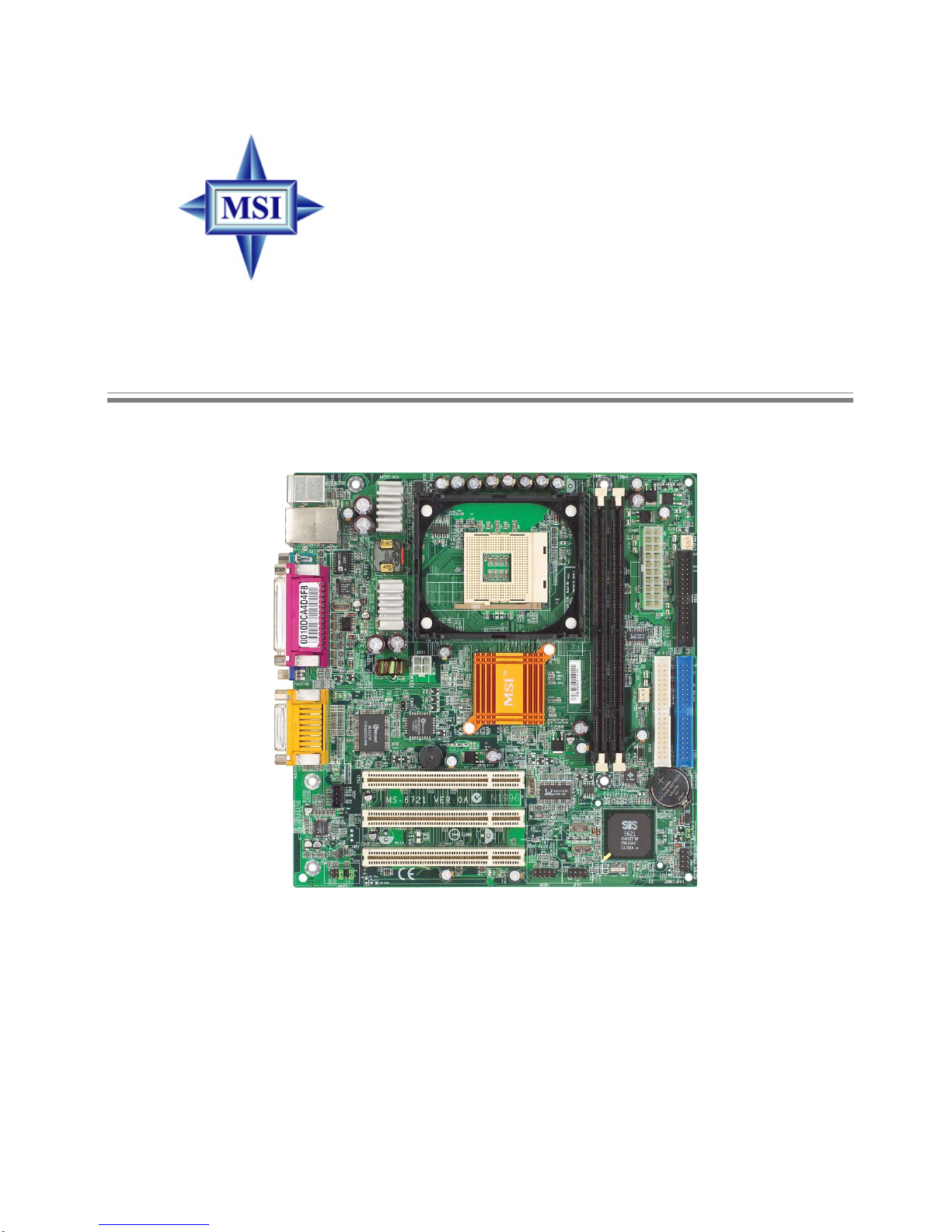

650GLMS Series

MS-6721 (v1.X) Micro ATX Mainboard

Manual Rev: 1.1

Release Date: November 2002

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-StarInternational MS-6721

Testedtocomply

withFCCStandard

ForHomeorOfficeUse

iii

CopyrightNotice

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered

trademarks of AMD Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Windows®98/2000/NT/XP are registered trademarks of Microsoft Corporation.

Netware®is a registered trademark of Novell, Inc.

Award®is a registered trademark of Phoenix Technologies Ltd.

AMI®is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V1.0 First release for PCB 1.x Oct.2002

V1.1 BIOSUpdate forPCB 1.x Nov.2002

TechnicalSupport

If a problem arises with your system and no solution can be obtained from the

user’s manual, please contact your place of purchase or local distributor.

Alternatively, please try the following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS updates, driver

updates, and other information: http://www.msi.com.tw/

Contact our technical staff at: [email protected]

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. Do not cover the opening.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the PowerCord beforeinserting any add-oncard ormodule.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

zThe power cord or plug is damaged.

zLiquid has penetrated into the equipment.

zThe equipment has been exposed to moisture.

zThe equipment has not work well or you can not get it work according

to User’s Manual.

zThe equipment has dropped and damaged.

zThe equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage

temperatureabove600 C(1400F),itmaydamagetheequipment.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

CONTENTS

FCC-B Radio Frequency Interference Statement ...........................................ii

Revision History ........................................................................................... iii

Technical Support ......................................................................................... iii

Safety Instructions .......................................................................................iv

Chapter1.GettingStarted ........................................................................ 1-1

Mainboard Specifications .................................................................... 1-2

Mainboard Layout ...............................................................................1-4

MSI Special Features ...........................................................................1-5

PCAlert™4 ...................................................................................1-5

LiveBIOS™/LiveDriver™ ............................................................1-7

Live Monitor™ ..............................................................................1-8

Chapter2.HardwareSetup ....................................................................... 2-1

Quick Components Guide ....................................................................2-2

Central Processing Unit: CPU ..............................................................2-3

CPU Core Speed Derivation Procedure .........................................2-3

CPU Installation Procedures for Socket 478 ..................................2-4

Installing the CPU Fan ..................................................................2-5

Memory................................................................................................ 2-7

Introduction to SDRAM ...............................................................2-7

Installing DIMM Modules ............................................................ 2-8

DIMM Module Combination.........................................................2-8

Power Supply .......................................................................................2-9

ATX 20-Pin Power Connector: CONN1 .........................................2-9

ATX 12V Power Connector: ATX1 ................................................ 2-9

BackPanel .......................................................................................... 2-10

Mouse Connector ....................................................................... 2-10

Keyboard Connector ................................................................... 2-11

Serial Port Connectors: COMA ................................................... 2-12

VGA Connector (optional) .......................................................... 2-12

RJ-45LAN Jack(Optional) .......................................................... 2-13

Midi/Joystick Connector ............................................................. 2-13

Audio Port Connectors ............................................................... 2-13

Parallel Port Connector: LPT1...................................................... 2-14

Floppy Disk Drive Connector: FDD1........................................... 2-15

Power Saving Switch Connector Connector: JSMI1 ................... 2-15

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-16

Fan Power Connectors: CPUFAN1/SYSFAN1 ............................. 2-17

CD-InConnector: JCD1 ............................................................... 2-18

Chassis Intrusion Switch Connector: JCASE1 ............................ 2-18

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-19

Front Panel Audio Connector: JAUD1 ........................................ 2-20

Front USB Connectors: JUSB1 .................................................... 2-21

Jumpers .............................................................................................. 2-22

Clear CMOSJumper: JBAT1 ........................................................ 2-22

Slots ................................................................................................... 2-23

PCI (Peripheral Component Interconnect) Slots.......................... 2-23

PCI Interrupt Request Routing .................................................... 2-23

Chapter3.BIOSSetup.............................................................................. 3-1

Entering Setup......................................................................................3-2

Control Keys ................................................................................. 3-2

Getting Help .................................................................................. 3-3

The Main Menu ...................................................................................3-4

Standard CMOS Features ....................................................................3-6

Advanced BIOS Features ....................................................................3-8

Advanced Chipset Features............................................................... 3-12

Integrated Peripherals ........................................................................ 3-14

Power Management Setup ................................................................. 3-18

PNP/PCI Configurations..................................................................... 3-22

vii

PC Health Status ................................................................................ 3-24

Frequency/Voltage Control ................................................................ 3-25

LoadFail-Safe/Optimized Defaults ..................................................... 3-26

Set Supervisor/User Password........................................................... 3-27

Troubleshooting ........................................................................................ T-1

Glossary ....................................................................................................G-1

1-1

Getting Started

Chapter 1. Getting

Started

Thank you for purchasing 650GLMS (MS-6721 v1.X)

Micro ATX mainboard. The 650GLMS is based on SiS®

650GLMD-L (702 pin BGA) &SiS®962L HyperZip Media I/O

(371 BGA) chipsets and provides 6 USB 2.0 ports for high-

speed data transmission. With all these special designs, the

650GLMS-L delivers a high performance and professional desk-

top platform solution.

Getting Started

1-2

650GLMS Micro ATX Mainboard

Mainboard Specifications

CPU

hCore frequency from 1.7GHz to 2.6 GHz and up

hSocket 478 for P4 processors (Willimate 478 / Northwood 478 / Celeron 478)

with 400 MHz

Chipset

hSiS®650GL (702 pin BGA)

- High performance host interface 400 MHz

- Support PC133/100 memory controller

- Support AGP 4X/2X interface with fast write transaction

- High throughput SiS HyperZip connect to SiS962L HyperZip Media I/O

- High performance 2D/3D and Video Accelerator

hSiS®962L HyperZip Media I/O (371BGA)

- High performance HyperZip connect to Sis series NB

- Integrated multi-threaded I/O link ensures concurrency of up/down stream

data transfer with 1.2GB/s bandwidth

- Integrated HyperZip connect to PCI bridge

- Dual IDE Master/Slave controller

- Integrated USB 2.0/1.1 host controller and Fast Ethernet MAC controller

- Integrated audio controller with AC97 interface

- Advanced power management and PC2001 compliance

- Integrated RTC and DMA interrupt and keyboard controller

- Integrated PCI to LPCC bridge

MainMemory

hSupports four memory banks using two 168-pin unbuffered SDRAM.

hSupports up to 2GB memory size.

Slots

hThree PCI 2.2 32-bit Master PCI Bus slots((

((

(support 3.3V/5V PCI bus interface)..

On-Board IDE

hDual IDE controllers integrated in SiS®962L.

hSupport Bus Master, Ultra DMA 66/100/133 operation modes.

hCan connect up to four IDE devices.

On-Board Peripherals

hOn-Board Peripherals include:

1-3

Getting Started

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88

Mbytes.

- 1 serial port (COM A1) and 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB 2.0/1.1 ports (Rear * 2 / Front * 2)

- 1 Line-In/Line-Out/Mic-In port

- 1 game port

- 1 LAN RJ45 connector (optional)

Audio

hAC97 link controller integrated in Intel SiS®962L southbridge.

h2 channels S/W audio codec (Realtek ALC 101 codec): compliance with

AC97 2.1 Spec and meets PC2001 audio performance requirement.

LAN (Optional)

hSiS integrated MAC + Realtek 8201BL PHY

- Support 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2 and PC99 standard.

hSupports Wake-On-LAN.

hSupports ACPI power management.

BIOS

h2MB Award BIOS with Plug and Play BIOS, ACPI, SMBIOS 2.3, Green and

Boot Block.

hProvides DMI 2.0, WFM 2.0, WOL, chassis intrusion, and SMBus for system

management.

Dimension

hMicro-ATX Form Factor: 22.0 cm (L) x 21.5 cm (W).

Mounting

h6 mounting holes.

Others

hSupport Intel® Pentium4 /Celeron Socket 478 processor at 400MHz System

Bus frequencies

hLive BIOS/Live Driver Update

hPC2001 Compliant

hSuspend to RAM/Disk

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MSI Carte mère

MSI

MSI PRO B650-P WIFI Manuel utilisateur

MSI

MSI B660-A PRO DDR4 Manuel utilisateur

MSI

MSI MS-7798 (v2.x) Manuel utilisateur

MSI

MSI MAG X670E TOMAHAWK WIFI Manuel utilisateur

MSI

MSI Z77IA-S01 Series Manuel utilisateur

MSI

MSI Wind Board D410 Series Manuel utilisateur

MSI

MSI Z270 GAMING M6 AC Manuel utilisateur

MSI

MSI Creator TRX40 Manuel utilisateur

MSI

MSI A320M PRO-E Manuel utilisateur

MSI

MSI P35 Diamond MS-7356 Manuel utilisateur

MSI

MSI Z370-A PRO Manuel utilisateur

MSI

MSI H510TI-S09 Manuel utilisateur

MSI

MSI 945GM3-F - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI PRO H410M-B Manuel utilisateur

MSI

MSI MAG X670E TOMAHAWK WIFI Manuel utilisateur

MSI

MSI MS-6785 Manuel utilisateur

MSI

MSI MS-CF06 Manuel utilisateur

MSI

MSI MS-7277 Manuel utilisateur

MSI

MSI MPG B760I EDGE WIFI DDR4 Manuel utilisateur

MSI

MSI 945GM2 - Fuzzy Motherboard - Mini ITX Manuel utilisateur

MSI

MSI MEG Series Manuel utilisateur

MSI

MSI KA780GM Series Manuel utilisateur

MSI

MSI MPG Z690 CARBON WIFI Manuel utilisateur

MSI

MSI G52-74111X2 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
