MSI 611BF Manuel utilisateur

611BF/612BF

USER'S MANUAL

3D-AGP VGA / 3D-Audio M/B

FOR SOCKET 37

The author assumes no responsibility for any errors or omissions which

may appear in this document nor does it make a commitment to update

the information contained herein.

NO. G03-610 FR5A

Release date: OCT 2000

** Year 2000 compliant **

Trademark:

* Pentium is registered trademark and Celeron is a trademark of Intel corporation, the other names and brands are

the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Chapter 1

1-1 Preface.....................................................................................................1

1-2 Key Feature..............................................................................................1

Chapter 2

Hardware Installation....................................................................................3

2-1 Unpacking.................................................................................................3

2-2 The Diagram of motherboard...................................................................4

2-3 uick Reference for Jumpers, Connectors & Expansion Socket.............5

2-4 Installation Steps......................................................................................6

2-5 Jumper Settings........................................................................................6

2-6 System Memory (DRAM)..........................................................................8

2-7 Central Processing Unit (CPU).................................................................8

2-8 Expansion Cards......................................................................................9

2-9 External Connectors.................................................................................10

Chapter 3

AWARD BIOS SETUP...................................................................................1

3-1 STANDARD CMOS SETUP.....................................................................16

3-2 BIOS FEATURES SETUP........................................................................19

3-3 Advanced Chipset Features Setup..........................................................21

3-4 Integrated Peripherals..............................................................................23

3-5 POWER MANAGE MENT SETUP ...........................................................26

3-6 PnP/PCI CONFIGURATION SETUP........................................................28

3-7 PC Health Status.......................................................................................30

3-8 Frequency/Voltage Control........................................................................30

3-9 Defaults Menu............................................................................................31

3-10 Supervisor/User Password Setting...........................................................31

3-11 EXIT Selecting.........................................................................................32

3-12 POST Messages.....................................................................................32

3-13 POST Codes............................................................................................36

Chapter 4

Driver Installation.........................................................................................42

4-1 Software Installation ....................................................................................42

4-2 Keyboard Password/Hot-Key/PS/2 Mouse Power On.................................43

4-3 UICK GUIDE..............................................................................................44

TABLE OF CONTENT

APPENDIX-A Magic Install

Chapter 1

1-1 Preface

Thank you for purchasing this multifunction motherboard. It has the most flexibility that you can

find in today’s computer market. The motherboard integrate CeleronTM (PPGA) processor

interface into a compact PC/AT compatible system along with PCI local bus and the most

recent interface AMR (Audio/Modem/ Riser card). Moreover, this motherboard using newest

DDM (Dynamic Display Memory) architecture to increase systems display performance and

many other new feature that meets future specification.

1-2 Key Feature

This motherboard is design for the PC user who wants highest possible quality and value in a

small package . It includes:

Support Jumpless solution,can setting Front Side Bus Frequency (CPU Host Clock)

,and CPU ratio in BIOS SETUP “Frequency / Voltage Control“.

Built-In High performance 3D AGP VGA:

Support 1MB share memory for VGA.

Include 4MB Display Cache (For 612BF only).

3D Hyper Pipelined Architecture.

3D Graphics Visual Enhancements.

3D Graphics Texturing Enhancements.

Up to 1600x1200 in 8-bit Color at 85Hz Refresh.

H/W Motion Compensation Assistance for S/W MPEG2 Decode.

Software DVD at 30fps.

Built-In High performance 3D Audio:

Fully Compliant AC97 Analog I/O Component.

48-Terminal T FP package.

Multibit △ Converter Architecture for improved S/N ratio greater than 90dB.

16-Bit Stereo Full-Duplex Codec.

4 Analog Line-Level Stereo Input.

High uality CD Input with Ground Sense.

Stereo Line Level Output.

Multi-Speed Support : Provide 66/75/83/95/100/112/117/124/133MHz Front Side Bus

Frequency to support Intel Celeron PPGA on a ZIF socket 370 interface.

 Chipset: Intel 810 Chipset for 611BF; Intel 810 DC-100 Chipset for 612BF.

 DRAM Memory Support: support two 168-pin DIMMS(3.3V)from a memory size between

8MB to 256MB using 16MB/64MB technology or 512MB by using 128MB technology.

AMR and PCI expansion Slots: Provide one AMR slot, four PCI slot.

Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel

port with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1.44MB or

2.88MB) are also supported without an external card.

PCI Bus Master IDE Controller and ULTRA DMA 33/66 : On-board PCI Bus Master IDE

controller with two connectors that supports four IDE devices in two channels, provides faster

data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-ROM

、ZIP、LS-120 Drives. This controller also supports PIO Modes and Bus Master IDE DMA

33/66 MB/S.

ACPI supporting for OS Directed Power Management

Keyboard /PS/2 Mouse Power On: When use ATX power supply and JP6 1-2 closed,

choose power on function by password in BIOS , can control power supply on by keyboard

instead of power button .

Ring-in Wake up: When Ring-In the system can wake up from SMI Mode.

Ring-in Power On: When Ring-In the system can power on automatic by this function.

Wake on LAN: When Wake on LAN the system can power on automatic by this function.

RTC Power On: Enabled RTC Power On function, you can setting RTC alarm to power on

the system at the time length you setting .

Power Button: Press the button will place the system power on/off.

Support Software Power OFF Function.

Power Support: Efficient PWM switching power instead of traditional Linear Voltage

Regulator to prevent power component from being burned-out.

Meets PC99 Requirements.

Optional IRDA and PS/2: This motherboard supports an dedicated 16C550 standard

UART,supporting infrared communication module for wireless interface and PS/2 mouse

cable set.

USB Port Connector: This motherboard supports two USB port connectors for USB devices.

PC Health Monitoring : To track PC CPU temperature, system voltage and fan speed.

When current temperature over warning temperature system will have alarm to warning.

AC recovery ON/OFF control by IOS

Baby AT Form Factor: Dimensions 22cm x 22cm.

Chapter 2

Hardware Installation

2-1 Unpacking

This package should contain the following:

The motherboard

USER’S MANUAL for mainboard

Cable set for IDE x1, Floppy x1 ,COM x1 ,LPT&PS/2 Mousex1,VGAx1, Audiox1

CD for Drivers PACK

The mainboard contains sensitive electronic components which can be easily damaged by

electron-static, so the mainboard should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat.

The operator should be wearing an anti static wristband, grounded at the same point as the

anti-static mat.

Inspect the mainboard carton for obvious damage. Shipping and handling may cause damage

to your board. Be sure there are no shipping and handling damages on the board before

proceeding.

After opening the mainboard carton, extract the system board and place it only on a grounded

anti-static surface component side up. Again inspect the board for damage.

Press down on all of the socket IC’s to make sure that they are properly inserted. Do this only

on with the board placed on a firm flat surface.

Warning: Do not apply power to the board if it has been damaged.

You are now ready to install your mainboard. The mounting hole pattern on the mainboard

matches the IBM-AT system board.

It is assumed that the chassis is designed for a standard IBM XT/AT main board mounting.

Place the chassis on the anti-static mat and remove the cover.

Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep

them separate.

2-2 Motherboard Diagram

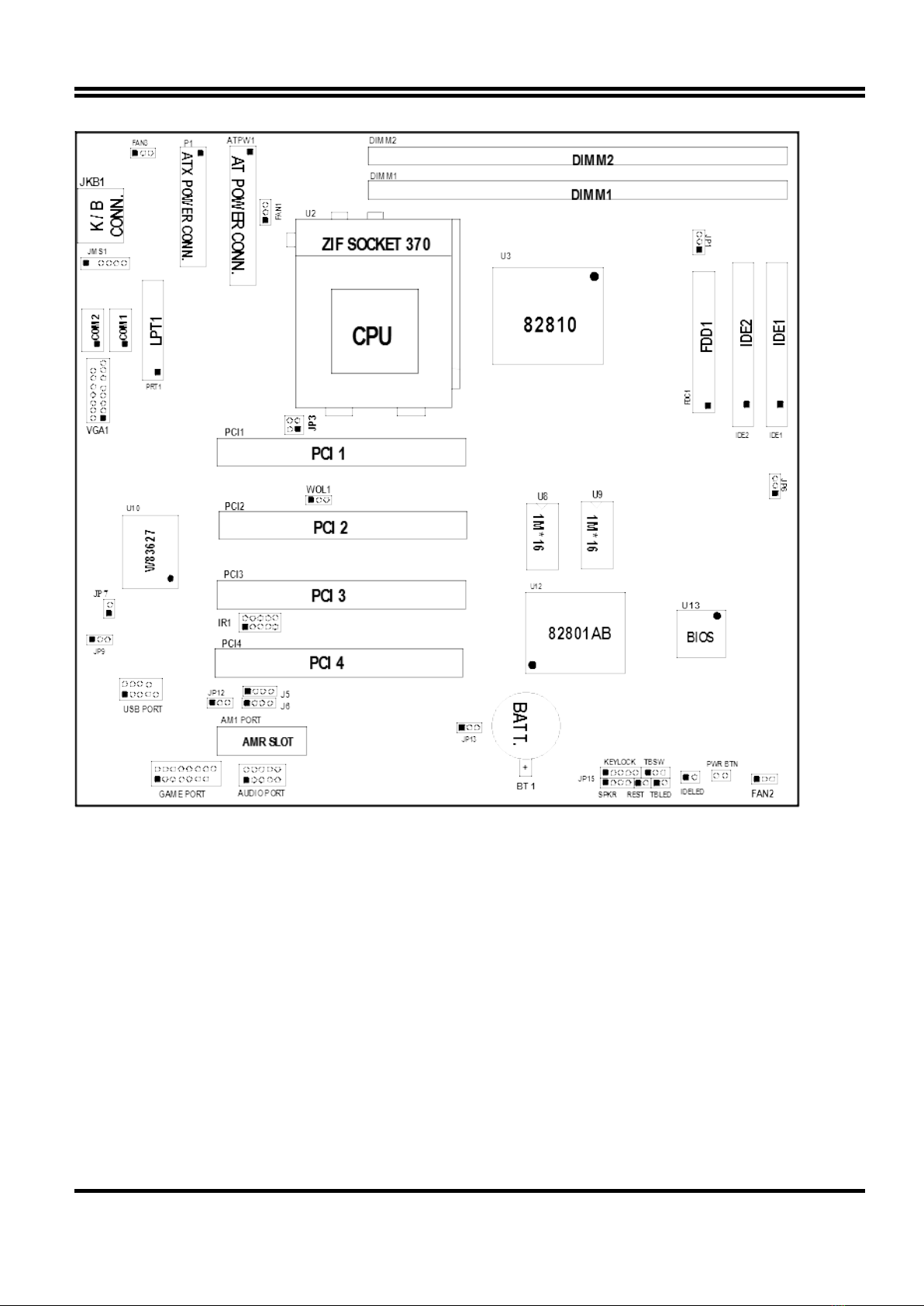

Figure 2-1

2.3 Quick Reference for Jumpers, Connectors &

Expansion Socket

Jumpers

Jumper Name Description Page

JP1 CPU Bus Frequency Selection 1-2 :100MHZ , 2-3:66MHz p. 6

JP3 V I/O Voltage 1- 2 :For V I/O 3.45V (Default)

3-4 :For V I/O 3.52V p.7

JP6 Keyboard Power on Function (K.B.Voltage) 1-2 : 5VSB for ATX Power Supply

2-3 : VCC p. 8

JP7 Case cover open detection 2-Pin Block p. 7

JP9 Clear Keyboard Power On Password setting 1-2 Default ; 2-3 Clear Password p. 7

JP12 Codec Master/Slave Mode Control 1-2 Master ; 2-3 slave p. 7

JP13 CMOS RAM Clear 1-2 Default for R.T.C. ; 2-3 Reset R.T.C. p. 6

Connectors

Connector Name Description Page

P1 AT Power Connector 12-Pin Block p.10

ATPW1 ATX power Connector 20-Pin Block p.10

JKB1 Keyboard Connector 5-Pin Female p.10

JMS1 PS/2 MouseConnector 6-Pin Block p.10

LPT1 Parallel Port Connector 26-Pin Block p.11

COM1,COM2 Serial Port COMA&COMB 10-Pin Block p.11

FDD1 Floppy Driver Connector 34-Pin Block p.11

IDE1 Primary IDE Connector 40-Pin Block p.11

IDE2 Secondary IDE Connector 40-Pin Block p.12

IDELED IDE activity LED 2-Pin Connector p.12

JP15 Front Panel Connector 16-Pin Block p.12

IR1 Infrared Module Connector 10-Pin Block p.13

USB PORT USB Port Connector 10-Pin Block p.13

FAN1,FAN2,FAN3 FAN Connector 1-2 12V Power Connector

2-3 ACPI FAN power control Connector

p.13

PWRBTN ATX power button 2-pin Connector Connector p.13

VGA1 VGA Connector 16-pin Block p.13

Audio Port Audio connector 10-pin Connector p.14

Game Port Game port connector 16-pin connector p.14

J5 CD-Audio/ Sony 4-pin Block p.14

J6 CD-Audio/ Panasonic 4-pin Block p.14

WOL1 Wake On LAN 3-pin Block P.14

Expansion Sockets

Socket/Slot Name Description

DIMM1,DIMM2, DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket

Zip Socket370 CPU Socket Celeron PPGA CPU Socket

AMR1 AMR SLOT Modem Riser Card slot

PCI1, PCI2,PCI3 ,PCI4 PCI Slot 32-bits PCI Local Bus Expansion slots

2-4 Installation Steps

Before using your computer, you must follow the steps as follows:

1. Set Jumpers on the Motherboard

2. Install the CPU

3. Install DRAM Modules

4. Install Expansion card

5. Connect Cables, Wires, and Power Supply

2- Jumper Settings

1. CPU us Frequency Selection : JP1

※Users can also set the CPU us frequency and CPU ratio under “Frequency / Voltage Control

“of IOS SETUP.

Table for the Socket370 Cpu

CPU Type CPU Clock Ratio CPU Frequency

Celeron-300/300A 66 MHz 4.5X 300 MHz

Celeron-333 66 MHz 5.0X 333 MHz

Celeron-366 66 MHz 5.5X 366 MHz

Celeron-400 66 MHz 6.0X 400 MHz

Celeron-433 66 MHz 6.5X 433 MHz

Celeron-466 66 MHz 7.0X 466 MHz

※efore install CPU please check the CPU Sepecification , and setting the correct CPU us

Frequency (Front Side us) and ratio in the “CHIPSET FEATURES SETUP” of IOS

SETUP.

2. CMOS RAM Clear: JP13 (Yellow color selector)

WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS.

Connect a jumper Cap over this jumper for a few seconds, will clears information stored in

the CMOS RAM Chip that input by user, such as hard disk information and passwords.

After CLEAR CMOS, you must enter the BIOS setup (by holding down <DEL> during

power-up) to re-enter BIOS information (see BIOS SETUP).

Selections JP13

Normal 1-2 Default for R.T.C.

Clear CMOS 2-3 Reset R.T.C.

Note: You need clear keyboard Power On Password setting (JP9) before you clear CMOS data if

you do not remember your assword.

3. Codec Master / Slave Mode Control: JP12

Allow you to change on-board Codec mode from Master to Slave. The default setting for on-

board Codec is set to Master. However,if your MR card request Master mode, please

change this setting to Slave mode.

4. Case cover open detection: JP7

This function requires a 2-wire cable supply from case manufacturer. It detects whether your

case cover is open or close status

. Clear Keyboard Power On Password setting: JP9

Connect a jumper Cap over this jumper for a few seconds will clears keyboard power on

password that stored in the W83627 chip input by user.

6. V I/O Voltage: JP3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MSI Carte mère

MSI

MSI B360M PRO-VD Manuel utilisateur

MSI

MSI 865GVM3-V - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI H310M PRO-VH PLUS Manuel utilisateur

MSI

MSI G31TM-P21 - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI MS-7181 Manuel utilisateur

MSI

MSI K7T266 Pro2-A Manuel utilisateur

MSI

MSI PRO B660M-A CEC WIFI Manuel utilisateur

MSI

MSI MAG B550 TORPEDO Manuel utilisateur

MSI

MSI MAG Z390M MORTAR Manuel utilisateur

MSI

MSI MS-98H3 Manuel utilisateur

MSI

MSI 880GMA-E45 series Manuel utilisateur

MSI

MSI B650M GAMING PLUS WIFI Manuel utilisateur

MSI

MSI K9N6PGM-F - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI MPG B650I EDGE WIFI Manuel utilisateur

MSI

MSI K7N2 Delta Series Instructions d'utilisation

MSI

MSI RS482M4-CSIP Manuel utilisateur

MSI

MSI B250M PRO OPT BOOST Manuel utilisateur

MSI

MSI K8NGM-V Series Manuel utilisateur

MSI

MSI MS-6385 Manuel utilisateur

MSI

MSI H270 PC MATE Manuel utilisateur

MSI

MSI NF980-G65 series Manuel utilisateur

MSI

MSI 848PM Manuel utilisateur

MSI

MSI Z270 XPOWER GAMING TITANIUM Manuel utilisateur

MSI

MSI Z270I GAMING PRO CARBON AC Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
