MSA Fieldserver ProtoCarrier Manuel utilisateur

Operating Manual

ProtoCarrier Start-up Guide

Revision: 1.B

Document No.:T18609

Print Spec: 10000005389 (F)

MSAsafety.com

MSA Safety

1991 Tarob Court

Milpitas, CA 95035

U.S. Support Information:

+1 408 964-4443

+1 800 727-4377

Email: [email protected]

EMEA Support Information:

+31 33 808 0590

Email: [email protected]

For your local MSA contacts, please go to our website www.MSAsafety.com

Contents

1 About the MSA FieldServer ProtoCarrier 5

1.1 Certification 5

2 BACnet/LonWorks Setup through ProtoCarrier 6

2.1 Features 6

2.2 Installation Steps for the Customer 6

2.3 Record Identification Data 6

3 Interfacing ProtoCarrier to Host OEM Device 7

3.1 ProtoCarrier FPC-C34 and FPC-C35 Showing Connection Ports 7

3.2 Device Connections to ProtoCarrier 8

3.3 Resistor and Power Jumper Information 9

3.3.1 Bias Resistors 9

3.3.2 Termination Resistor 10

3.3.3 Power Jumper Settings 10

3.4 Wiring Field Port to RS-485 BMS Network 11

3.5 Wiring Field Port to a LonWorks Network 11

4 Power up the ProtoCarrier 12

5 Connect the PC to the Gateway 13

5.1 Connecting to the Gateway via Ethernet 13

5.1.1 Changing the Subnet of the Connected PC 13

5.2 Navigate to the Login Page 13

6 Setup Web Server Security 14

6.1 Login to the FieldServer 14

6.2 Select the Security Mode 16

6.2.1 HTTPS with Own Trusted TLS Certificate 17

6.2.2 HTTPS with Default Untrusted Self-Signed TLS Certificate or HTTP with Built-in Payload Encryption 17

7 Configure the FieldServer 18

7.1 Setting IP Address for Field Network 18

7.1.1 Accessing the FieldServer Manager 19

8 LonWorks (FPC-C35): Commissioning the ProtoCarrier on a LonWorks Network 20

8.1 Commissioning theProtoCarrier FPC-C35 on a LonWorks Network 20

8.1.1 Instructions to Download XIF File from ProtoCarrier FPC-C35 Using Browser 20

9 Troubleshooting 22

9.1 Lost or Incorrect IP Address 22

9.2 Viewing Diagnostic Information 23

9.3 Checking Wiring and Settings 24

9.4 Taking a FieldServer Diagnostic Capture 25

9.5 LED Functions 26

9.6 Internet Browser Software Support 26

10 Additional Information 27

10.1 Update Firmware 27

ProtoCarrier Start-up Guide 3

10.2 BACnet: Setting Network_Number for more than one ProtoCarrier on Subnet 27

10.3 Reading Data Arrays 28

10.4 Change Web Server Security Settings After Initial Setup 29

10.4.1 Change Security Mode 30

10.4.2 Edit the Certificate Loaded onto the FieldServer 31

10.5 Change User Management Settings 32

10.5.1 Create Users 33

10.5.2 Edit Users 34

10.5.3 Delete Users 35

10.5.4 Change FieldServer Password 36

10.6 Routing Settings 37

10.7 Specifications 38

10.8 Compliance with UL Regulations 39

11 Limited 2 Year Warranty 40

4 ProtoCarrier Start-up Guide

1 About the MSA FieldServer ProtoCarrier

The MSAFieldServer ProtoCarrier is an internal, high performance, Building and Industrial Automation multi-protocol

gateway for OEMs wanting to provide protocol translation between Serial and Serial, Serial-Ethernet and Ethernet-Ethernet

devices using LonWorks®, BACnet®, Metasys®N2 by JCI, Modbus, DNP 3.0, and more. This manual provides installation

information for 2 types of customers:

• OEMs that have purchased the product to be used with their controllers and have not done a first time start with their

controller. When the OEM completes the programming of the ProtoCarrier with their device, the gateway will be virtually

plug and play at the OEMs customer sites.

◦ The OEM follows all the steps in this guide to complete the first time start up

• End Users that have purchased the pre-programmed gateway from one of our OEM customers and need some

instructions to configure the device.

The ProtoCarrier is always pre-configured by the OEM, requiring the end customer to set DIP switches or input fields in a

web configuration GUI to load a configuration file and set the specific network setting of the device.

NOTE:For troubleshooting assistance refer to Section 9 Troubleshooting, or any of the troubleshooting

appendices in the related driver supplements. Check the MSA Safety website for technical support resources

and documentation that may be of assistance.

The ProtoCarrier is cloud ready and connects with MSA Safety’s Grid. See Section 7.1.1 Accessing the FieldServer

Manager for further information.

1.1 Certification

BTL Mark – BACnet Testing Laboratory

The BTL Mark on the FieldServer is a symbol that indicates that a product has passed a series of

rigorous tests conducted by an independent laboratory which verifies that the product correctly

implements the BACnet features claimed in the listing. The mark is a symbol of a high-quality BACnet

product.

Go to www.BACnetInternational.net for more information about the BACnet Testing Laboratory. Click

here for the BACnet PIC Statement. BACnet is a registered trademark of ASHRAE.

LonMark Certification

LonMark International is the recognized authority for certification, education, and promotion of

interoperability standards for the benefit of manufacturers, integrators and end users. LonMark

International has developed extensive product certification standards and tests to provide the integrator

and user with confidence that products from multiple manufacturers utilizing LonMark devices work

together. MSA Safety has more LonMark Certified gateways than any other gateway manufacturer,

including the QuickServer, ProtoCessor, ProtoCarrier and ProtoNode for OEM applications and the full

featured, configurable gateways.

ProtoCarrier Start-up Guide 5

2 BACnet/LonWorks Setup through ProtoCarrier

2.1 Features

• 10/100BaseT Ethernet LAN interface (auto-sensing)

• Multiple Protocol Support

• Supports multiple configuration files and the ability to automatically load any of the stored files for different OEM

controllers or protocols supported.

• ProtoCarrier- FPC-C34/C38

◦ FPC-C34: 2 RS-485 ports and 1 Ethernet port

◦ FPC-C38: 1 RS-485 port, 1 Ethernet port and 1 RS-232

• ProtoCarrier- FPC-C35/C39

◦ FPC-C35: 1 Ethernet Port, 1 LonWorks port and 1 RS-485 port

◦ FPC-C39: 1 Ethernet Port, 1 LonWorks port and 1 RS-232 port

• ProtoCarrier- FPC-C40

◦ FPC-C40: 1 RS-485 port, 1 Ethernet port and KNX port

• ProtoCarrier- FPC-N42

◦ FPC-C42: 1 RS-485 port, 1 Ethernet port and M-Bus port

2.2 Installation Steps for the Customer

1. Record the information about the unit. (Section 2.3 Record Identification Data)

2. Connect the ProtoCarrier to the field protocol port and customer’s port to the ProtoCarrier’s RS-485 interface.

(Section 3.4 Wiring Field Port to RS-485 BMS Network)

3. Connect power to the ProtoCarrier.

4. Where the field protocol is BACnet/IP or Modbus TCP/IP, refer to Section 3 Interfacing ProtoCarrier to Host

OEM Device to run the Web GUI and change the IP Address.

5. Use a web browser to access the FieldServer Web Configurator page to select the profiles of the devices attached

to the FieldServer and enter any necessary device information. Once the devices are selected, the FieldServer

automatically builds and loads the appropriate configuration.

2.3 Record Identification Data

Each ProtoCarrier has a unique part number located on the side of the label. The number format is FPC-C34-XXXX. This

number should be recorded, as it may be required for technical support.

Part Number: __________________________________________________

6 ProtoCarrier Start-up Guide

3 Interfacing ProtoCarrier to Host OEM Device

3.1 ProtoCarrier FPC-C34 and FPC-C35 Showing Connection Ports

ProtoCarrier Start-up Guide 7

The top 3 pin port will always be R1, unless it’s a LonWorks ProtoCarrier in which case the port designation is LonWorks

(and the port is 2 pins). The bottom 6 pin port will be R2.

NOTE:The 6 pin port can be RS-232, RS-485 or KNX (and we use the left 3 pins for this as currently shown).

3.2 Device Connections to ProtoCarrier

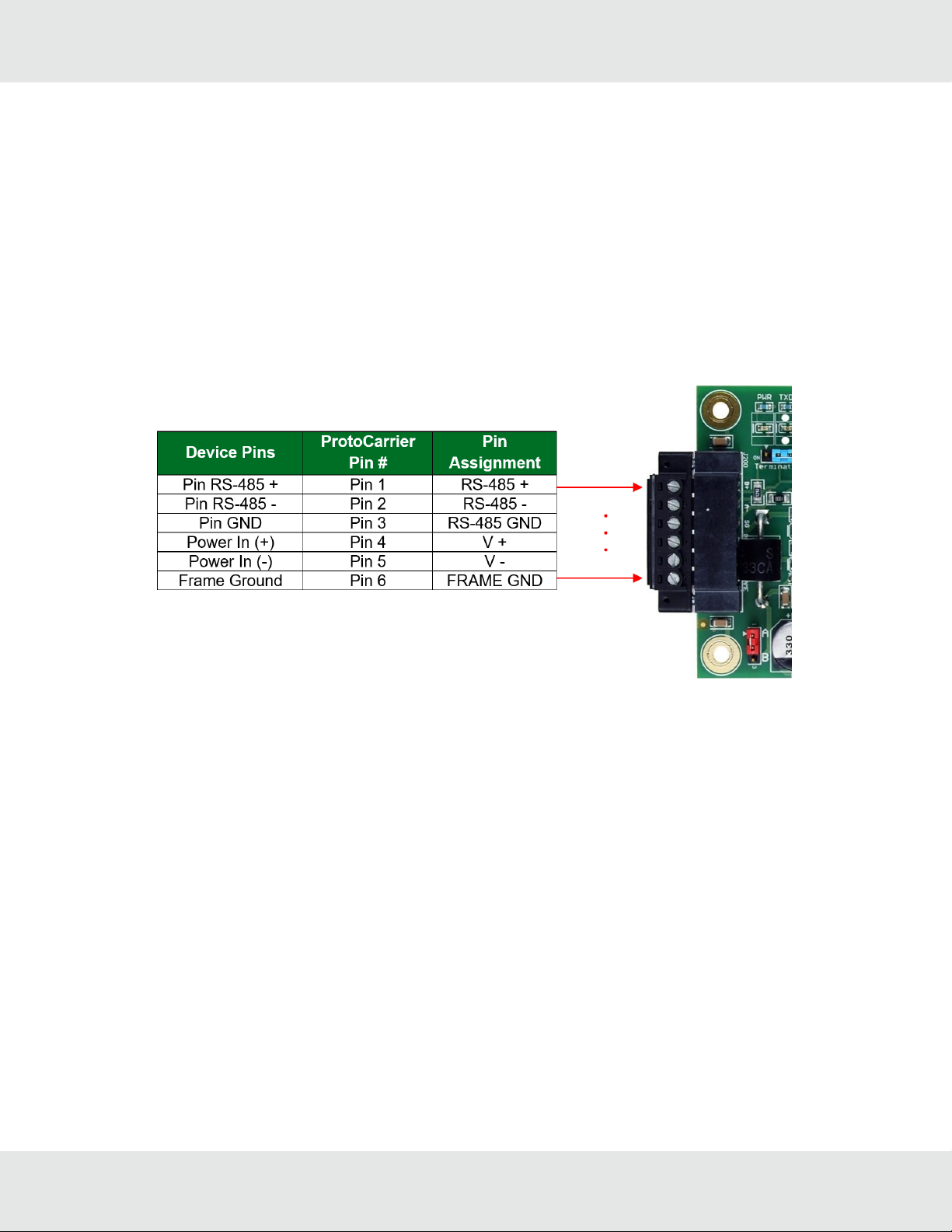

ProtoCarrier 6 Pin Phoenix connector for RS-485 Devices

• The 6 pin Phoenix connector is the same for ProtoCarrier FPC-C34 (BACnet) and FPC-C35 (LonWorks).

• Pins 1 through 3 are for Modbus RS-485 devices.

◦ The RS-485 GND (Pin 3) is not typically connected

• Pins 4 through 6 are for power. Do not connect power until Section 4 Power up the ProtoCarrier.

8 ProtoCarrier Start-up Guide

3.3 Resistor and Power Jumper Information

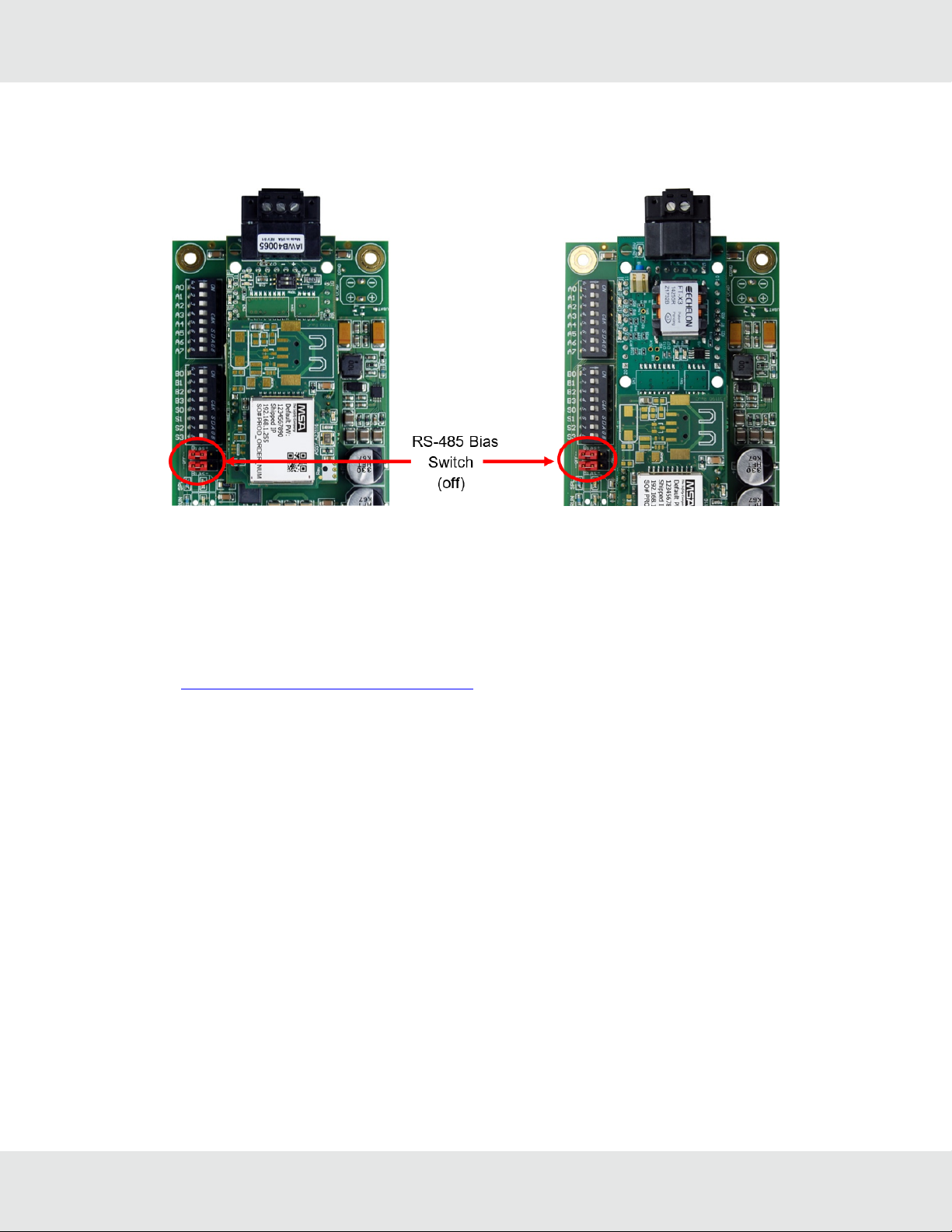

3.3.1 Bias Resistors

The ProtoCarrier bias resistors are used to keep the RS-485 bus to a known state, when there is no transmission on the line

(bus is idling), to help prevent false bits of data from being detected. The bias resistors typically pull one line high and the

other low - i.e. far away from the decision point of the logic.

In the RS-485 carrier, the bias resistor is 510 ohms which is in line with the BACnet spec. It should only be enabled at one

point on the bus (on the Brian field port were there are very weak bias resistors of 100k). Since there are no jumpers, many

Brains can be put on network without running into the bias resistor limit which is < 500 ohms.

NOTE:Seethe Termination and Bias Resistance Enote for additional information.

ProtoCarrier Start-up Guide 9

3.3.2 Termination Resistor

Termination resistors are also used to reduce noise. These pull the two lines of an idle bus together. However, they would

override the effect of any bias resistors, if connected.

3.3.3 Power Jumper Settings

The ProtoCarrier power jumper is set to position A by default but can be changed to position B for other power supply

requirements.

Position A:The gateway makes use of a full-wave rectifying bridge. Can be used for 12-24 VAC input or

9–30 VDC input. At 9 VDC this becomes marginal.

Position B:The gateway makes use of a half-wave rectifying bridge. Best position for grounded AC transformers and for

using DC voltage down to 9VDC.

10 ProtoCarrier Start-up Guide
