MRC RSW-923 Manuel utilisateur

RS232 to WiFi CONVERTER

Model : RSW-923

Your purchase of this

RS232 to WiFi

CONVERTER marks a

step forward for you

into the field of

precision measurement.

Although this Meter is a

complex and delicate

instrument, its durable

structure will allow

many years of use if

proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 [email protected]

MRC.11.17

2. SPECIFICATIONS..........................................................................................................................................................

3. FRONT PANEL DESCRIPTION.......................................................................

3-1 DC 9V Power adapter input socket.....................................................................................................

3-2 DC 9V output socket.....................................................................................................

3-3 Isolate input socket.....................................................................................................

3-4 Antenna and antenna socket.....................................................................................................

3-5 Display............................................................................................................................

3-6 SETUP/ENTER KEY.....................................................................................................

3-7 EXIT( ) key button.....................................................................................................

3-8 ▲key button.....................................................................................................

3-9 ▼key button.....................................................................................................

3-10 key button.....................................................................................................

3-11 key button.....................................................................................................

3-12 System reset button.....................................................................................................

3-13 Stand............................................................................................................................

3-14 Hanging holes.....................................................................................................

3-15 Hanging unit ( with sticker ).....................................................................................................

3-16 Power interface cable/plugs.....................................................................................................

4. MEASURING PROCEDURE................................................................................

4-1.The initial startup screen....................................................................................................................

4-2.Measuring and setting screens...........................................................................................

4-3.The summary description of keyboard..........................................................................................................

4-4.Setting Description.....................................................................................................................

4-5.Set value storage.....................................................................................................

4-6.WiFi connection........................................................................................

4-7.Reply factory setting......................................................................................................

4-8.AP Mode.......................................................................................................

4-9.Client Mode (internal network) ...........................................................................................................

4-10.Client Mode(External network fixed IP)...................................................................................................

4-11.Client Mode(External network floating IP).............................................................................................

1. FEATURES

* You can MRC meter with RS232 output interface connected to the

RSW-923, to transfer data via WiFi to the desired device. However,

the use of smart phones or tablet computers developed by the

company's free software to do data collection record APP.

* WiFi work mode: Access Point(AP) or Client mode

* I/O terminal:

1.DC 9V power input

2.DC 9V power output(power supply for the connecting RS232 meter)

3.Three RS232 input(photo isolate RS232 type)

* Basic setting:

1.NetMode, 2.SSID, 3.Password, 4.IP address, 5.Port,

6.Gateway address,7.Meter CH. Setting

* Maximum TCP connections to 20

* Without going through the computer settings, can be used directly

after the machine settings

2. SPECIFICATIONS

Circuit Custom single-chip microprocessor LSI circuit

Display LCD Size: 3.2 X 2.4” (60 X 44.4 mm)

Dot Matrix backlit LCD (128 X 64 pixels)

Wireless

* Support IEEE 802.11b / g / n wireless standards

* Support the range of frequency : 2.412 to 2.484 GHz.

* Support two types of wireless networks: Access

Point(AP) and Client

* Support multiple security authentication mechanisms :

64/128/152 bit WEP encryption, WPA-PSK/

WPA2-PSK、、WPA/WPA2 security mechanism.

Input signal Three isolated RS232 signal input

Wireless mode

* Access Point (AP) Mode

setting * Client Mode

Operating

0 to 50℃( 32 to 122℉).

temperature

Operating Less than 80% R.H..

humidity

Power supply AC to DC adapter 9V.

Power DC 200 mA approximately.

consumption

Weight 204 g/0.45 LB.

Dimension 134 X 80 X 32 (5.3 X 3.1 X 1.3 inch).

* Dimension is for the meter without antenna only.

Accessories

* Instruction manual......................................................

1PCS

included

* Data interface cable, UPCB-03................................

1PCS

* Power interface cable, PWCB-06............................

1PCS

* Hanging unit ( with sticker ).........................................

1PCS

* AC to DC 9V power adapter.....................................

1PCS

Optional * Full line MRC RS232 meters.

Accessories

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 DC 9V Power adapter input socket

3-2 DC 9V output socket

3-3 Isolate input socket

3-4 Antenna and antenna socket

3-5 Display

3-6 SETUP/ENTER KEY

3-7 EXIT( ) key button 3-12 System reset button

3-8 ▲key button 3-13 Stand

3-9 ▼key button 3-14 Hanging holes

3-10 key button 3-15 Hanging unit ( with sticker )

3-11 key button 3-16 Power interface cable/plugs

4. MEASURING PROCEDURE

4-1.The initial startup screen

SCREEN4-1-1 SCREEN4-1-2

4-2.Measuring and setting screens:

1.Measurement screen:

SCREEN4-2-1 SCREEN4-2-2

SCREEN4-2-3 SCREEN4-2-4

2.Setting screen:

SCREEN4-2-5 SCREEN4-2-6

4-3.The summary description of keyboard:

1.SETUP(Enter) KEY: Setting screen into the select key

2.In the setting mode:

2-1.Press ▲or ▼to select the field in the upper and lower beating

2-2.▲or ▼> 2 SEC.: The selected field will rapidly beating

2-3.▲+ ▼> 2 SEC.: Then the entire column cleanup

2-4.Press ▲KEY hold short press ▼KEY and the right of the text

will be cleared

2-5. 、KEY: Left and right keys

2-6.EXIT/SHIFT( ) KEY: Press key text input type selection or

setting screen left

3.In the measurement mode:

3-1.In Easy mode, press ▲+ ▼> 2 SEC. Then turned into full mode

3-2.In full mode, press ▲+ ▼> 2 SEC. Then becomes easy mode

3-3.EXIT/SHIFT( ) KEY: Backlight control key

4-4.Setting Description:

1.When the POWER ON, then enter the startup screen countdown 30 SEC.

(SCREEN4-1-1 & SCREEN4-1-2) to 0 SEC. Then enter the measurement

screen (SCREEN4-2-1 or SCREEN4-2-2).

2.Press SETUP KEY once you enter the setup screen as SCREEN4-2-5 or

SCREEN4-2-6

3.In the function directory option Press ▲or ▼KEY, functional directory

option will flash.

4.Press or KEY into the content selection function directory option

(in this case will flash), After selecting the complete press SETUP KEY

Then back to the function directory option to determine the setting options

5.Function directory:

5-1.NetMode: Select AP or Client, the factory setting is Client.

5-1-1.Enter this option, then press or KEY contents into the option,

then press ▲or ▼KEY to select AP or Client, After determining

Press SETUP KEY do confirm the contents, then will return to

NetMode directory

5-1-2.Press ▼KEY into the SSID option from NetMode

5-2.SSID: The default setting is RSW-923

5-2-1.Enter up to 21 characters

5-2-2.Press or KEY then enter the option contents, then press ▲

or ▼KEY to select the input text, press EXIT / SHIFT KEY select

words in English caseor numbers. Determined by SETUP KEY do

confirm the contents, then will return to the SSID directory.

5-2-3.Press ▼KEY into the Encrypt option from SSID

5-3.Encrypt:The default setting is none

5-3-1.none/wep_open/wep/wpa_tkip/wpa_aes/wpa2_tkip/wpa2_aes/

wpawpa2_tkip/wpawpa2_aes total of nine

5-3-2.After pressing ▲or ▼KEY select the option by the need, press

SETUP KEY to confirm, then will return to Encrypt directory

5-3-3.Press ▼KEY into the Password option from Encrypt

5-4.Password: The default setting is 12345678

5-4-1.Press or KEY then enter the option contents, then press ▲

or ▼KEY to select the input text, press EXIT / SHIFT KEY select

English words large, lowercase and numbers Press SETUP KEY

do confirm the contents, then will return to Password directory

5-4-2.Press ▼KEY into the IP option from Password

5-5.IP: The default setting is 192.168.0.254

5-5-1.Press or KEY then enter the option contents, then press ▲

or ▼KEY to select the number, press the SETUP KEY The

contents do confirm, then will return to the IP directory

5-5-2.Press ▼KEY into the Port option from IP

5-6.Port: The default setting is 200

5-6-1.Input Range:1-65535

5-6-2.Press or KEY then enter the option contents, then press ▲

or ▼KEY to select the number, press the SETUP KEY The

contents do confirm, then will return to the Port directory

5-6-3.Press ▼KEY into the Gateway option from Port

5-8.Gateway: The default setting is 192.168.0.1

5-8-1.Press or KEY then enter the option contents, then press ▲

or ▼KEY to select the number, press the SETUP KEY The

contents do confirm, then will return to the Gateway directory

5-8-2.Press KEY into the Meter CH.option from Gateway

5-9.Meter CH.: The default setting is M1=04、M2=04、M3=04

5-9-1.Press KEY once, then select METER1 the open when the CH.

Choice. At this point CH. Flashes when you press ▲KEY will

In polling mode to select 1,2,4,8,12 of CH. Number, press

SETUP KEY value determined after storage and M1 Flashes. Press

KEY once you enter METER2 (Press ▲KEY to select

CH. & Press SETUP KEY value Storage), press KEY once

you enter METER3 (Press ▲KEY to select CH. & Press SETUP

KEY values Storage) Press the fourth time when the back

METER CH. directory option

5-9-2.Press▼KEY into the Default Settings option from Meter CH.

5-10.Default Settings: Reply factory setting (refer NO.4-7)

4-5.Set value storage:

Press EXIT / SHIFT KEY save settings, and return to the measurement

screen, such as SCREEN4-2-3 or SCREEN4-2-4. This time to reconnect

after about 25 SEC WiFi is doing set after, then back SCREEN4 -2-1 or

SCREEN4-2-2 screen.

4-6. WiFi connection:

In SCREEN4-2-1 or SCREEN4-2-2 screen, symbol flashes when the upper

right corner, said the WiFi connection has been properly

4-7.Reply factory setting

1.Press SETUP KEY once you enter the setup screen as SCREEN4-2-5 &

SCREEN4-2-6

2.Press ▲、▼ KEY select the option to Default Settings item, press KEY

once you enter N option, press ▲or ▼KEY select Y press Enter KEY

,will return to directory option then press EXIT / SHIFT KEY will return to

factory default action to do its screen will SCREEN4-2-3 or SCREEN4-2-4,

after about 25 SEC later. would return SCREEN4-2-1 or SCREEN4-2-2.

4-8.AP Mode:

1.First, install MRC dedicated APP software

1-1.The use of smart phones in the APP Store download MRC MeterApp

software (SCREEN4-8-1) or on the MRC official website

MeterApp software (SCREEN4-8-2)

1-2.After the download is complete, install it.

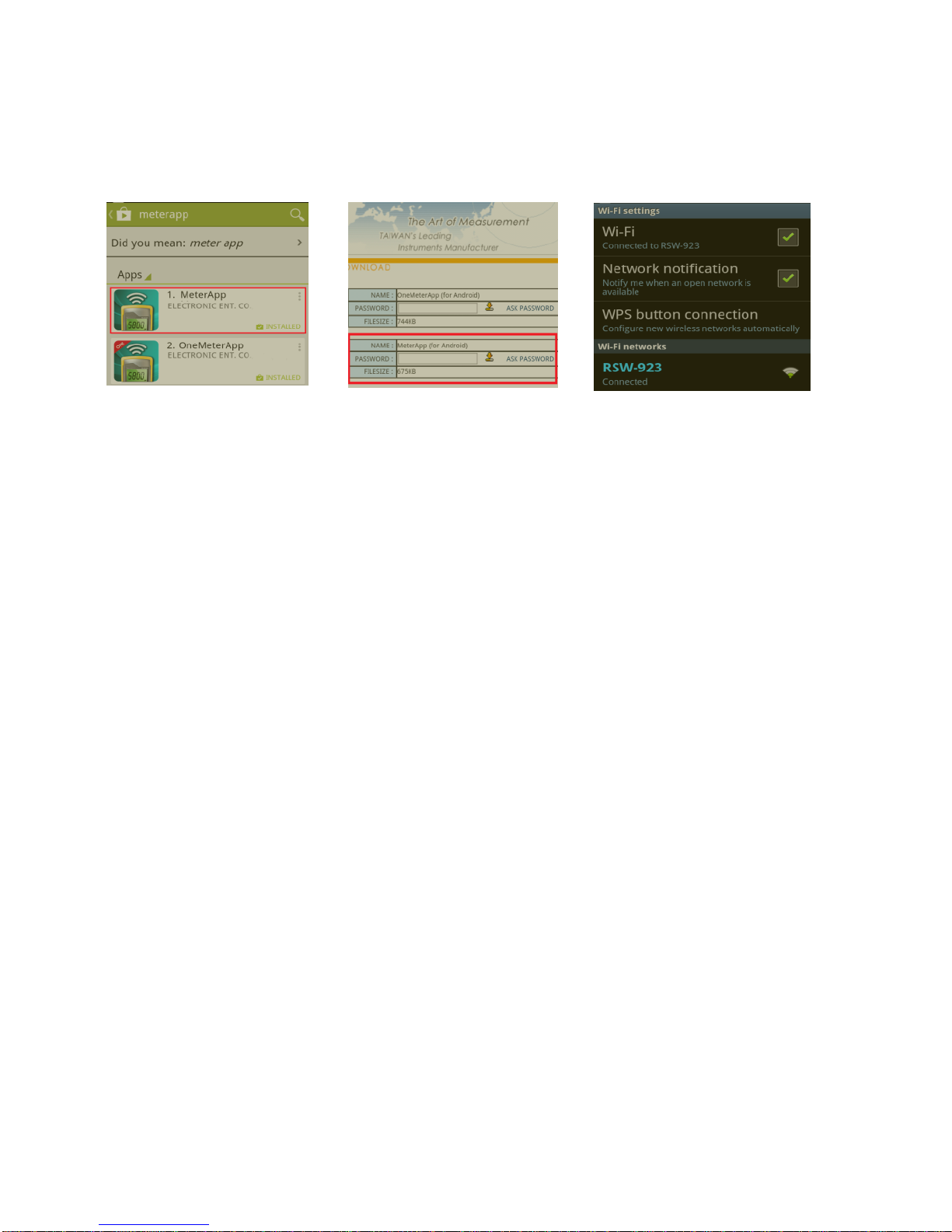

SCREEN4-8-1 SCREEN4-8-2 SCREEN4-8-3

2.The RSW-923 boot into the measurement screen (SCREEN4-2-1).

2-1.Determine the following set parameters (such as SCREEN4-2-5 and

SCREEN4-2-6)

2-1-1.NetMode: AP

2-1-2.SSID: RSW-923

2-1-3.IP: 192.168.0.254

2-1-4.Port: 200

M1 M2 M3

2-1-5.CH.: 04 04 04(According to users' needs, do adjust)

2-2.Start Smart Phone WiFi, make RSW-923 connection (SCREEN4-8-3).

2-3.Open MeterApp software (such as SCREEN4-8-4)

2-3-1.In SCREEN4-8-4 select Step1 (Meter1)

2-3-2.Is displayed SCREEN4-8-5, select Step2 tool button then

into the SCREEN4-8-6

2-3-3.Enter the relevant information in SCREEN4-8-6

1) Meter name: Meter1 name can be changed to the desired

user name

2) CH NO.: In accordance Meter CH NO. To enter

3) Sampling time: minutes as a reference, check after do Logger

function (must be set)

4) IP: In accordance with RSW-923 IP as input and must tick

(must be set)

Table des matières

Autres manuels MRC Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
