MRC MG-3003SD Manuel utilisateur

SD card real time data Recorder

AC/DC MAGNETIC METER

Model : MG-3003SD

Your purchase of this

AC/DC MAGNETIC

METER with SD CARD

DATA RECORDER

marks a step forward for

you into the field of

precision measurement.

Although this meter is a

complex and delicate

instrument, its durable

structure will allow

many years of use if

proper operating

techniques are

developed. Please read

the following

instructions carefully

and always keep this

manual within easy

reach.

OPERATION MANUAL

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 [email protected]

MRC.6.17

TABLE OF CONTENTS

1. FEATURES.................................................................................................................

2. SPECIFICATIONS................................................................................................

3. FRONT PANEL DESCRIPTION.............................................................................

4. MEASURING PROCEDURE.........................................................................................

4-1 AC/DC magnetic field measurement.........................................................................

4-2 Data Hold....................................................................................................................................

4-3 Data Record................................................................................................................

5. DATALOGGER....................................................................................................

5-1 Preparation before execute datalogger function........................................................

5-2 Auto Datalogger ( Set sampling time ≧

1 second ).....................................................

5-3 Manual Datalogger ( Set sampling time = 0 second )............................................

5-4 Check time information...............................................................................................

5-5 SD Card Data structure...............................................................................................

6. Saving data from the SD card to the computer....................................

7. ADVANCED SETTING..........................................................................

7-1 Set clock time ( Year/Month/Date, Hour/Minute/Second )………………………....

7-2 Set sampling time .......................................................................................................

7-3 Auto power OFF management .................................................................................................

7-4 Set beep Sound ON/OFF..........................................................................................

7-5 Decimal point of SD card setting............................................................................

7-6 SD memory card format...........................................................................................

7-7 Select the magnetic field unit to mT or G...............................................................

8. POWER SUPPLY from DC ADAPTER..................................................

9. BATTERY REPLACEMENT........................................................................

10. SYSTEM RESET.................................................................................

11. RS232 PC serial interface....................................................................

12. PATENT.................................................................................................

1. FEATURES

* Wide range, general purpose magnetic measurement.

for industrial, mechanical, material, electrical, laboratory

field usage.

* Unit : G ( Gauss ), mT ( milli Tesla ).

* DC and AC magnetic field measurement

* DC Range : 300.00 mT/3000.0 mT.

AC Range : 150.00 mT/1500.0 mT.

* Resolution : 0.01/0.1 mT, 0.1/1 G.

* N pole/S pole indicator.

* Use Hall sensor with automatic Temp. compensation.

* Zero button for DC magnetic function.

*Separate probe, easy operation and convenient

for remote measurement.

*RS232/USB computer interface.

*Microprocessor circuit assures maximum possible

accuracy, provides special functions and features.

*Heavy duty & compact housing with hard carrying case,

designed for easy carry out & operation.

*Auto shut off is available to save battery life.

* Real time SD memory card Datalogger, it Built-in Clock

and Calendar, real time data recorder , sampling time set

from 1 second to 3600 seconds.

* Manual datalogger is available ( set the sampling

time to 0 ), during execute the manual datalogger

function, it can set the different position ( location ) No.

( position 1 to position 99 ).

* Innovation and easy operation, computer is not need

to setup extra software, after execute datalogger, just

take away the SD card from the meter and plug in the

SD card into the computer, it can down load the all the

measured value with the time information (year/month/date

/ hour/minute/second ) to the Excel directly, then user

can make the further data or graphic analysis by themselves.

* SD card capacity : 1 GB to 16 GB.

* LCD with green light backlight, easy reading.

* Can default auto power off or manual power off.

* Data hold, record max. and min. reading.

* Microcomputer circuit, high accuracy.

* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

2. SPECIFICATIONS

Circuit Custom one-chip of microprocessor LSI

circuit.

Display LCD size : 52 mm x 30 mm

Measurement mT milli Tesla

Unit G Gauss

Measurement mT Range 1 300.00 mT x 0.01 mT

Range, DC Range 2 3,000.0 mT x 0.1 mT

G Range 1 3,000.0 G x 0.1 G

Range 2 30,000 G x 1 G

Measurement mT Range 1 150.00 mT x 0.01 mT

Range, AC Range 2 1,500.0 mT x 0.1 mT

G Range 1 1,500.0 G x 0.1 G

Range 2 15,000 G x 1 G

Accuracy DC ± ( 5 % rdg. + 10 digit ) at 23 ± 5 ℃

AC ± ( 5 % rdg. + 20 digit ) at 23 ± 5 ℃

Frequency AC measurement :

Response 50 Hz / 60 Hz

Sensor Hall sensor.

Datalogger Auto 1 sec to 3600 sec.

Sampling Time @ Sampling time can set to 1 second,

Setting range but memory data may loss.

Manual

Push the data logger button

once will save data one time.

@ Set the sampling time to

0 second.

@ Manual mode, can also select the

1 to 99 position ( Location ) no.

Data error no. ≦ 0.1 % no. Of total saved data typically.

Temp. Probe head build the Temp. sensor

Compensation for using the ATC ( automatic Temp.

for hall sensor compensation ).

Field Direction Uniaxial.

Data Hold Freeze the display reading.

Memory Recall Maximum & Minimum value.

Display Approx. 1 second.

Sampling Time

Power off Manual off by push button or

Auto shut off to save battery life.

Operating 0 to 50 ℃.

Temperature

Operating Less than 85% R.H.

Humidity

Data Output RS 232/USB PC serial interface.

* Connect the optional RS232 cable

UPCB-02 will get the RS232 plug.

* Connect the optional USB cable

USB-01 will get the USB plug.

Power Supply ( Alkaline or Heavy duty type DC 1.5 V battery ) .

(UM3,AA) X 6 PCS or equiralent

DC 9V adapter input.

* AC/DC power adapter is optional.

Power Current Normal operation ( w/o SD card save

data and LCD Backlight is OFF) : Approx. DC 13 mA.

When SD card save the data but and

LCD Backlight is OFF) : Approx. DC 35 mA.

* If LCD backlight on, the power

consumption will increase approx.3 mA.

Weight Approx. 303 g/0.67 LB.

( Meter & probe )

Dimension Main instrument : Probe :

181 x 68 x 45 mm 195 x 25 x 19 mm

( 7.1 x 2.7 x 1.8 inch ) ( 7.7 x 1.0 x 0.7 inch ).

Accessories

Instruction manual.......................................................

1 PC

Included

Magnetic Probe.................................................................

1 PC

Carrying case, CA-06...........................................

1 PC

Optional RS232 cable, UPCB-02

Accessories USB cable, USB-01

Data Acquisition software, SW-U801-WIN

* Above specification tests under the environment RF Field Strength less than 3

V/M & frequency less than 30 MHz only.

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display 3-12 RS-232 Output Terminal

3-2 Power Button 3-13 Reset Button

3-3 Hold Button 3-14 DC 9V Power Adapter Input Socket

3-4 REC Button 3-15 Battery Compartment/Cover

3-5 Range Button , ▲ Button 3-16 Battery Cover Screws

3-6 Function Button , ▼ Button 3-17 Stand

3-7 Set Button , Time Button 3-18 Tripod Fix Nut

3-8 Log Button , Enter Button 3-19 Probe Sensing Head

3-9 Input Socket 3-20 Probe Handle

3-10 Probe Plug 3-21 Probe Head Cover

3-11 SD card socket

4. MEASURING PROCEDURE

4-1 AC/DC magnetic field measurement

1) Power ON the meter by pressing and holding the " Power

Button " ( 3-2, Fig. 1 )for at least 1.5 seconds .

2) magnetic field measurement Function 'DC' or 'AC' select

by pressing and holding the " FUNCTION Button " ( 3-6, Fig. 1 )

until function DC change to AC or function AC change to DC.

3) magnetic field measuremen range select

by pressing and holding the " Range Button " ( 3-5, Fig. 1 ) until

' Range 1' change to' Range 2' or 'Range 2' change to' Range 1' .

4) unit selection :

How to select the unit ( mT, G), the procedures please

refer to chapter 7-7 " Change the unit ( mT, G ) ", page 18 .

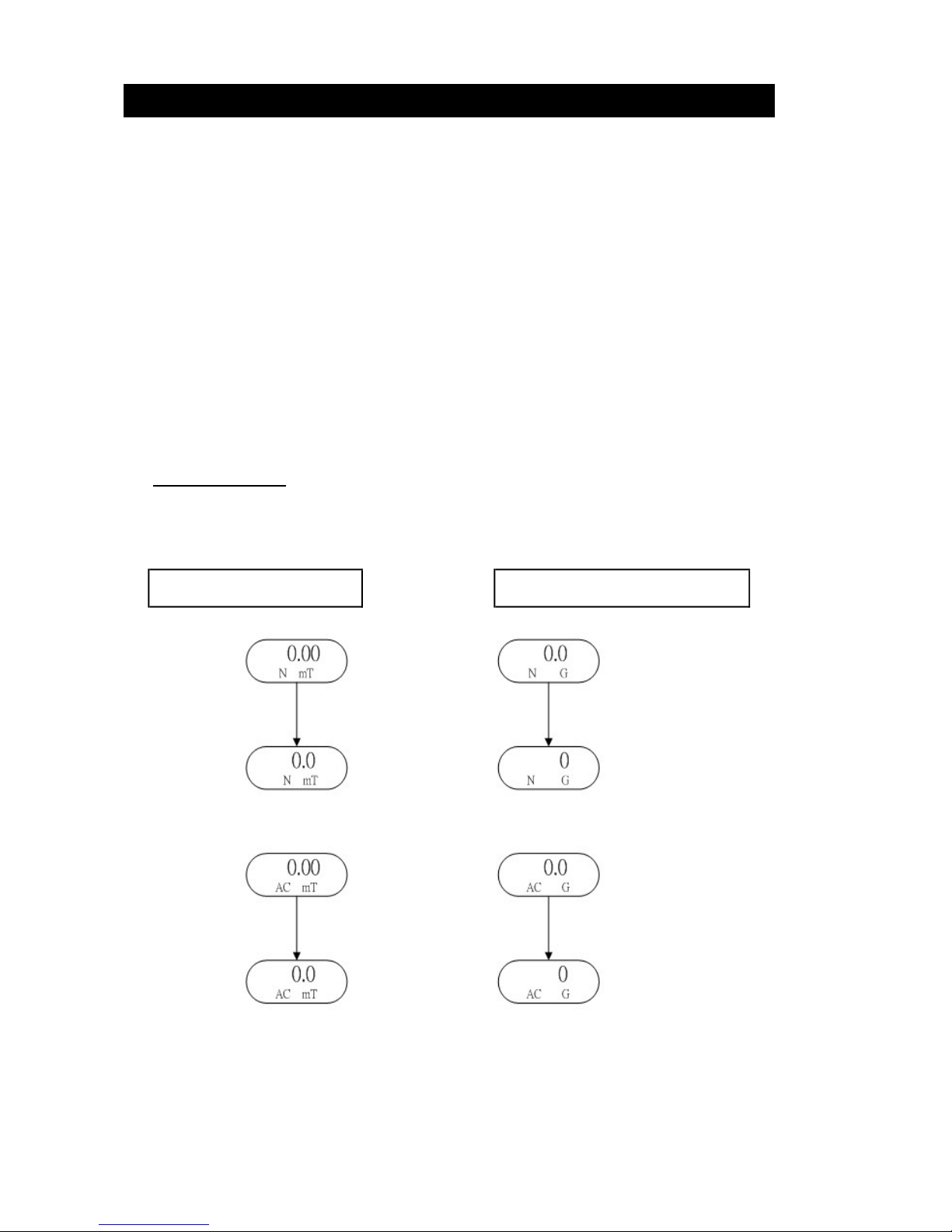

Under mT unit Under G unit

RANGE 1

RANGE 2

RANGE 1

RANGE 2

Fig. 2

DC magnetic field measurement

* The Display will show " N " or " S " indicator.

* North pole : Display will show " N " indicator

* South pole : Display will show " S " indicator

AC magnetic field measurement

* Display will show " AC " indicator.

* Display will not show " N (S ) indicator.

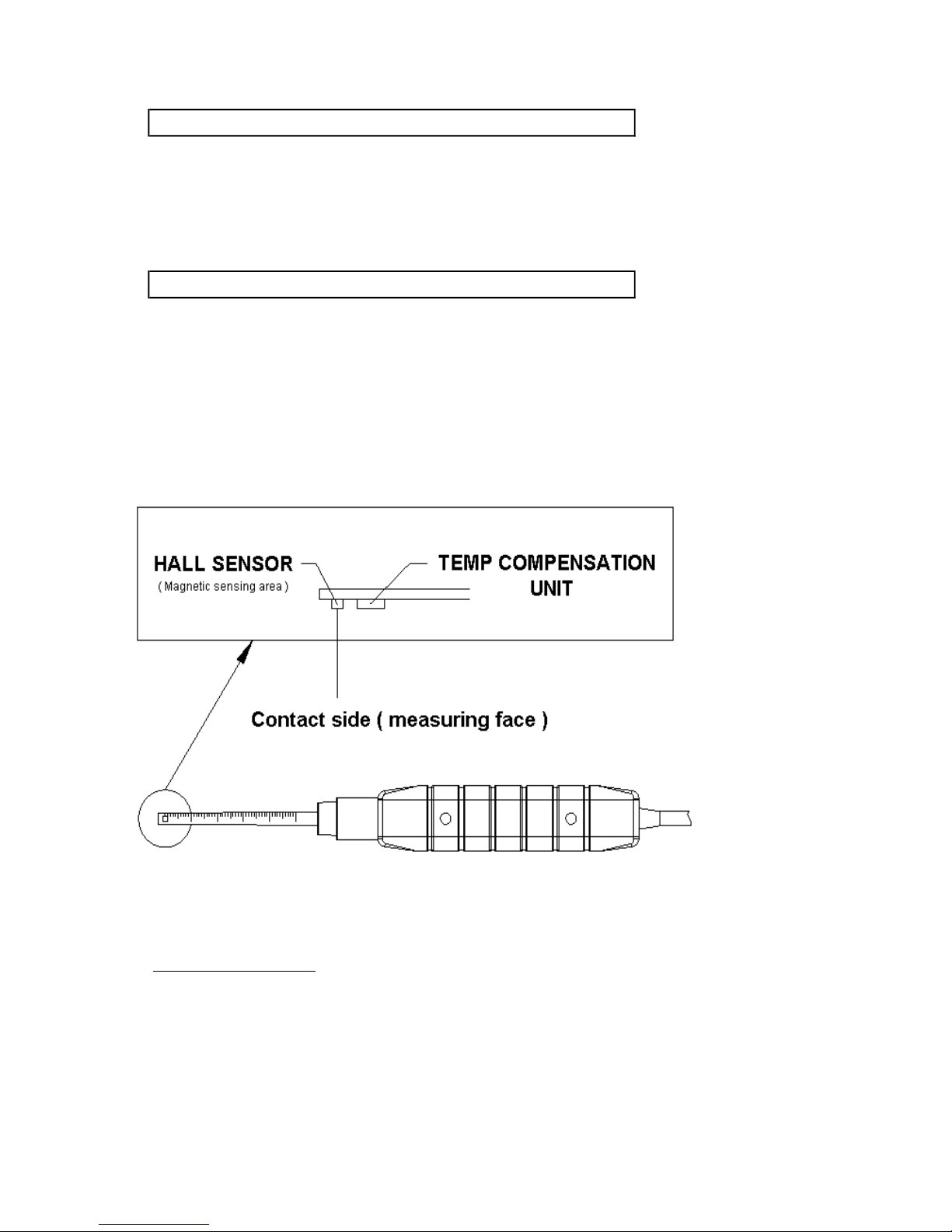

5) Contact and close the testing material to the probe

head ( refer to Fig. 3 ) , the Display will show the

magnetic field value along with the unit ( mT,G ).

Fig. 3

6) Zero adjustment :

When power ON the meter, due to the environment

interference, the display may show certain values ( not

zero value), it is normal.

* Before the measurement, fix the probe at the exact

position, by pressing and holding the” ▲ ( 3-5，Fig. 1 ) “

& "▼ Button ( 3-6，Fig. 1 ) continuously at least

1.5 seconds until the display show " 0 " value, in the same

time the Display will flash once the "ZERO " indicator then

release the finger from the button.

4-2 Data Hold

During the measurement, press the " Hold Button " ( 3-3,

Fig. 1 ) once will hold the measured value & the LCD will

display a " HOLD " symbol.

* Press the " Hold Button " once again will release the data

hold function.

4-3 Data Record ( Max., Min. reading )

1) The data record function records the maximum and

minimum readings. Press the " REC Button " ( 3-4, Fig.

1 ) once to start the Data Record function and there

will be a " REC " symbol on the display.

2) With the " REC " symbol on the display :

a) Press the " REC Button " ( 3-4, Fig. 1 ) once, the "

REC MAX " symbol along with the maximum value

will appear on the display.

b) Press the " REC Button " ( 3-4, Fig. 1 ) again, the

" REC MIN " symbol along with the minimum value

will appear on the display.

c) To exit the memory record function, just press the

" REC Button " for at least 1.5 seconds. The display will

revert to the current reading.

Remark :

When make the DC magnetic field measurement

and execute the " RECORD " function, it can not

change from the " North pole " to " South pole "

or from the " South pole " to " North pole "

during the measurement. It can make the

measurement under the same pole ( S pole or N

pole ) only, otherwise the Max., Min. value will

be no sense.

Table des matières

Autres manuels MRC Instrument de mesure

MRC

MRC NIR-CS-3000BT Manuel utilisateur

MRC

MRC LX-1148SD Manuel utilisateur

MRC

MRC INE-PHB-4 Manuel utilisateur

MRC

MRC CD-4309 Manuel utilisateur

MRC

MRC EM-9300SD Manuel utilisateur

MRC

MRC CLRM-110 Manuel utilisateur

MRC

MRC O2H-9903SD Manuel utilisateur

MRC

MRC CO2-9904SD Manuel utilisateur

MRC

MRC INE-DZB-712 Manuel utilisateur

MRC

MRC CD-4303 Manuel utilisateur

MRC

MRC INE-DDBJ-350 Manuel utilisateur

MRC

MRC EMF-840 Manuel utilisateur

MRC

MRC PHT-3109 Manuel utilisateur

MRC

MRC HT-3027SD Manuel utilisateur

MRC

MRC MG-3002 Manuel utilisateur

MRC

MRC HE218B-EX Manuel utilisateur

MRC

MRC DO-5519 Manuel utilisateur

MRC

MRC SL-4035SD Manuel utilisateur

MRC

MRC INE-DDBJ-350F Manuel utilisateur

MRC

MRC SPECTRO-UV600 Series Manuel utilisateur

MRC

MRC LX-1102 Manuel utilisateur

MRC

MRC SPECTRO-96 Manuel utilisateur

MRC

MRC VIS-Series Manuel utilisateur

MRC

MRC DT-2236 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
