MRC CO2-9904SD Manuel utilisateur

SD card real time Data Recorder

CO2, Humidity, Dew point, Temp.

Model : CO2-9904SD

OPERATION MANUAL

Your purchase of this CO2 + HumidityTemp. meter with SD

CARD DATA RECORDER marks a step forward for you into the

field of precision measurement. Although this METER is a

complex and delicate instrument, its durable structure

developed. Please read the following instructions carefully and

always keep this manual within easy reach.

TABLE OF CONTENTS

1. FEATURES..................................................................1

2. SPECIFICATIONS........................................................2

2-1 General Specifications............................................2

2-2 Electrical Specifications......................................... 5

3. FRONT PANEL DESCRIPTION......................................

4 MEASURING PROCEDURE............................................10

5. OTHER FUNCTION......................................................11

5-1 Data Hold.............................................................

5-2 Record ( Max./ Min. reading ).................................11

5-3 LCD Backlight ON/OFF...........................................12

6. DATALOGGER.............................................................13

6-1 Preparation before execute datalo

er function....................13

6-2 Auto Datalo

er ( Set samplin

time 1 second )..............≧14

6-3 Manual Datalo

er ( Set samplin

time = 0 second )...........15

6-4 Check time information......................................................

6-5 Check samplin

time information.........................................16

6-6 SD Card Data structure.......................................................16

7. Saving data from the SD card to the computer.............

8. ADVANCED SETTING..................................................

9. POWER SUPPLY from DC ADAPTER..............................26

10. BATTERY REPLACEMENT...........................................26

11. SYSTEM RESET.........................................................27

12. RS232 PC SERIAL INTERFACE....................................27

13. PATENT....................................................................29

1. FEATURES

* Real time recorder, save the data into the SD memory

card and can be down load to the Excel, extra software

is no need. User can make the further data or graphic

analysis by themselves. under the Excel software.

* At the same time, the SD memory card can record 3

probe's data ( %RH/CO2/O2/Temp. or

%RH/CO2/CO/Temp. ) along with the time information

into the one Excel file at the same time.

* Manual datalogger is available, during execute the

manual datalogger function, it can set the different

location no. ( position 1 to position 99 ).

* Air quality measurement application, multi-function :

CO2 (Carbon dioxide ), CO ( Carbon monoxide ), O2

( Oxygen in air ), Humidity, temperature measurement.

* CO2 range : 0 to 6,000 ppm x 1 ppm.

* O2 range : 0 to 30.0 % x 0.1 %, optional probe.

* CO range : 0 to 1,000 ppm x 1 ppm, optional pribe

* Humidity range: 10 to 95 %RH.

* Dew point Temp. and Wet bulb Temp. measurement.

* Temp. range : 0 to 50.0 , / .℃℃℉

* CO2 sensor : NDIR, long term reliability.

* CO, O2 sensor : Galvanic cell type.

* Humidity sensor : Precision capacitance sensor

* Alarm setting with the beeper sound output.

* Sampling time for data recorder is 2 seconds to 8 hours.

* Complete set with 2 probes :

CO2/Temp. probe, Humidity/Temp. probe.

* O2/Temp. probe, CO/Temp. probe is optional.

* Separate probe, easy for remote measurement.

* Meter can cooperate with 2 GB to 16 GB SD card, SD

card is optional.

* RS232/USB computer interface.

*Patented.

2. SPECIFICATIONS

2-1 General Specifications

Circuit Custom one-chip of microprocessor LSI

circuit.

Display LCD size : 52 mm x 38 mm

LCD with green backlight ( ON/OFF ).

Measurement CO2 (Carbon dioxide )

CO ( Carbon monoxide ), optional probe

O2 ( Oxygen in air ), optional probe

Humidity

Dew point Temp., Wet bulb Temp.

Temperature

Sensor CO2 NDIR * Nondispersive infrared sensor

structure Humidity Precision capacitance sensor

O2 Galvanic cell type

CO Galvanic cell type

Temp. Precision thermistor

Datalogger Auto 2 sec to 8 hour 59 min. 59 sec.

Sampling Time

@ Sampling time can set to 1 second,

Setting range

but memory data may loss.

Manual Push the data logger button

once will save data one time.

@ Set the sampling time to

0 second.

@ Manual mode, can also select the

1 to 99 position ( Location ) no.

Data error no. 0.1% of total saved data max.

Memory Card SD memory card. 1 GB to 16 GB.

Advanced * SD memory card Format

setting *Setclocktime

*Set sampling time

@ main setting

* Auto power OFF management

*Set beep Sound ON/OFF

*Decimal point of SD card setting

*Temp. unit setting

*Alarm value setting

Data Hold Freeze the display reading.

Memory Recall Maximum & Minimum value.

Sampling Time Approx. 1 second.

of Display

Data Output RS 232/USB PC computer interface.

* Connect the optional RS232 cable

UPCB-02 will get the RS232 plug.

* Connect the optional USB cable

USB-01 will get the USB plug.

Power Supply

Alkaline or heavy duty DC 1.5 V battery

( UM3, AA ) x 6 PCs, or equivalent.

DC 9V adapter input. ( AC/DC power

adapter is optional ).

Power Current CO2 Normal operation ( w/o SD card save

measure- data and LCD Backlight is OFF) :

ment

Approx. DC 136.5 mA.

When SD card save the data and LCD

Backlight is OFF) :

Approx. DC 166 mA.

Humidity Normal operation ( w/o SD card save

measure- data and LCD Backlight is OFF) :

ment

Approx. DC 10.5 mA.

When SD card save the data and LCD

Backlight is OFF) :

Approx. DC 40 mA.

O2 or Normal operation ( w/o SD card save

CO data and LCD Backlight is OFF) :

measure-

Approx. DC 12.5 mA.

ment When SD card save the data and LCD

Backlight is OFF) :

Approx. DC 42.5 mA.

If LCD backlight on, the power

consumption will increase approx.

12 mA.

Operating 0 to 50 . ( 32 to 122 ).℃℉

Temperature

Operating Less than 80% R.H.

Humidity

Weight 350 g/0.77 LB.

Dimension Meter 177 x 68 x 45 mm

Humidity 197 mm in length.

probe

CO2 probe 190 x 38 x 28 mm

O2 probe 150 x 38 x 38 mm

CO probe 150 x 38 x 38 mm

Accessories Instruction manual...........................1 PC

Included Hard carrying case, CA-08................1 PC

CO2 probe.......................................1 PC

Humidity probe................................1 PC

Optional O2 probe

Accessories CO probe

SD memory card ( 2 GB )

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software, SW-U801-WIN.

2-2 Electrical Specifications (23±5 )℃

CO2 ( Carbon dioxide )

Range 0 to 6,000 ppm

CO2 Resolution 1 ppm

( Carbon Accuracy ± 40 ppm

dioxide )

* 1,000 ppm.≦

± 5%ofreading

23 ± 5 .℃

* > 1,000 ppm 3,000 ppm.≦

± 250 ppm typically

* > 3,000 ppm.

Repeatability ± 20 ppm

* 3,000 ppm.≦

Temperature Range 0 to 50 ,32 to 122 .℃℃℉ ℉

Resolution 0.1 degree

Accuracy : ± 0.8℃℃: ± 1.5 .℉℉

Humidity/Temperature

Range 5 % to 95 % R.H.

Humidity Resolution 0.1 % R.H.

Accuracy 70% RH :≧± (3% reading + 1% RH).

< 70% RH :

± 3% RH.

Range 0 to 50 ,32 to 122 .℃℃℉ ℉

Temperature Resolution 0.1 degree

Accuracy ℃±0.8 .℃

℉±1.5 .℉

Dew Point Temp. ( Humidity )

℃Range -25.3 to 48.9℃℃

Resolution 0.1 ℃

℉Range -13.5 to 120.1 .℉℉

Resolution 0.1 .℉

Remark :

* Dew Point display value is calculated from the

Humidity/Temp. measurement automatically.

*The Dew Point accuracy is sum accuracy value of Humidity

& Temperature measurement..

Wet bulb Temp. ( Humidity )

℃Range -21.6 to 50.0℃℃

Resolution 0.1 ℃

℉Range -6.9 to 122.0 .℉℉

Resolution 0.1 .℉

Remark :

* Wet bulb display value is calculated from the Humidity/Temp.

measurement automatically.

*The Welt bulb accuracy is sum accuracy value of Humidity

& Temperature measurement..

CO ( Carbon dioxide ), optional probe

Range 0 to 1,000 ppm

CO Resolution 1 ppm

Carbon

Accuracy ± ( 5% + 2 ppm )

monoxide

Response < 30 seconds

time *

Repeatability < 2%

Zero drift in < 5 ppm

long term

Sensitivity < 5% per year

drift

The response time value is specified to reach

the 90% reading value.

Temperature Range 0 to 50 ,32 to 122 .℃℃℉ ℉

Resolution 0.1 degree

Accuracy : ± 0.8℃℃: ± 1.5 .℉℉

O2 ( Air oxygen ), optional probe

Range 0 to 30 %O2.

O2 Resolution 0.1 %O2.

Air oxygen

Accuracy ± ( 1 % reading + 0.2 % O2 ).

@ After calibration

Response time 15 secon

≦

@ t 90

Overload 100 %O2.

protection

Environment 0.9 to 1.1 atmosphere.

pressure range

Expected life 2 years.≧

time

Alarm If the measurement Air oxygen

value is < 18.0 %O2, the buzzer

will sound for warning.

Temperature Range 0 to 50 ,32 to 122 .℃℃℉ ℉

Resolution 0.1 degree

Accuracy : ± 0.8℃℃: ± 1.5 .℉℉

@ Above specification tests under the environment RF Field Strength less than 3

V/M & frequency less than 30 MHz only.

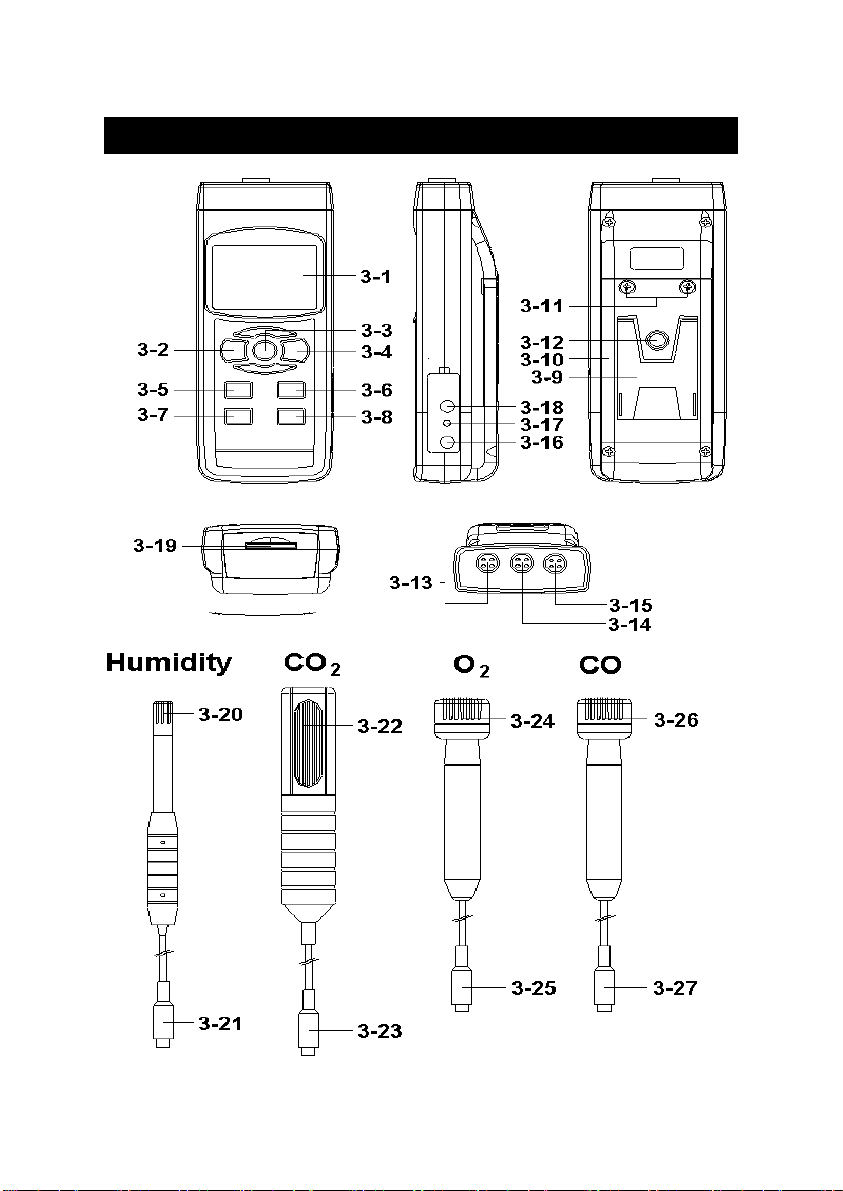

3. FRONT PANEL DESCRIPTION

Fig. 1
