Moxa Technologies MGate 5101-PBM-MN Manuel utilisateur

P/N: 1802051010012

*1802051010012*

MGate 5101-PBM-MN

Quick Installation Guide

Edition 3.0, May 2016

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The MGate 5101-PBM-MN is an industrial Ethernet gateway for PROFIBUS

and Modbus TCP network communication.

Package Checklist

Before installing the MGate 5101-PBM-MN, verify that the package

contains the following items:

•1 MGate 5101-PBM-MN gateway

•Documentation and Software CD

•Quick Installation Guide (printed)

•Product Warranty Statement

Please notify your sales representative if any of the above items are

missing or damaged.

Optional Accessories (can be purchased separately):

•CBL-F9M9-150: DB9-female-to-DB9-male serial cable, 150 cm

•CBL-F9M9-20: DB9-female-to-DB9-male serial cable, 20 cm

•Mini DB9F-to-TB: DB9-female-to-terminal-block connector

•WK-36-01: Wall-mounting kit

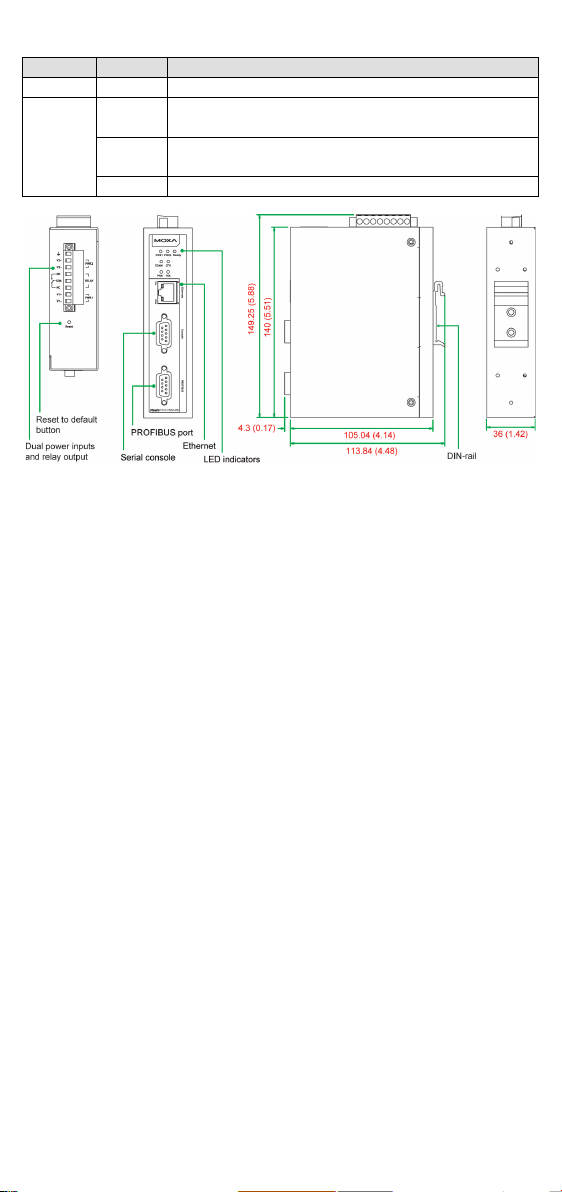

Hardware Introduction

LED Indicators

LED

Color

Function

PWR1

Green

Power is on

Off

Power is off

PWR2

Green

Power is on

Off

Power is off

Ready

Green

Steady on: Power is on and the MGate is functioning

normally

Blinking: The MGate has been located by the MGate

Manager’s Location function

Red

Steady on: Power is on and the MGate is booting up

Blinking: Indicates an IP conflict, or the DHCP or

BOOTP server is not responding properly

Off

Power is off or fault condition exists

COMM

Off

No data exchange

Green

Data exchange with all slaves

Green,

flashing

Data exchange with at least one slave (not all

configured slaves can communicate with gateway)

Red

Bus control error

CFG

Off

No PROFIBUS configuration

Green

PROFIBUS configuration OK

PBM

Off

PROFIBUS master is offline

Red

PROFIBUS master is in STOP mode

Green,

flashing

PROFIBUS master is in CLEAR mode

Green

PROFIBUS master is in OPERATE mode

TOK

Green

Gateway holds the PROFIBUS token

- 3 -

LED

Color

Function

Off

Gateway is waiting for the PROFIBUS token

Ethernet

Amber Steady: 10Mbps, no data is transmitting

Blinking: 10Mbps, data is transmitting

Green

Steady: 100Mbps, no data is transmitting

Blinking: 100Mbps, data is transmitting

Off

Ethernet cable is disconnected

Reset Button

The reset button is used to load factory defaults. Use a pointed object

such as a straightened paper clip to hold the reset button down for five

seconds. Release the reset button when the Ready LED stops blinking.

Hardware Installation Procedure

STEP 1

onnect the power adapter. Connect the 12-

48 VDC power line

or DIN

-rail power supply with the MGate 5101-PBM-MN

device’s terminal block.

STEP 2:

Use a PROFIBUS cable to connect the unit to a PROFIBUS slave

device.

STEP 3

Connect

the unit to the Modbus TCP device.

STEP 4:

The MGate 5101-PBM-MN series is designed to be attached to

a DIN

rail or mounted on a wall. For DIN-rail

mounting, push

down the spring and properly attach it to the

DIN-

rail until it

“snaps” into place. For wall

mounting, install the wall-mount

kit (optional) first

and then screw the device onto the wall.

- 4 -

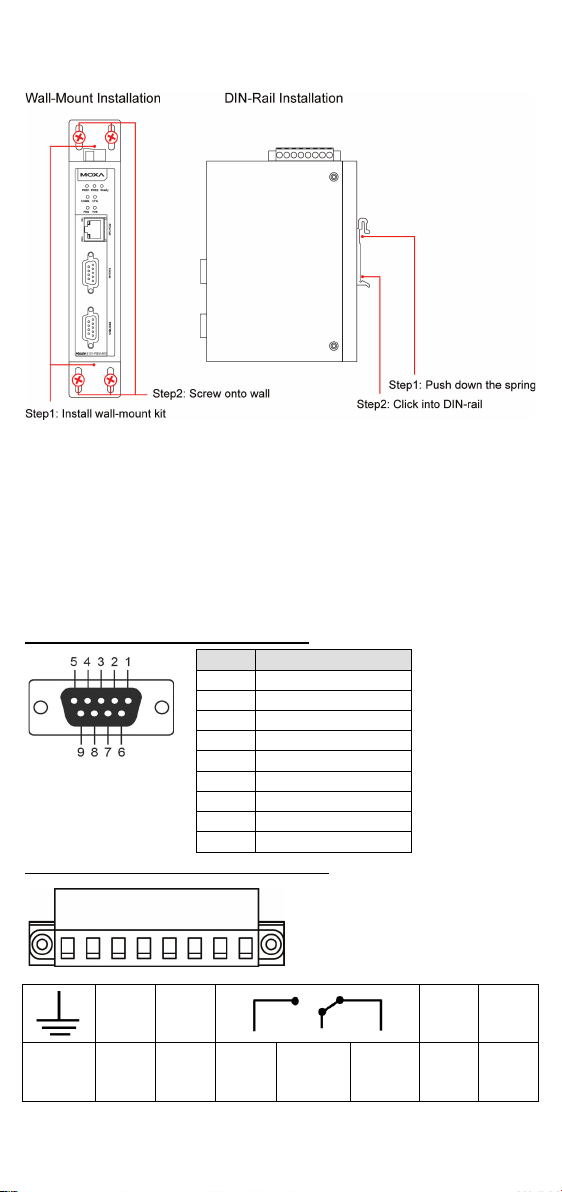

The following figure illustrates the two mounting options:

Software Installation Information

To install MGate Manager, insert the MGate Document & Software CD into

your PC’s CD-ROM drive. Once the installation window opens, click the

Installation button and follow the onscreen instructions. For more

detailed information about MGate Manager, click the Documents button

and select the MGate 5101-PBM-MN User’s Manual.

Pin Assignments

PROFIBUS Serial Port (Female DB9)

Signal Name

–

PROFIBUS D+

RTS

Signal common

–

PROFIBUS D-

–

Power Input and Relay Output Pinouts

V2+ V2-

V1+ V1-

Shielded

Ground

Power

Input 2

Power

Input 2

N.O. Common

N.C.

Power

Input 1

Power

Input 1

- 5 -

Specifications

Power Requirements

Power Input

12 to 48 VDC

Power Consumption

365 mA @ 12 VDC, 100 mA @ 48 VDC

Operating Temperature

0 to 60°C (32 to 140°F)

-40 to 75°C (-40 to 167°F) for –T model

Operating Humidity

5 to 95% RH

Dimensions

36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)

Reliability

Alert Tools

Built-in buzzer and RTC

MTBF

540,026 hrs.

ATEX: DEMKO 14 ATEX 1288X Rev. 0

IECEx: IECEx UL 14.0023X

Marking string: Ex nA nC IIC T4 Gc

Standards covered:

EN 60079-0: 2012+A11:2013/IEC 60079-0: Ed 6.0

EN 60079-15:2010/IREC 60079-15: Ed 4.0

Ambient temperature range:

0°C to 60°C (For models without suffix –T)

-40°C to 75°C (For models with suffix –T only)

Field-wiring connection:

The device uses a terminal block, solder on the power distribution board,

suitable for 12-24 AWG wire size, torque value 4.5 lb-in( 0.51 N-m).

Battery information: Battery is not user replaceable.

Installation instructions:

•A 4 mm2conductor must be used when the connection to the external

grounding screw is utilized.

•Conductors suitable for use at an ambient temperature of 84°C must

be used for the power supply terminal.

Special conditions for safe use:

•The device is to be installed in an IECEx/ATEX Certified IP54

enclosure and accessible only through the use of a tool.

•The device is for use in an area of not more than pollution degree 2 in

accordance with IEC 60664-1.

For installations in hazardous locations (Class 1, Division 2):

•Devices are to be installed in an enclosure with a tool-removable

cover or door, suitable for the environment.

•The equipment must be suitable for use in Class 1, Division 2, Groups

A, B, C, D, or nonhazardous locations only.

•WARNING - EXPLOSION HAZARD - Do not disconnect equipment

unless power has been switched off or the area is known to be

nonhazardous.

•WARNING - EXPLOSION HAZARD - Substitution of any components

may impair suitability for Class 1, Division 2.

- 6 -

•WARNING - EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE

SEALING PROPERTIES OF THE MATERIALS USED IN THE FOLLOWING

DEVICE: Sealed Relay Device U21.

Moxa Inc.

Fl. 4, No. 135, Lane 235, Baoqiao Rd.

Xindian Dist., New Taipei City, 23145

Taiwan, R.O.C.
