V2403 Series

Quick Installation Guide

Version 2.1, January 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The Moxa V2403 series fanless x86 embedded computer is based on the

Intel® 3rd gen Core-i™ series processor, features the most reliable I/O

design to maximize connectivity, and supports dual wireless modules,

making it suitable for a diverse range of communication applications. The

computer’s thermal design ensures reliable system operation in

temperatures ranging from -40 to 70°C with a special purpose Moxa

wireless module installed. The V2403 series supports “Moxa Hardware

Monitoring” for device I/O status monitoring and alerts, system

temperature monitoring and alerts, and system power management.

Closely monitoring system status makes it easier to recover from errors

and provides the most reliable platform for your applications.

Package Checklist

Before installing the V2403, verify that the package contains the following

items:

•V2403 embedded computer

•Terminal block to power jack converter

•Wall mounting kit

•Quick installation guide (printed)

•Warranty card

NOTE: Please notify your sales representative if any of the above

items are missing or damaged.

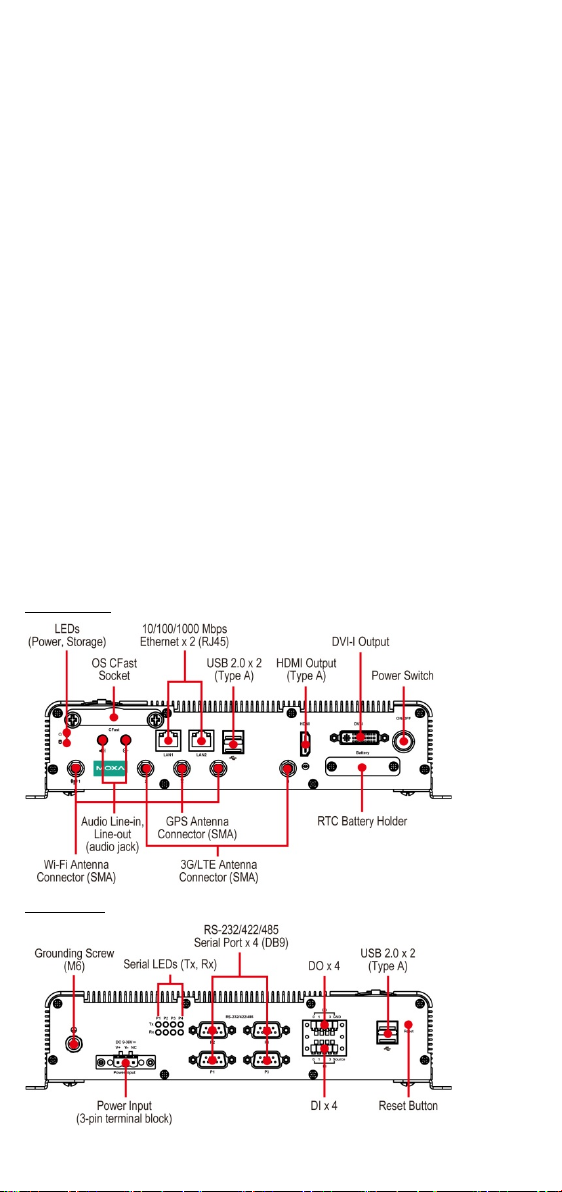

V2403 Panel Layout

The following figures show the panel layouts of the V2403.

Front View

Rear View

- 3 -

LED Indicators

The following table describes the LED indicators located on the front panel

of the V2403.

LED Name

LED Color

LED Function

Power

Green

Power is on and functioning normally.

Off

Power is off or power error exists.

Storage

Yellow

CFast card/HDD/SSD is transmitting data

Off

CFast card/HDD/SSD is not transmitting data

LAN (1 or 2)

Green

100 Mbps Ethernet mode

Yellow

1000 Mbps Ethernet mode

Off

10 Mbps or no activity

TX (P1-P4)

Green

Serial ports P1-P4 transmitting data

Off

Serial ports P1-P4 not transmitting data

RX (P1-P4)

Yellow

Serial ports P1-P4 receiving data

Off

Serial ports P1-P4 not receiving data

NOTE

The mini-PCIe card’s LED behavior depends on the module.

Installing the Mini-PCIe Modules and USIM Cards

ATTENTION

Select

“-W” models (e.g., V2403-C2-W-T) when placing V2403

order

s for wireless applications. Moxa will add 3 mini-PCIe

sockets during production. Note that

the internal storage kit

cannot be used with

“-W” models. To expand the storage of “-W

”

models, use an mSATA card.

The V2403 features 3 mini-PCIe sockets on the bottom panel.

•Socket 1: USB + PCIe signal, for Wi-Fi mini-PCIe card

•Socket 2: USB signal, for 3G/LTE mini-PCIe card (Sierra Wireless

MC7304, MC7354, MC9090)

•Socket 3: SATA signal (for mSATA)

- 4 -

Installing a mini-PCIe Card in Socket 1 and Socket 3

STEP 1: Loosen the 6 screws

the middle of the bottom

cover and

then open the

bottom cover.

STEP 2: Obliquely insert the mini-PCIe module card.

STEP 3: Push down the mini-PCIe module card and fasten it with the 2

black screws from the module card package you purchased from Moxa.

STEP 4: If you installed a wireless mini-PCIe card, connect the antenna

cables with wireless module card.

No.1 & No.3: Wi-Fi mini-PCIe card.

STEP 5: Replace the bottom cover.

Installing a mini-PCIe Card in Socket 2

STEP 1: Loosen the 6 screws

the middle of the bottom

cover and open the bottom

cover.

STEP 2: Get the upper heat sink cover from

the wireless package

STEP 3: Obliquely insert the mini-PCIe module card in socket 2, and

fasten it with the 2 black screws from the wireless package.

- 5 -

STEP 4: Connect the antenna cables to the

wireless module card

No.

2 & No. 4: 3G/LTE mini-PCIe card

No.

5: GPS

STEP 5: Use the fillister to obliquely buckle the heat sink that was already

installed inside the V2403 computer, as shown below:



STEP 6: Slightly push down the upper heat sink cover and use the silver

screw from the wireless package to fasten the upper heat sink cover

(outlined in red below).



STEP 7: Replace the bottom cover.

Installing the USIM card

The V2403 has 2 USIM slots for 3G/LTE wireless Internet connections.

Instructions for installing a USIM card are shown below:

Pull up the USIM card slot and insert the USIM card. When finished,

replace the holder and slide the slot towards the catch to fasten the

holder.



- 6 -

NOTE

You may also purchase 3G, 4G, and Wi-Fi external antennas from

from Moxa. Please contact Moxa sales representative for your

demand.

Installing the V2403

DIN-Rail Mounting

The V2403 can be installed on a DIN-rail with

the optional DIN

-rail kit. The DIN-rail kit

must be purchased separately. The DIN

rail

kit includes

two DIN-

rail brackets and eight

screws.

To attach the DIN-rail kit, complete the following steps:

1. Turn the V2403 over so the bottom is facing up.

2. Locate the screw holes on the bottom of the V2403.

3. Place the brackets on the bottom of the V2403 and align the screw

holes on the brackets with the screw holes on the V2403.

4. Insert and tighten the screws into the screw holes.

NOTE

Use all eight screws to ensure that the V2403 is safely and

securely installed on the DIN rail.

5. When the brackets are firmly attached with the screws, you can

install the V2403 onto a DIN-rail.

- 7 -

To remove the V2403 from the DIN-rail, first use a screwdriver to pull

down the DIN-rail connector to unlock it.

To re-install the V2403 on the DIN-rail, use a screwdriver to press the

buckle so that it can be released. At this point, it can be re-installed on the

DIN-rail.

Wall or Cabinet Mounting

The V2403 comes with two metal brackets for attaching it to a wall or the

inside of a cabinet.

Step 1: Use two screws for each bracket and attach the bracket to the

rear of the V2403.

Step 2: Use four screws per side to attach the V2403 to a wall or cabinet.

- 8 -

Connector Description

Power Connector

Connect the 9 to 36 VDC LPS or Class 2 power line to the V2403’s terminal

block. If the power is supplied properly, the Power LED will light up. The

OS is ready when the Ready LED glows a solid green.

Grounding the V2403

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

grounding screw (M4) to the grounding surface prior to connecting the

power.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

DVI-I Outputs

The V2403 comes with 1 DVI-I female connector for the DVI display. This

output interface is located on the front panel of the product. Be sure to

use the correct cable to connect the computer to the display.

HDMI Outputs

The V2403 comes with a type A HDMI female connector and a DVI-I

female connector on the front panel to connect an HDMI or DVI-I

supported monitor.

The screw hole above the HDMI connector is used to attach a customized

lock to the HDMI connector; a custom lock is needed since the shape of

different HDMI connectors are not the same. Please contact a Moxa sales

representative for details.

The lock appears as shown below:

The lock should appear as shown here after it is

attached to the V2403:

- 9 -

Ethernet Ports

The 10/100/1000 Mbps Ethernet ports use RJ45 connectors.

10/100 Mbps

1000 Mbps

ETx+

TRD(0)+

ETx-

TRD(0)-

ERx+

TRD(1)+

–

TRD(2)+

–

TRD(2)-

ERx-

TRD(1)-

–

TRD(3)+

–

TRD(3)-

Serial Ports

The serial ports use DB9 connectors. Each port can be configured by

software for RS-232, RS-422, or RS-485. The pin assignments for the

ports are shown in the following table:

RS-232 RS-422

RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

SATA Connector

The V2403 has 1 SATA-I/II connector for 2.5” SSD/HDD storage

expansion. To expand storage capacity, purchase an SSD/HDD and an

internal storage kit* through Moxa’s CTO** service.

Must be purchased separately for installing an SSD/HDD. For details,

check the optional accessories section of the V2403 datasheet.

CTO = Configure to order

mSATA Connector

The V2403 has 1 mini-PCIe socket with SATA signal for storage expansion.

Follow the “Installing the Wireless Modules” instructions.

CFast Slot

The V2403 has 2 CFast sockets. One slot is located on the front panel for

OS storage and the other slot is located inside the V2403 for backup OS

storage. Both slots support CFast Type-I/II with DMA mode.

To install an OS CFast card, remove the outer cover and insert the CFast

card in the socket. When finished, push the cover into the socket and

refasten the screws.

To install a CFast card for backup storage, purchase a CFast card through

Moxa’s CTO service. Refer to the V2406A datasheet for more information.

USB Hosts

The V2403 has 4 USB 2.0 Type A connectors. 2 USB ports are located on

the front panel; the other 2 USB ports are located on the rear panel. The

port supports keyboard and mouse, and can also be used to connect a

FlashDisk for storing large amounts of data.

- 10 -

Audio Interface

The V2403 comes with a Line-in audio connector for audio input and a

Line-out audio connector for audio output, allowing users to connect a

speaker or earphones.

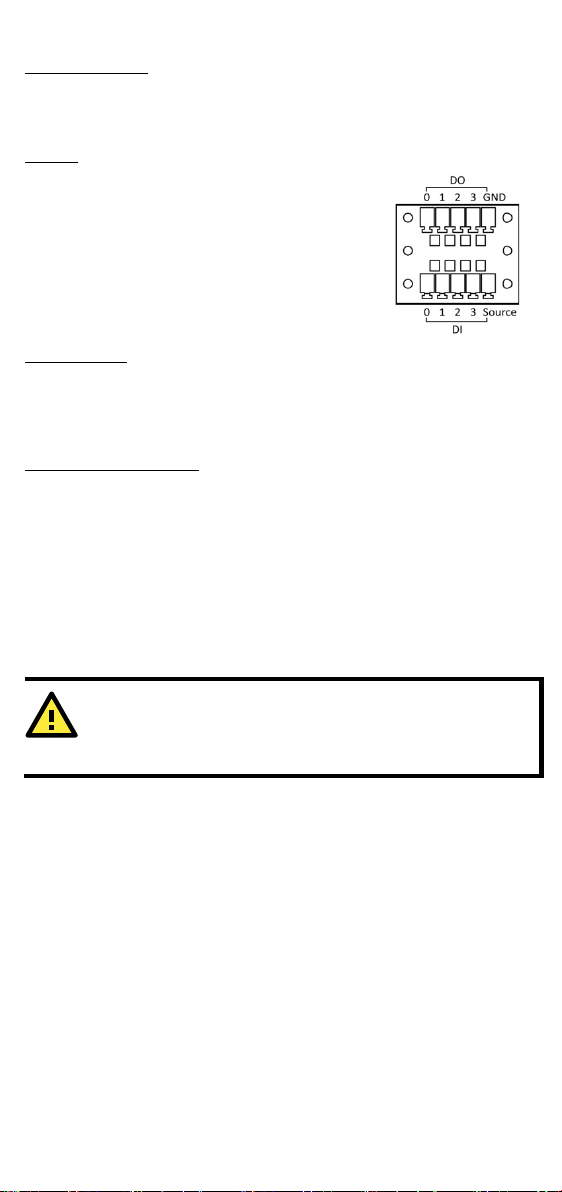

DI/DO

The V2403 comes with 4 digital inputs and 4 digital

outputs

on a 2x5 terminal block.

Reset Button

Press the “Reset Button” on the rear panel of the computer to reboot the

system automatically. Pushing the reset button will restart system

immediately. Be aware that all unsaved data will be lost when pushing

this button.

Real-time Clock (RTC)

The V2403’s real-time clock is powered by a lithium battery. You can

easily replace the battery yourself using an optional battery kit*. However,

please note that there is a risk of explosion if the battery is replaced by an

incorrect type of battery. Refer to the V2403 Hardware User's Manual or

contact a qualified Moxa support engineer if you have any questions

about the RTC battery.

Moxa offers an “RTC battery kit” that you can use to easily replace the

battery. For details, check the optional accessories section of the V2403

datasheet.

ATTENTION

There is a risk of explosion if the battery is replaced by an

incorrect type of battery.

Powering on the V2403

To power on the V2403, connect the “terminal block to power jack

converter” to the V2403’s DC terminal block (located on the side panel),

and then connect the 9 to 36 VDC power adapter. Press the Power Button

to turn on the computer. Note that the Shielded Ground wire should be

connected to the top pin of the terminal block. It takes about 30 seconds

for the system to boot up. Once the system is ready, the Power LED will

light up.

Autres manuels pour V2403 Series

Table des matières

Autres manuels Moxa Technologies Ordinateur de bureau

Moxa Technologies

Moxa Technologies THINKCORE W311 Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-681 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-661 Instructions d'utilisation

Moxa Technologies

Moxa Technologies THINKCORE W311 Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-5150-DC-CP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8540 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-7112 Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-7408 series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-681 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2406A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2616 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-680 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-7270-DC-CP-T Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-2100-W Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2101 series Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-5150-DC Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-3201 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies IA261 Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-7402-LX Plus Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8410A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-7408 series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2406A Series Instructions d'utilisation

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
