Moxa Technologies DA-720-C5-DPP Manuel utilisateur

P/N: 1802007200010

*1802007200010*

DA-720-DPP Series

Quick Installation Guide

x86 Rackmount Embedded Computers

Edition 1.0, January 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The DA-720-DPP series computers are x86 platforms with 14 Gigabit

Ethernet ports, 2 isolated RS-232/422/485 serial ports, USB, VGA, and 2

PCIe ports for expansion modules. The DA-720-DPP comes in a standard

19-inch 2U rack-mountable case. Its robust design is ideal for specialized

industrial automation applications, including power substations,

transportation and shipping, and oil and gas production and supply.

IEC-61850-3 and IEEE 1613 compliance ensures that the DA-720-DPP

can deliver stable and reliable system operations in power applications.

The DA-720-DPP also complies with the IEC 60255 standards to provide

electrical protection relays for use in a smart substation. IEC 60255 is one

of the most widely used standards for testing relays and protection

equipment, and compliance with the standard ensures that DA-720-DPP

will work reliably and efficiently with IEDs as part of a robust substation

automation system.

EN 50121-4 compliance ensures that the DA-720-DPP can deliver stable

and reliable system operations in rail track-side applications.

The DA-720-DPP comes with two different CPU options and basic models

that allow system designers to install the mSATA interface, RAM, and

operating system according to their specific requirements. This flexibility

is particularly helpful when designing customized industrial solutions.

The DA-720-DPP is provided with 2 PCIe ports for expansion modules,

which include 8-port RS-232/422/485 module as well as 4-port and

8-port 10/100/1000 Mbps LAN modules. The DA-720-DPP computer can

support up to 22 Gigabit LAN ports plus 10 serial ports, or 14 Gigabit LAN

ports plus 18 serial ports, making it an ideal solution for a wide range of

industrial automation applications.

Model Names and Package Checklist

The DA-720-DPP series includes the following models:

•DA-720-C5-DPP: Rackmount computer with Core i5-6300U,

2.4 GHz, dual-core CPU, without mSATA/RAM/OS, 14 gigabit

Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion

slots, VGA x 1, DVI-D x 1, 4 USB hosts, IEC 61850-3 compliant,

-25 to 55°C operating temperature

•DA-720-C5-DPP-LX: Rackmount computer with Core i5-6300U,

2.4 GHz, dual-core CPU, with 8G mSATA, 4G RAM and Linux Debian 8

64-bit OS preinstalled, 14 gigabit Ethernet ports, 2 isolated

RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1,

4 USB hosts, IEC 61850-3 compliant, -25 to 55°C operating

temperature

•DA-720-C7-DPP: Rackmount computer with Core i7-6600U,

2.6 GHz dual-core CPU without mSATA/RAM/OS, 14 gigabit Ethernet

ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots,

VGA x 1, DVI-D x 1, 4 USB hosts, IEC 61850-3 compliant, -25 to 55°C

operating temperature

•DA-720-C7-DPP-LX: Rackmount computer with Core i7-6600U,

2.6 GHz dual-core CPU, with 8G mSATA, 4G RAM and Linux Debian 8

64-bit OS preinstalled, 14 gigabit Ethernet ports, 2 isolated

RS-232/422/485 ports, 2 PCIe expansion slots, VGA x1, DVI-D x 1,

4 USB ports, IEC 61850-3 compliant, -25 to 55°C operating

temperature

- 3 -

NOTE

To order a DA-720 system with a pre-installed Windows 10

Enterprise LTSB 64

Bit OS, please contact a Moxa sales

representative.

Each basic system model is shipped with following standard items:

•DA-720-DPP embedded computer

•Rackmount kit

•Documentation and software CD or DVD

•Quick installation guide (printed)

•Warranty card

Hardware Installation

Front View

Rear View

Connecting the Power

The DA-720-DPP has dual power inputs. Use a Phillips screwdriver to

remove the terminal clamp screws. Connect the power cord to the screws,

and then fasten the screws to the unit. Refer to the following figure for

detailed information:

- 4 -

AC Terminal

DC Terminal

Power Terminal Block Pin Assignment

Terminal

Number

Description Note

PWR1

Line/DC+

PWR1 Line/DC+ is connected to the positive

(+) terminal if the power source is DC, or to

the Line terminal if the power source is AC.

PWR1

Neutral/DC-

PWR1 Neutral/DC-is connected to the

negative (-) terminal if the power source is

DC, or to the Neutral terminal if the power

source is AC.

Reserved for future customization.

Signal Ground

Signal Ground should be connected to the

ground terminal for AC power source 1.

Reserved for future customization.

Signal Ground

Signal Ground should be connected to the

ground terminal for AC power source 2.

Reserved for future customization.

PWR2

Line/DC+

PWR2 Line/DC+ is connected to the positive

(+) terminal if the power source is DC, or to

the Line terminal if the power source is AC.

PWR2

Neutral/DC-

PWR2 Neutral/DC-is connected to the

negative (-) terminal if the power source is

DC, or to the Neutral terminal if the power

source is AC.

After you have connected the power cords to the power input unit, the

system will automatically boot up. Depending on the operating system

installed, the boot-up process will take about 30 to 60 seconds.

Front Panel LEDs

There are 60 LED indicators on the front panel of the DA-720-DPP.

Information about each LED is given in the following table:

LED

Color

Description

Power

Green

Power is on

Off No power input or a problem in the

power supply

Storage

Yellow/Blinking

Data is being written to or read from

the storage unit

Off

Storage unit is idle

Power Input 1

Status

Red

Power Input 1 has failed

Off

Power is being properly supplied to

Power Input 1

- 5 -

LED

Color

Description

Power Input 2

Status

Red

Power Input 2 has failed

Off

Power is being properly supplied to

Power Input 2

Gigabit Ethernet

LEDs 1-14

Green

Ethernet link is up

Blinking

Ethernet is transmitting or receiving

data

Off

No connection

Serial Port TX 1-2

Green/Blinking

Serial port is transmitting data

Off

No operation on the serial TX ports

Serial Port RX 1-2

Yellow/Blinking

Serial port is receiving data

Off

No operation on the serial RX ports

Programmable 1-4

Green

As defined by the user

Connecting to a Display

The DA-720-DPP comes with two display ports, one VGA and one DVI-D

display ports that support both clone and extend modes.

USB Ports

The DA-720-DPP comes with four USB ports, two USB 3.0 ports on the

rear panel and two USB 2.0 ports on the front panel. Users may use these

USB ports to connect keyboard, mouse, or other peripherals such as flash

drives to expand the system’s storage capacity.

Ethernet Ports

The DA-720-DPP provides 14 100/1000 Mbps Ethernet RJ45 ports. The

pin assignments are shown in the table below:

100 Mbps

1000 Mbps

Tx+

TRD(0)+

Tx-

TRD(0)-

Rx+

TRD(1)+

–

TRD(2)+

–

TRD(2)-

Rx-

TRD(1)-

–

TRD(3)+

–

TRD(3)-

The default IP addresses and netmasks of the Ethernet ports are as

follows:

Default IP Address

Netmask

LAN 1

192.168.3.127

255.255.255.0

LAN 2

192.168.4.127

255.255.255.0

LAN 3

192.168.5.127

255.255.255.0

LAN 4

192.168.6.127

255.255.255.0

LAN 5

192.168.7.127

255.255.255.0

LAN 6

192.168.8.127

255.255.255.0

LAN 7

192.168.9.127

255.255.255.0

LAN 8

192.168.10.127

255.255.255.0

LAN 9

192.168.11.127

255.255.255.0

LAN 10

192.168.12.127

255.255.255.0

LAN 11

192.168.13.127

255.255.255.0

LAN 12

192.168.14.127

255.255.255.0

LAN 13

192.168.15.127

255.255.255.0

LAN 14

192.168.16.127

255.255.255.0

- 6 -

NOTE

The Windows 7E and Windows 10 models use DHCP for IP

address assignment.

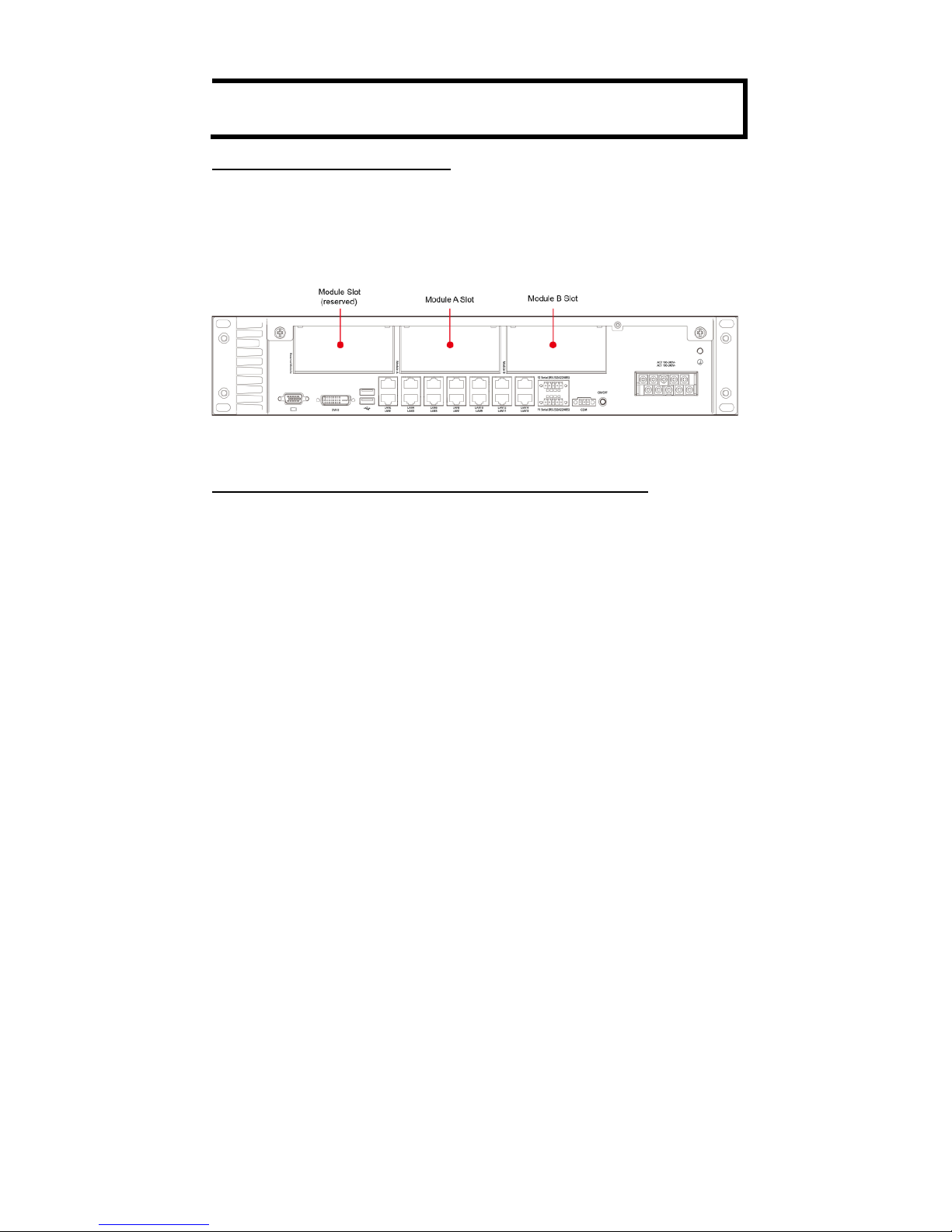

Installing Expansion Modules

The DA-720-DPP is provided with two expansion slots, which can be used

to connect Moxa’s DE Series expansion modules. Slot A is available for

both serial and LAN modules while slot B is for serial module only. You can

mount expansion modules using these slots located on the rear panel of

the DA-720-DPP.

Configuring the Ethernet Interface

Moxa Debian 8 Linux users should follow these steps:

If you are using the console cable to configure network settings for the

first time, use the following commands to edit the interfaces file:

STEP 1: Take all network interfaces offline, before you reconfigure the

LAN settings using the following command:

Moxa:~# ifdown –a

STEP 2: Edit the network interfaces file.

You can use a text editor of your choice, but VI is the default text editor on

the DA-720-DPP.

Moxa:~#vi /etc/network/interfaces

STEP 3: Set the DA-720-DPP for either dynamic IP addressing or static

addressing.

To set it for dynamic IP addressing, enter the following lines into

the network interfaces file:

# The primary network interface

auto eth0

iface eth0 inet dhcp

To set an interface for static IP addressing, use the following

configuration:

# The loopback network interface

auto lo

iface lo inet loopback

# The first LAN interface, LAN 1

auto eth0

iface eth0 inet static

address 192.168.3.127

netmask 255.255.255.0

broadcast 192.168.3.255

# The second LAN interface, LAN 2

- 7 -

auto eth1

iface eth1 inet static

address 192.168.4.127

netmask 255.255.255.0

broadcast 192.168.4.255

Each interface must be configured with separate entries in the

network/interfaces file. LAN1 corresponds to eth0, LAN 2

corresponds to eth1, and so forth for the remaining interfaces.

STEP 4: Exit the text editor.

Use the following command to exit VI:

:wq

STEP 5: After the interfaces file has been configured, use the following

command to reinitialize the network interfaces and to activate the new

settings:

Moxa:~#sync; ifup –a

Windows 7E and Windows 10 users should follow these steps:

Step 1: Go to Start Control Panel Network and Internet 

Network Connections.

Step 2: In Local Area Connection Properties, select Internet

Protocol Version 4 (TCP/IPv4) and click Properties.

Step 3: Click OK after entering the preferred IP address and netmask.

NOTE

For additional configuration settings, re

fer to the DA-720-DPP

software user’s manual for the OS installed on your machine.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Ordinateur de bureau

Moxa Technologies

Moxa Technologies DA-682A-DPP Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies DA-681 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2101 series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-3100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-5157-AC/DC Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-1200A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies DA-820 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies e V2416A-C2 Manuel utilisateur

Moxa Technologies

Moxa Technologies THINKCORE W345 Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-682C Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-660A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2426A Manuel

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manuel utilisateur

Moxa Technologies

Moxa Technologies V2406A Series Manuel

Moxa Technologies

Moxa Technologies UC-8410A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V3200 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MPC-2121 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2403 Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-7408 series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-7112 LX Plus Instructions d'utilisation

Moxa Technologies

Moxa Technologies V3200 Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-8410A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies DRP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-820C Series Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
