Moxa Technologies DRP Series Manuel utilisateur

P/N: 1802001004010

*1802001004010*

DRP Series

Quick Installation Guide

Version 1.0, September 2023

Technical Support Contact Information

www.moxa.com/support



2023 Moxa Inc. All rights reserved.

- 2 -

Overview

The DRP series DIN-rail computers are powered by an Intel Atom®,

Intel® Celeron®, or Intel® Core™ i5/i7 processor. The computers

come with a rich set of interface options including up to 8 software-

selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet

ports. The communication interfaces are located on the front and rear

sides of the product, enabling easy access and expansion for industrial

applications. A dual-storage design that includes CFast and SD slots

enables easy storage expansion. The unique battery fastener cover

design for the battery slot secures the battery in place and ensures

stability in all operating environments.

Designed as compact fanless computers with operating temperature

range of -30 to 60°C and built-in TPM 2.0 module, the DRP computers

are ideal as reliable and secure computing platforms for both IT/ OT

applications in extreme operating environments.

Package Checklist

Before installing the DRP Series, verify that the package contains the

following items:

•DRP Series computer with DIN-rail kit

•2-pin terminal block for DC power

•Quick installation guide (printed)

•Warranty card

NOTE

Please notify your sales representative if any of the above

items are missing or damaged.

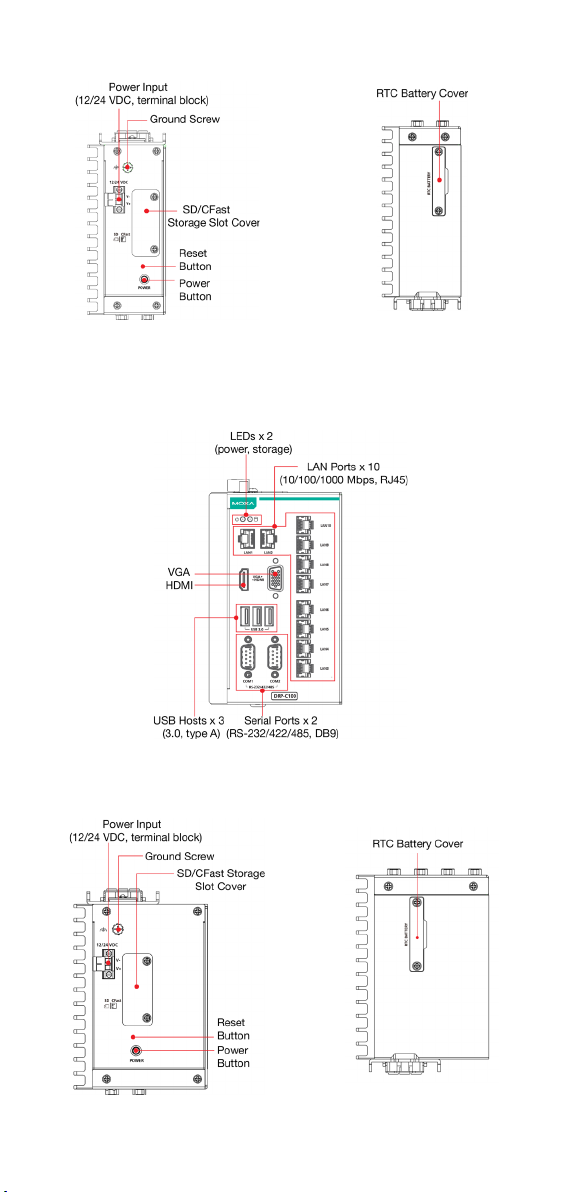

Panel Layouts

The panel layouts of the DRP series computers are shown in the

following illustrations:

DRP-C100-C1-T/DRP-C100-C5-T/DRP-C100-C7-T Models

Front View

- 3 -

Top View

Bottom View

DRP-C100-C1-8L-T/DRP-C100-C5-8L-T/DRP-C100-C7-8L-T Models

Front View

Top View

Bottom View

- 4 -

DRP-C100-C1-6C-T/DRP-C100-C5-6C-T/DRP-C100-C7-6C-T Models

Front View

Top View

Bottom View

- 5 -

DRP-C100-C1-2L4C-T/DRP-C100-C5-2L4C-T/DRP-C100-C7-2L4C-T Models

Front View

Top View

Bottom View

- 6 -

DRP-A100-E2-T/DRP-A100-E4-T Models

Front View

Top View

Bottom View

- 7 -

DRP-A100-E2-8L-T/DRP-A100-E4-8L-T Models

Front View

Top View

Bottom View

- 8 -

DRP-A100-E2-6C-T/DRP-A100-E4-6C-T Models

Front View

Top View

Bottom View

- 9 -

DRP-A100-E2-2L4C-T/DRP-A100-E4-2L4C-T Models

Front View

Top View

Bottom View

- 10 -

Dimensions

DRP-C100-C1-T/DRP-C100-C5-T/DRP-C100-C7-T/DRP-A100-E2-T/DRP-

A100-E4-T Models

DRP-C100-C1-8L-T/DRP-C100-C5-8L-T/DRP-C100-C7-8L-T/DRP-A100-E2-

8L-T/DRP-A100-E4-8L-T Models
