Mountup MU0026 Manuel utilisateur

Dual Monitor Counterbalance Desk Mount

Instruction Manual

If you have any questions , please contact us via: [email protected]

MU0026 75x75

100x100

(1~8kg)x2

(2.2~17.6lbs)x2

32"

V2.0

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of

this product, contact Customer Service via [email protected].

Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed

weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

NOTE: Not all hardware included will be used.

DO NOT EXCEED WEIGHT CAPACITY.

WARNING!

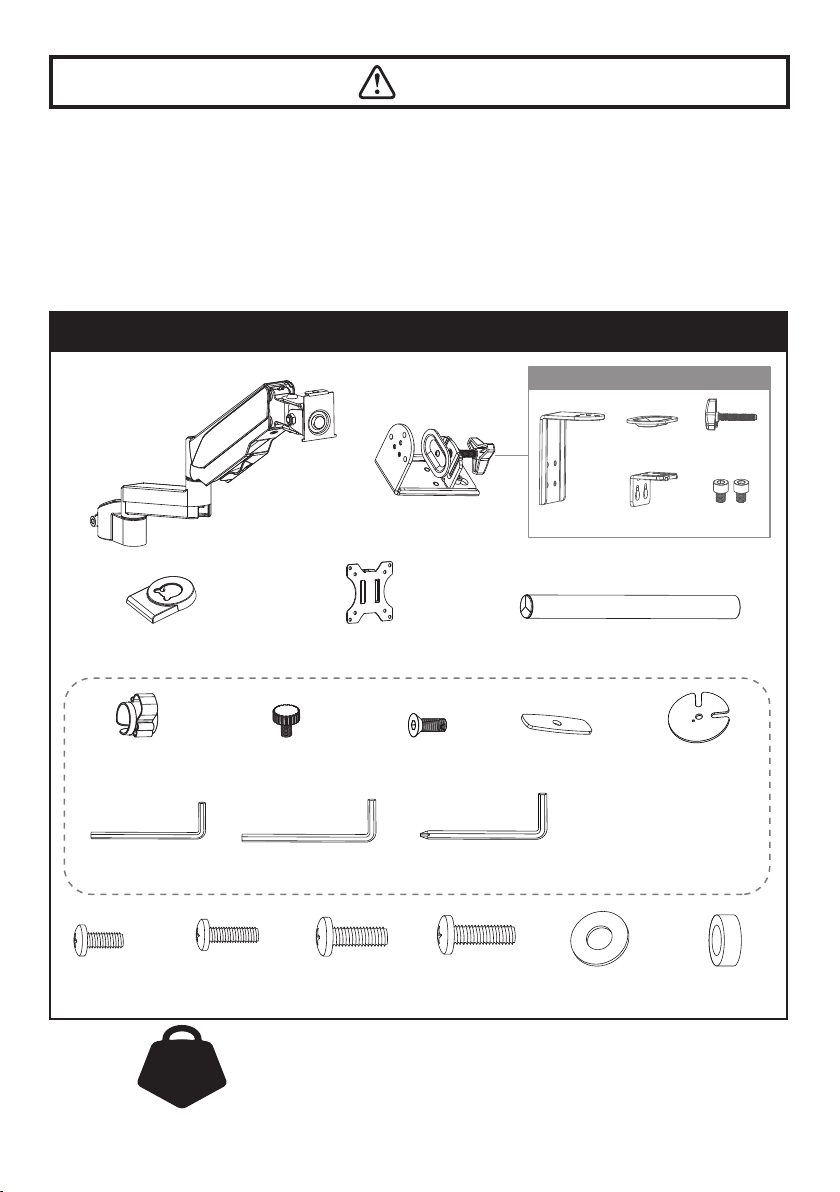

PACKAGE CONTENTS

(2.2~17.6lbs)x2

(1~8kg)x2

A (x2)

Arm

B (x1)

Clamp

All are included in B

Bracket

Clip Plate

Bolts

Bottom Plate

Bolt Y

C (x1)

Decorative cover

F (x1)

Wire clip

J (x1)

Grommet Base

G (x2)

Bolt

H (x3)

Bolt

I (x1)

Support Plate

K(x1)

4mm Allen Key

L(x1)

5mm Allen Key

M(x1)

6mm Allen Key

E(x1)

Pole

D (x2)

VESA Plate

M-E (x8)

D6 Washer

M-C (x8)

M6x12 M-F (x8)

Spacer

M-B (x8)

M4x16

M-D (x8)

M6x16

M-A (x8)

M4x12

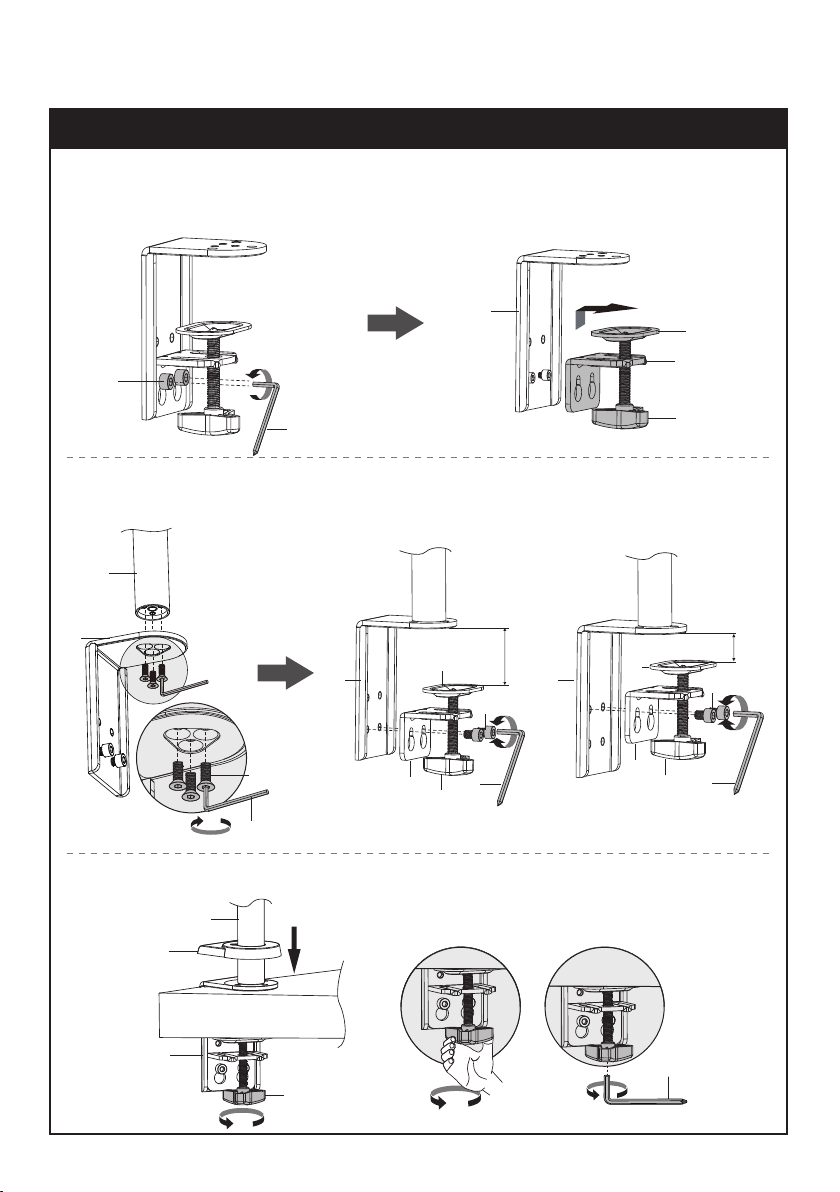

Loosen Bolts (B5) by using 6mm Allen Key (M), then lift clip plate (B2), bottom plate (B3), and bolt Y (B4) a little

to release them from bracket (B1).

Attach clip plate(B2), bottom plate(B3), bolt Y(B4), to bracket (B1) using bolts (B5) and 6mm allen key (M).

Mount according to the thickness of desktop.

Mount bracket (B1) to pole(E) using bolts (H). Tighten using 4mm allen key(K).

ASSEMBLY STEPS

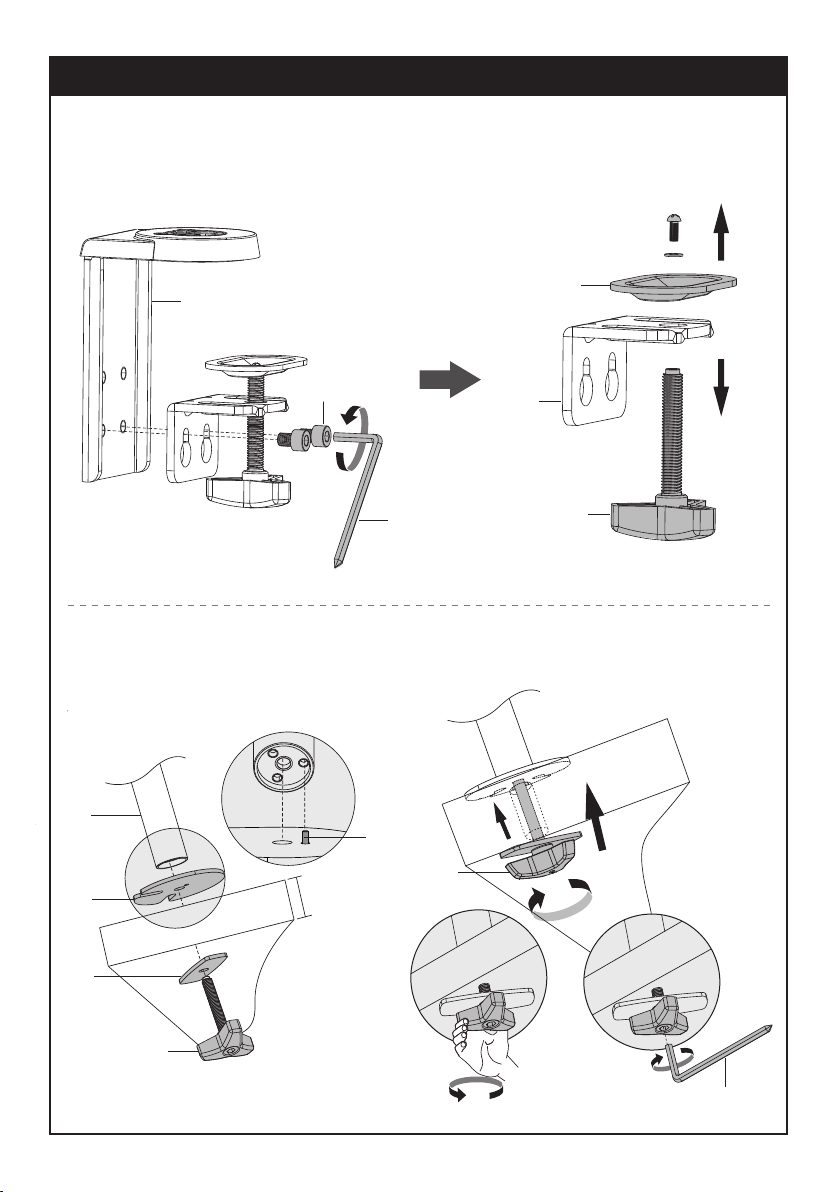

STEP 1: Clamp Installation OR Grommet Base Installation

35-80mm

10-45mm

B1B1

B2B2

OPTION A: Clamp Installation

Decorative cover (C) to pole(E) and secure stand to desktop by tightening clamp (B). Tighten bolt Y (B4) or

by using 6mm allen key (M).

OPTION B: Grommet Base Installation

Use 6mm allen key(M) to detach the bolt(B5), clip plate(B2),bottom plate(B3) and bolt Y(B4) from clamp(B).

STEP 1: (Continued)

Install the grommet base plate(J) to the pole (E) using bolt (H).

Install pole(E) with bolt Y(B4) and support plate(I). Tighten bolt Y (B4) or by using 6mm allen key (M).

0-51mm

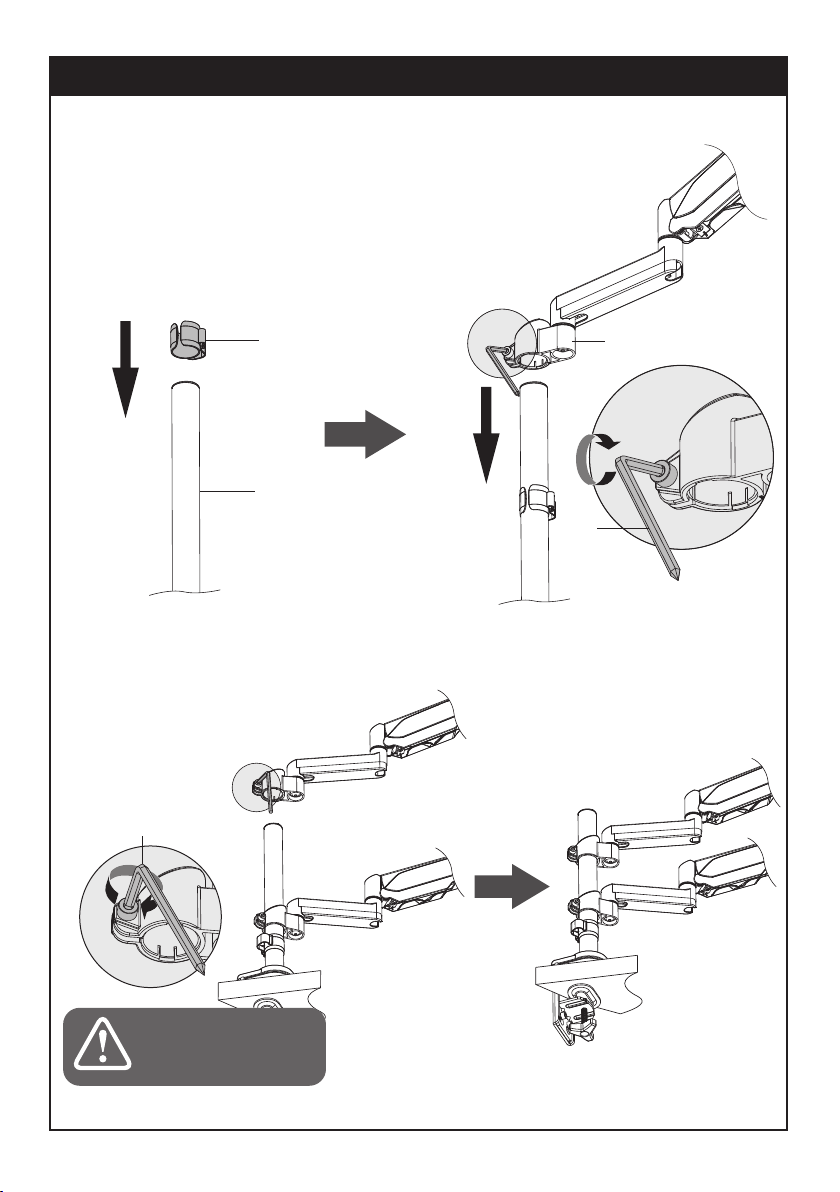

Install the wire clip(F) and swivel arm(A) to the pole(E).

Fasten the bolt with supplied 6mm Allen key (M)

STEP 2 : Arm Installation

Just tighten the bolt, do not

over tighten it in case the

cast aluminum part could

be damaged.

NOTE: Hand tighten screws to avoid over tightening.

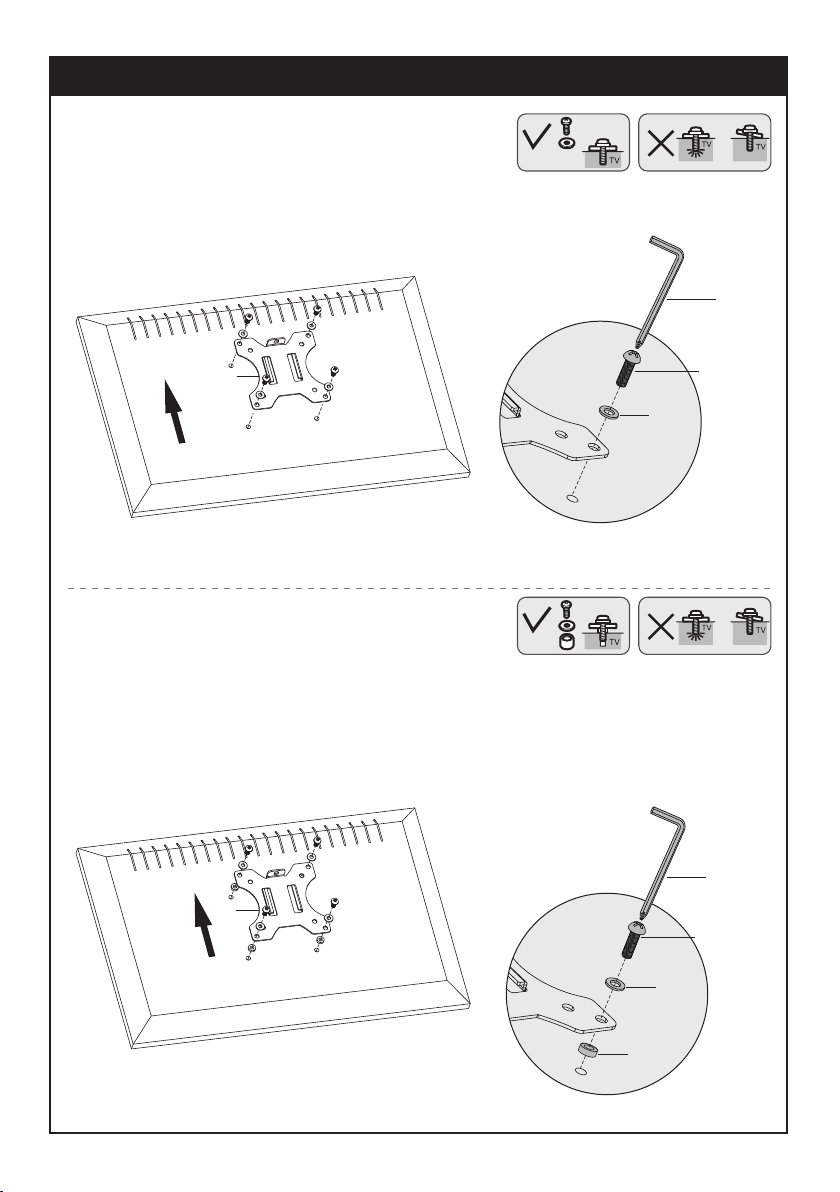

STEP 3 : Attach Monitor

M-A

M-C

M-E

M-B

M-D

M-E

M-F

OPTION B: Curved Back Monitor

Attach the VESA plate (D) to back of monitor and secure

with screws (M-B) or (M-D) with washers (M-E)and

spacers(M-F)using 6 mm Allen Key (M). Avoid excessive

tightening screws damage the monitor.

OPTION A: Flat Back Monitor

Attach the VESA plate (D) to back of monitor and

secure with screws(M-A)or(M-C) with washers(M-E)

using 6 mm Allen Key (M). Avoid excessive

tightening screws damage the monitor.

Slide the monitors onto the head of swivel arm.Install the security bolt (G). Make sure the security bolt is

installed before you rotate the monitor.

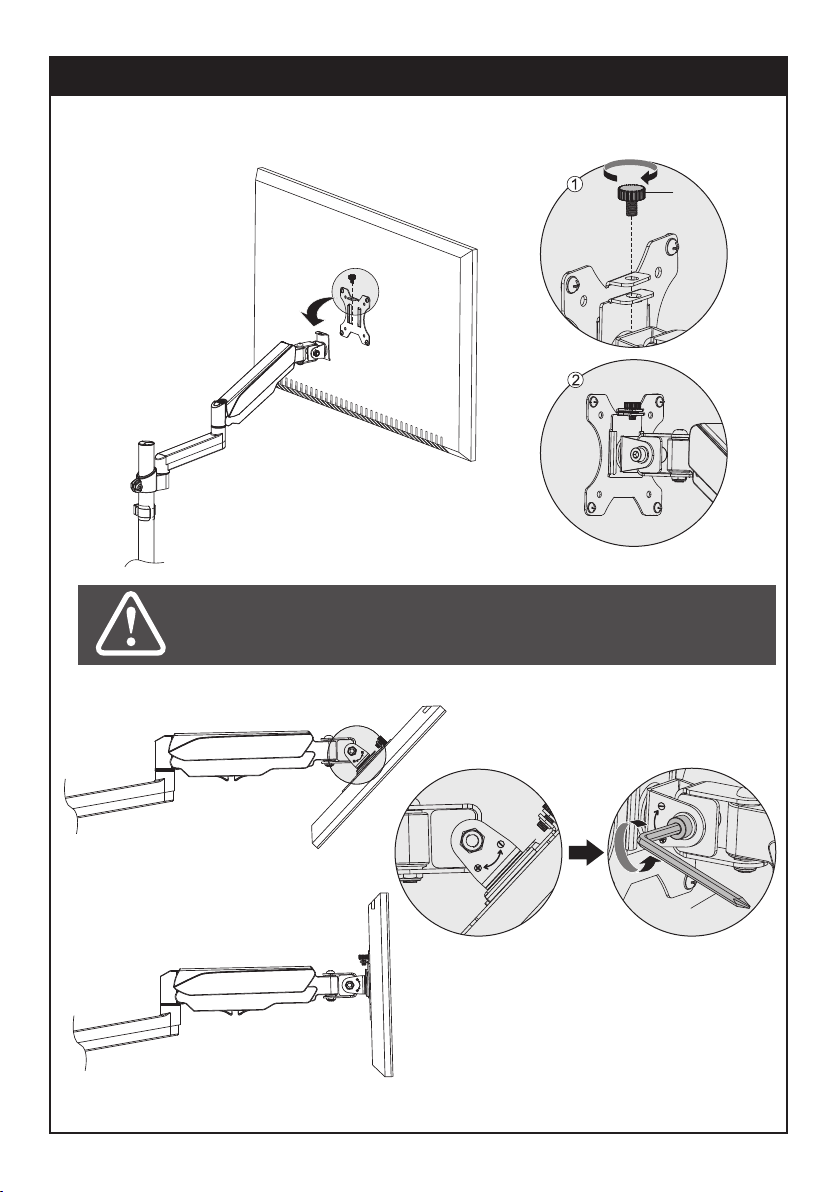

STEP 4 : Hang Monitor

Refer to below illustrations to

adjust tilting angle of your monitor.

Note: Fasten/loosen the tilting bolt

as needed per arrow direction (+/-)

shown in above diagram.

Note：

Be sure to keep the arm in horizontal

position during adjustment. Or else it

would be dicult to adjust the mount

or damage the mount.

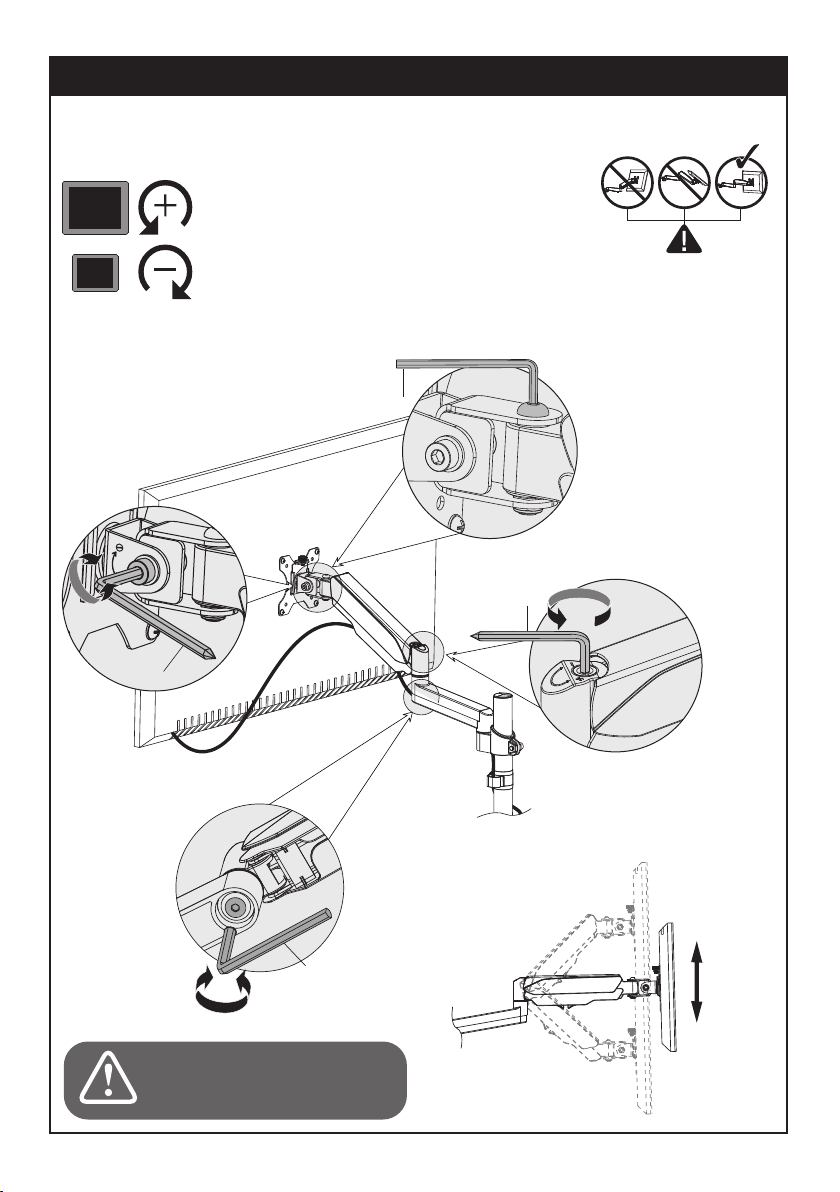

STEP 5 : Adjust Tension

For proper functioning of this mount, depending on dierent weight of monitor you might need to adjust

tension in gas spring arm (A) using 6 mm Allen Key (M).

Note: When tilted, if the monitor sags or

does not stay, please fasten the tilting bolt

on the mount until the monitor can be held

at any angle as needed

If necessary, refer to above illustrations

to adjust the level of tightness of the

arms.

CAUTION

After being attached to the arm, the monitor falls down

and can not stay at the desired height by itself.

Turn counter-clockwise(“+”direction) to increase gas

spring tension until the monitor can stay at the desired

Height by itself.

After being attached to the arm, the monitor rises up and

can not stay at the desired height by itself.

Turn clockwise(“-”direction) to reduce gas spring tension

until the monitor can stay at the desired Height by itself.

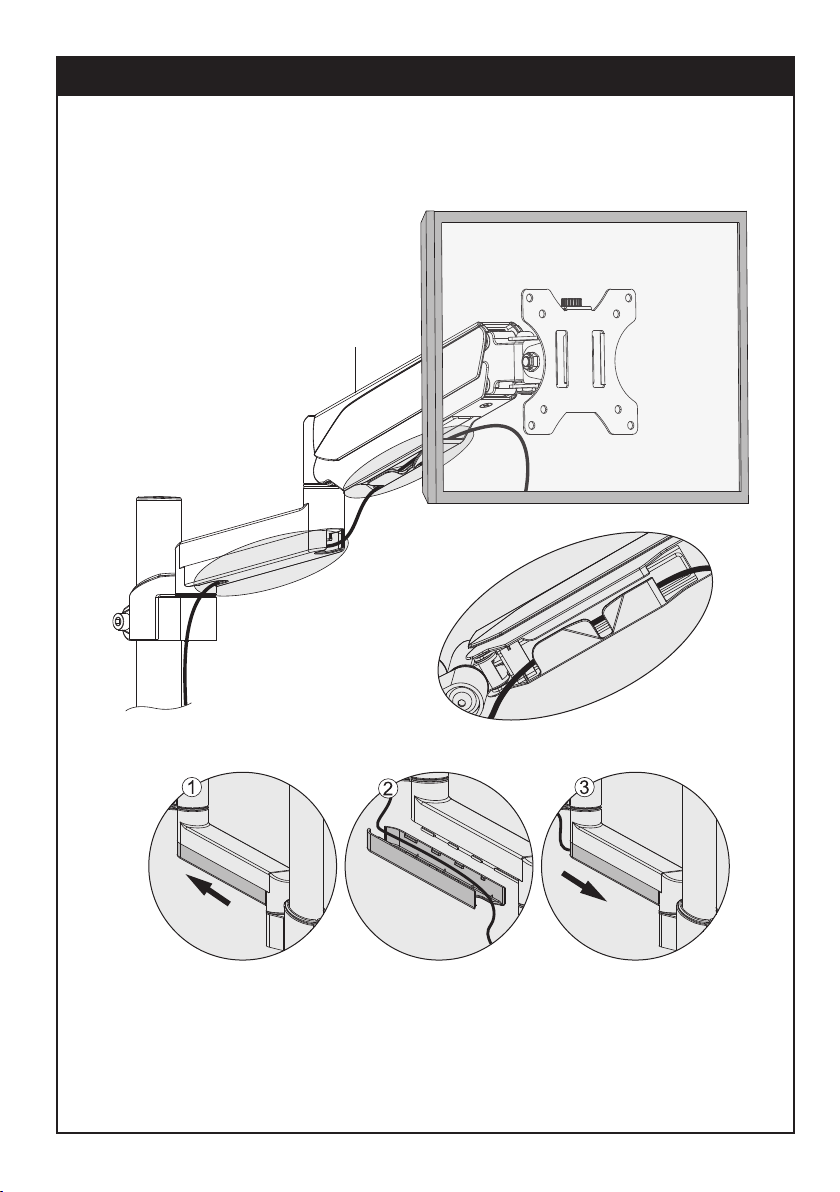

STEP 6 : Cable Management

Remove bottom plastic covers from gas spring arm (A) .Run cables from monitor through bottom of

gas spring arm (A). Reattach plastic covers as shown in diagram.

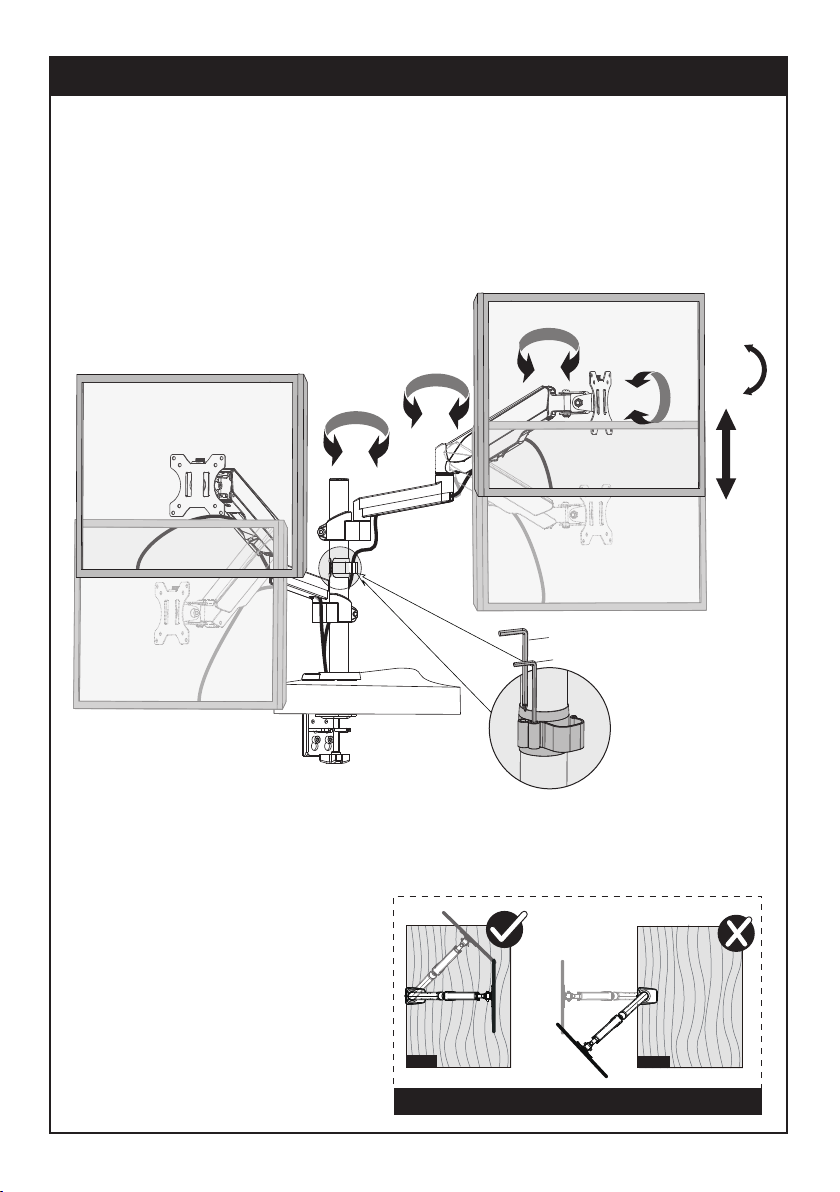

Adjust as Desired

DESK DESK

Pay attention while clamp install !

±180°

±135°

±180°

+35°

-35°

±90°
