Mountup MU4002 Manuel utilisateur

Single Monitor and Laptop Tray Desk Mount

Instruction Manual

If you have any questions , please contact us.

MU4002

V3.0

75x75

100x100

(8kg/17.6lbs)x2

27"

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of

this product, please contact us.

Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly specied in this manual. Do not exceed

weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

This product contains small items that could be a choking hazard if swallowed. NOT FOR CHILDREN UNDER 3 YEARS.

ADULT SUPERVISION IS REQUIRED.

NOTE: Not all hardware included will be used.

DO NOT EXCEED WEIGHT CAPACITY.

WARNING!

PACKAGE CONTENTS

(17.6lbs)x2

(8kg)x2

B (x2)

Swivel Arm

C (x1)

Clamp D (x1)

Pole

G (x3)

Bolt

F (x1)

Base Plate

K(x1)

4mm Allen Key

H(x1)

Support Plate

M(x1)

Laptop Tray

N(x4)

Pad

O(x4)

Screw

P(x4)

Nut

Q(x1)

Strap

L(x1)

6mm Allen Key

J(x2)

Bolt

I(x4)

Wire clip

E(x1)

Wire Clip

A (x2)

VESA Plate

M-E(x4)

D6 Washer

M-A (x4)

M4x12

M-B (x4)

M4x16

M-C (x4)

M6x12

M-D (x4)

M6x16

M-F (x4)

Spacer

OPTION A: Clamp Installation

Install the Clamp (C) to the Pole (D) using 3pcs Bolt(G). Tighten using 4mm Allen key (K).

Secure stand to the desktop by tightening the plastic knob or by using 6mm Allen key (L).

ASSEMBLY STEPS

STEP 1: Clamp Installation OR Grommet Base Installation

10-80mm

STEP 1: (Continued)

OPTION B: Grommet Base Installation

If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing

the desk mount.

Loosen the screw, separate the clamp (C) into two parts.

Install the Base Plate (F) to the Pole(D）using 1pc of Bolt (G).

Install the pole (D) on the desktop using the support plate (H) and the bolt separated from clamp(C).

Secure stand to desktop by tightening the plastic knob or by using 6mm Allen key (L).

10-80mm

DESK

ø 0.39"~3.1"

STEP 2 : Arm Installation

Install wire clip (E) and two swivel arms (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (L).

Attached the wire clips (I) to the swivel arm (B).

3-1: Attached Monitor

CAUTION:To select the correct screws (M-A or M-C)

for your monitor, you can try to screw it on your

monitor by hand. The one can screw inside is the

correct screw for your monitor.

STEP 3 : Attach the VESA Plate to the Monitor or Laptop Tray

M-A

M-C

M-E

OPTION A: Flat Back Monitor

For flat back monitor, secure VESA plate (A) to monitor

using screws (M-A or M-C) and washers (M-E). Tighten

the screws using 6mm Allen key (L).

M-B

M-D

M-E

M-F L

OPTION B: Curved Back Monitor

For monitor with curved or recessed back, align spacers (M-F)

with mounting holes in monitor, and secure VESA plate (A) to

monitor using screws (M-B or M-D) and washers (M-E). Tighten

the screws using 6mm Allen key (L).

3-2: Attach Laptop Tray

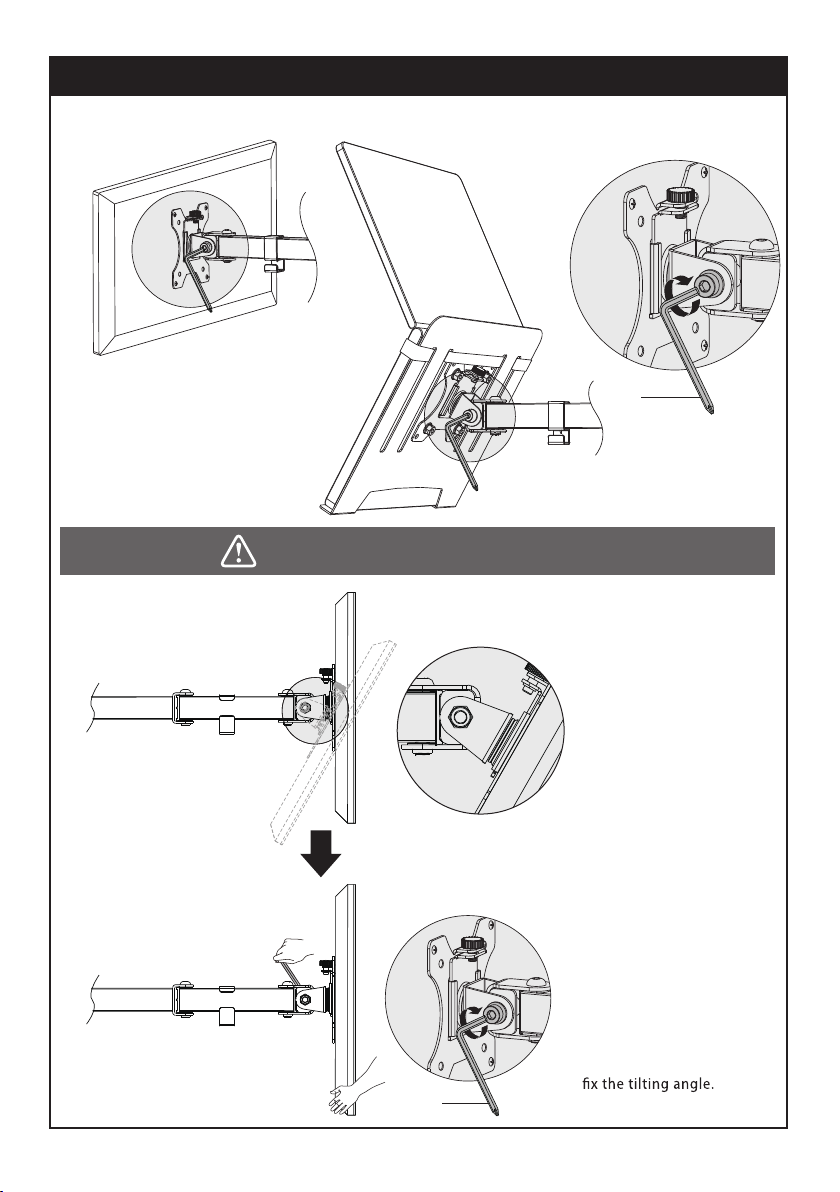

STEP 4 : Hang Monitor and Laptop Tray

Slide the monitor and laptop tray onto the head of swivel arm (B). Install the security bolt (J).

Make sure the security bolt is installed before you rotate the monitor.

Install the VESA plate (A) to the laptop tray (M) using 4pcs screws (O) and 4pcs nuts (P) , tighten by 6mm Allen

key (L) . Apply pads (N) to the laptop tray to avoid laptop scratches.

NOTE: Attach the pads on the tray

based on the size of the laptop.

STEP 5 : Secure the Laptop on the Laptop tray

Untie the strap before

you cover the laptop.

Blank side

Loop&Hook side

STEP 6: Tilt Adjustment

Tighten the bolt with the supplied 6mm Allen key (L) to x the tilt angle.

Note:

1. Loosen the tilting bolt.

2. Adjust monitor to your

desired tilting angle.

3. Retighten the tilting bolt to

Tilts down

Guideline to adjust monitor tilting angle.

STEP 7: Cable Management

Manage cables and store Allen keys (K,L) in wire clip (E) for future use.
