AP-6511E Access Point

INSTALLATION GUIDE

2AP-6511E Access Point

MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions,

Installation Guide 3

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 AP-6511E Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.5 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Power Injector System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Wall Mount Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.6 Telco Box Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.7 AP-6511E Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.8 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.0 Basic WiNG Express Access Point Configuration . . . . . . . . . . . . . . . . . . . . 18

4.0 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.1 Regulatory Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.2 Wireless Device Country Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.2.1 Country Selection - Note for AP & Wireless Controller. . . . . . . . . . . . . . . 30

5.2.2 Frequency of Operation - FCC and IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.3 Health and Safety Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.3.1 Warnings for the use of Wireless Devices . . . . . . . . . . . . . . . . . . . . . . . . 31

5.3.2 Potentially Hazardous Atmosheres - Fixed Installation . . . . . . . . . . . . . . . 31

5.3.3 Safety in Hospitals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4AP-6511E Access Point

5.4 RF Exposure Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.4.1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.5 International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.6 EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.7 US and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.8 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.9 Radio Frequency Interference Requirements - FCC . . . . . . . . . . . . . . . . . . . . . . 33

5.10 Radio Frequency Requirements - Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.10.1 Radio Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.11 CE Marking and European Economic Area (EEA) . . . . . . . . . . . . . . . . . . . . . . . 34

5.12 Mexico . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.13 Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.14 Waste Electrical and Electronic Equipment (WEEE). . . . . . . . . . . . . . . . . . . . . 35

5.15 Turkish WEEE Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.16 Japan (VCCI) - Voluntary Control Council for Interference Class B ITE . . . . . . 37

5.17 Korea Warning Statement for Class B ITE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

5.17 Other Countries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6.0 Motorola Solutions Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installation Guide 5

1 Introduction

The AP-6511E is an enterprise class 802.11n Access Point, installed in minutes anywhere a CAT-5 (or better) cable

is located. The AP-6511E’s mechanical design is optimized for installation over a standard CAT-5 (or better) wall

jack. The AP does not protrude into the wall cavity, allowing for an efficient heat transfer and a universal

installation over a standard Telco wiring plate. The AP-6511E’s modular design allows the end-user to add switched

Ethernet ports as-needed, and attach a standard keystone or Leviton QuickPort® modular connector to the wall

plate.

The AP-6511E Access Point ships with a single dual-band radio supporting the 802.11a/b/g/n radio bands.

The AP-6511E receives all power and transfers data through the same CAT-5 or better Ethernet cable. There is no

additional power supply required. An 802.3af PoE Ethernet switch or mid span power injector is required.

The AP-6511E can be ordered for US deployment (AP-6511E-60010-US), deployment in Europe

(AP-6511E-60010-EU) or deployment outside of the US or Europe (AP-6511E-60010-WR).

1.1 Document Conventions

The following graphical alerts are used in this document to indicate notable situations:

NOTE Tips, hints, or special requirements that you should take note of.

CAUTION Care is required. Disregarding a caution can result in data loss or

equipment malfunction.

WARNING! Indicates a condition or procedure that could result in personal injury or

equipment damage.

6AP-6511E Access Point

1.2 Warnings

• Read all installation instructions and site survey reports, and verify correct equipment installation before

connecting the Access Point.

• Remove jewelry and watches before installing this equipment.

• Verify the unit is grounded before connecting it to the power source.

• Verify any device connected to this unit is properly wired and grounded.

• Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment

operation specifications.

1.3 Site Preparation

• Consult your site survey and network analysis reports to determine specific equipment placement, power

drops, and so on.

• Assign installation responsibility to the appropriate personnel.

• Identify and document where all installed components are located.

• Ensure adequate, dust-free ventilation to all installed equipment.

• Prepare Ethernet port connections.

• Verify cabling is within the maximum 100 meter allowable length.

1.4 AP-6511E Package Contents

An AP-6511E Access Point is available in integrated antenna and external antenna models. Contents differ

depending on the model ordered.

• AP-6511E Access Point

• Mounting plate (used for both wall mount and Telco Box installations)

• Mounting plate lock screw

• AP-6511E Installation Guide (This Guide)

• RJ-45 double plug interconnect cable

• Fast Ethernet port 1 interconnect cable

1.5 Features

• One RJ-45 PoE Ethernet port (built into the AP-6511E Access Point)

• Optional second RJ-45 Ethernet port utilizing a pass through (keystone) cable (included)

• Optional three port Ethernet expansion module (sold separately)

• 2 LED indicators

The pass through (keystone) cable provides an option to add a second Ethernet port before installing the AP-6511E.

The AP-6511E has one RJ-45 connector supporting an 10/100 Ethernet port and requires 802.3af compliant power

from an external source.

The AP-6511E ships with a single dual-band radio supporting the 802.11a/b/g/n radio bands.

Installation Guide 7

The Access Point contains runtime firmware which enables the unit to boot after either a power up or a watchdog

reset. The runtime firmware on the Access Point can be updated via the Ethernet interface.

The front of the AP-6511E has an access cover that can be removed to expose an additional connector. A three port

RJ-45 Ethernet expansion module connects to the hidden header and snaps onto the AP-6511E in place of the

access cover.

Remove the AP-6511E’s access cover by inserting a long pointed tool into the circular hole (opening) on the bottom

of the AP-6511E. Pull the access cover up and away from the AP-6511E. Reverse the procedure to install the

expansion module.

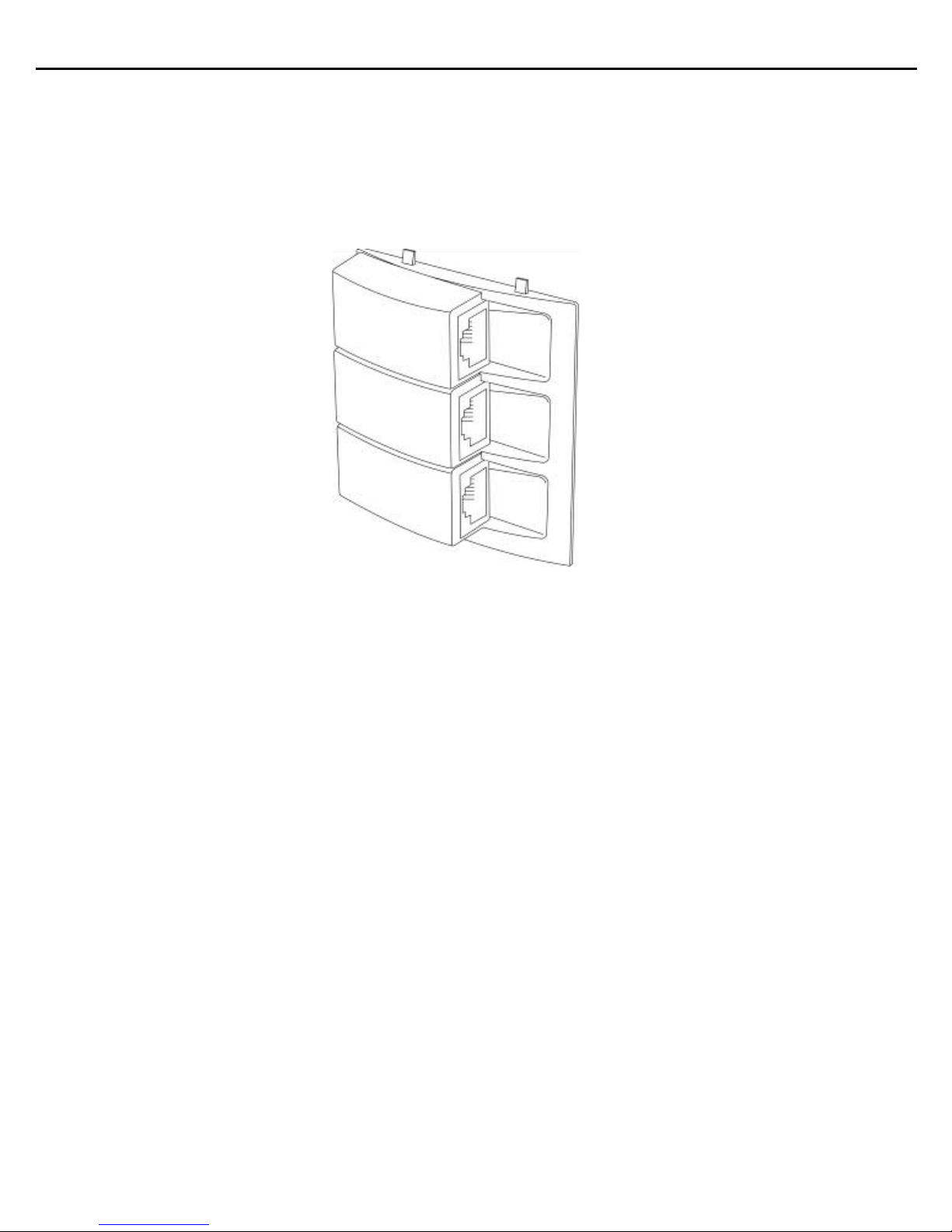

The Ethernet expansion module has three ports labeled FE2, FE3 and FE4.

The expansion module (KT-6511-0000D-WR) is a separately orderable component from Motorola Solutions.

8AP-6511E Access Point

2 Hardware Installation

2.1 Installation Instructions

An AP-6511E Access Point mounts either on a wall, under a table or over a Telco Box. The AP-6511E is not plenum

rated.

The AP-6511E is mounted to a wall or Telco Box so the mounting plate is flush with the mounting surface.

The AP-6511E snaps on to the mounting plate without the use of tools or fastening hardware. Removal of the

AP-6511E from the mounting plate can be accomplished without the use of a tool. A mounting lock screw is

provided to help ensure a tamper resistant installation.

To prepare for the installation, perform the following:

1. Verify the contents of the box includes the intended AP-6511E Access Point model and accessory

hardware.

2. Review site survey and network analysis reports to determine the location and mounting position for the

AP-6511E Access Point.

3. Connect a CAT-5 or better Ethernet cable to a PoE compatible device and run the cable to the installation

site. Ensure there is sufficient cable slack to perform the installation steps.

NOTE The provided metal mounting plate is fastened to an existing standard

Telco in-wall box. The box is customer provided within the customer

building structure, and can be either plastic or metal in composition.

Screws and other mounting hardware are not include.

NOTE Once installed onto the mounting plate, the assembly can resist a

minimum of 10 lbs of force before unit breakage or accidental

disassembly.

Installation Guide 9

2.2 Precautions

Before installing an AP-6511E model Access Point:

• Verify the intended AP-6511E deployment location is not prone to moisture or dust.

• Verify the environment has a continuous temperature range between 0° C to 40° C.

2.3 Access Point Placement

For optimal performance, install the Access Point away from transformers, heavy-duty motors, fluorescent lights,

microwave ovens, refrigerators and other industrial equipment. Signal loss can occur when metal, concrete, walls

or floors block transmission. Install the Access Point in an open area or add Access Points as needed to improve

coverage.

To maximize the Access Point’s radio coverage area, Motorola Solutions recommends conducting a site survey to

define and document radio interference obstacles before installing the Access Point.

2.4 Power Injector System

When users purchase a WLAN solution, they often need to place Access Points in obscure locations. In the past, a

dedicated power source was required for each Access Point in addition to the Ethernet infrastructure. This often

required an electrical contractor to install power drops at each Access Point location. The Power Injector merges

power and Ethernet into one cable, reducing the burden of installation and allowing optimal Access Point

placement in respect to the intended coverage area.

A Motorola Solutions Power Injector (AP-PSBIAS-2P2-AFR) is recommended as the 802.3af compatible power

supply for the AP-6511E. The Power Injector is capable of providing 12.95 Watts up to 100 meters. The Power

Injector is separately ordered and not shipped with the AP-6511E. A separate Power Injector is required for each

Access Point comprising the network.

The Power Injector has no On/Off power switch. The Injector receives power and is ready for device connection and

operation as soon as AC power is applied. Refer to the Installation Guide shipped with the Power Injector for a

description of the device’s LEDs.The Power Injector can be installed free standing, on an even horizontal surface or

wall mounted using the Power Injector’s wall mounting key holes.

The following guidelines should be adhered to before cabling the Power Injector to an Ethernet source and an

Access Point:

• Do not block or cover airflow to the Power Injector.

• Keep the Power Injector away from excessive heat, humidity, vibration and dust.

• The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For optimal performance,

ensure the Power Injector is placed as close as possible to the Ethernet switch. This will allow the

AP-6511E to be deployed away from power drops.

10 AP-6511E Access Point

• Ensure the cable length from the Ethernet source (host) to the Power Injector and AP-6511E Access Point

does not exceed 100 meters (333 ft).

2.5 Wall Mount Installation

Ceiling mount requires holding the AP-6511E Access Point up against a T-bar of a suspended ceiling grid and

twisting the case onto the T-bar.

To install an AP-6511E model Access Point to a wall surface:

1. Attach the metal mounting plate (shipped with the AP-6511E) to a wall surface at the desired deployment

location.

The screws used to mount the bracket are customer provided and should be #6, with a 2.00 inch length.

CAUTION To avoid problematic performance and restarts, disable POE from a

wired controller port connected to an Access Point if mid-span power

sourcing equipment (PSE) is used between the two, regardless of the

manufacturer.

CAUTION Ensure AC power is supplied to the Power Injector using an AC cable

with an appropriate ground connection approved for the country of

operation.

NOTE Motorola Solutions recommends the following customer supplied

mounting accessories an AP-6511E wall mount installation:

2, screws, #6 x 2.00 inch pan head

2, wall anchors suitable for the #6 screws

Table des matières

Autres manuels Motorola Point d'accès sans fil

Motorola

Motorola AP-7131N-FGR Manuel utilisateur

Motorola

Motorola WA840GP Manuel utilisateur

Motorola

Motorola AP-51 Series Manuel d'installation et d'exploitation

Motorola

Motorola WA840G Manuel utilisateur

Motorola

Motorola AP-621 Series Manuel utilisateur

Motorola

Motorola AP-7532 Manuel utilisateur

Motorola

Motorola Verizon VAP2500 Manuel utilisateur

Motorola

Motorola MOTOwi4 25600 Manuel

Motorola

Motorola AP-6511 Manuel utilisateur

Motorola

Motorola MotoWI4 PTP 600 Series Manuel utilisateur

Motorola

Motorola PMP 320 Manuel utilisateur

Motorola

Motorola VAP2500 Manuel utilisateur

Motorola

Motorola NCAP-500 Series Manuel utilisateur

Motorola

Motorola AP-5181 - Wireless Access Point Manuel utilisateur

Motorola

Motorola AP-7131 Series Comment utiliser

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... Manuel utilisateur

Motorola

Motorola AP 5131 - Wireless Access Point Manuel utilisateur

Motorola

Motorola AP-6521 Series Manuel utilisateur

Motorola

Motorola AP-8163 Manuel utilisateur

Motorola

Motorola AP-6521E Manuel utilisateur

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... Manuel utilisateur

Motorola

Motorola 5440AP - Canopy 5.4 GHz AP Manuel du propriétaire

Motorola

Motorola AP 7161 Manuel utilisateur

Motorola

Motorola AP-51 Series Manuel d'installation et d'exploitation

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
