AP-8132 Access Point

INSTALLATION GUIDE

2AP-8132 Access Point

MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions,

Installation Guide 3

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 AP-8132 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Power Injector System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Wall Mount Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.5.1 Wall Mount Procedure - New Installation. . . . . . . . . . . . . . . . . . 12

2.5.1 Wall Mount Procedure - Existing Access Point Replacement. . . 13

2.6 Suspended Ceiling T-Bar Mount Installation . . . . . . . . . . . . . . . . . . . . 13

2.7 Suspended Ceiling Tile (Plenum) Installation. . . . . . . . . . . . . . . . . . . . 15

2.8 AP-8132 Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.9 LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.0 Basic Access Point Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.0 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.1 Wireless Device Country Approvals. . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.1.1Country Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.1.2 Frequency of Operation - FCC and IC . . . . . . . . . . . . . . . . . . . . . . 35

5.2 Health and Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.2.1 Warnings for Use of Wireless Devices . . . . . . . . . . . . . . . . . . . . 36

4AP-8132 Access Point

5.2.2 Potentailly Hazardous Atmospheres - Fixed Installatons . . . . . .36

5.2.3 Safety in Hospitals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

5.3 RF Exposure Giudelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.3.1 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.4 International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.5 EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.6 US and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.7 Power Suppply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

5.8 Radio Frequency Interference Requirements - FCC . . . . . . . . . . . . . . .38

5.8.1 Radio Transmitters (Part 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

5.9 Radio Frequency Interference Requirements - Canada . . . . . . . . . . . .38

5.9.1 Radio Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

5.10 CE Marking and European Economic Area . . . . . . . . . . . . . . . . . . . . .39

5.11 Statement of Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

5.12 Waste Electrical and Electronic Equipment (WEEE) . . . . . . . . . . . . .42

5.13 Turkish WEEE Statement of Compliance . . . . . . . . . . . . . . . . . . . . . .43

6.0 Motorola Solutions Support Center . . . . . . . . . . . . . . . . . . . . . . . . . . .44

8.0 AP-8132 Access Point China ROHS Compliance . . . . . . . . . . . . . . .45

Installation Guide 5

1 Introduction

The AP-8132 is a premium, Enterprise class, Access Point positioned at the top of Motorola Solutions’ Access

Point product line. The AP-8132 is a plenum rated, 3x3:3 802.11n Access Point utilizing two 802.11abgn radios.

An AP-8132 model Access Point uses WiNG 5 software as its onboard operating system. The Access Point’s

unique WiNG 5 software enables the Access Point to function as either a Virtual Controller AP capable of

adopting and managing up to 24 additional AP-8132 Access Points, a Standalone Access Point or a Dependent

mode Access Point managed by its connected controller.

If new to Motorola Solutions Access Point technology, refer to the WiNG Access Point System Reference Guide to

familiarize yourself with Access Point technology and the feature set supported by the WiNG operating system.

This guide is available at http://supportcentral.motorolasolutions.com/support/product/manuals.do.

This document is written for the qualified network device installer.

1.1 Document Conventions

The following graphical alerts are used in this document to indicate notable situations:

NOTE Tips, hints, or special requirements that you should take note of.

CAUTION Care is required. Disregarding a caution can result in data loss or

equipment malfunction.

WARNING! Indicates a condition or procedure that could result in personal injury or

equipment damage.

6AP-8132 Access Point

1.2 Warnings

• Read all installation instructions and site survey reports, and verify correct equipment installation before

connecting the AP-8132 model Access Point.

• Remove jewelry and watches before installing this equipment.

• Verify any device connected to this unit is properly wired and grounded.

• Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment

operation specifications.

1.3 Site Preparation

• Consult your site survey and network analysis reports to determine specific equipment placement, power

drops, and so on.

• Assign installation responsibility to the appropriate personnel.

• Identify and document where all installed components are located.

• Ensure adequate, dust-free ventilation to all installed equipment.

• Identify and prepare Ethernet and console port connections.

• Verify cable lengths are within the maximum allowable distances for optimal signal transmission.

1.4 AP-8132 Package Contents

An AP-8132 Access Point is available in external antenna models only. An AP-8132 ships with the following:

• AP-8132 access point

• AP-8132 Installation Guide (This Guide)

• Wall mount screw and anchor kit

• Accessories bag (LED light pipe for above the ceiling installations)

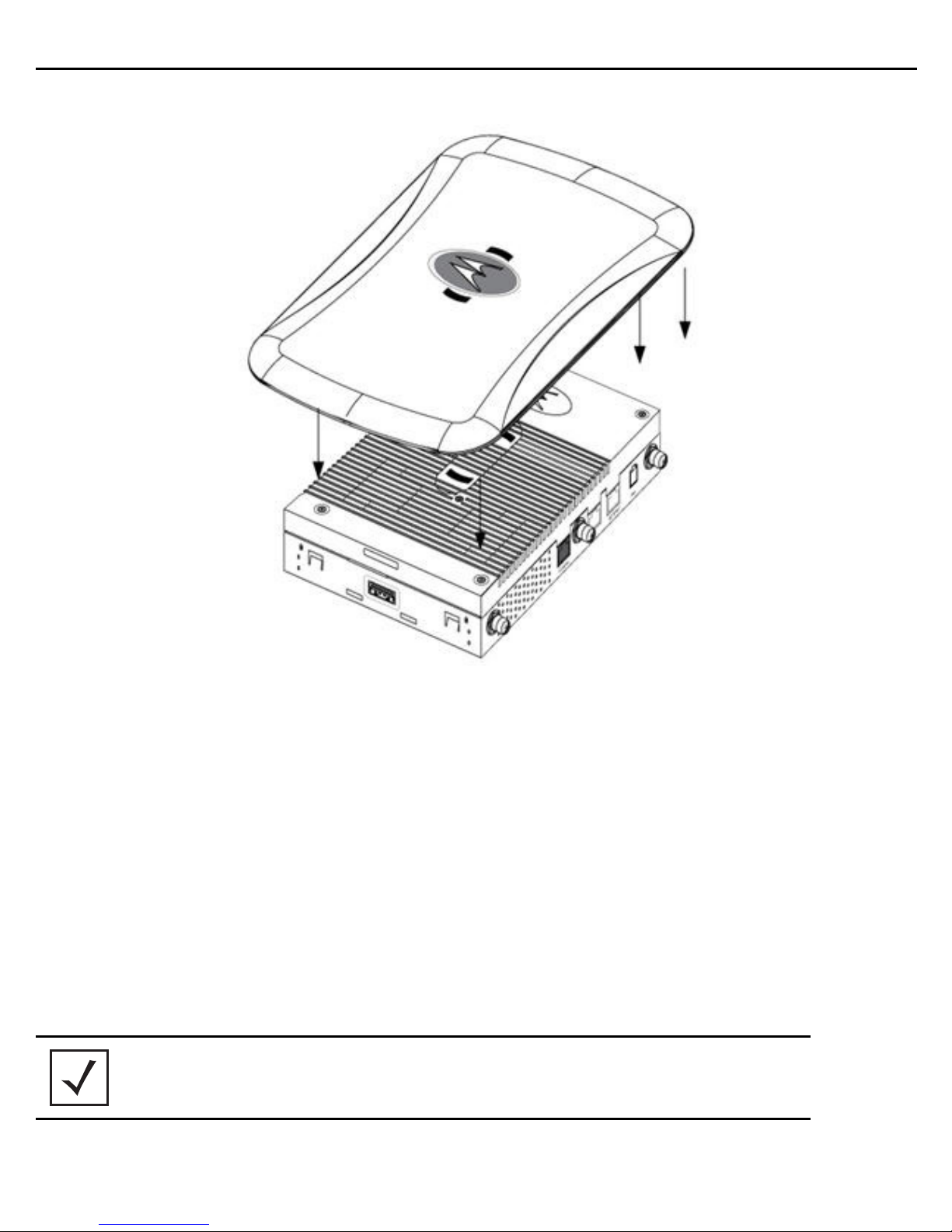

NOTE An AP-8132 Access Point can ship with a separately ordered protective

cover (facade) containing a 6-element MIMO antenna (Part No.

ML-2452-PTA6M6-1). When attached, LEDs continue to illuminate

through the cover (similar to the illustration on the next page). A version

of the facade is also available without the MIMO antenna. This cover

(Part No. 21-8132FAC-01) functions strictly as a protective cover for the

Access Point and provides no operational functionality.

Installation Guide 7

1.4.1 Features

An AP-8132 access point minimally supports the following feature set:

• 3 RJ-45 connectors (GE1/POE, GE2 and Console)

• LED indicators

• Slots for wall mounting

• Lock port for Kensington® style security lock

• Two custom dual band radios

• Features for snap-on module support through the Access Point’s USB interface

• 3x3 MIMO, 3 spatial streams

The AP-8132 access point has two RJ-45 connectors supporting 10/100/1000 Ethernet. GE1/POE accepts 802.3at

or 802.3af compliant power from an external source

NOTE When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable

is recommended for Gigabit operation.

8AP-8132 Access Point

2 Hardware Installation

2.1 Installation Instructions

An AP-8132 Access Point mounts either on a wall (with M4 x 25 pan head screws and wall anchor - or equivalent)

or on a suspended ceiling T-bar.

Once the AP-8132 is installed with facade and cabled, the cables (Ethernet and module connections) should not be

visible when looking directly at the unit (ceiling and wall mounts).

To prepare for the installation:

1. Match the model number on the purchase order with the model numbers in the packing list and on the

case of the Access Point.

2. Verify the contents of the box include the intended AP-8132 Access Point, and the included hardware

matches the package contents (see AP-8132 Package Contents on page 6.

3. Review site survey and network analysis reports to determine the location and mounting position for the

AP-8132 Access Point.

4. Connect a CAT-5 or better Ethernet cable to a compatible 802.3at or 802.3af power source and run the

cable to the installation site. Ensure there is sufficient slack on the cable to perform the installation

steps.

2.2 Precautions

Before installing an AP-8132 model Access Point, verify the following:

• Your using the correctly rated power solution for the AP-8132 (either the AP-PSBIAS-2P3-ATR power

injector or the PWRS-14000-247R external power supply)

• Motorola Solutions recommends you do not to install the AP-8132 in wet or dusty areas.

• Verify the environment has a continuous temperature range between 0° C to 50° C.

Part Number Description

AP-8132-66040-US 802.11n 3x3:3 Access Point dual radio US version

AP-8132-66040-WR 802.11n 3x3:3 Access Point dual radio non-US (rest of world)

version

AP-8132-66040-EU 802.11n 3x3:3 Access Point dual radio European version

NOTE When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable

is recommended for Gigabit operation.

Installation Guide 9

2.3 Access Point Placement

For optimal performance, install the Access Point away from transformers, heavy-duty motors, fluorescent lights,

microwave ovens, refrigerators and other industrial equipment. Signal loss can occur when metal, concrete, walls

or floors block transmission. Install the Access Point in an open area or add Access Points as needed to improve

coverage.

Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not bright enough. An

area lit sharply might minimize coverage and create dark areas. Uniform antenna placement in an area (like even

placement of a light bulb) provides even, efficient coverage.

Place the Access Point using the following guidelines:

• Install the Access Point at an ideal height of 10 feet from the ground.

• Orient the Access Point antennas vertically for best reception (applies to external antenna models only).

To maximize the Access Point’s radio coverage area, Motorola Solutions recommends conducting a site survey to

define and document radio interference obstacles before installing the Access Point.

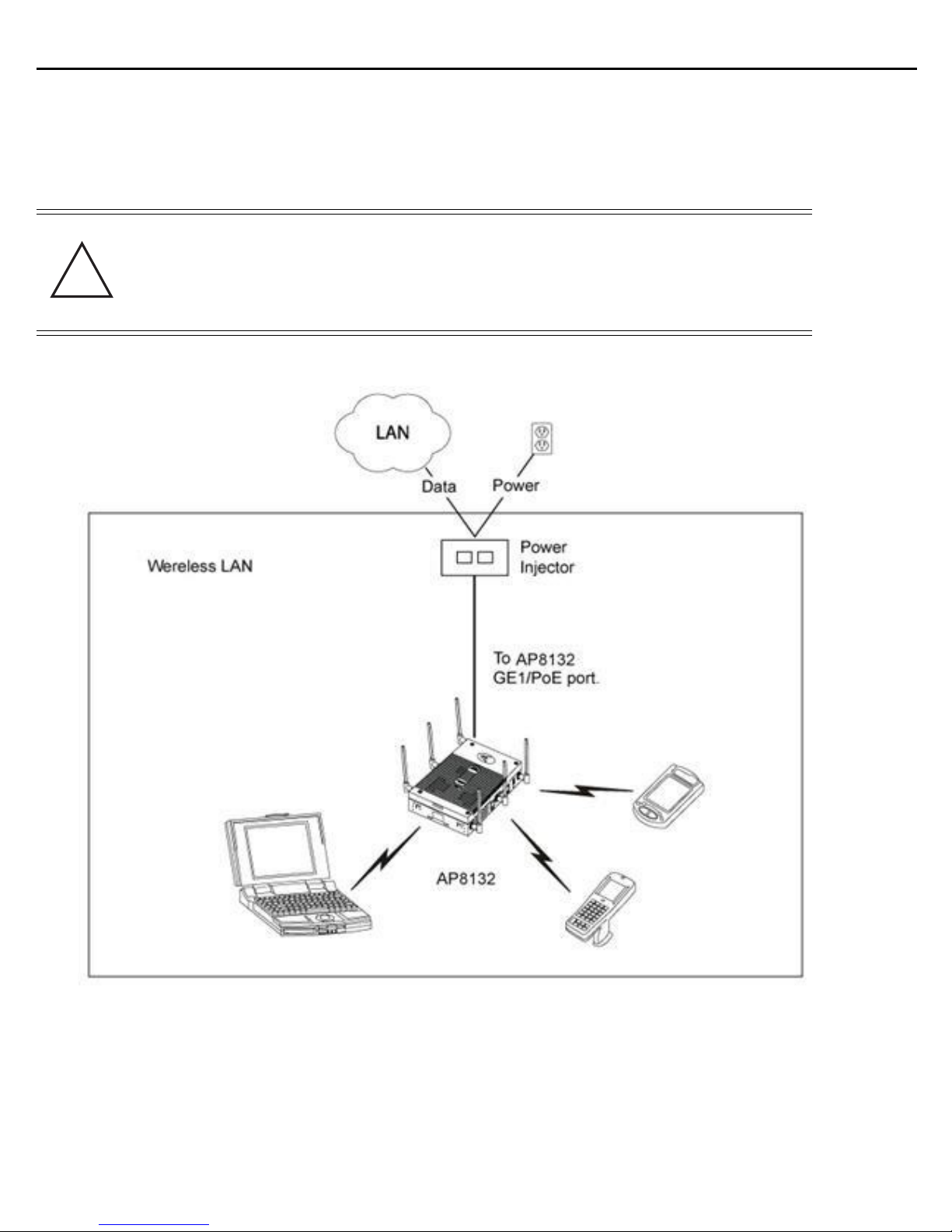

2.4 Power Injector System

An AP-8132 model Access Point can receive power via an Ethernet cable connected to the GE1/POE (LAN) port.

When users purchase a WLAN solution, they often need to place Access Points in obscure locations. In the past, a

dedicated power source was required for each Access Point in addition to the Ethernet infrastructure. This often

required an electrical contractor to install power drops at each Access Point location. The Power Injector merges

power and Ethernet into one cable, reducing the burden of installation and allowing optimal Access Point

placement in respect to the intended coverage area.

The AP-8132’s supported Power Injector (Part No. AP-PSBIAS-2P3-ATR) is a high power POE Injector delivering up

to 30 watts. The Access Point can only use a Power Injector when connecting the unit to the Access Point’s GE1/POE

port. The Power Injector is separately ordered and not shipped with an existing AP SKU.

The Motorola Access Point Power Supply (Part No. PWRS-14000-247R) is not included with the Access Point and

is orderable separately as an accessory. If the Access Point is provided both POE power and PWRS-14000-247R

power concurrently, the Access Point will source power from the PWRS-14000-247R supply only. Disconnecting AC

power from the PWRS-14000-247R, causes the Access Point to re-boot before sourcing power from the POE power

injector. If the AP is operating using injector supplied power, the AP will not automatically reboot if an AC adapter

CAUTION Using a non-compliant injector, or an injector supporting legacy modes

will not allow the AP-8132 to function at optimum performance levels.

CAUTION Do not plug in the AP-PSBIAS-2P3-ATR Power Injector into the Access

Point’s Console port. Connecting the Power Injector into the console

port can damage the port and void the AP-8132’s product warranty.

10 AP-8132 Access Point

is connected. The Access Point continues to operate with power supplied from the AC adapter without change to

the Access Point operating configuration. If using AC adapter supplied power and a change to the AP’s operating

configuration is warranted, the Access Point needs to be manually rebooted by the customer.

A separate Power Injector is required for each AP-8132 Access Point comprising the network.

The Power Injector can be installed free standing, on an even horizontal surface or wall mounted using the power

injector’s wall mounting key holes. The following guidelines should be adhered to before cabling the Power Injector

to an Ethernet source and an Access Point:

• Do not block or cover airflow to the Power Injector.

• Keep the Power Injector away from excessive heat, humidity, vibration and dust.

CAUTION The Access Point supports any standards-based compliant power

source (including non-Motorola Solutions power sources). However,

using the wrong solution (including a POE system used on a legacy

Motorola Solutions Access Point) could either limit functionality or

severely damage the Access Point and void the product warranty.

Autres manuels pour AP-8132

Table des matières

Autres manuels Motorola Point d'accès sans fil

Motorola

Motorola AP-7131 Series Manuel utilisateur

Motorola

Motorola Verizon VAP2500 Manuel utilisateur

Motorola

Motorola AP-7131 Series Comment utiliser

Motorola

Motorola AP-621 Series Manuel utilisateur

Motorola

Motorola AP-0622 Manuel utilisateur

Motorola

Motorola WiNG 5 Manuel utilisateur

Motorola

Motorola AP-6511E Manuel utilisateur

Motorola

Motorola AP-7131 Series Manuel d'installation et d'exploitation

Motorola

Motorola PMP 320 Manuel utilisateur

Motorola

Motorola TLN3221B Manuel utilisateur

Motorola

Motorola Solutions WiNG 5.2.6 Manuel utilisateur

Motorola

Motorola AP-8163 Manuel utilisateur

Motorola

Motorola AP-7131 Series Manuel utilisateur

Motorola

Motorola AP-5181 - Wireless Access Point Guide de référence rapide

Motorola

Motorola AP 7181 Manuel utilisateur

Motorola

Motorola WA840GV2 Manuel utilisateur

Motorola

Motorola Canopy 300 Mbps Backhaul Manuel utilisateur

Motorola

Motorola AP 5131 - Wireless Access Point Mode d’emploi

Motorola

Motorola AP-5181 - Wireless Access Point Manuel utilisateur

Motorola

Motorola AP-7131 Series Manuel d'installation et d'exploitation

Motorola

Motorola AP-6521 Series Manuel utilisateur

Motorola

Motorola AP 7161 Manuel utilisateur

Motorola

Motorola AP 7161 Manuel utilisateur

Motorola

Motorola AP6522 Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
