AP-6511 Access Point

Installation Guide

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Sym-

bol is a registered trademark of Symbol Technologies, Inc. All other product or service names are

1 Introduction .......................................................................................... 1

1.1 Document Conventions .......................................................................................... 1

1.2 Warnings ................................................................................................................ 1

1.3 Site Preparation...................................................................................................... 2

1.4 AP-6511 Package Contents .................................................................................... 2

1.5 Features.................................................................................................................. 2

2 Hardware Installation ........................................................................ 4

2.1 Installation Instructions.......................................................................................... 4

2.2 Precautions............................................................................................................. 4

2.3 Access Point Placement ......................................................................................... 5

2.4 Power Injector System ........................................................................................... 5

2.5 Wall Mount Instructions ........................................................................................ 6

2.6 Telco Box Installation............................................................................................. 9

2.7 AP-6511 Antennas................................................................................................ 14

2.8 LED Indicators....................................................................................................... 14

3 Defining a Basic AP-6511 Configuration....................................... 15

4 Specifications................................................................................... 29

5 Regulatory Information..................................................................... 31

6 Motorola’s Enterprise Mobility Support Center .......................... 41

Table of Contents

Introduction 1

1 Introduction

The AP-6511 Access Point, a component of Motorola’s Wireless Controller System, links wireless

802.11a/b/g/n devices to the controller, enabling the growth of your wireless network with a

cost-effective alternative to standard access points.

The AP-6511 is an enterprise class 802.11n Access Point, installed in minutes anywhere a CAT-5 (or

better) cable is located. The AP-6511’s mechanical design is optimized for installation over a standard

CAT-5 (or better) wall jack. The AP does not protrude into the wall cavity, allowing for an efficient heat

transfer and a universal installation over a standard Telco wiring plate. The AP-6511’s modular design

allows the end-user to add switched Ethernet ports as-needed, and attach a standard keystone or

Leviton QuickPort® modular connector to the wall plate.

The AP-6511 Access Point ships with a single dual-band radio supporting the 802.11a/b/g/n radio

bands.

The AP-6511 Access Point receives all power and transfers data through the same CAT-5 or better

Ethernet cable. There is no additional power supply required. An 802.3af PoE Ethernet switch or mid

span power injector is required.

The AP-6511 can be ordered for US deployment (AP-6511-60010-US) or ordered for deployment

outside of the US (AP-6511-60010-WR).

1.1 Document Conventions

The following graphical alerts are used in this document to indicate notable situations:

1.2 Warnings

•Read all installation instructions and site survey reports, and verify correct equipment

installation before connecting the AP-6511 Access Point.

NOTE Tips, hints, or special requirements that you should take note of.

CAUTION Care is required. Disregarding a caution can result in data loss or

equipment malfunction.

WARNING! Indicates a condition or procedure that could result in personal injury or

equipment damage.

AP-6511 Access Point Installation Guide

•Verify any device connected to this unit is properly wired and grounded.

•Verify there is adequate ventilation around the device, and ambient temperatures meet

equipment operation specifications.

1.3 Site Preparation

•Consult your site survey and network analysis reports to determine specific equipment

placement, power drops etc.

•Assign installation responsibility to the appropriate personnel.

•Identify and document where all installed components are located.

•Ensure adequate, dust-free ventilation to all installed equipment.

•Prepare Ethernet port connections.

•Verify cabling is within the maximum 100 meter allowable length.

1.4 AP-6511 Package Contents

The AP-6511 model Access Point ships with internal (integrated) antennas.

•AP-6511 Access Point

•Mounting plate (used for both wall mount and Telco Box installations)

•Mounting plate lock screw

•AP-6511 Installation Guide (This Guide)

•RJ-45 double plug interconnect cable

•Fast Ethernet port 1 interconnect cable

1.5 Features

•One RJ-45 PoE Ethernet port (built into the AP-6511 access point)

•Optional second RJ-45 Ethernet port utilizing a pass through (keystone) cable (included)

•Optional three port Ethernet expansion module (sold separately)

•2 LED indicators

The pass through (keystone) cable provides an option to add a second Ethernet port before installing

the AP-6511.

The AP-6511 has one RJ-45 connector supporting an 10/100 Ethernet port and requires 802.3af

compliant power from an external source.

The AP-6511 ships with a single dual-band radio supporting the 802.11a/b/g/n radio bands.

Introduction 3

The Access Point contains runtime firmware which enables the unit to boot after either a power up

or a watchdog reset. The runtime firmware on the Access Point can be updated via the Ethernet

interface.

The front of the AP-6511 has an access cover that can be removed to expose an additional connector.

A three port RJ-45 Ethernet expansion module connects to the hidden header and snaps onto the

AP-6511 in place of the access cover.

Remove the AP-6511’s access cover by using a sharp tool to depress the latch on the bottom of the

access point. Pull the access cover up and away from the AP-6511. Reverse the procedure to install

the expansion module.

The Ethernet expansion module has three ports labeled FE2, FE3 and FE4.

The expansion module (KT-6511-0000D-WR) is a separately orderable component from Motorola.

AP-6511 Access Point Installation Guide

2 Hardware Installation

2.1 Installation Instructions

An AP-6511 Access Point mounts either on a wall, under a table or over a Telco Box. The AP-6511 is

not plenum rated.

The AP-6511 is mounted to a wall or Telco Box so the mounting plate is flush with the mounting

surface.

The AP-6511 snaps on to the mounting plate without the use of tools or fastening hardware. Removal

of the AP-6511 from the mounting plate can be accomplished without the use of a tool. A mounting

lock screw is provided to help ensure a tamper resistant installation.

To prepare for an AP-6511 installation, perform the following:

1. Match the model number on the purchase order with the model numbers in the packing list

and on the case of the device shipped.

2. Verify the contents of the box include the intended AP-6511 Access Point model and the

included hardware matches the package contents on page 2.

3. Review site survey and network analysis reports to determine the location and mounting

position for the AP-6511 Access Point.

4. Connect a CAT-5 or better Ethernet cable to a PoE compatible device and run the cable to the

installation site. Ensure there is sufficient cable slack to perform the installation steps.

2.2 Precautions

Before installing an AP-6511 Access Point:

• Verify the intended AP-6511 deployment location is not prone to moisture or dust

NOTE The provided metal mounting plate is fastened to an existing standard

Telco in-wall box. The box is customer provided within the customer

building structure, and can be either plastic or metal in composition.

Screws and other mounting hardware are not included.

NOTE Once installed onto the mounting plate, the assembly can resist a

minimum of 10 lbs of force before unit breakage or accidental

disassembly.

Hardware Installation 5

• Verify the environment has a continuous temperature range between 0° C to 40° C.

2.3 Access Point Placement

For optimal performance, install the Access Point away from transformers, heavy-duty motors,

fluorescent lights, microwave ovens, refrigerators and other industrial equipment. Signal loss can

occur when metal, concrete, walls or floors block transmission. Install the access point in an open

area or add access points as needed to improve coverage.

To maximize the Access Point’s radio coverage area, Motorola recommends conducting a site survey

to define and document radio interference obstacles before installing the access point.

2.4 Power Injector System

When users purchase a WLAN solution, they often need to place Access Points in obscure locations.

In the past, a dedicated power source was required for each Access Point in addition to the Ethernet

infrastructure. This often required an electrical contractor to install power drops at each Access Point

location. The Power Injector merges power and Ethernet into one cable, reducing the burden of

installation and allowing optimal Access Point placement in respect to the intended coverage area.

The Motorola Power Injector (Part No. AP-PSBIAS-1P2-AFR) is the recommended 802.3af compatible

power supply for the AP-6511. The Power Injector is capable of providing 12.95 Watts up to 100

meters. The Power Injector is separately ordered and not shipped with the AP-6511. A separate

Power Injector is required for each Access Point comprising the network.

The Power Injector has no On/Off power switch. The Injector receives power and is ready for device

connection and operation as soon as AC power is applied. Refer to the Installation Guide shipped with

the Power Injector for a description of the device’s LEDs.The Power Injector can be installed free

standing, on an even horizontal surface or wall mounted using the Power Injector’s wall mounting key

holes.

The following guidelines should be adhered to before cabling the Power Injector to an Ethernet source

and an Access Point:

• Do not block or cover airflow to the Power Injector.

• Keep the Power Injector away from excessive heat, humidity, vibration and dust.

• The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For optimal

performance, ensure the Power Injector is placed as close as possible to the Ethernet

switch. This will allow the AP-6511 to be deployed away from power drops.

AP-6511 Access Point Installation Guide

• Ensure the cable length from the Ethernet source (host) to the Power Injector and AP-6511

Access Point does not exceed 100 meters (333 ft).

2.5 Wall Mount Installation

To support wall mount installations, the metal mounting plate (provided with the AP-6511) is fastened

to a flat wall surface. The wall should be of gypsum board, plaster, wood or concrete in composition.

To install an AP-6511 model Access Point to a wall surface:

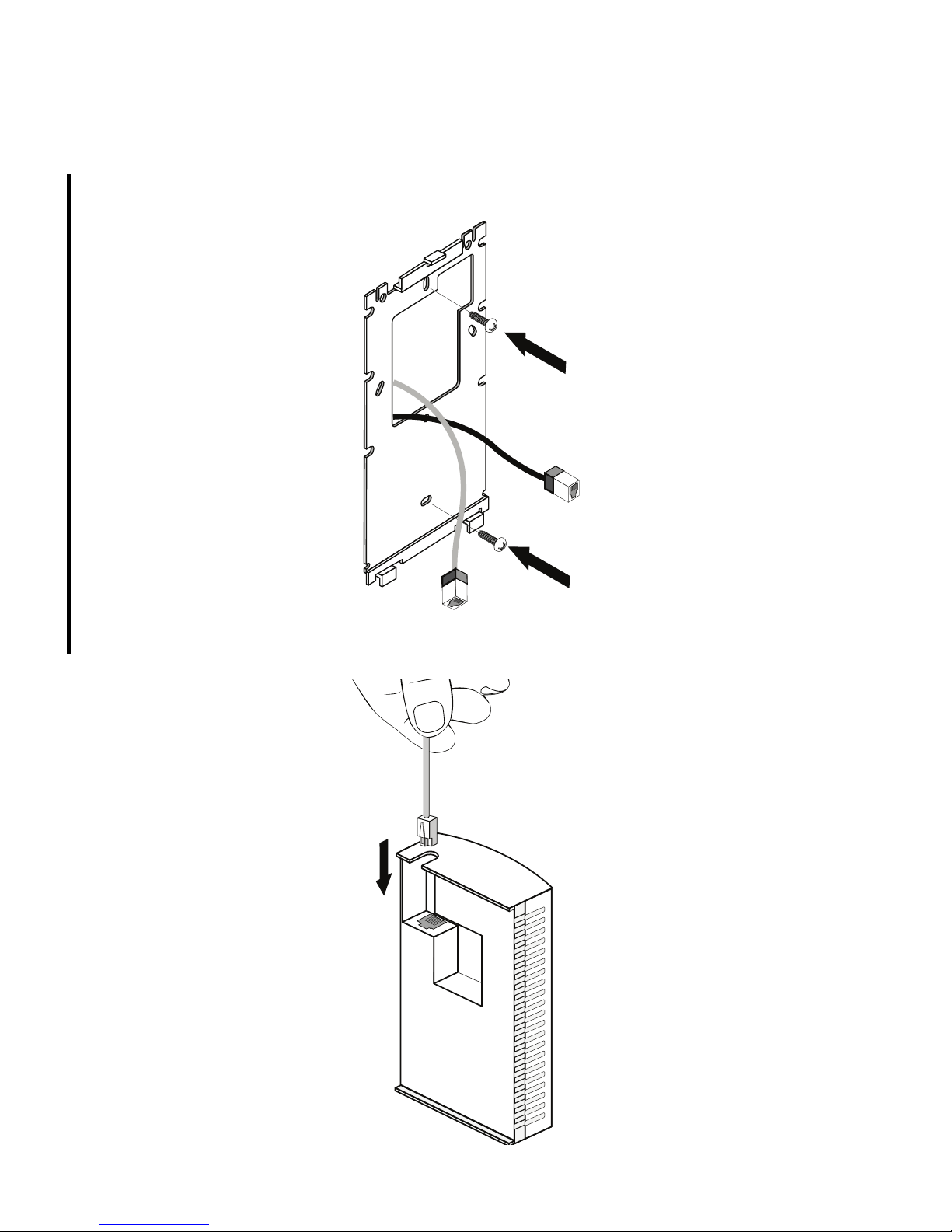

1. Attach the metal mounting plate (shipped with the AP-6511) to a wall surface at the desired

deployment location.

CAUTION To avoid problematic performance and restarts, disable POE from a

wired controller port connected to an Access Point if mid-span power

sourcing equipment (PSE) is used between the two, regardless of the

manufacturer.

CAUTION Ensure AC power is supplied to the Power Injector using an AC cable

with an appropriate ground connection approved for the country of

operation.

NOTE Motorola recommends the following customer supplied mounting

accessories an AP-6511 wall mount installation:

2, screws, #6 x 2.00 inch pan head

2, wall anchors suitable for the #6 screws

Hardware Installation 7

The screws used to mount the bracket are customer provided and should be #6, with a 2.00

inch length.

2. Connect one end of an RJ-45 cable into the wall mount connector on the AP-6511 as

illustrated below.
