USER’S GUIDE

Wi-Fi®Outdoor Home Video Camera

Model: FOCUS73, FOCUS73-2

The features described in this user’s guide are subject to modifications without prior notice.

This User’s Guide has all the information you need to make the most out of your

product.

Please read the Safety Instructions on pages 5 - 8 before you install the unit.

Inside the Box

• 1 x Wi-Fi®Camera Unit

• 1 x Power Adapter

• 1 x Quick Start Guide

• 1 x User Guide

• 4 x Mounting Screws and Dry Wall Plugs

• 1 x Tamper-proof Screw

• 1 x Metal Bracket

• 1 x Wrench Key

• 1 x Y-Shaped Power/LAN Cable Connector

Welcome...

to your new Motorola Wi-Fi

Outdoor Home Video

Camera!

Thank you for purchasing your new Motorola Wi-Fi®Outdoor Home Video

Camera.

If you have always wondered what happens when you are away, wonder no

more. Now you can monitor your children, pets or property with this easy to use

system. You can install the Camera only from your iPhone®/iPad®or Android™

devices and view the Camera video from your PC or Notebook, as well as from

your iPhone®/iPad®or Android™ devices.

Please keep your original dated sales receipt for your records. For warranty

service of your Motorola product, you will need to provide a copy of your dated

sales receipt to confirm warranty status. Registration is not required for warranty

coverage.

For product related questions, please call:

US and Canada 1-888-331-3383

Email: support@motorolahome.com

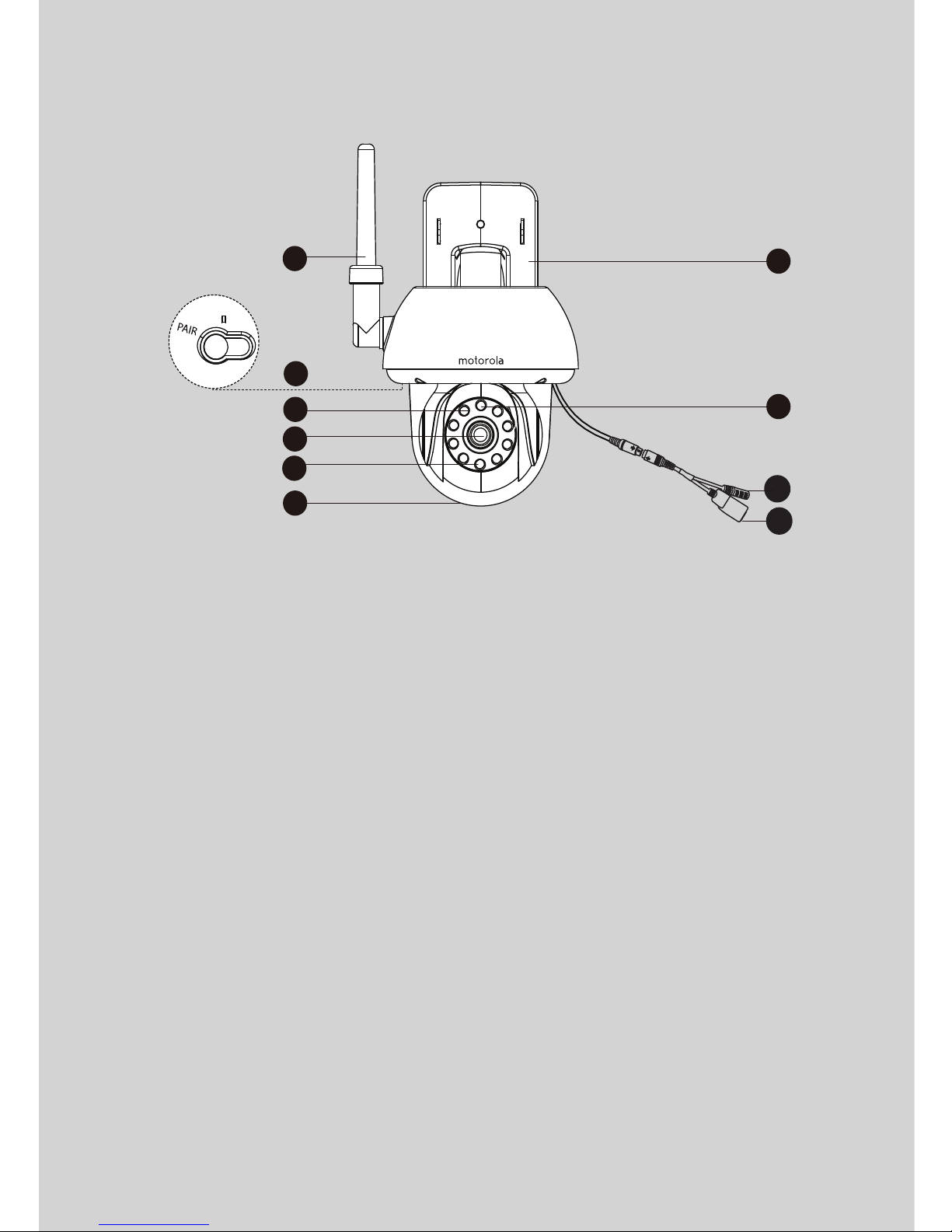

1. Antenna

2. Wall mount base

3. Infrared LEDs (for night vision)

4. Camera Lens

5. Light Sensor (for night mode

detection)

6. PAIR Button

7. Power / Status Indicator

8. Dome Shape Cover

9. Power connection socket

10. LAN interface*

(Adaptive Ethernet Interface for

connecting with various network

devices, such as hub, router, etc.)

Overview of your Camera

*An Ethernet connection is required when the Wi-Fi®connection is

not optimal. Connect the Ethernet cable (not supplied) to the LAN

interface, and then connect the other end to a spare port on your

router.

Important guidelines for installing your Wi-Fi®Camera Unit

• Use of other 2.4 GHz products, such as other wireless networks, Bluetooth™

systems or microwave ovens may cause interference with this product. Keep

the Wi-Fi®Camera Unit away from these types of products, or turn them off if

they appear to be causing interference.

• Always ensure that you have a good Wi-Fi®connection available.

4Table of contents

Table of contents

1. Safety Instructions .....................................................................................5

2. System Requirements ............................................................................... 9

3. Getting started - Connecting Devices.................................................... 10

3.1 Setup.......................................................................................................... 10

3.2 User Account and Camera Setup on Android™ Devices....................... 11

3.2.1 Power ON and Connect the Camera ...................................... 11

3.2.2 Download the Hubble App ....................................................... 11

3.2.3 Run Hubble for Motorola Monitors App on Android™ Devices .. 11

3.2.4 Add the Camera to your account ............................................. 12

3.3 User Account and Camera Setup on iPhone®/iPad®............................. 15

3.3.1 Power ON and Connect the Camera ...................................... 15

3.3.2 Download the Hubble App ....................................................... 15

3.3.3 Run Hubble for Motorola Monitors App on iPhone®/iPad®... 15

3.3.4 Add the Camera to your account ............................................. 16

4. Camera .................................................................................................... 21

4.1 Install your Camera and setting up........................................................... 21

4.2 Overview of the Features on Hubble App ............................................... 23

5. Working with PC/Notebook................................................................... 25

6. Procedure for resetting the Camera....................................................... 26

7. Help.......................................................................................................... 27

8. General Information ................................................................................ 33

9. Technical Specifications ......................................................................... 39

Safety Instructions 5

ENGLISH

1. Safety Instructions

WARNING:

STRANGULATION HAZARD - In case this unit is being used to monitor

infants or children, keep the unit and adapter cord more than 3 feet from

the crib and out of their reach. Never place camera or cords within a crib

or near a bed. Secure the cord away from children's reach. Never use

extension cords with AC Adapters. Only use the AC Adapters provided.

As with any electrical device, supervision of your pet's usage should be

exercised until your pet is acclimated to the product. If your pet is prone to

chewing, we strongly recommend you keep this and all other electrical

devices out of its reach.

Wi-Fi®CAMERA UNIT SET UP & USE:

• Determine a location for the Wi-Fi®Camera Unit that will provide the

best view of the area you would like to monitor (ie back yard or front

door).

• Fix the camera to a flat wall using the wall mounting plate and following

the instructions provided.

• NEVER place the Wi-Fi®Camera Unit or cords within the crib.

6Safety Instructions

WARNING

This Wi-Fi®Camera Unit is compliant with all relevant electromagnetic field

standards and is, when handled as described in the User’s Guide, safe to use.

Therefore, always read the instructions in this User’s Guide carefully before

using the device.

• Adult assembly is required due to small parts. Keep all small parts away from

children.

• This product is not a toy. Do not allow children to play with it.

• This Wi-Fi®Camera Unit is not a substitute for responsible adult supervision.

• Keep this user’s guide for future reference.

• Do not place the Wi-Fi®Camera Unit or cords in the crib or within reach of

the baby (the unit should be at least 3 feet away).

• Keep the cords out of reach of children.

• Do not cover the Wi-Fi®Camera Unit with a towel or blanket.

• Test the Wi-Fi®Camera Unit and all its functions so that you are familiar with

it prior to use.

• Do not use the Wi-Fi®Camera Unit near water.

• Do not install the Wi-Fi®Camera Unit near a heat source.

• Only use the power adapter provided. Do not use other power adapters as

this may damage the device.

• Never use extension cords with power adapters.

• Do not touch the plug contacts with sharp or metal objects.

Important instructions:

• Read and Follow Instructions - Please read all the safety and operating

instructions before operating the product.

• Retain Instructions - The safety and operating instructions should be

retained for future reference.

• Heed Warnings - Comply with all warnings on the product and in the

operating instructions.

• Polarization - Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than

Safety Instructions 7

ENGLISH

the other. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong is provided for your safety. If the

supplied plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

• Power Sources - This product should be operated only from the type of

power source indicated on the marking label. If you are not sure of the type

of power supplied to your location, consult your camera dealer or local

power company. For products intended to operate from battery power, or

other sources, please refer to the operating instructions.

• Overloading - Do not overload wall outlets or extension cords as this can

result in the risk of fire or electric shock. Overloaded AC outlets, extension

cords, frayed power cords, damaged or cracked wire insulation, and broken

plugs are dangerous. They may result in a shock or fire hazard. Periodically

examine the cord, and if its appearance indicates damage or deteriorated

insulation, have it replaced by your service technician.

• Power-Cord Protection - Power supply cords should be routed so that they

are not likely to be walked on or pinched by items placed upon or against

them. Pay particular attention to cords at plugs, convenience receptacles,

and the point where they exit from the product.

• Surge Protectors - It is highly recommended that the camera equipment be

connected to a surge protector. Doing so will protect the equipment from

damage caused by power surges. Surge protectors should bear the UL listing

mark or CSA certification mark.

• Uninterruptible Power Supplies (UPS) - Because this product is designed for

continuous, 24/7 operation, it is recommended that you connect the product

to an uninterruptible power supply. An uninterruptible power supply has an

internal battery that will keep the product running in the event of a power

outage. Uninterruptible power supplies should bear the UL listing mark or

CSA certification mark. CAUTION: Maintain electrical safety. Power line

operated equipment or accessories connected to this product should bear

the UL listing mark or CSA certification mark on the accessory itself and

should not be modified so as to defeat the safety features. This will help avoid

8Safety Instructions

any potential hazard from electrical shock or fire. If in doubt, contact

qualified service personnel.

• Ventilation - Slots and openings on the case are provided for ventilation to

ensure reliable operation of the product and to protect it from overheating.

These openings must not be blocked or covered. The openings should

never be blocked by placing the camera equipment on a bed, sofa, rug, or

other similar surface. This product should never be placed near or over a

radiator or heat register. This product should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is provided

and the product manufacturer's instructions have been followed.

• Attachments - Do not use attachments unless recommended by the product

manufacturer, as they may cause a hazard.

• Heat - The product should be located away from heat sources such as

radiators, heat registers, stoves, or other products (including amplifiers) that

produce heat.

• Accessories - Do not place this camera equipment on an unstable cart, stand,

tripod, or table. The camera equipment may fall, causing serious damage to

the product. Use this product only with a cart, stand, tripod, bracket, or table

recommended by the manufacturer or sold with the product. Any mounting of

the product should be according to the manufacturer's instructions and use a

mounting accessory recommended by the manufacturer.

• Camera Extension Cables - Check the rating of your extension cable to

verify its compliance prior to installation.

• Mounting - The cameras provided with this system should be mounted only

as instructed in this guide or the instructions that came with your cameras,

using the supplied mounting brackets.

• Camera Installation - Cameras are not intended for submersion in water.

When installing cameras outdoors, installation in a sheltered area is

recommended.

System Requirements 9

ENGLISH

2. System Requirements

Web Portal

• Windows®7

• Mac OS®10.7

• Chrome™ 24

• Internet Explorer®9

• Safari®6

• Java™ 7

• Firefox®18.0

• Adobe®Flash®Player 15.0

Android™System

• Version 4.2 or above

iPhone®/iPad®iOS

• Version 7.0 or above

Wi-Fi®requirements:

• At least 0.6 Mbps upload bandwidth per camera. Test your Internet speed at:

http://www.speedtest.net/

10 Getting started - Connecting Devices

3. Getting started - Connecting Devices

How does it work?

When a user tries to access the Camera, our secure server authenticates the

user’s identity and permits access to the Camera.

3.1 Setup

• Connect the Camera’s round plug to the Y-shaped Power/LAN cable

connector.

(see section 4.1 D: Connecting the Camera Unit’s Power Supply)

• Insert the power adapter plug into the power connection socket of the Y-

shaped Power/LAN cable connector and connect the other end of the power

adapter to a suitable electrical outlet. The LED indicator will light up.

• The Camera must be within range of the Wi-Fi

router with which you want to

connect. Make sure the password of the router is available for entering during

the in-app setup process.

Status of LED Indication:

- Pair / Setup state: LED is green and flashing slowly

- Unconnected state: LED is green and flashing slowly

- Connected state: LED is green and always on

- Ready for connection state: LED is green and flashing intermittently

Note:

You can only setup via a compatible smartphone or tablet and not via a PC.

Access your

Camera locally View your Camera from any

compatible device remotely

Autres manuels pour FOCUS73

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Caméra de sécurité

Motorola

Motorola SCOUT73 Manuel utilisateur

Motorola

Motorola EASY START KIT HMEZ1000 - CELL PHONE SET UP Comment utiliser

Motorola

Motorola Avigilon 1.3C-H4M-D1 Manuel utilisateur

Motorola

Motorola PELCO Optera IMM12036-1ES Manuel utilisateur

Motorola

Motorola SCOUT73 Manuel utilisateur

Motorola

Motorola SCOUT5000 Manuel utilisateur

Motorola

Motorola Avigilon H4 Series Manuel utilisateur

Motorola

Motorola MOTOMESH 1.2 Manuel utilisateur

Motorola

Motorola Focus72 Manuel utilisateur

Motorola

Motorola Avigilon H4SL-D Manuel utilisateur

Motorola

Motorola FOCUS89 Manuel utilisateur

Motorola

Motorola FOCUS66-B2 Manuel utilisateur

Motorola

Motorola FOCUS89-2 Manuel utilisateur

Motorola

Motorola FOCUS73 Manuel utilisateur

Motorola

Motorola EASY START KIT HMEZ1000 - CELL PHONE SET UP Manuel utilisateur

Motorola

Motorola Avigilon H4SL-MT-NPTA Manuel utilisateur

Motorola

Motorola Avigilon H4 Series Manuel utilisateur

Motorola

Motorola HMVC3050 Manuel utilisateur

Motorola

Motorola EASY START KIT HMEZ1000 - CELL PHONE SET UP Manuel utilisateur

Motorola

Motorola Avigilon 2.0C-H5A-B1 Manuel utilisateur

Motorola

Motorola Avigilon H5A Series Manuel utilisateur

Motorola

Motorola Avigilon H4M-MT-DCIL Manuel utilisateur

Motorola

Motorola HMVC3050 Manuel utilisateur

Motorola

Motorola Avigilon H4A-ETD-KIT Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
