Motorola FOCUS73 Manuel utilisateur

QUICK START GUIDE

For a full explanation of all features and instructions, please refer to the User’s Guide.

1. How to register your Camera to Hubble account

MODELS:

FOCUS73

FOCUS73-2

1. Connect the Camera's round plug to the Y-shaped Power/LAN

cable connector.

2. Insert the power adapter plug into the power socket and

connect the other end of the power adapter to a suitable

mains power socket.

3. The Camera turns ON, and the LED indicator will start flashing

slowly after booting finish.

A. Connect to power supply.

Download the Hubble for Motorola Monitors App from the App Store for iOS®

devices or from the Google PlayTM Store for Android TM devices.

B. Install Hubble for Motorola Monitors App.

WARNING:

STRANGULATION HAZARD – In case this unit is being used to monitor infants or children, keep the unit and adapter cord more than 1 metre from the cot

and out their reach.

Never place camera or cords inside a cot or near a bed. Secure the cord away from the reach of children. Never use extension cords with AC Adapters. Only

use the AC Adapters provided.

As with any electrical device, supervision of your pet’s usage should be exercised until your pet is acclimated to the product. If your pet is prone to chewing,

we strongly recommend you keep this and all other electrical devices out of its reach.

1. Open the Hubble for Motorola Monitors App on your compatible

smartphone or tablet.

2. Follow the in-app instructions to create your Hubble account and connect to

your Wi-Fi Camera.

3. Log in to your account on your compatible smartphone, tablet or via

https://app.hubbleconnected.com/#login on your PC to access your live

camera stream.

C. View on Compatible Smartphones, Tablets and Computers.

Wi-Fi®Camera Connect to Internet

via Wi-Fi®

Compatible

Viewing Devices

Please take note of the following minimum system requirements:

Smartphones/Tablets: iOS 7, Android™ 4.2

PC (only for viewing - NOT setup): Windows®7, Mac OS®10.7, Chrome™ 24, Internet Explorer®9, Safari®6, Firefox®18, Adobe®Flash®15, Java™ 7

Wi-Fi requirements:

At least 0.6 Mbps upload bandwidth per camera. Test your Internet speed at: http://www.speedtest.net/

2. How to mount your Camera on the wall

1. Mark the position of the

screw holes on the wall.

2. Drill 4 holes and hammer

the drywall plugs

(included) into the holes

as needed.

3. Fasten the mounting

plate on the wall with the

4 Philips head screws

(provided).

A. Fixing Mounting Plate on the wall.

1.2”

1/4”

1.9”

Place the 4 mounting slots of the camera

base on to 4 catches on the mounting

plate. Make sure the unit sits firmly on

the mounting plate with the center holes

of 2 parts lined up.

B. Hanging the Camera unit on the Mounting Plate.

3. Customer Support

If you are experiencing any issues with your Motorola Wi-Fi®Outdoor Home Video Camera,

please visit the help section on our website www.motorola.com

You can also contact our customer support teams

+44 (0) 844 557 0890 (UK only)

+44 (0) 8187 62092 (ROI)

Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product.

MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings,

LLC. and are used under license. Apple logo and Safari are trademarks of Apple Inc., registered in the U.S. and

other countries. App Store is a service mark of Apple Inc. Google Play, Android, and Chrome are trademarks of

Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance. Internet Explorer and Windows are trademarks of the

Microsoft group of companies. Firefox is a registered trademark of the Mozilla Foundation. Adobe and Flash are

either registered trademarks or trademarks of Adobe Systems Incorporated. Java is a registered trademark of

Oracle and/or its affiliates. All other trademarks are the property of their respective owners.

Printed in China

EN_UK Version 11.0

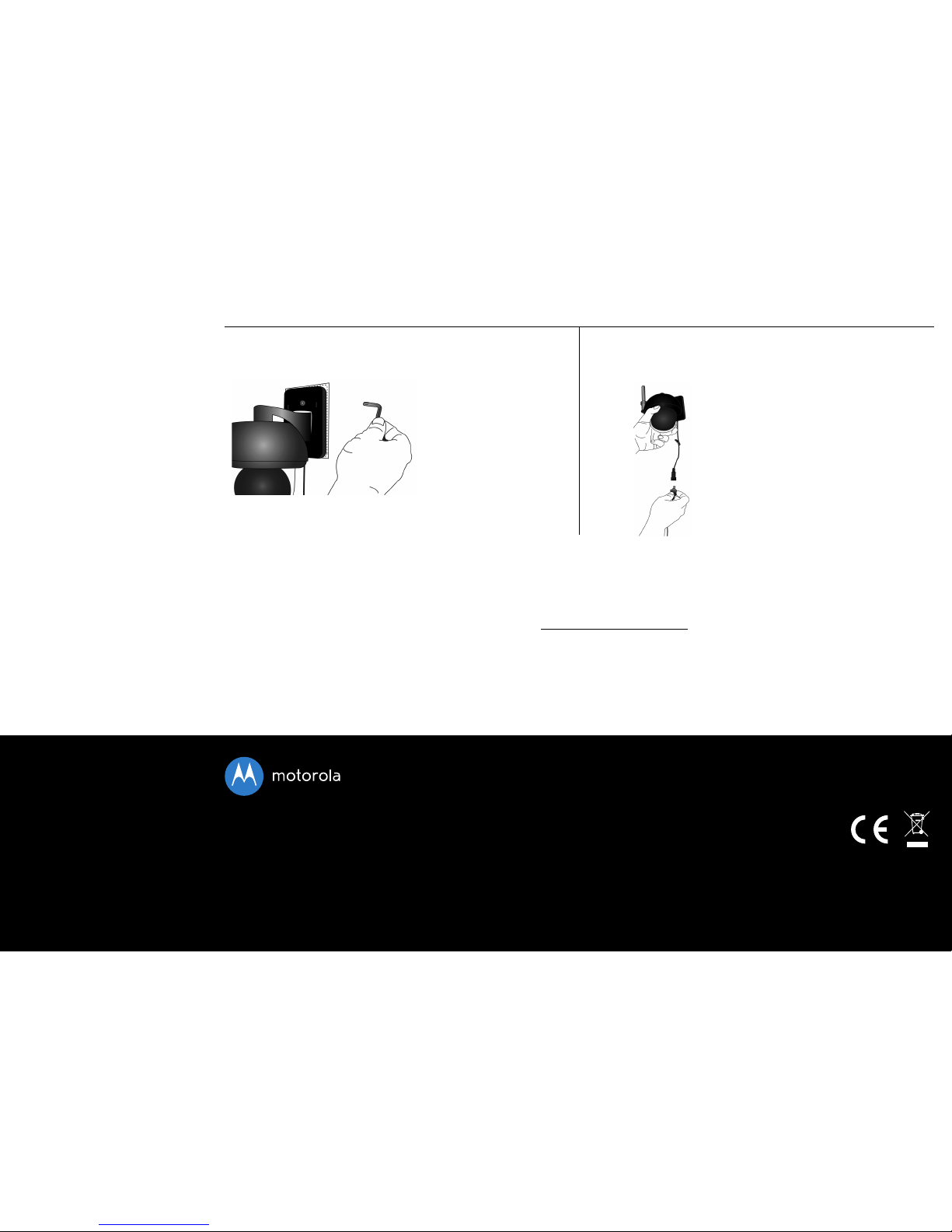

Fasten the unit to the

mounting plate at the

center hole with the

tamper-proof screw by the

wrench key provided.

C. Secure the Camera Unit.

Insert the power adapter plug into the

Power Socket and connect other end of

the power adapter to a suitable mains

power socket.

D. Connecting Power Supply for the Camera Unit.
