Motorola TETRA MTM800 Manuel utilisateur

MTM800 Enhanced

TETRA Mobile Terminal

When printed by Motorola

Basic User Guide

All manuals and user guides at all-guides.com

all-guides.com

12 13 14

All manuals and user guides at all-guides.com

English

Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Icon Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

MTM800 Enhanced Overview . . . . . . . . . . . . . . . . . . . . 6

Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

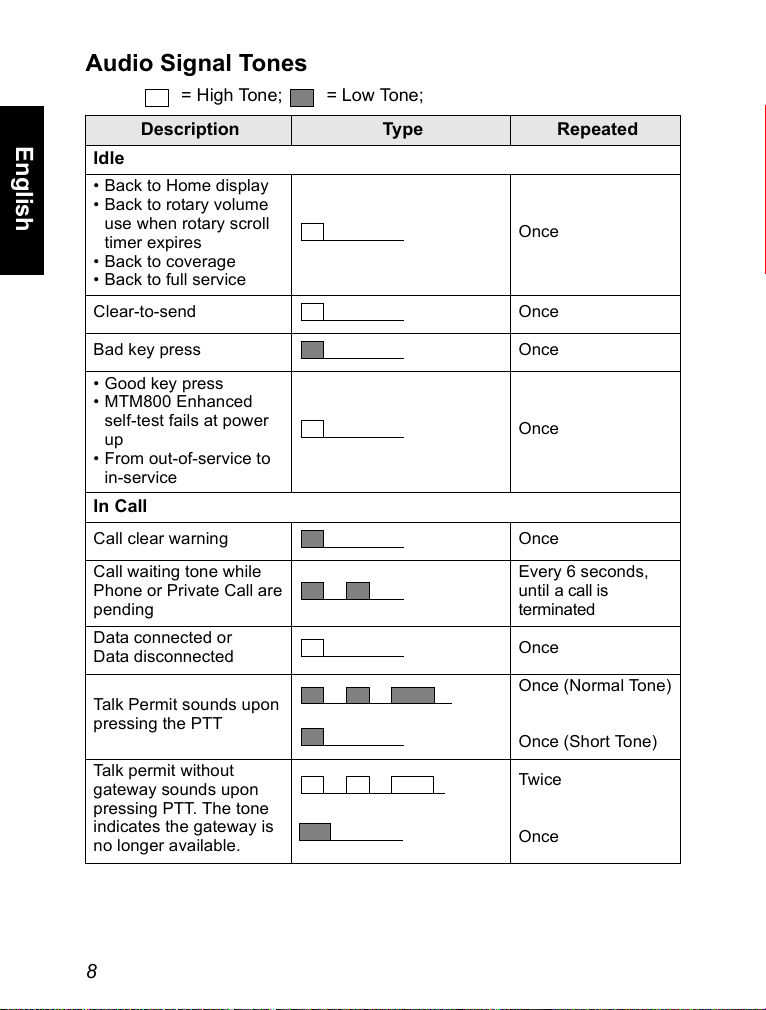

Audio Signal Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Periodic Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Key, Knob, and Button Overview . . . . . . . . . . . . . . . . . . . . . . . 11

On-Off/End/Home Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Menu Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Rotary Knob/On Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Emergency Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Volume Adjustment Mode . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dual Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

The LED Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

To Enter the Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

To Return to the Previous Level . . . . . . . . . . . . . . . . . . . . . . . . 14

To Exit the Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

List of Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

The Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Menu Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Inbox Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contact Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Outbox Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Text Entry Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Powering On/Off (On-Off/End/Home Key or Rotary Knob Push

Button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Powering On (Emergency Button) . . . . . . . . . . . . . . . . . . . . . . 27

All manuals and user guides at all-guides.com

English

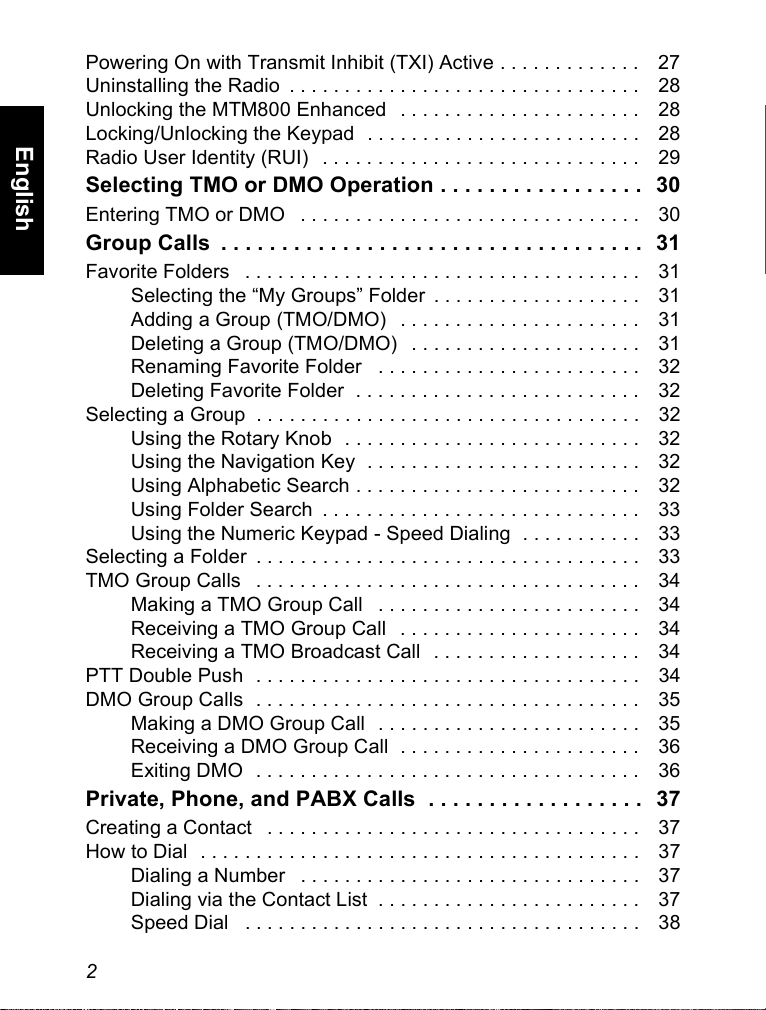

Powering On with Transmit Inhibit (TXI) Active . . . . . . . . . . . . . 27

Uninstalling the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Unlocking the MTM800 Enhanced . . . . . . . . . . . . . . . . . . . . . . 28

Locking/Unlocking the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . 28

Radio User Identity (RUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Selecting TMO or DMO Operation . . . . . . . . . . . . . . . . . 30

Entering TMO or DMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Group Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Favorite Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Selecting the “My Groups” Folder . . . . . . . . . . . . . . . . . . . 31

Adding a Group (TMO/DMO) . . . . . . . . . . . . . . . . . . . . . . 31

Deleting a Group (TMO/DMO) . . . . . . . . . . . . . . . . . . . . . 31

Renaming Favorite Folder . . . . . . . . . . . . . . . . . . . . . . . . 32

Deleting Favorite Folder . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Selecting a Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Rotary Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Navigation Key . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using Alphabetic Search . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using Folder Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using the Numeric Keypad - Speed Dialing . . . . . . . . . . . 33

Selecting a Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

TMO Group Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Making a TMO Group Call . . . . . . . . . . . . . . . . . . . . . . . . 34

Receiving a TMO Group Call . . . . . . . . . . . . . . . . . . . . . . 34

Receiving a TMO Broadcast Call . . . . . . . . . . . . . . . . . . . 34

PTT Double Push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

DMO Group Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Making a DMO Group Call . . . . . . . . . . . . . . . . . . . . . . . . 35

Receiving a DMO Group Call . . . . . . . . . . . . . . . . . . . . . . 36

Exiting DMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Private, Phone, and PABX Calls . . . . . . . . . . . . . . . . . . 37

Creating a Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

How to Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Dialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Dialing via the Contact List . . . . . . . . . . . . . . . . . . . . . . . . 37

Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

All manuals and user guides at all-guides.com

English

Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Making a Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Receiving a Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Phone and PABX Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Making a Phone or PABX Call . . . . . . . . . . . . . . . . . . . . . 39

Emergency Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Entering or Exiting Emergency Mode . . . . . . . . . . . . . . . . . . . . 40

Sending an Emergency Alarm . . . . . . . . . . . . . . . . . . . . . . . . . 40

Hot Microphone Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Making an Emergency Group Call . . . . . . . . . . . . . . . . . . . . . . 42

Silent Emergency Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Call-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sending a Status Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sending a New Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Sending a User-Defined Message . . . . . . . . . . . . . . . . . . . . . . 44

Sending a Predefined Message . . . . . . . . . . . . . . . . . . . . . . . . 44

Handling New Incoming Text Messages . . . . . . . . . . . . . . . . . . 44

Handling Unread (New) Messages . . . . . . . . . . . . . . . . . . . . . . 45

Tips & Tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 49

MOTOROLA and the stylized M Logo are registered in the U.S.

Patent and Trademark Office. All other product or service names

are the property of their respective owners.

All manuals and user guides at all-guides.com

English

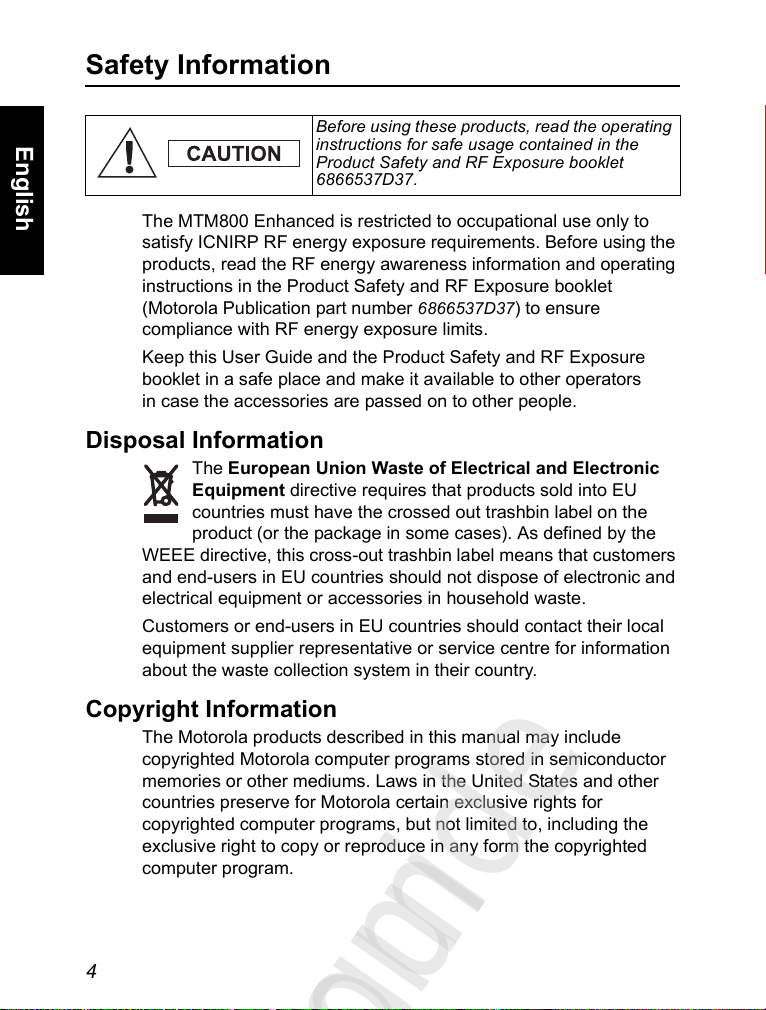

Safety Information

The MTM800 Enhanced is restricted to occupational use only to

satisfy ICNIRP RF energy exposure requirements. Before using the

products, read the RF energy awareness information and operating

instructions in the Product Safety and RF Exposure booklet

(Motorola Publication part number 6866537D37) to ensure

compliance with RF energy exposure limits.

Keep this User Guide and the Product Safety and RF Exposure

booklet in a safe place and make it available to other operators

in case the accessories are passed on to other people.

Disposal Information

The European Union Waste of Electrical and Electronic

Equipment directive requires that products sold into EU

countries must have the crossed out trashbin label on the

product (or the package in some cases). As defined by the

WEEE directive, this cross-out trashbin label means that customers

and end-users in EU countries should not dispose of electronic and

electrical equipment or accessories in household waste.

Customers or end-users in EU countries should contact their local

equipment supplier representative or service centre for information

about the waste collection system in their country.

The Motorola products described in this manual may include

copyrighted Motorola computer programs stored in semiconductor

memories or other mediums. Laws in the United States and other

countries preserve for Motorola certain exclusive rights for

copyrighted computer programs, but not limited to, including the

exclusive right to copy or reproduce in any form the copyrighted

computer program.

Before using these products, read the operating

instructions for safe usage contained in the

Product Safety and RF Exposure booklet

6866537D37.

All manuals and user guides at all-guides.com

all-guides.com

English

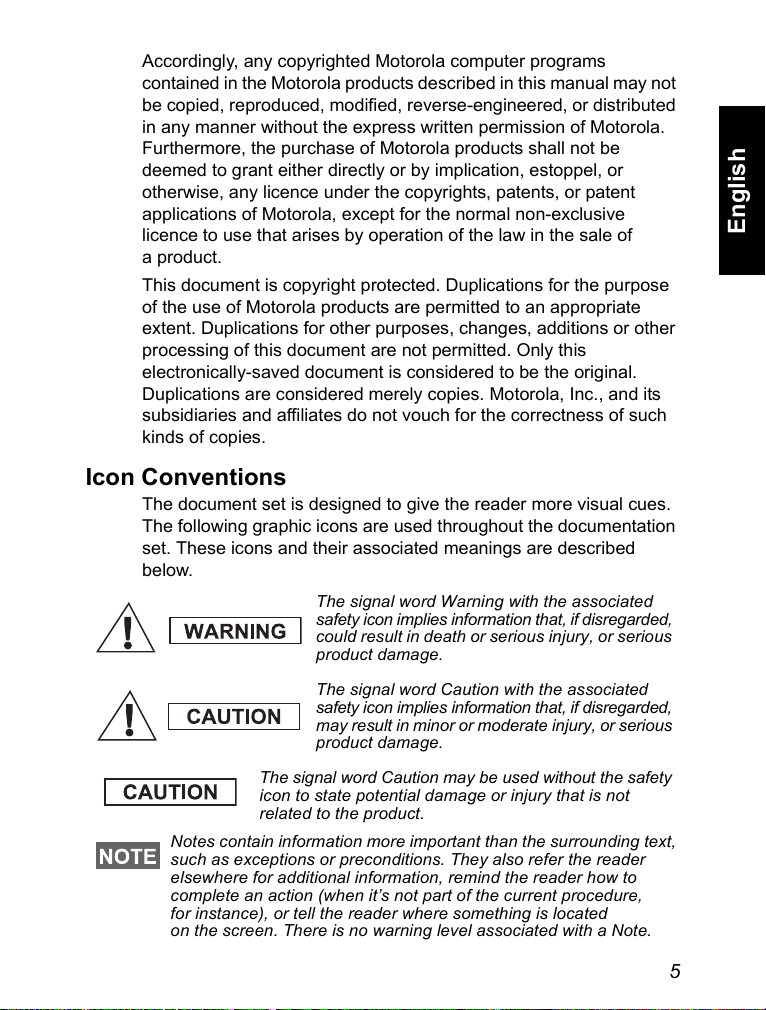

Accordingly, any copyrighted Motorola computer programs

contained in the Motorola products described in this manual may not

be copied, reproduced, modified, reverse-engineered, or distributed

in any manner without the express written permission of Motorola.

Furthermore, the purchase of Motorola products shall not be

deemed to grant either directly or by implication, estoppel, or

otherwise, any licence under the copyrights, patents, or patent

applications of Motorola, except for the normal non-exclusive

licence to use that arises by operation of the law in the sale of

a product.

This document is copyright protected. Duplications for the purpose

of the use of Motorola products are permitted to an appropriate

extent. Duplications for other purposes, changes, additions or other

processing of this document are not permitted. Only this

electronically-saved document is considered to be the original.

Duplications are considered merely copies. Motorola, Inc., and its

subsidiaries and affiliates do not vouch for the correctness of such

kinds of copies.

Icon Conventions

The document set is designed to give the reader more visual cues.

The following graphic icons are used throughout the documentation

set. These icons and their associated meanings are described

below.

The signal word Warning with the associated

safety icon implies information that, if disregarded,

could result in death or serious injury, or serious

product damage.

The signal word Caution with the associated

safety icon implies information that, if disregarded,

may result in minor or moderate injury, or serious

product damage.

The signal word Caution may be used without the safety

icon to state potential damage or injury that is not

related to the product.

Notes contain information more important than the surrounding text,

such as exceptions or preconditions. They also refer the reader

elsewhere for additional information, remind the reader how to

complete an action (when it’s not part of the current procedure,

for instance), or tell the reader where something is located

on the screen. There is no warning level associated with a Note.

All manuals and user guides at all-guides.com

English

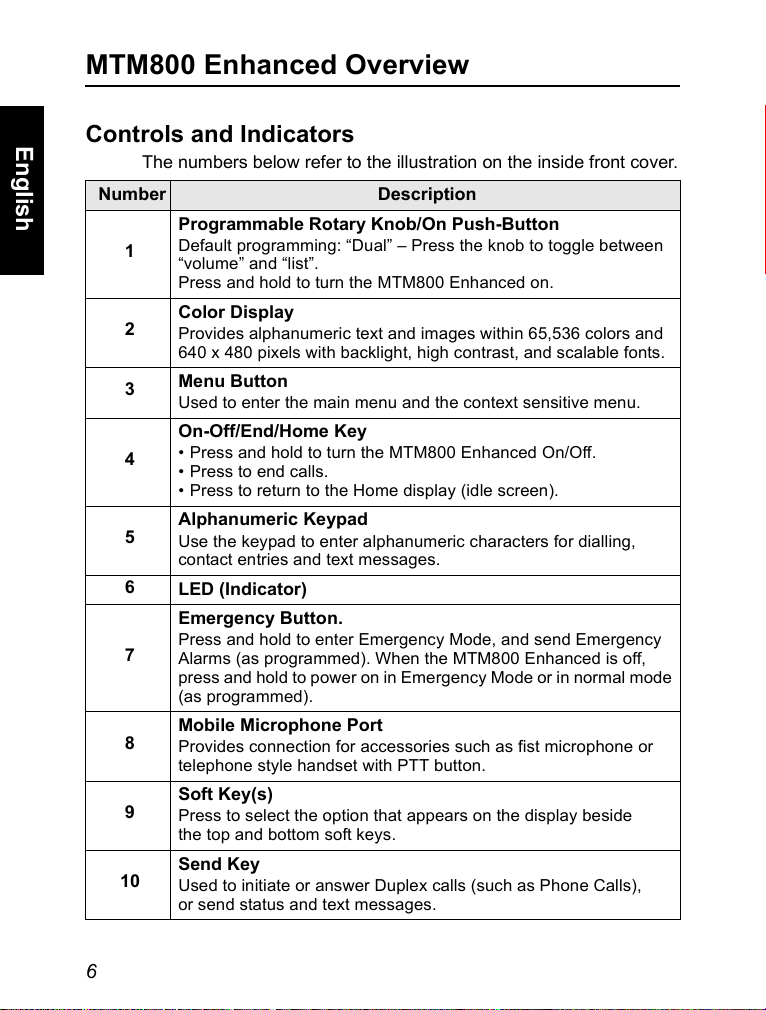

MTM800 Enhanced Overview

Controls and Indicators

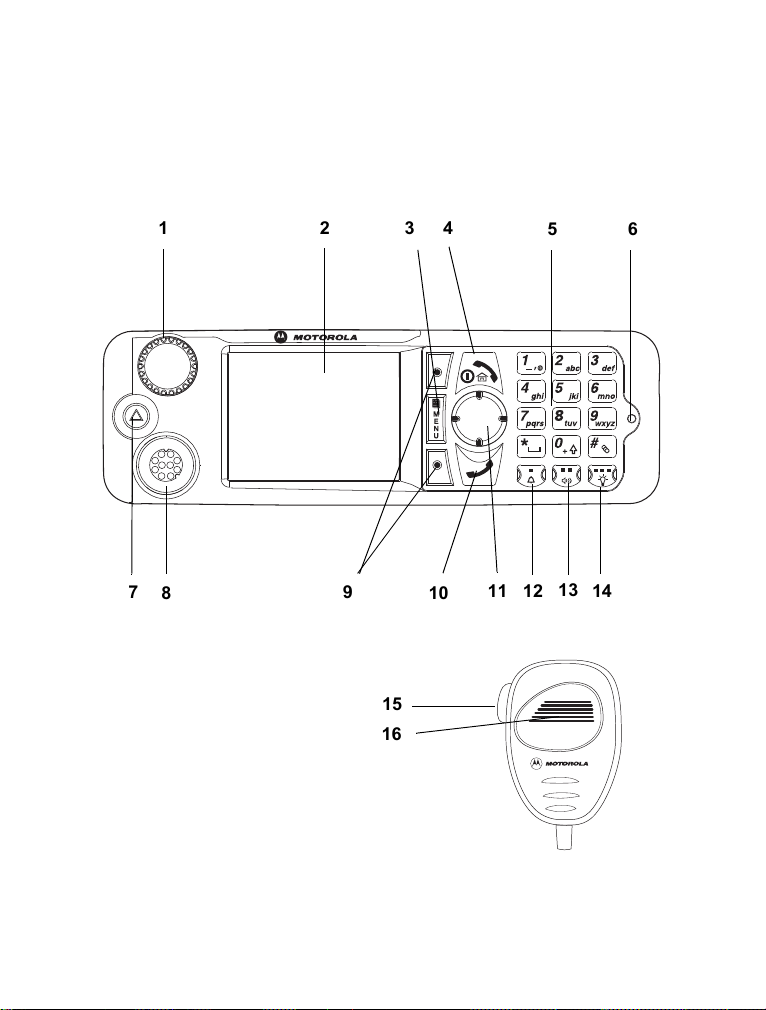

The numbers below refer to the illustration on the inside front cover.

Number Description

Programmable Rotary Knob/On Push-Button

Default programming: “Dual” – Press the knob to toggle between

“volume” and “list”.

Press and hold to turn the MTM800 Enhanced on.

2 Color Display

Provides alphanumeric text and images within 65,536 colors and

640 x 480 pixels with backlight, high contrast, and scalable fonts.

3 Menu Button

Used to enter the main menu and the context sensitive menu.

On-Off/End/Home Key

• Press and hold to turn the MTM800 Enhanced On/Off.

• Press to end calls.

• Press to return to the Home display (idle screen).

5 Alphanumeric Keypad

Use the keypad to enter alphanumeric characters for dialling,

contact entries and text messages.

6 LED (Indicator)

Emergency Button.

Press and hold to enter Emergency Mode, and send Emergency

Alarms (as programmed). When the MTM800 Enhanced is off,

press and hold to power on in Emergency Mode or in normal mode

(as programmed).

8 Mobile Microphone Port

Provides connection for accessories such as fist microphone or

telephone style handset with PTT button.

9 Soft Key(s)

Press to select the option that appears on the display beside

the top and bottom soft keys.

10 Send Key

Used to initiate or answer Duplex calls (such as Phone Calls),

or send status and text messages.

All manuals and user guides at all-guides.com

English

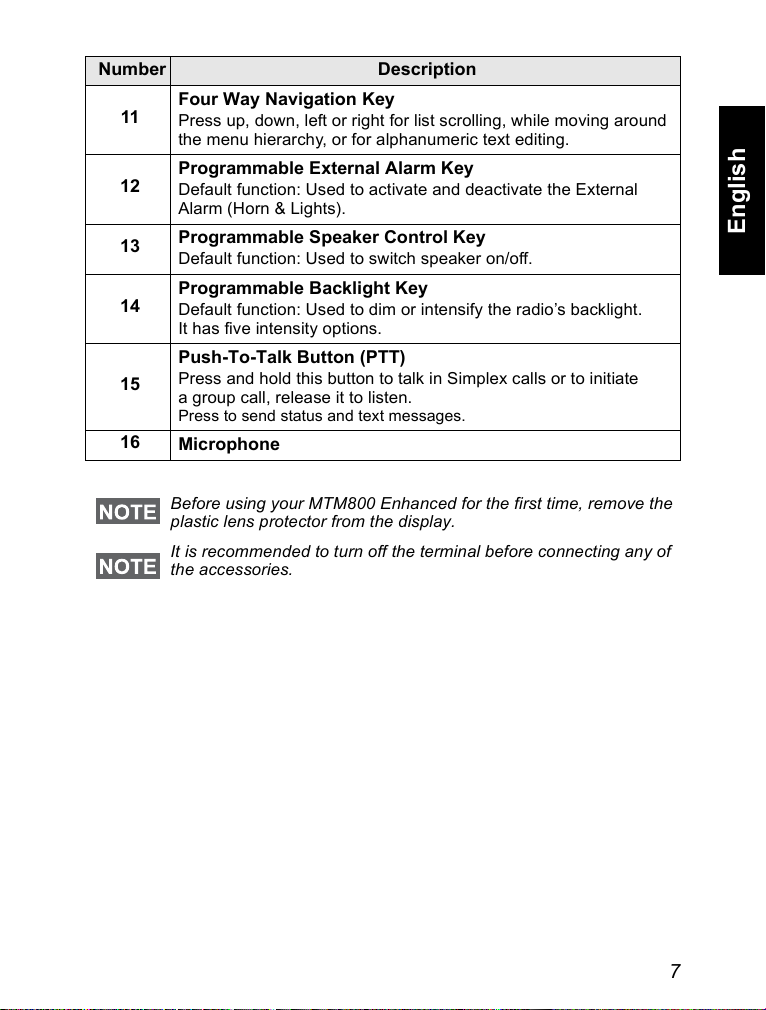

11 Four Way Navigation Key

Press up, down, left or right for list scrolling, while moving around

the menu hierarchy, or for alphanumeric text editing.

12 Programmable External Alarm Key

Default function: Used to activate and deactivate the External

Alarm (Horn & Lights).

13 Programmable Speaker Control Key

Default function: Used to switch speaker on/off.

14 Programmable Backlight Key

Default function: Used to dim or intensify the radio’s backlight.

It has five intensity options.

Push-To-Talk Button (PTT)

Press and hold this button to talk in Simplex calls or to initiate

a group call, release it to listen.

Press to send status and text messages.

16 Microphone

Before using your MTM800 Enhanced for the first time, remove the

plastic lens protector from the display.

It is recommended to turn off the terminal before connecting any of

the accessories.

Number Description

All manuals and user guides at all-guides.com

English

Audio Signal Tones

= High Tone; = Low Tone;

Description Type Repeated

Idle

• Back to Home display

• Back to rotary volume

use when rotary scroll

timer expires

• Back to coverage

• Back to full service

Once

Clear-to-send Once

Bad key press Once

• Good key press

• MTM800 Enhanced

self-test fails at power

• From out-of-service to

in-service

Once

In Call

Call clear warning Once

Call waiting tone while

Phone or Private Call are

pending

Every 6 seconds,

until a call is

terminated

Data connected or

Data disconnected Once

Talk Permit sounds upon

pressing the PTT

Once (Normal Tone)

Once (Short Tone)

Talk permit without

gateway sounds upon

pressing PTT. The tone

indicates the gateway is

no longer available.

Twice

Once

All manuals and user guides at all-guides.com

Autres manuels pour TETRA MTM800

Table des matières

Autres manuels Motorola portable

Motorola

Motorola MC9500-K - Win Mobile 6.1 806 MHz Guide de l'utilisateur

Motorola

Motorola SYMBOL MT2000 Series Manuel utilisateur

Motorola

Motorola TETRA MTM800 Manuel d'utilisation et d'entretien

Motorola

Motorola MC3090Z Manuel utilisateur

Motorola

Motorola Omnii Manuel utilisateur

Motorola

Motorola KVL 4000 Manuel utilisateur

Motorola

Motorola MC55 - Enterprise Digital Assistant Manuel utilisateur

Motorola

Motorola MC40 Manuel utilisateur

Motorola

Motorola MC5590 Manuel utilisateur

Motorola

Motorola TETRA Manuel utilisateur

Motorola

Motorola MC40 Manuel utilisateur

Motorola

Motorola MC55 - Enterprise Digital Assistant Manuel utilisateur

Motorola

Motorola TC55 Manuel utilisateur

Motorola

Motorola MC9500-K - Win Mobile 6.1 806 MHz Manuel utilisateur

Motorola

Motorola 7545MBW Manuel utilisateur

Motorola

Motorola MC9094-KUCHJERA6WR - MC9094-K - Win Mobile 6.1 Professional 624... Manuel utilisateur

Motorola

Motorola Symbol IP54 Guide de configuration

Motorola

Motorola MC3090G - Win CE 5.0 Core Manuel utilisateur

Motorola

Motorola ES400 Guide de l'utilisateur

Motorola

Motorola MC32N0 SERIES Instructions de montage

Motorola

Motorola Workabout Pro4 Manuel utilisateur

Motorola

Motorola MC31XX Series Manuel utilisateur

Motorola

Motorola MC67 Manuel utilisateur

Motorola

Motorola MC40 Manuel utilisateur

Manuels portable populaires d'autres marques

Honeywell

Honeywell Dolphin 9900 Manuel utilisateur

Honeywell

Honeywell CN75 Manuel utilisateur

MiTAC

MiTAC Mio 168 Manuel utilisateur

Wasp

Wasp WDT92 Manuel utilisateur

Texas Instruments

Texas Instruments TI-Nspire Manuel utilisateur

AXEM Technology

AXEM Technology MBS Manuel utilisateur

Armstrong

Armstrong Brain Wave Instructions de montage

Unitech

Unitech TB128 Manuel utilisateur

Symbol

Symbol MC9000-G Manuel d'installation et d'exploitation

Unitech

Unitech HT1 1D Batch Manuel utilisateur

Ingenico

Ingenico IWL220 GPRS Manuel utilisateur

Intermec

Intermec CK61 Manuel utilisateur

Symbol

Symbol c2000 Manuel utilisateur

Symbol

Symbol MC18 Manuel d'installation et d'exploitation

Acer

Acer n20 Manuel utilisateur

Intermec

Intermec CK61 Manuel utilisateur

Docomo

Docomo F-04H Manuel utilisateur

Toshiba

Toshiba e350 Series Manuel utilisateur
