MTM800 Enhanced

TETRA Mobile Terminal

Installation Manual

When printed by Motorola

Publication Number

6866539D30-L

@6866539D30@

40 MTM800 Enhanced Mobile Terminal Installation Manual INSTALLATION

Remote Mount Installation

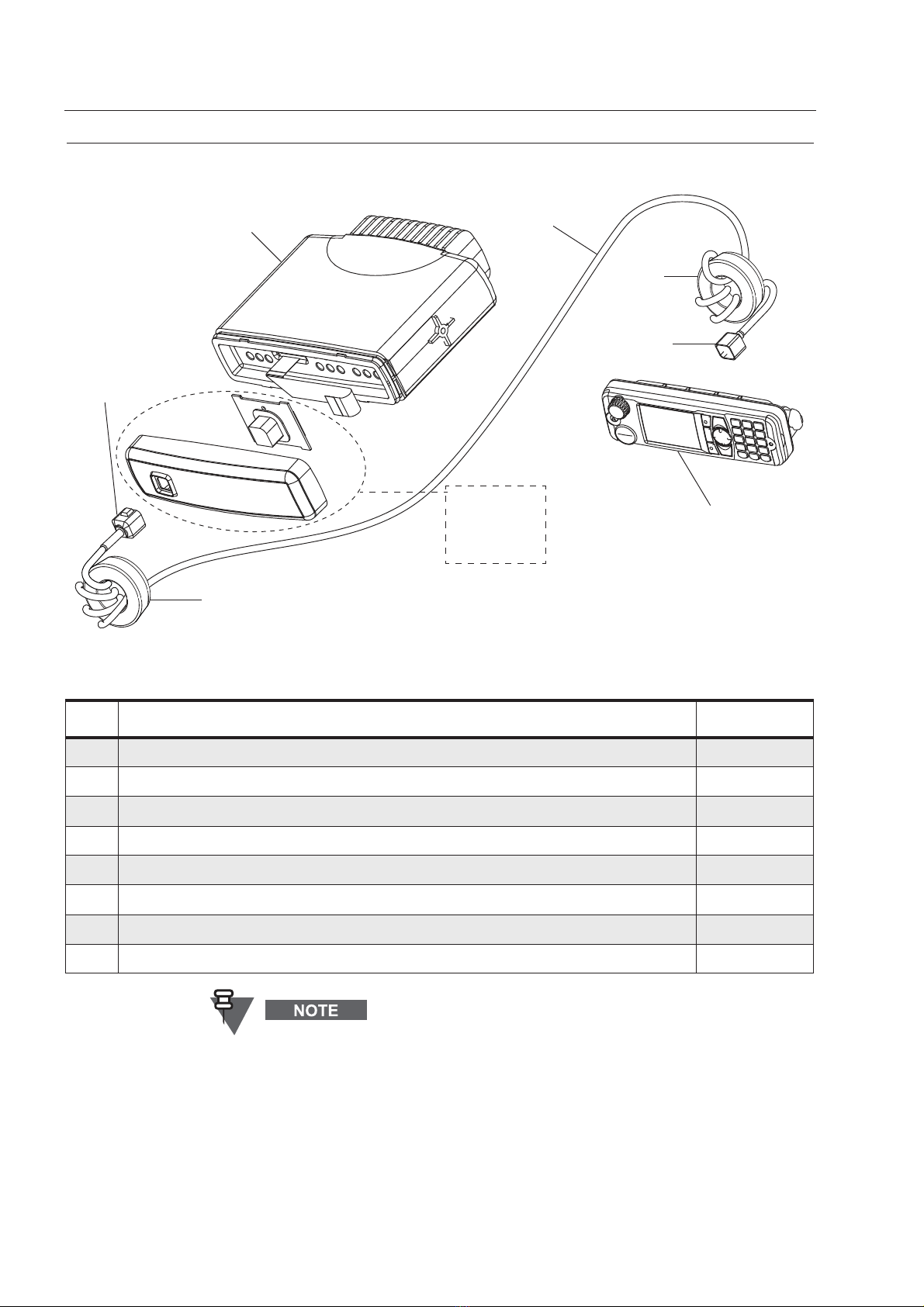

Figure 11 Remote Mount Installation with Remote Head Enhanced/Data Expansion Head Enhanced

Table 5 Associated Components for Remote Mount

Item Description Part Number

1 Remote Mount Cable, 3 m RKN4077

2 Remote Mount Cable, 5 m RKN4078

3 Remote Mount Cable, 5 m RKN4079

4 Remote Mount Cable, 10 m PMKN4020

5 Speaker Extension Cable GMKN4084

6 Remote Head Enhanced PMLN4904

7 Data Expansion Head Enhanced PMLN4908

8 Toroid EMC Suppression Kit 01015001001

The Remote Mount Cable have to be wound 10 times

around each toroid.

Each toroid have to be placed 30.0±2.5 cm respectively

from the expansion head and the control head.

Winding at both ends reduces the effective cable length

approximately by 0.8 m.

Fix the toroids firmly to a stable surface once the Remote

Mount Cable is connected.

Transceiver

10-Pin

Connector

Remote Mount Cable

Remote Mount Enhanced

10-Pin

Connector

Remote Head

or

Data Expansion

Head Enhanced

Enhanced

Flex

Control Head

Toroid

Toroid

10x

10x

INSTALLATION MTM800 Enhanced Mobile Terminal Installation Manual 41

Installing the Remote Mount Enhanced Control Head onto the Remote Mount

Trunnion

1. Slide the Remote Mount Enhanced Control Head onto the mounting trunnion until it snaps

into place.

2. Tighten the screws at both sides of the trunnion. After a few turns, tilt the control head for an

optimum view of the display. Then, complete the tightening of the screws.

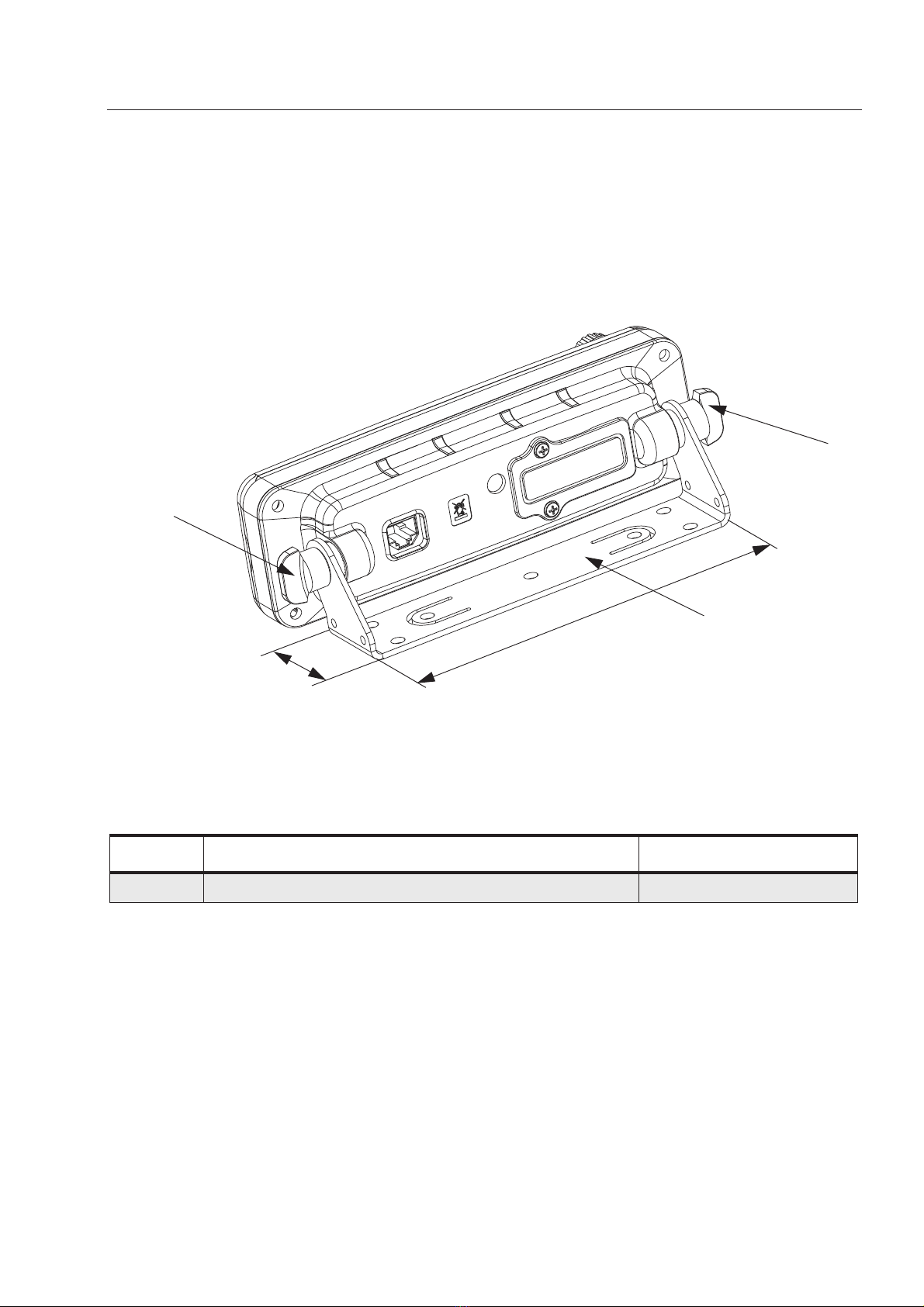

Figure 12 Remote Mount Enhanced Control Head Installation with Remote Mount Trunnion

Table 6 Remote Mount Enhanced Control Head Installation with Remote Mount Trunnion

- Mechanical Parts List for Installation

Item Description Part Number

1 & 2 Remote Mount Trunnion Kit PMLN4912

1

2

1

155+/-0.3mm

31mm
