Motion MOKWCO5103-S01 Manuel utilisateur
User Manual
Rev 1.0
MOKWCO5103-S01
To be used with
[ Motion Wireless Cinema kit ]
Motion S.P.A Page 1 of 2 11/11/2016
Wireless control box USER MANUAL
model number: MOKWCO5103-S01 for Motion Wireless Cinema KIT
Features:
Opening/closing all the seats on a room simultaneously
Up to 9 rooms managed by a single remote
No limit room size
Easy pairing for new rooms
Optional pressure pads for presence sense
Auto-closing for empty seats
Emergency stop closing feature
Description:
The “Motion Wireless Cinema” KIT is thinked to give the possibility to the Cinema keeper to open or close entire
rooms with a single remote. This emprove the seats management when the room is empty, after a projection, to prepare
the room before a projection or eventually to permit a fast cleaning by opening all the seats together.
The basic Kit includes:
N.1 remote hand control - Wireless transmitter (Motion code. MOKWCO2976-PB-S02 )
N.1 control box wireless - Wireless receiver (Motion code. MOKWCO5103-S01 )
N.5 control box - Seats control box (Motion code. MOKWCO5104-S01 )
N.5 hand control - Seats hand control (Motion code. MOECCO2390-V01 )
N.1 power cable splitter (Motion code. MOECCO2389-V01 )
N.1 seat cable splitter (Motion code. MOECCO5089 )
N.1 Power supply (Motion code. MOPS 2447 )
Optional
N.5 Pressure pads - Seats sensor (Motion code. MOECCO5106 )
Functioning description:
The 5 seats are controlled by a single wireless control box that receives the wireless signal from the remote hand
control. If multiple Kits are installed, the wireless signal is automatically forwarded to the other kit up to complete
coverage of the room. Depending on the size of the room, some little movement delay can be detected between nearest
and farest Kits.
If the pressure pad is mounted on the seat, when a person is seated the control-box wireless control is hinibited and the
hand-control placed on the seat is enable. When the person stand up and leave the seat, after 5 seconds the seat
automatically start to close. For safety reason the user can stop this automatism by pressing any keys on the seat hand-
control; in this case the seat still blocked until a person will seats on or the cinema keeper will use the wireless remote
to open or close.
User Manual
Rev 1.0
MOKWCO5103-S01
To be used with
[ Motion Wireless Cinema kit ]
Motion S.P.A Page 2 of 2 11/11/2016

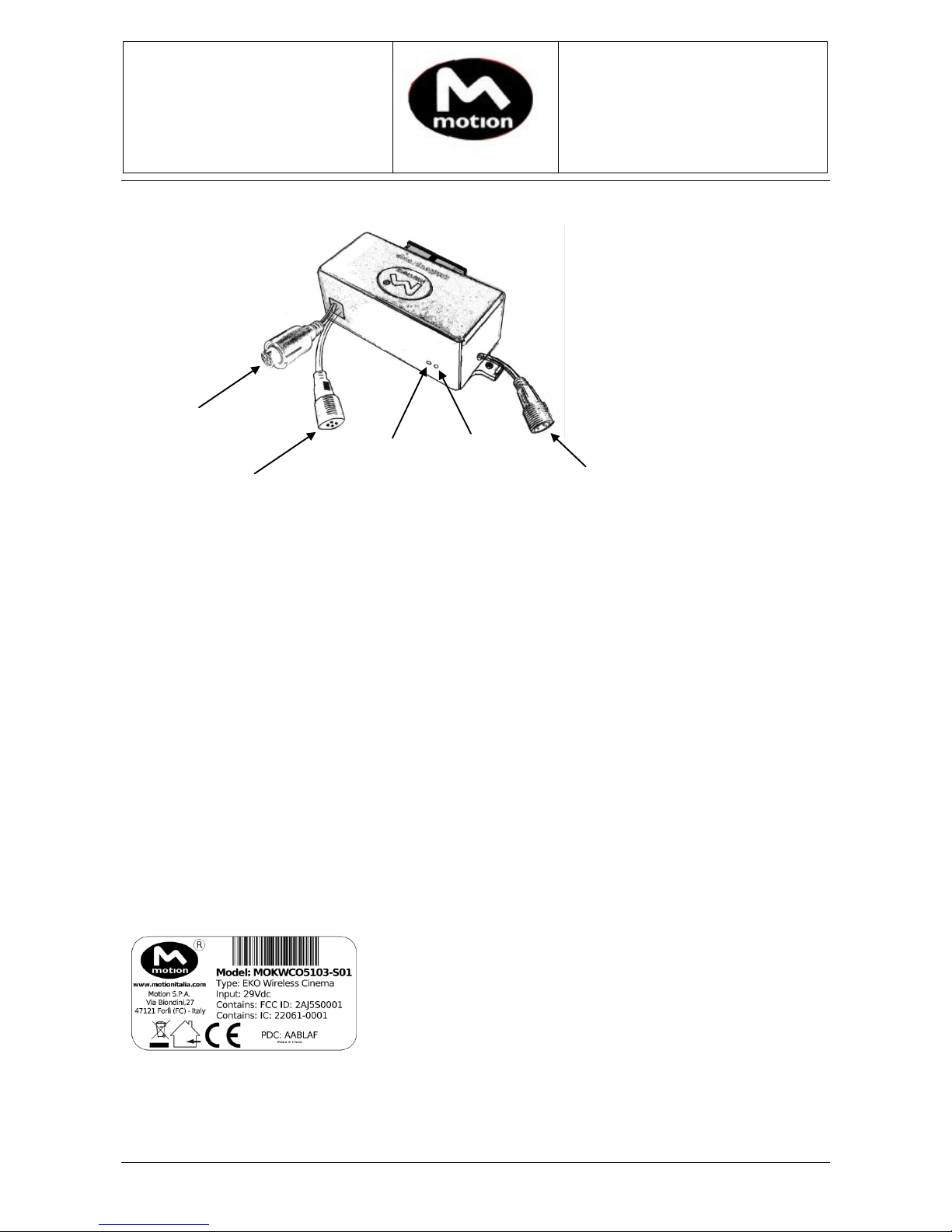

Wireless Control Box description and wiring:
The control box has to be powered exclusively by Motion power supply with Motion code. MOPS 2447.
Connect all the cable before power the control box.
Pairing new control boxes:
To pair the control boxes of a new room with your remote, push the button on the front of the control box to pair, and
then execute the following procedure on the remote:
Press continuously the “Sync button” on the remote for all the procedure duration.
After 5 seconds the remote display will start to blink, showing the “0” number. Press the Seat Open/Close button to
encrease/descease the display digit and choose the right number to program, then wait 5 seconds.
If the operation is completed correctly the display will shows the number “8” blinking fast for some seconds, otherwise
the display will shows the “E” character fast blinking.
After a correct programming, the control box learn the new address and it can be controlled only with this address.
Repeat the sync procedure for all the control boxes of the same room.
Open/close the seats:
After the pairing with at least one control box, the remote can be used to take control of the seats.
Press the Open/Close button on the remote to open/close all the seats of a room at the same time.
Label placed on bottom of the control box Note for FCC compliant rules:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1)This device may not cause harmful interference,
and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Seat splitter
connector
Power in
connector
Fig. 1
Power out
Connector to the
power splitter
Functioning
LED
Sync
Button
