Motic BA310 Pol Manuel utilisateur

WWW.MOTIC.COM

MOTIC INCORPORATION LTD.

BA310/BA400/BA410

Multi Viewing System

Instruction Manual

MVH - 2 Two observers (Side Side)

MVH - 3 Three observers (Side Side)

MVH - 5 Five observers (Side Side for BA400/BA410)

MVH - 2 Two observers (Face Face)

1

To ensure correct usage, read this manual and the instruction manual specific

to the microscope being utilized.

We are constantly endeavouring to improve our instruments and to adapt them to the

requirements of modern research techniques and testing methods. This involves

modification to the mechanical structure and optical design of our instruments.

Therefore, all descriptions and illustrations in this instruction manual, including all

specifications are subject to change without notice.

2

Table of Contents

I. Nomenclature 3

II. Assembly 7

MVH – 2 Two observers (SideSide) 7

MVH – 3 Three observers (SideSide) 10

MVH – 5 Five observers (SideSide) 12

MVH – 2 Two observers (FaceFace) 14

III. Observation 17

IV. Troubleshooting 18

3

I. Nomenclature

For MVH-2 (SideSide)

4

MVH-2 (FaceFace)

5

6

7

II. Assembly

Assembly for MVH–2 Two observers (SideSide)

The following drawing illustrates the configuration of the viewing attachment.

▲▲Convey the image orientation of each field of view.

This viewing head configuration does not allow the attachment of additional

intermediate parts.

Tools Needed: Allen Hex Wrench provided with the Viewing Head.

Steps in Assembly Process:

Step 1. Main Observation Head

Step 2. Sub-Observation Head

Step 3. Support Stand

Step 4. Eyepiece Tube Sub-Observation Head

Step 5. Eyepiece Tube Main Observation Head

Step 6. Input Plug for the Arrow Illuminator

Step 7. AC Adapter

8

Step 1. Main Observation Head

Install the main observation head with the arrow control knob facing the main user.

Fasten with the clamp screw located on the right hand side of the microscope arm.

Step 2. Sub-Observation Head

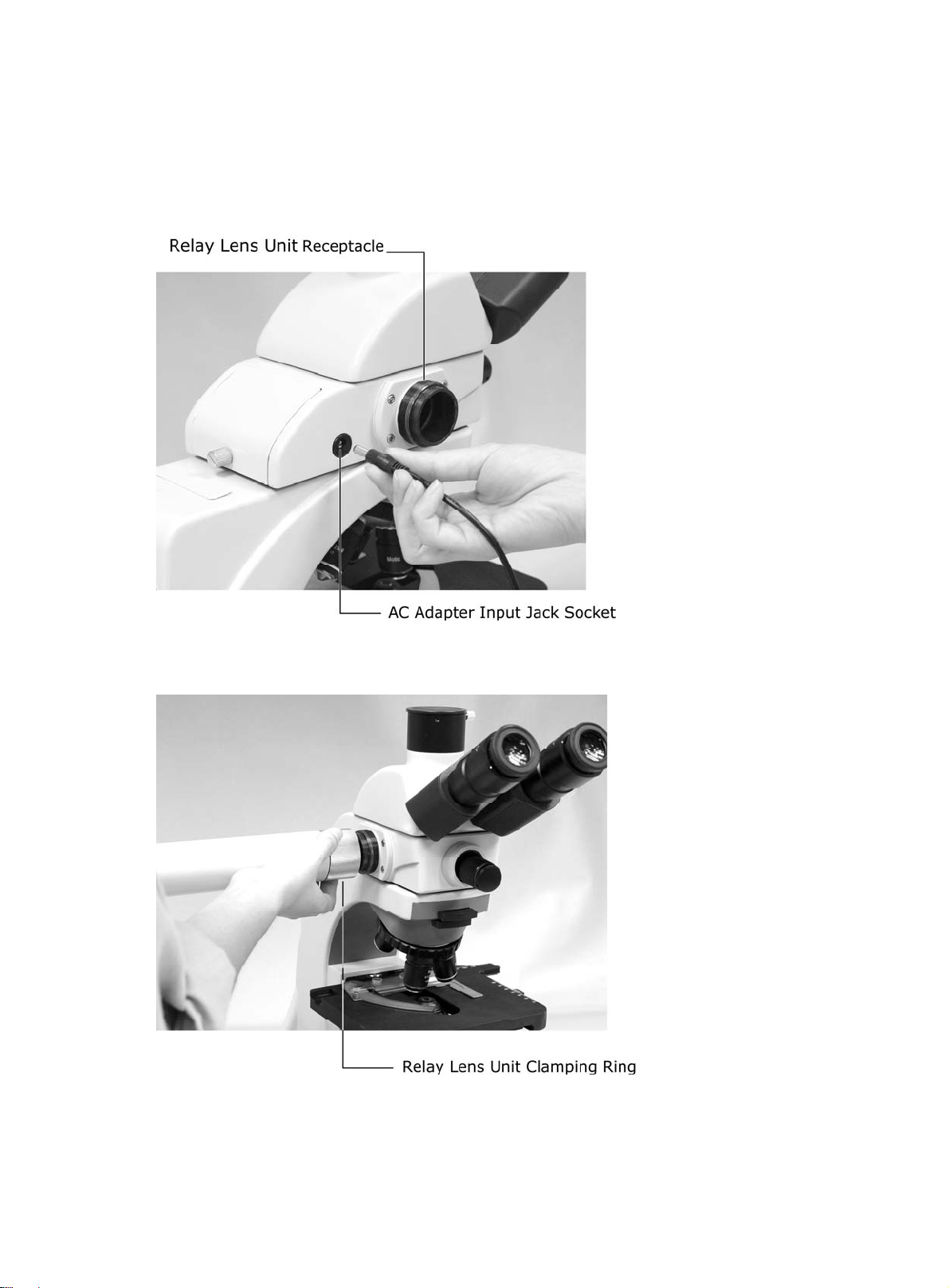

Slot in the relay lens unit (with sub-observation head attached) into the relay lens opening

on the main head. Secure with the relay lens unit clamping ring.

The relay lens unit can be slot in either side of the main observation head

9

Step 3. Support Stand

Adjust the height of the support stand to ensure the main head and the sub-

observation head are horizontal when attached.

Release the height adjustment clamp knob, and let the centre rod float up with the aid

of the built-in spring.

Adjust the height of the centre rod to bring the spherical surface of the rod in

coincidence with the spherical base of the sub-observation head.

Tighten the height adjustment clamp knob while maintaining the horizontal

alignment of the sub-observation head.

Tighten the support stand clamp ring to the spherical base of sub-observation head

Step 4. Binocular Tube Sub-Observation Head

Mount the Binocular tube on the sub-observation head and fasten in position using the

eyepiece clamp screw.

Step 5. Trinocular / Binocular Tube Main Observation Head

Mount the Trinocular / Binocular tube on the Main observation head and fasten it in

position, using eyepiece clamp screw.

Step 6. Input Plug for the Arrow Illuminator

Step 7. AC Adapter

Connect the AC adapter output jack plug to input jack socket on the left side of the

main observation head

Plug AC adapter into the power source receptacle
