Motic BA310 Pol Manuel utilisateur

WWW.MOTIC.COM

MOTIC INCORPORATION LTD.

BA310 Pol

Polarizing Microscope

Instructions Manual

We are constantly endeavouring to improve our instruments and to adapt them to the requirements of

modern research techniques and testing methods. This involves modification to the mechanical

structure and optical design of our instruments.

Therefore, all descriptions and illustrations in this instruction manual, including all specifications are

subject to change without notice.

Although every effort has been made to ensure the accuracy of this instruction manual, if you note any

points that are unclear or inaccurate, please contact Motic agency or our Technical Service directly.

Introduction

Polarizing microscopes are used in the study of thin sections of minerals and rocks as well as other

anisotropic materials (fibers, plastics, etc.). The optical system is similar to that of modern compound

microscopes.

The most distinctive features of a polarizing microscope are the rotatable stage, polarizer and analyzer,

Bertrand lens system as well as mica plate, gypsum plate and quartz wedge. This special equipment

allows the evaluation of properties and characteristics of materials that cannot be measured by other

microscope methods.

Table of contents

1. Nomenclature 5

2. Setting Up The Instrument 9

3. Assembling the microscope 10

3.1 Verifying input voltage 10

3.2 Halogen lamp 11

3.3 Specimen clip 11

3.4 Attachable mechanical stage (optional) 11

3.5 Objectives 11

3.6 Condenser 11

3.7 Intermediate tube 12

3.8 Analyser slider 12

3.9 Compensators 12

3.10 Eyepiece tube 12

3.11 Eyepieces 12

3.12 Filters 13

3.13 Power cord 13

3.14 Epi-illuminator

4. Microscopy 14

Manipulation of each component

4.1 Coarse and fine focusing 14

A. Coarse focus torque adjustment 14

B. Coarse focus lock 14

4.2 Stage upper limit stop adjustment 15

4.3 Beam split slider 15

4.4 Interpupillary distance adjustment 15

4.5 Diopter adjustment 16

4.6 Centering the condenser 16

4.7 Use of aperture diaphragm 17

4.8 Use of field diaphragm 17

4.9 Brightness and contrast adjustment 18

4.10 Orientation of polarizer and analyzer 18

4.11 Focusing and centering the bertrand lens 19

4.12 Compensators 20

A. 1/4λ-plate 20

B. 1λ-plate 20

C. Quartz Wedge 20

4.13 Centering the Objectives 21

4.14 Epi-illuminator

5. Photomicrographic procedure 22

6. Terminology 23

7. Troubleshooting table 25

8. Care and maintenance 27

9. Warning labels 29

1. Nomenclature

BA310 EPI-Pol

2. Setting up the Instrument

Avoid placing the instrument in locations exposed to direct sunlight, dust, vibration, high temperature,

high humidity and where it is difficult to unplug the power supply cord.

Operating environment

Indoor use

Altitude: Max 2000 meters

Ambient temperature: 15°C to 35°C

Maximum relative humidity: 75% for temperature up to 31ºC decreasing linearly to 50% relative

humidity at 40ºC

Supply voltage fluctuations: Not to exceed ±10% of the normal voltage

Pollution degree: 2 (in according with IEC60664)

Installation / Overvoltage category: 2 (in according with IEC60664)

Air Pressure of 75kPa to 106kPa

Avoid frost, dew, percolating water, and rain

3. Assembling the microscope

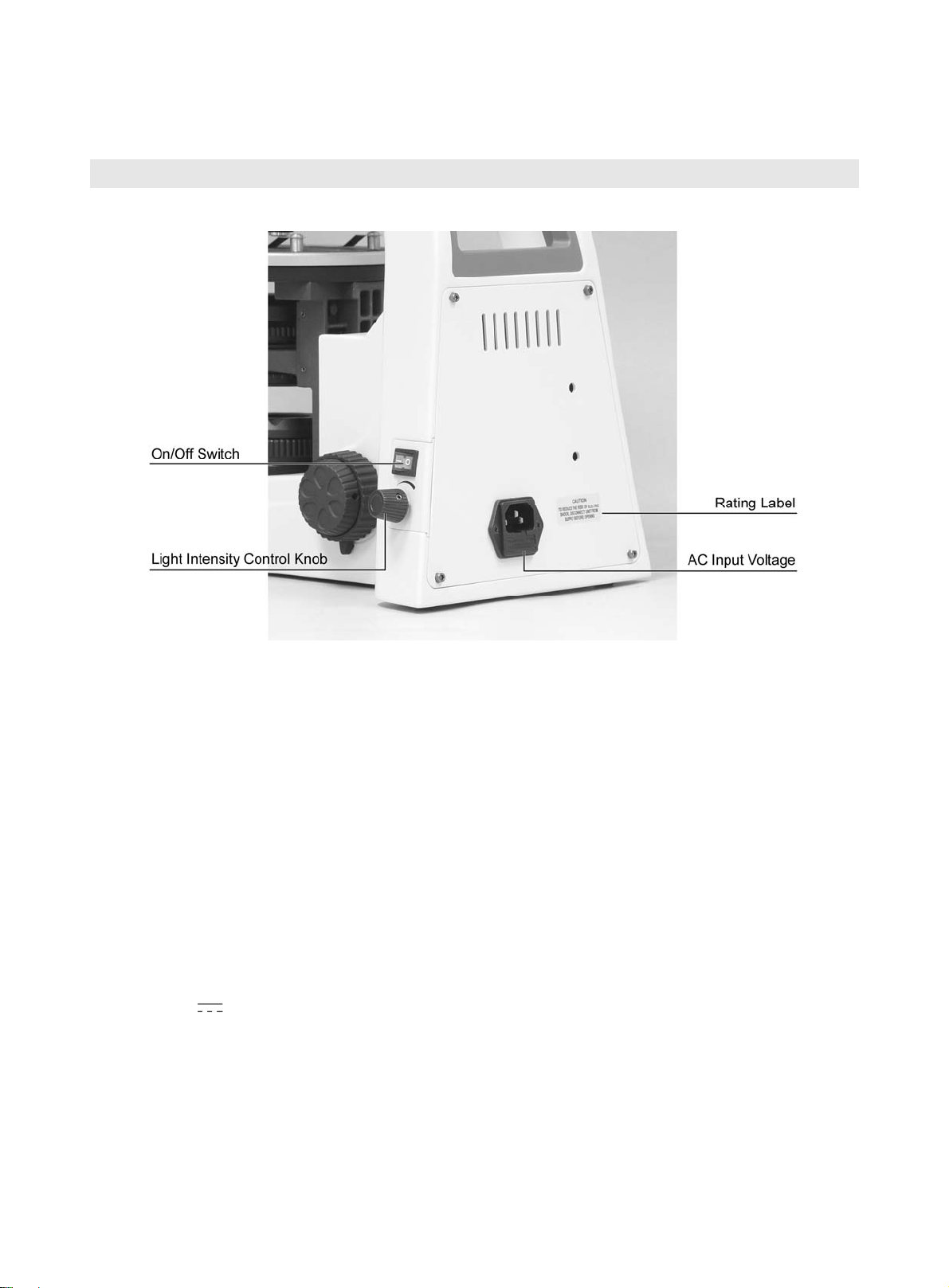

3.1 Verifying input voltage

The automatic voltage selection works with a broad range of settings. However, always use a power

cord that is rated for the voltage used in your area and that has been approved to meet local safety

standards. Using the wrong power cord could cause fire or equipment damage.

When using an extension cord, only use a power supply cord with a protective earth (PE) wire.

In order to prevent electric shock, always turn the switch on the power supply off before connecting

the power cord.

Electrical Specifications:

Halogen

Input: 90-240V~, 80VA, 50-60Hz

Lamp: 6V 30W Halogen

Fuse: 250V T2.5A (If the original fuse is blown, please replace with specified fuse)
