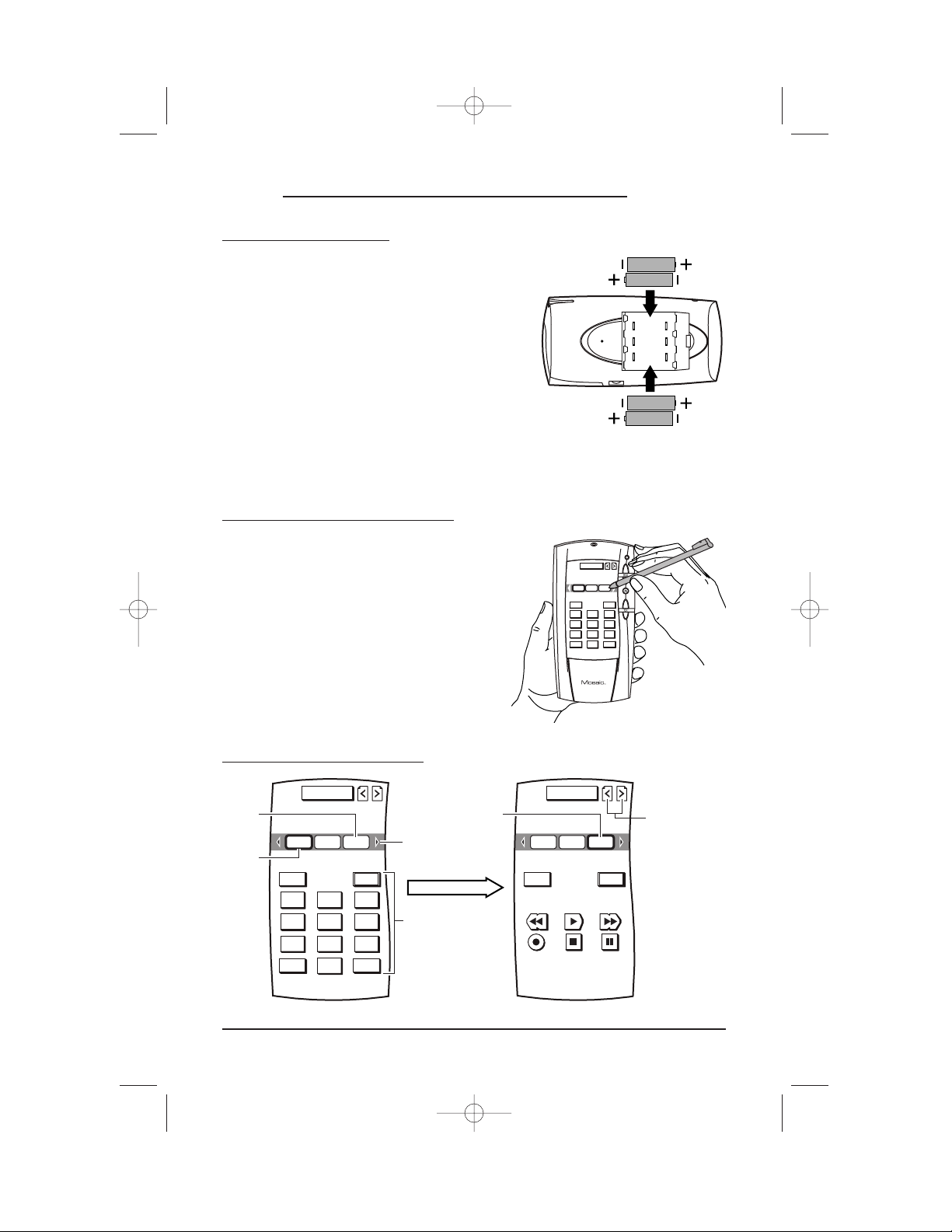

INSTALL BATTERIES

1. On Mosaic’s back side, push the tab and lift off

the battery cover.

2. Obtain four (4) new AA alkaline batteries. Match

the + and – marks on the batteries to the + and

– marks in the battery case. Then insert the new

batteries, as shown on right.

3. Align the cover’s keys with the opening’s holes

and press the cover back into place.

4. You will see the Mosaic Welcome screen, followed by the Device screen.

USING THE TOUCH SCREEN

Mosaic features a Touch Screen that responds to

touch commands, whether you use the supplied

Stylus or your finger tip. Each time you tap on the

screen, you’ll see the LED blink and hear a beep

tone, which serve as visual and audio confirma-

tion of your command.

After 20 seconds of inactivity, Mosaic will turn

off the LCD screen to conserve battery life.

CONTROLLING DEVICES

QUICK STARTMOSAIC

1 2 3

4 5 6

7 8 9

Prev Enter

TV/VID PWR

CBLTV VCR

THEATERSetup

1 2 3

4 5 6

7 8 9

Prev Enter

TV/VID PWR TV/VID PWR

CBLTV VCR CBLTV VCR

THEATERSetup THEATERSetup

Tap on

device.

Current

active

device

Current

active

device

Tap on scroll arrow

to see other devices.

Remote Control

Keys for active

device

Tap on pages

to see more

Remote Control

Keys.

Mosaic UG rev2 8/30/01 9:07 AM Page 1002

Touch Screen Control Device

User’s Guide

Mosaic UG rev2 8/30/01 9:07 AM Page 1

Table Of Contents

CHAPTER 1: INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . 7

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PRODUCT SUMMARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

EASE OFUSE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PERSONALIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

COMPATIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

ERGONOMIC DESIGN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ABOUT THIS GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

ORGANIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CONVENTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CHAPTER 2: GETTING STARTED . . . . . . . . . . . . . . . . . . . 11

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ABOUT BATTERIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLING BATTERIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LOW-BATTERY INDICATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

HOW TOUSE MOSAIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LOCATIONS OFCONTROLS AND CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . 14

USING THE HARD KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

USING THE TOUCH SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

USING THE SETUP HELP SCREENS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CHAPTER 3: SETTING UP MOSAIC . . . . . . . . . . . . . . . . . 21

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SETUP BYBRAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SETUP BYSEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

SETUP BYCODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

DELETING A DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ADDING NEW CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ABOUT LOCKING SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

CHAPTER 4: PERSONALIZING MOSAIC . . . . . . . . . . . . . . 39

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

USING MACROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

ADDING A MACRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2Table of Contents

MOSAIC

Mosaic UG rev2 8/30/01 9:07 AM Page 2

VIEWING MACROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

COPYING MACROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

DELETING A MACRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

DELETING ALL MACROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

USING KEY MOVER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

MOVING A KEY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

DELETING ALL MOVED KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

USING LEARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

LEARNING A FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

DELETING ALL LEARNED FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

LABELING KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

LABELING DEVICE KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

LABELING FUNCTION KEYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

USING KEY MAGIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ADDING A KEY MAGIC FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

DELETING ALL KEY MAGIC FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

USING VOLUME LOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

LOCKING THE VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

UNLOCKING THE VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

USING VIEW/DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

HOME THEATER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

PROGRAMMING HOME THEATER DEVICES. . . . . . . . . . . . . . . . . . . . . . . . . . . 67

PROGRAMMING THE HOME THEATER POWER MACRO . . . . . . . . . . . . . . . . . . . 70

VIEWING THE HOME THEATER POWER MACRO . . . . . . . . . . . . . . . . . . . . . . . 71

DELETING THE HOME THEATER POWER MACRO. . . . . . . . . . . . . . . . . . . . . . . 71

CHAPTER 5: MOSAIC SYSTEM . . . . . . . . . . . . . . . . . . . . 73

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

UPGRADING CODES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

UPGRADING CODES USING YOUR PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

UPGRADING CODES USING YOUR TELEPHONE . . . . . . . . . . . . . . . . . . . . . . . . 76

ALIGNING THE LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

SOUND CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

LOCK SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

RESETTING THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

ABOUT MOSAIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Table of Contents 3

USER’SGUIDE

Mosaic UG rev2 8/30/01 9:07 AM Page 3

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against

harmful interference in residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harm-

ful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a different circuit from the receiver. Consult the dealer

or an experienced radio/TV technician for help.

NOTE: If serial or parallel ports are configured, a filtered/shielded serial or parallel cable is recommended to minimize

EMI and ensure FCC B compliance.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause unde-

sired operation.

Changes or modifications not expressly approved by the party responsible for compliance void the

user’s authority to operate the equipment.

ADDITIONAL INFORMATION

Mosaic does not have any user-serviceable parts. Opening the case, except for the battery cover, may

cause permanent damage to your Mosaic. For help with upgrading your Mosaic codes via the

Internet, see Chapter 5: Mosaic System – About Mosaic on page 82.

MOSAIC™Touch Screen Control Device

Designed with UEI TechnologySM

U.S. Patents

5,414,761 5,552,917 5,228,077

5,255,313 5,698,353 5,959,751

5,515,052 5,537,463 5,614,906

6,014,092 and other patents pending

scribed, stored in any retrieval system, or translated to any language, in any form or by any means,

electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written permission

of Universal Electronics Inc.

4FCC Notice/Additional Information

MOSAIC

Mosaic UG rev2 8/30/01 9:07 AM Page 4

UEI’s policy is one of ongoing product revision and improvement. UEI thus reserves the right to

make changes to its products or product specifications at any time and without prior notice. The

information contained in this publication has been carefully checked and is believed to be accurate at

the time of publication. However, UEI assumes no responsibility for errors or omissions, or for any

consequences resulting from the use of the information contained therein.

The Mosaic logo is a trademark of Universal Electronics Inc. UEI Technology is a service mark of

Universal Electronics Inc. The Universal Electronics logo is a registered trademark of Universal

Electronics Inc.All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

Manual–M2000 rev2 9/01

Additional Information 5

USER’SGUIDE

Mosaic UG rev2 8/30/01 9:07 AM Page 5

NOTES

MOSAIC

Mosaic UG rev2 8/30/01 9:07 AM Page 6

Chapter 1:

Introduction

OVERVIEW

This chapter provides a product and feature summary for the Mosaic™Touch Screen

Control Device by Universal Electronics.At the end, you’ll also find a section on how

this user’s guide is organized and an explanation of its conventions.

PRODUCT SUMMARY

It’s hard to believe that a remote control this advanced could also be this easy.With

Mosaic™by Universal Electronics, you can personalize different screens to access and

operate any home entertainment system according to your needs. Our patented features

and proprietary software, such as learning, macros, Key Mover,andKey Magic,makeit

all possible.

Like everything else from Universal Electronics, Mosaic includes the world’s largest

infrared code library, so it’s compatible with virtually everything. Moreover, its patented

upgradeability means it won’t be obsolete tomorrow.

EASE OF USE

From the easy-to-view large touch screen and convenient home theater mode, to the

ready-to-use dynamically-generated device screens, you will find Mosaic is the most

user-friendly control device on the market. Ease-of-use features include:

•Dynamically-generated device keys that are based on a specific device code to

ensure you will not need to modify keys for each device.

•Control of up to 15 devices so you can set up any combination of up to 15 device

types, complete with appropriate keys per selected device.

•Easy device setup so you can program Mosaic by device code, by device search, or

by brand, for fast device setup.

•A home theater mode that combines different device applications under one mode

for operating convenience.

continued on next page...

Overview/Product Summary 7

USER’SGUIDE

Mosaic UG rev2 8/30/01 9:07 AM Page 7

PRODUCT SUMMARY

EASE OF USE (CONTINUED)

•Help screens that include setup and operational instructions, minimizing the need

for you to continually reference the instruction manual.

•User feedback to confirm action by visual and sound feedback (on/off option).

•Lock control to prevent accidental erasing of device codes and user personalization.

•On-screen low battery indicator to advise you when batteries are low.

•Non-volatile memory to ensure Mosaic will not lose programming, even when the

batteries are removed.

PERSONALIZATION

As a result of our proprietary software and patented features, Mosaic provides the most

extensive personalization features available today. In fact, you can personalize them right

on the remote control instead of having to use complicated personal computer editing

programs and connection cords.With the assistance of our integrated help screens, you

can sit comfortably in the living room and tailor Mosaic to fit your specific needs.

Personalization features include:

•A learning feature that uses our proprietary learning capability, allowing a user to

add a function from another remote control, assign it a special key, label that key,

and place it on the screen of their choice.

•Up to 21 macro keys that can be programmed with up to 32 independent user-

defined keystrokes each.

•Our patented Key Mover, which allows keys to be copied from one device to anoth-

er, or to a different position in the same device mode.

•Our patented Key Magic, which provides you with an alternative way to add

functional codes to keys.

•Alpha/numeric and symbol keyboard that allows you to label and re-label keys

using letters, numbers, and a wide range of symbols.

COMPATIBILITY

Mosaic comes pre-programmed with the world’s largest and most efficient database of

infrared codes for device compatibility. It is further enhanced by UEI’s patented

upgradeability features:

8Chapter 1: Introduction

MOSAIC

Mosaic UG rev2 8/30/01 9:07 AM Page 8

Table des matières

Autres manuels Mosaic Unité de contrôle

Mosaic

Mosaic QUANTIZER Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
