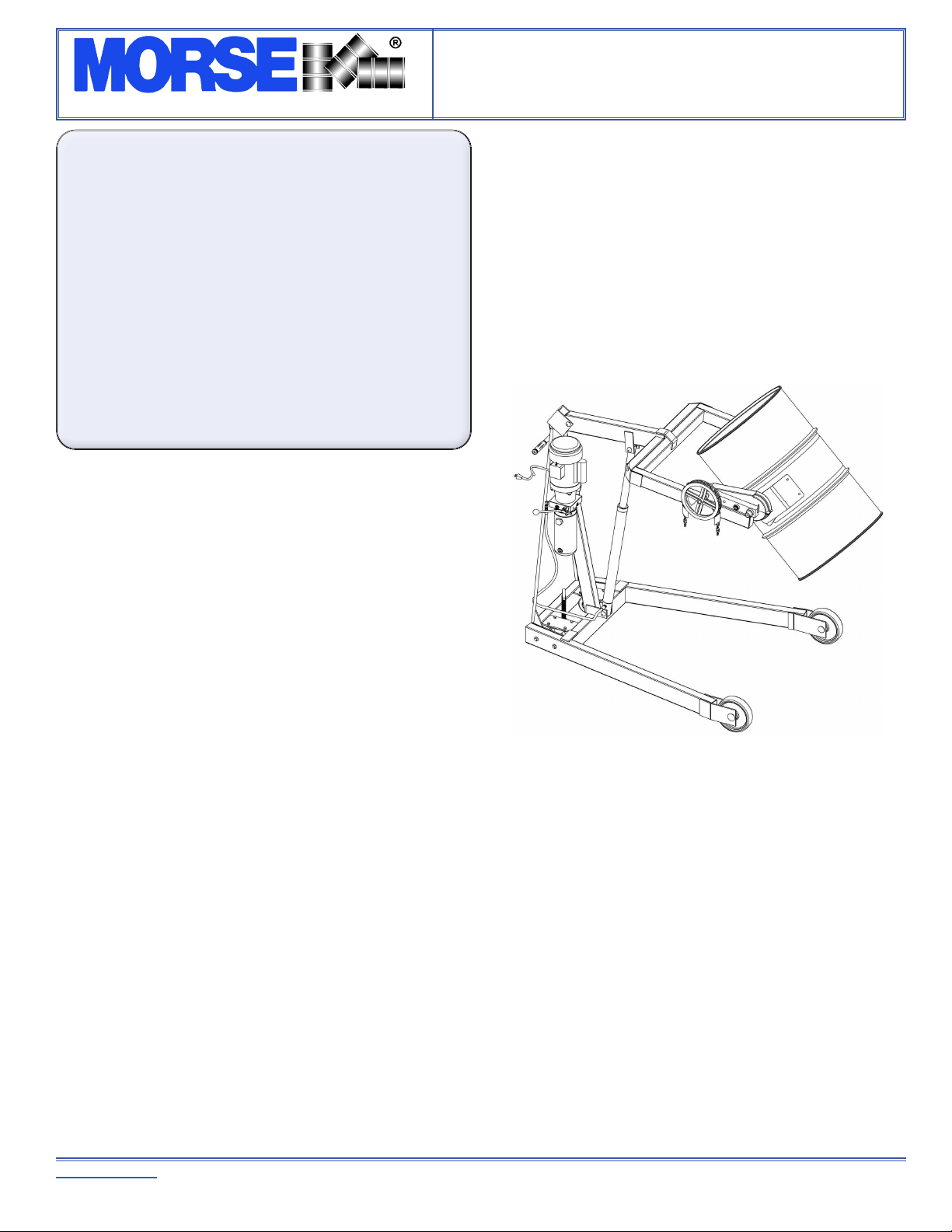

The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. orm OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 1
Operator’s Manual
for Morse
Stainless Steel Hydra-Lift Drum Karrier
Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and eciency, a high degree of responsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock for
this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of any
concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock result
in additional freight charges. Residential delivery fees, inside
delivery fees, re-delivery charges, and lift gate services will be
added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for TWO YEARS when used properly
within its rated capacity. Warranty does not cover wear from
normal use or damage from accident or abuse. Motors and
other purchased parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modications, unauthorized repairs or parts substitution.
CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Accessories. . . . . . . . . . . . . . . . . . . . 3
Start-Up Procedure. . . . . . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . 6
The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
Operator’s Manual for Morse Stainless Steel Hydra-Lift Karrier Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result
in serious injury or death. This signal word is limited to the most
extreme situations.
WARNING - Indicates a situation which, if not avoided, could result
in serious injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in
damage to the machine.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines
KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line
may arc some distance from the wire to the steel framed, grounded machine.
WARNING
The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under
Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed
the weight capacity of 800 Lb. (363 kg).
WARNING - Level Floors Only
For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces,
ramps, irregular or debris strewn oors.
WARNING - Do Not Modify the Unit
Under no circumstances should any modications be made to the Morse machinery without factory
authorization. Any modications may void the warranty. This machine was designed to perform a
specic job and alterations may result in injury to operator or machine.
WARNING - No Loose Fitting Clothing
Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may
become caught on the machinery and cause severe personal injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholes and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes - Wear safety shoes with non-slip soles and hard toe protection.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium
dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and
bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
Operator’s Manual for Morse Stainless Steel Hydra-Lift Karrier Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. orm OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 3
Machine Description
The Model 400A-72SS-120 Hydra-Lift Karrier will pour a drum up to 72”
(183 cm) high, measured from the oor to the lowest point of a horizontal
drum. It is designed to lift, transport, and dispense a 55-gallon (210 liter)
steel drum 22” to 23.5” (56 to 59.7 cm) in diameter.
The maximum full-drum capacity is 800 Lb. (363 kg). The capacity is
derated to 500 Lb. (227 kg) for a half-full drum. The half-full rating is based
on the tilt mechanism’s capacity for handling an unbalanced bottom-heavy
drum.
Stainless Steel
Hand Wheel
Kit # 2690SS-P
16” (40.6 cm) diameter
Hand Wheel
with speed knob.
Replaces standard
Pull Chain to turn drum.
Kit for customer to install
on EXISTING manual tilt
drum handler.
MORStopTM Tilt-Brake
with Stainless Casing
Kit # 3900SS-P
Automatically holds
drum tilt angle until you
move it.
Kit for customer to install
on EXISTING manual tilt
drum handler.
55/30SS Series Stainless Steel Diameter Adapters for drum with diameter
smaller than 22” (56 cm). To handle a smaller drum, insert the correct size
Diameter Adapter into the standard drum holder. See Diameter Adapter info at:
https://morsedrum.com/products/diameter-adapters
ONLY Diameter Adapters for drum with 17.5” (44.5 cm) diameter or smaller
have integrated brackets to prevent drum slipping length-ways.
NOTE: For 30-gallon (114 Liter) PLASTIC drum, insert Diameter Adapter;
AND install Bracket or Top Rim Clamp to prevent drum slipping.
IMPORTANT: To prevent 30 to 55 gallon (114 to 210 L) size plastic drum from
slipping, you MUST install either Top Rim Clamp Kit or Bracket Assembly Kit.
1. Stainless Steel Bracket Assembly Kit # 4556SS-P
is required to handle a RIMLESS plastic drum (gure 2.1),
and is also recommended for a ber drum. The Bracket
adjusts for a 31” to 39” (79 to 99 cm) tall drum.
You can also handle a rimmed drum with the Bracket installed.
2. Stainless Steel Top Rim Clamp Kit # 4560BSS-P to handle a
RIMMED plastic drum (gure 2.2). Install the Top Rim Clamp Kit to
handle a RIMMED plastic, steel or ber drum with suitable top rim.
ACCESSORIES
Figure 2.2
Stainless Steel
Kit # 4560BSS-P
Install Top Rim Clamp Kit
to handle RIMMED plastic
drum
Figure 2.1
Stainless Steel
Kit # 4556SS-P
Install Bracket Assembly Kit
to handle RIMLESS or
RIMMED plastic drum
The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
Operator’s Manual for Morse Stainless Steel Hydra-Lift Karrier Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 4
Figure 3.1
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should
remain behind the push handle during the lift
operation.
Floor Lock
The step-down oor lock is located behind the base (gure
3.1). To activate, step down on the oor lock until it locks
in down position. When oor lock is activated it prevents
unwanted free wheeling of unit. Floor conditions determine
eectiveness of oor lock. Operator should verify its holding
action before depending on it to hold.
Drum Holder Assembly
The MORCINCHTM Drum Holder (Saddle) assembly is the
component on intended to hold the drum. It is designed to secure
a standard ribbed 55-gallon (210 liter) steel drum around it’s middle
using a cinch chain and ratchet tightening system. It automatically
adjusts for 22” to 23.5” (56 to 59.7 cm) diameter drum.
The MORCINCHTM Drum Holder also accepts accessories to
handle a plastic drum, ber drum, or a smaller diameter drum.
Figure 2.3
Controls
The Morse Hydra-Lift Karrier is manually propelled and steered. The drum lift is
powered by a single phase 115V AC motor with a momentary switch, cord and
plug.
There are two functions for the operator to control (Figure 2.3)
1. LIFT and Lower Function for vertical positioning of the drum.
a. Plug the motor into a standard 115V power supply.
b. Turn motor on by holding momentary switch in on position. The drum will
lift.
c. Release momentary switch when drum is at desired height.
d. To lower the drum: With the motor o, push in the LOWER handle.
2. TILT Function to control the degree of rotation of the drum.
a. Pull down on one side of chain, rotating drum to angle required for
pouring.
b. For best control of drum pouring angle, pay out one side of the chain loop
while pulling in the other side. This helps you to hold back the drum rotation
if the contents of the drum shift.
c. The pull chain pin on the corner of the overhead assembly can be used to
prevent drum rotation. Simply “tie-o” the chain by engaging in into the pin.
If the drum handler is equipped with the MORStop Tilt-Brake, there is no
need to hold tension on both sides of the chain loop. Braking is immediate
and self-actuating, without additional steps by the operator. To add the
MORStop Tilt-Brake to your drum handler, order part # 3900SS-P for a eld
installation kit.
The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
Operator’s Manual for Morse Stainless Steel Hydra-Lift Karrier Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. orm OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 5
CAUTION – Do NOT Transport with Drum Raised
ALWAYS LOWER DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING.
Unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” to adjust
the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while
dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to
transporting height; about 6” (15 cm) o the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind
the push handle while handling a drum.
WARNING – Do NOT Disengage Cinch Chain When Drum is o the Ground
When drum is in upright position, lower drum to oor before releasing cinch chain.
7.) Push unit to drum storage area and lower drum to oor in upright position. Release cinch chain from ratchet by applying
pressure to ratchet handle in a clockwise direction with one hand and opening pawl to free ratchet with the other hand.
Remove cinch chain link from ratchet.
START-UP Procedure
Machine is shipped with hydraulic uid.
1. Install provided hydraulic control levers (threaded rods with black ball handles).
2. IMPORTANT: BEFORE operation, remove RED shipping plug from hydraulic reservoir, and replace with provided
BLACK breather.
Operating Instructions
1.) Push Hydra-Lift Karrier to drum.
2.) Using “LIFT” control as described in “Machine Description -
Controls”, position drum holder assembly with back band at
middle of drum (Figure 3.1). With ratchet plate swung open
and cinch chain hanging from chain hook, push unit until back
band rests rmly against drum. Some adjustment to tilt angle
of saddle may be necessary to ensure band ts ush on drum.
3.) Attaching the drum:
Drape chain across front of drum and engage a link into notch
in ratchet (Figure 3.2). Turn ratchet clockwise to tighten chain.
If ratchet turns until the pawl is beyond last ratchet tooth,
turn ratchet back and slide next link into ratchet notch and try
tightening again. Chain must be held tightly against drum with
pawl engaged securely in ratchet teeth.
4.) Operate lift function to lift drum clear of oor. Roll to
dispensing location. NOTE: Do NOT allow drum to impact on
oor, pouring station, etc. or a spill or damage could occur. Figure 3.2
The Specialist In Drum Handling Equipment
Model 400A-72SS-120
Stainless Steel Hydra-Lift,
72”, AC Power Lift, Manual Tilt
Operator’s Manual for Morse Stainless Steel Hydra-Lift Karrier Model 400A-72SS-120
Serial Number 0914 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72SS-120 (0914-____) (Updated 3 Mar., 2022) 6
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and ecient
operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,
or replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the
hydraulic uid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the
boom which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and
pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet
(msds) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil
dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).
Table des matières
Autres manuels morse Système de levage
morse
morse 400AM-60 Manuel utilisateur
morse
morse 185A-GR Manuel utilisateur
morse
morse 400Z-60 Manuel utilisateur
morse
morse MORSPEED 288-1 Manuel utilisateur
morse
morse 515-N-110 Manuel utilisateur
morse
morse 83-125 Manuel utilisateur
morse
morse 400A-72-115 Manuel utilisateur
morse
morse 400A-72-115 Manuel utilisateur
morse
morse 400A-96-117 Manuel utilisateur
morse
morse PILOT 900 Manuel utilisateur
morse
morse 525-N-120 Manuel utilisateur
morse
morse 400A-96-115 Manuel utilisateur
morse
morse 400A-96-110 Manuel utilisateur
morse
morse 525-N-125 Manuel utilisateur
morse
morse 185A-HDSS Manuel utilisateur
morse
morse 400A-72SS-125 Manuel utilisateur
morse
morse 400A-72SS Manuel utilisateur
morse
morse 510M Manuel utilisateur
morse
morse PILOT 910 Manuel utilisateur
morse
morse 285A-HD Manuel utilisateur
Manuels Système de levage populaires d'autres marques
Braun
Braun NL955 Series Manuel utilisateur
haacon
haacon 1889.10 Manuel utilisateur
Protekt
Protekt AT 252 Manuel utilisateur
R. Beck Maschinenbau
R. Beck Maschinenbau HS 600 Manuel utilisateur
Nova Technology International, LLC
Nova Technology International, LLC NAS Series Manuel utilisateur
Genie
Genie Z-60/34 Manuel utilisateur
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Manuel utilisateur
Custom Equipment
Custom Equipment Hy-Brid 3 Series Manuel de programmation
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Manuel de programmation
BERG
BERG BeNomic EasyLeaf Manuel utilisateur
