Operator’s Manual
for Morse Hydra-Lift Drum Karrier
Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
The Specialist In Drum Handling Equipment
Model 400A-72-115
Hydra-Lift, 72”, DC Power Lift & Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72-115 (1210-____) (Updated 3 Mar., 2022) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or
death. This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious
injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the
machine.
CAUTION – Do Not Transport with Drum Raised - ALWAYS LOWER THE DRUM HOLDER TO
LOWEST POSITION BEFORE TRANSPORTING. The unit can become unstable when transporting
with a raised load.
DANGER - Stay Clear of Power Lines - KEEP WELL CLEAR OF POWER LINES. Never approach
a power line. Current in a high voltage line may arc some distance from the wire to the steel framed,
grounded machine.
WARNING - The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page
3, under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO
NOT exceed the weight capacity of 800 Lb. (363 kg).
WARNING - Level Floors Only - For operation only on clean, level oors of suitable bearing capacity.
Do not use on sloped surfaces, ramps, irregular or debris strewn oors.
WARNING - Do Not Modify the Unit - Under no circumstances should any modications be made
to the Morse machinery without factory authorization. Any modications may void the warranty. This
machine was designed to perform a specic job and alterations may result in injury to operator or
machine.
WARNING - No Loose Fitting Clothing - Wear close-tting clothing and safety equipment appropriate
to the job. Loose tting clothing may become caught on the machinery and cause severe personal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous - Escaping hydraulic uid under
pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before
disconnecting hydraulic lines. Keep hands and body away from pinholes and nozzles, which eject uid
under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor
immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes - Wear safety shoes with non-slip soles and hard toe protection.
WARNING: This product can expose you to chemicals including lead and arsenic,
which are known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium
dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and
bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
The Specialist In Drum Handling Equipment
Model 400A-72-115
Hydra-Lift, 72”, DC Power Lift & Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72-115 (1210-____) (Updated 3 Mar., 2022) 3
Machine Description
Model 400A-72-115 Hydra-Lift Karrier will pour a drum up to 72” (183 cm)
high, measured from the oor to the lowest point of a horizontal drum. It is
designed to lift, transport, and dispense a 55-gallon (210 liter) steel or ber
drum 22” to 23.5” (56 to 59.7 cm) in diameter.
Maximum full-drum capacity is 800 Lb. (363 kg). Capacity is derated to
500 Lb. (227 kg) for a half-full drum. Half-full rating is based on the tilt
mechanism’s capacity for handling an unbalanced bottom-heavy drum.
55/30 Series Diameter Adapters for drum with diameter smaller than 22”
(56 cm). To handle a smaller drum, insert the correct size Diameter Adapter
into the standard drum holder. See Diameter Adapter info at:
https://morsedrum.com/products/diameter-adapters
ONLY Diameter Adapters for drum with 17.5” (44.5 cm) diameter or smaller
have integrated brackets to prevent drum slipping length-ways.
NOTE: For 30-gallon (114 Liter) PLASTIC drum, insert Diameter Adapter;
AND install Bracket or Top Rim Clamp to prevent drum slipping.
IMPORTANT: To prevent 30 to 55 gallon (114 to 210 L) size plastic drum from
slipping, you MUST install either Top Rim Clamp Kit or Bracket Assembly Kit.
1. Bracket Assembly Kit # 4556-P is required to handle a RIMLESS
plastic drum (gure 2.1), and is also recommended for a ber drum.
The Bracket adjusts for a 31” to 39” (79 to 99 cm) tall drum.
You can also handle a rimmed drum with the Bracket installed.
2. Top Rim Clamp Kit # 4560B-P to handle a RIMMED plastic drum
(gure 2.2). Install the Top Rim Clamp Kit to handle a RIMMED
plastic, steel or ber drum with suitable top rim.
ACCESSORIES
Figure 2.2
Kit # 4560B-P
Install Top Rim Clamp Kit
to handle RIMMED plastic
drum
Figure 2.1
Kit # 4556-P
Install Bracket Assembly Kit
to handle RIMLESS or
RIMMED plastic drum
The Specialist In Drum Handling Equipment
Model 400A-72-115
Hydra-Lift, 72”, DC Power Lift & Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72-115 (1210-____) (Updated 3 Mar., 2022) 4
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should
remain behind the push handle during the lift
operation.
Floor Lock
The screw-down oor lock is located on the base of the tower
(gure 3.1). Turning the oor lock clockwise until it locks in the
down position activates the oor lock. When the oor lock is
activated it prevents unwanted free wheeling of the unit. Floor
conditions determine the eectiveness of the oor lock. The
operator should verify its holding action before depending on it to
hold.
Drum Holder Assembly
The MORCINCHTM Drum Holder (Saddle) assembly is the
component on intended to hold the drum. It is designed to secure
a standard ribbed 55-gallon (210 liter) steel drum around it’s middle
using a cinch chain and ratchet tightening system. It automatically
adjusts for 22” to 23.5” (56 to 59.7 cm) diameter drum.
The MORCINCHTM Drum Holder also accepts accessories to
handle a plastic drum, ber drum, or a smaller diameter drum.
Figure 3.1
Figure 2.3
Controls
The Morse Hydra-Lift Karrier is manually propelled and steered. The drum lift
and tilt controls are powered by a 12V DC motor with a momentary switch.
There are two functions for the operator to control (Figure 2.1):
1. “LIFT” and lower function for vertical positioning of the drum
2. “TILT” function to control the degree of rotation of the drum
1. LIFT and Lower Function
To raise the drum
a. Turn the motor on by holding the momentary switch in the on position.
b. With the motor on, raise the LIFT handle.
To lower the drum
a. With the motor o, push in the LOWER handle.
2. TILT Function
To tilt the drum forward for pouring
a. Turn on the motor by holding momentary switch in the on position.
b. With the motor on, raise the tilt handle.
To return the drum to vertical position
a. Turn on the motor by holding momentary switch in the on position.
b. Push the tilt handle down.
The Specialist In Drum Handling Equipment
Model 400A-72-115
Hydra-Lift, 72”, DC Power Lift & Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72-115 (1210-____) (Updated 3 Mar., 2022) 5
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” to adjust drum attitude.
This is especially important when lifting an open drum. Floor lock should be engaged while dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage oor lock and lower drum to transporting height; about 6”
(15.2 cm) o the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of raised drum handler or drum. Remain behind push handle
while handling a drum.

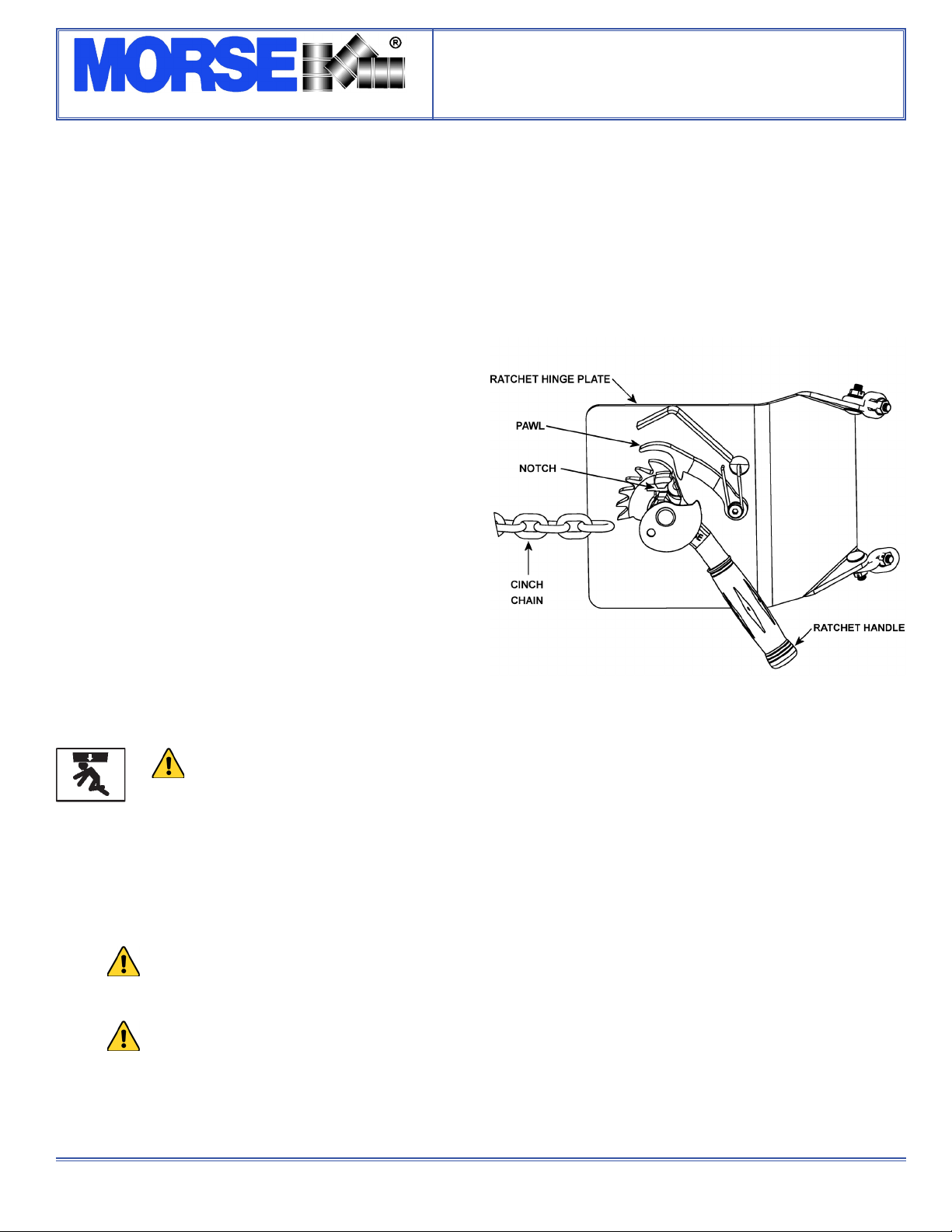

WARNING – Do NOT Disengage the Cinch Chain When Drum is o the Ground
When drum is in upright position, lower drum to oor before releasing cinch chain.
7.) Push unit to drum storage area and lower drum to oor in upright position. Release cinch chain from ratchet by applying pressure to
ratchet handle in clockwise direction with one hand and opening pawl to free ratchet with other hand. Remove cinch chain link from
ratchet.
START-UP Procedure
Machine is shipped with hydraulic uid.
1. Install provided hydraulic control levers (threaded rods with black ball handles).
2. IMPORTANT: BEFORE operation, remove the RED shipping plug from the hydraulic reservoir, and replace with the
provided BLACK breather.
Operating Instructions
1.) Push the Hydra-Lift Karrier to drum.
2.) Using the “LIFT” control as described in “Machine Description
- Controls”, position drum holder assembly with back band
at the middle of drum (Figure 3.1). With ratchet plate swung
open and cinch chain hanging from chain hook, push unit until
back band rests rmly against drum. Some adjustment to tilt
angle of saddle (drum holder) may be necessary to ensure
band ts ush on drum.
3.) Attaching the drum:
Drape chain across front of drum and engage chain link into
notch in ratchet (Figure 3.2). Turn ratchet clockwise to tighten
chain. If ratchet turns until pawl is beyond last ratchet tooth,
turn ratchet back and slide next link into ratchet notch and try
tightening again. Chain must be held tightly against drum with
pawl engaged securely in ratchet teeth.
4.) Operate lift function to lift drum clear of oor. Roll to dispensing
location. NOTE: Do not allow drum to impact on oor, pouring
station, etc. or spill or damage could occur. Figure 3.2
The Specialist In Drum Handling Equipment
Model 400A-72-115
Hydra-Lift, 72”, DC Power Lift & Tilt
Operator’s Manual for Morse Hydra-Lift Karrier Model 400A-72-115
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form OM400A-72-115 (1210-____) (Updated 3 Mar., 2022) 6
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and ecient operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or replace
parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic uid.
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the boom which
contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet (msds) is available
online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent for indoor use
(Mobil dte 13 for outdoor use).
Table des matières
Autres manuels morse Système de levage
morse
morse MORSPEED 288-1 Manuel utilisateur
morse
morse 410-124 Manuel utilisateur
morse
morse 520-115 Manuel utilisateur
morse
morse 520-114 Manuel utilisateur
morse
morse 82H-120 Manuel utilisateur
morse
morse 152 Manuel utilisateur
morse
morse 185A-HD Manuel utilisateur
morse
morse 86 Manuel utilisateur
morse
morse 400AM-60 Manuel utilisateur
morse
morse 400A-96-110 Manuel utilisateur
morse
morse 185AM Manuel utilisateur
morse
morse 91 Manuel utilisateur
morse
morse 195 Series Manuel utilisateur
morse
morse 82A-GT Series Manuel de l'opérateur
morse
morse 92 Series Manuel utilisateur
morse
morse 515-N-110 Manuel utilisateur
morse
morse 195A-A Manuel utilisateur
morse
morse 400A-72SS Manuel utilisateur
morse
morse 510-120 Manuel utilisateur
morse
morse 520M-124 Manuel utilisateur
Manuels Système de levage populaires d'autres marques
Braun
Braun NL955 Series Manuel utilisateur
haacon
haacon 1889.10 Manuel utilisateur
Protekt
Protekt AT 252 Manuel utilisateur
R. Beck Maschinenbau
R. Beck Maschinenbau HS 600 Manuel utilisateur
Nova Technology International, LLC
Nova Technology International, LLC NAS Series Manuel utilisateur
Genie
Genie Z-60/34 Manuel utilisateur
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Manuel utilisateur
Custom Equipment
Custom Equipment Hy-Brid 3 Series Manuel de programmation
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Manuel de programmation
BERG
BERG BeNomic EasyLeaf Manuel utilisateur
