Morse 152 Manuel utilisateur

The Specialist In Drum Handling Equipment

Models 152 & 153

2-Wheel Drum Trucks

Parts List and Diagram for Models 152 and 153 Drum Hand Trucks

Manufactured 03/2018 to ______

Copyright 2021 - Morse Mfg. Co., Inc. Form PL152-153 (0315-____) (Updated 7 Oct, 2021) 1

[email protected] 103 Kuhn Rd.

Syracuse, NY 13208 U.S.A.

morsedrum.com (315) 437-8475

WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and

2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to

the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

Assembly Instructions

SlidetheHandleAssemblytubethroughthe1.

Hook Slide Weldment (item 3) and into the

BaseAssembly tube and align drilled holes.

Insert bolt (item 5) through the aligned2.

holes and secure with Lock Nut (item 4) to

fasten the Handle Assembly to the Base

Assembly.

Note: Hook Slide Weldment slides freely on

the Handle assembly tube to engage the upper

rim of your drum.

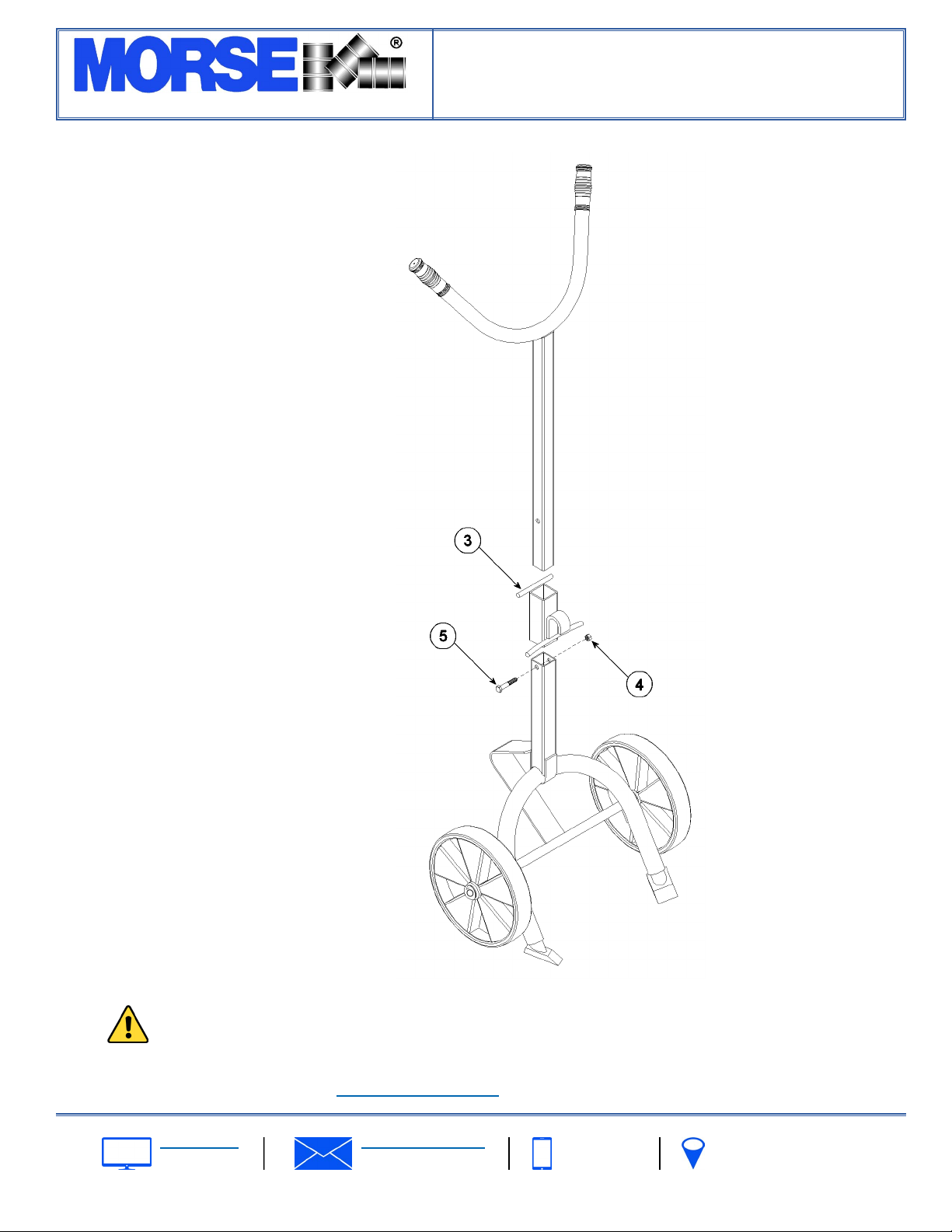

Handle Assembly

Hook Slide Weldment

Base Assembly

Model 152 shown

The Specialist In Drum Handling Equipment

Models 152 & 153

2-Wheel Drum Trucks

Parts List and Diagram for Models 152 and 153 Drum Hand Trucks

Manufactured 03/2018 to ______

morsedrum.com

Copyright 2021 - Morse Mfg. Co., Inc. Form PL152-153 (0315-____) (Updated 7 Oct, 2021) 2

For replacement parts, please contact your Morse dealer.

When ordering parts, please specify:

Part number and description•

Model number•

Morse Model 152

ITEM QTY PART # DESCRIPTION

1 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2

2 1 3970-P HANDLE WELD, 152, 153, 155

3 1 1947-P HOOK SLIDE WELD, 152

4 1 1169-P NUT, 3/8-16 REV HEX LOCK

5 1 82-P HHCS, 3/8-16 X 2-1/4 GR2

6 1 3971-P BASE WELD, 152, 153

8 * 2 702-P WHEEL, RUBBER, 10”, 7/8” BORE

9 * 4 1850-P COLLAR, 7/8” ID, 201B

Morse Model 153

ITEM QTY PART # DESCRIPTION

1 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2

2 1 3970-P HANDLE WELD, 152, 153, 155

3 1 1947-P HOOK SLIDE WELD, 152

4 1 1169-P NUT, 3/8-16 REV HEX LOCK

5 1 82-P HHCS, 3/8-16 X 2-1/4 GR2

6 1 3971-P BASE WELD, 152, 153

8 * 2 701-P WHEEL, MORTUF, 10”, 7/8” BORE

9 * 4 1850-P COLLAR, 7/8” ID, 201B

* Recommended spare parts.
