OPERATOR’S MANUAL FOR MORSE MODEL 86 DRUMLIFTER

FOR HANDLING 55 GALLON PLASTIC, STEEL OR FIBER DRUMS BETWEEN 22” AND 23½” OD

AND HEIGHTS BETWEEN 23” AND 38”.

Serial number 0997 to 0402

A. IMPORTANT:

1. Review the Material Safety Data Sheet(s) for the material(s) in the drum(s) and take all necessary precautions.

Safety shoes, work gloves, hard hat and other personal protective devices are recommended.

2. Please read all instructions

thoroughly

before attempting to operate your new MORSE drum handler.

3. The model 86 has a maximum capacity rating of 1000 Lb. and is designed to lift and move drums of size and type noted

above.

DO NOT

exceed this load rating. Exceeding this rating or handling drums other than those mentioned above is

unsafe and could result in equipment damage, excessive wear or awkward handling.

4. When loading, unloading, operating, or maintaining your MORSE drum handler, always use care and good judgment, have

good footing and a firm hold. Keep hands and loose clothing, etc. away from all moving parts. Never allow anyone to be

below any part of a raised drum handler or drum. Read operating instructions and review the pictures in the sales brochure

before operation.

5. The Model 86 is a “Group 1 Structural and Mechanical” Below-the-Hook Lifting Device which is covered by the American

National Standard ANSI/ASME B30.20. The user should comply with all aspects of this standard.

B. ASSEMBLY INSTRUCTIONS

1. Prior to use, inspect all moving parts. Inspect cinch chain and ratchet /pawl assembly for proper operation. Perform necessary

load test, inspections, operator training, etc. as prescribed in the ANSI/ASME B30.20 standard.

C. OPERATING INSTRUCTIONS:

1. With the Model 86 on the floor, lower hoist and engage

hoist hook into the lifting eye.

2. Raise hoist to lift the 86 clear of the floor and move it to

the drum.

3. Position the 86 with the base at floor level and near or

against the base of drum.

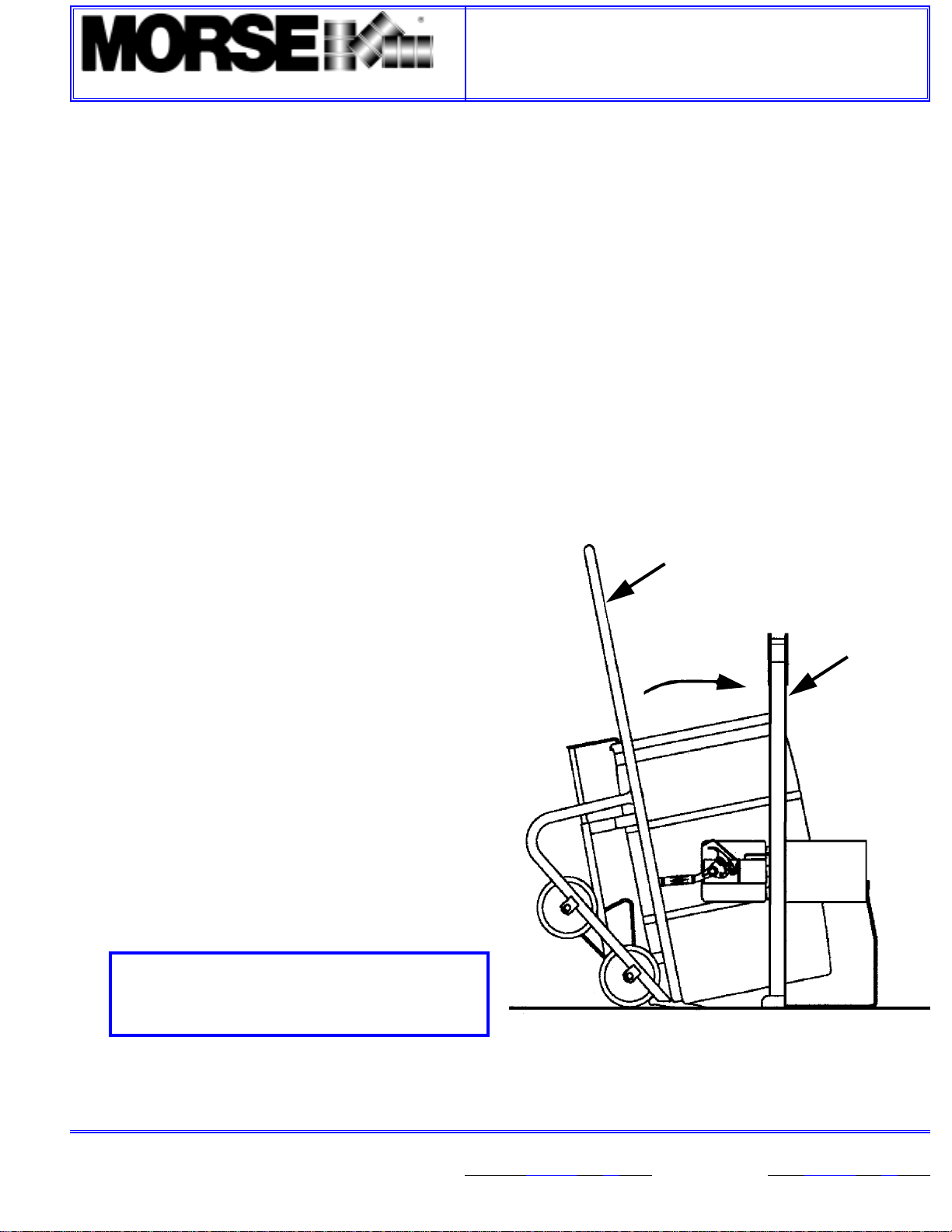

4. Using a drum hand truck (ie. Morse Model 160),

carefully place the drum onto the base of the 86 so

that the drum rests into the saddle band (see Figure

1).

5. Drape the cinch chain (item 4) across the face of the

drum and engage a link into the slot on the ratchet

and tighten the cinch chain around the drum by

turning the ratchet handle (item 14) clockwise.

6. Raise hoist and move drum to desired location.

7. To remove drum from the 86, release tension in the

cinch chain (item 4) by turning ratchet handle (item

14) clockwise to relieve the force on the pawl (item

10), and lifting the pawl away from the ratchet. Once

the cinch chain is slack, remove the link from the slot

in the ratchet. Remove the drum from the 86 using a

drum truck.

CAUTION:

DO NOT exceed weight capacity of 1000 Lb.

D. MAINTENANCE:

Periodically inspect all moving parts, framework, cinch chain, and contact areas for signs of wear, fatigue, or loosening. Perform

all inspections, load tests, and maintenance according to the ANSI/ASME B30.20 standard.

MORSE

MODEL86

MORSE

MODEL160

55GALLON

“POLY”DRUM

Figure1

MODEL 86

DRUM LIFTER

The Specialist In Drum Handling Equipment

MORSE MFG. CO., INC. • 727 West Manlius Street • P.O. Box 518 • East Syracuse, NY 13057-0518

Phone: 315-437-8475 • Fax: 315-437-1029 • Email: service@MORSEmfgco.com • Webpage: www.MORSEmfgco.com

Parts List

Serial number 0997 to 0402

ITEM QTY P/N DESCRIPTION

1 1 2645-P FRAME WELDMENT, 86

2 1 82-P 3/8 -16 X2-1/4 HHCS GR 2 STL

3 1 1169-P 3/8 - 16 REVHEXLOC NUT

4 1 180-P CHAIN,CINCH,3/16 ALLOY33 LK

5 1 726-P RATCHET HINGE PLATE CPT1/4"A

6 1 1296-P 1/4 - 20 X7-½ HHCS GR 5 STL

7 1 1297-P 1/4 - 20 REVHEXLOC NUT

8 1 731-P RATCHET HINGE PLATE ONLY1/4 A

9 1 165KIT-P KIT,RATCHETCHAIN TIGHTENER

10 1 168-P PAWL,WITH DRILLED HOLE

11 1 169-P PAWL SPRING

12 1 170-P 3/8" DIAX5/8" SHOULDER SCREW

13 1 710-P RETAINER,RATCHETPUSH ON 3/4"

14 1 165-P RATCHET,MALLEABLE,FOR SADDLE

15 1 136-P HANDLE GRIP, 7/8"X4-3/4"

MORSE MFG. CO., INC. • 727 West Manlius Street • P.O. Box 518 • East Syracuse, NY 13057-0518

Phone: 315-437-8475 • Fax: 315-437-1029 • Email: service@MORSEmfgco.com • Webpage: www.MORSEmfgco.com

MODEL 86

DRUM LIFTER

The Specialist In Drum Handling Equipment

Parts Diagram

Serial number 0997 to 0402

When ordering parts, specify

part number and description,

model number and serial number.

Find model number and serial number

on metal tag attached to Kontrol-Karrier.

MORSE MFG. CO., INC. • 727 West Manlius Street • P.O. Box 518 • East Syracuse, NY 13057-0518

Phone: 315-437-8475 • Fax: 315-437-1029 • Email: service@MORSEmfgco.com • Webpage: www.MORSEmfgco.com

MODEL 86

DRUM LIFTER

The Specialist In Drum Handling Equipment
