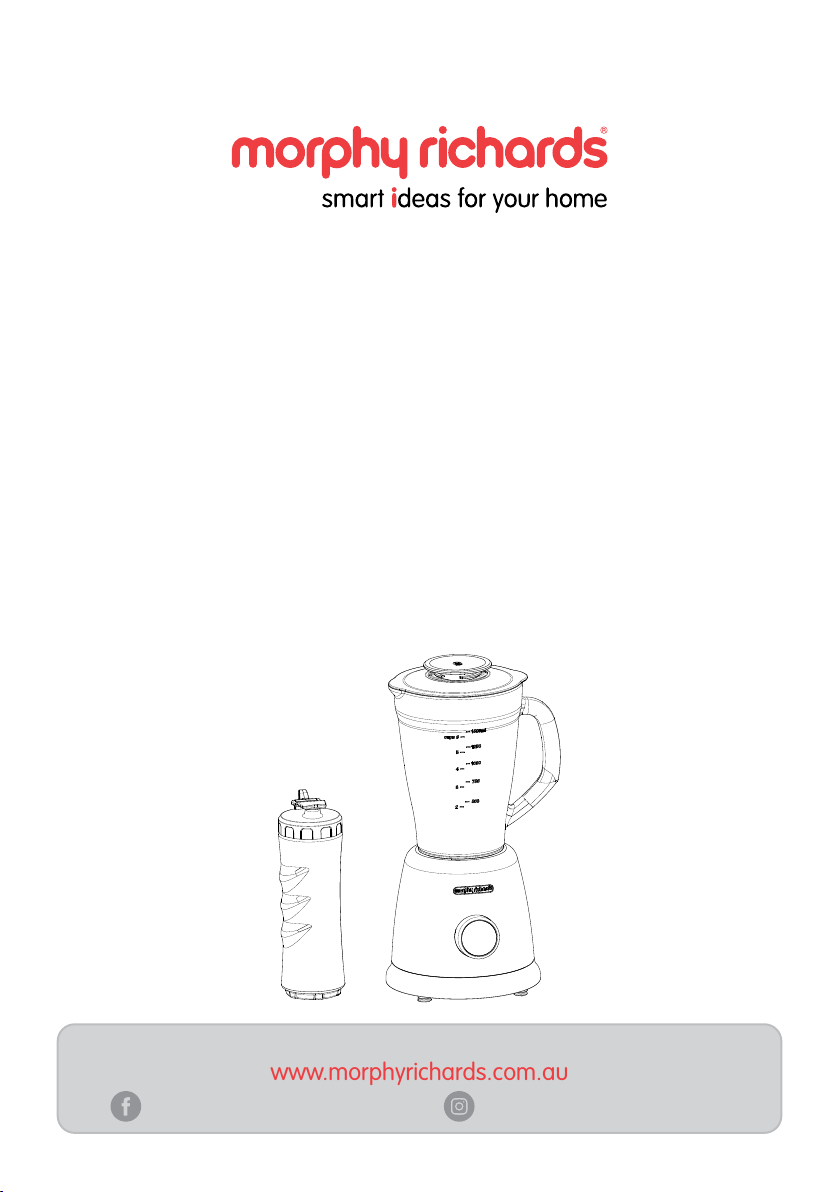

INSTRUCTION MANUAL

Model: MRRSB35CR & MRRSB35TB

Read these instructions carefully before

using this appliance for the rst time.

STORE THESE INSTRUCTIONS CAREFULLY

Boutique Stand Blender

For product hints and tips plus more join us at

facebook.com/MorphyRichardsAUS instagram.com/morphyrichardsau

www.morphyrichards.com.au

Model: MRRSB35CR MRRSB35TB

Colour: Chilli Red Thunder Blue

Rated Voltage: 220-240V~ 50-60Hz

Rated Power: 500W

Max Capacity: 1.5L

External Dimensions (L x W x H): 189 x 212 x 392 mm

Net Weight: 3.13 Kg

NAMES OF PARTS AND ACCESSORIES

SPECIFICATIONS

Jug Lid

Glass Jug Sport Bottle

Base Unit

Speed Dial

Cup Sport Bottle Lid

The use of any electrical appliance requires the following

common sense safety rules.

Please read these instructions carefully before using the product.

• This appliance should not be used by children. Keep the

appliance and its cord out of the reach of children.

• Children should not play with the appliance.

• Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand

the hazards involved.

• WARNING: Misuse of appliance could cause potential injury.

• Do not immerse the base unit in water.

• This appliance is intended to be used in household and

similar applications such as: farm houses, by clients in hotels,

motels and other residential type environments, and bed

and breakfast type environments. It is not suitable for use

in staff kitchen areas in shops, ofﬁces and other working

environments.

• Unplug from the socket when not in use, before putting on or

taking off attachments, and before cleaning.

• Care must be taken when handling the sharp cutting blades,

emptying the bowl and during cleaning.

• Ensure ﬁngers are kept well away from the blades when in use.

• Do NOT blend hot ingredients.

• Ensure the control dial is in the off ‘0’ position before plugging

into the power outlet.

• Continuous operation must be less than 2 minutes for the

Blender with jugs or cups.

• Do not use an appliance for any purpose other than its

intended use.

• Never touch the blades while the machine is plugged in.

• WARNING: Do not remove the blade assembly from the jug

base when cleaning, this could lead to an injury.

IMPORTANT SAFETY INSTRUCTIONS

Location

• Always locate your appliance away from the edge of the

worktop.

• Ensure that the appliance is used on a ﬁrm, ﬂat, heat resistant

surface.

• Do not use the appliance outdoors or near water.

• Do not place an appliance on or near a hot gas ﬂame, electric

element or on a heated oven. Do not place on top of any other

appliance.

Power cord

• The power cord should reach from the socket to the appliance

without straining the connections.

• Do not let the power cord hang over the edge of the worktop

or open space where a child could reach it.

• Do not let the cord run across a cook top or hot area which

might damage the cord.

• If the power cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualiﬁed persons in

order to avoid a hazard.

• WARNING: This appliance is NOT to be used with extension

leads and/or power boards.

Personal safety

• To protect against the risk of electrical shock do not put base

in water or in any other liquid.

Electrical requirements

• Check that the voltage on the rating plate of your appliance

corresponds with your house electricity supply which must be

A.C. (Alternating Current).

IMPORTANT SAFETY INSTRUCTIONS

• Place the Jug lid cup onto the Jug lid and turn it tight. Secure

the Jug lid onto the Glass jug and press down (Fig 1).

• Place the Blender jug on the Main Unit and rotate it clockwise

(Fig 2).

BEFORE FIRST USE

Wash the glass jug, lid, lid cup and sport bottle & lid in warm

soapy water. These parts can also be cleaned in the dishwasher.

Rinse and dry.

USING YOUR STAND BLENDER

Fig 1 Fig 2 Fig 3

• Remove the Lid or the Lid cup from the Glass jug and place

ingredients into the jug.

• Place the Lid with the Lid cup back onto the Glass jug. Do not

exceed the maximum indicated level.

• Using the Speed dial, select the desired blending speed from

1, 2 or Pulse.

• The Pulse function remains on as long as the Speed dial is

turned to the Pulse position. This can be used for greater

control when blending, e.g. when chopping nuts or chocolate,

or crushing ice.

• Speed setting 1 and 2 will provide continuous blending until

the Speed dial is turned to the ‘0’ position.

STAND BLENDER TIPS

USING YOUR STAND BLENDER

• You can add further ingredients while blending. For this,

remove the jug lid cup from the pouring hole.

• After you have completed blending, turn the Speed dial to the

‘0’ position.

• Unplug the appliance, remove the Glass jug from the Base

unit by turning it anticlockwise, refer to the (Fig 3) diagram on

page 5. Then remove the Jug lid and pour the contents out.

• A brief mix in the blender can rescue lumpy gravy or an egg

based sauce that has separated.

• Food ingredients for blending should be cut into cubes

(approximately 2-3cm), this will help achieving an even result.

• Never ﬁll the Glass jug above the maximum level indicated.

• To ensure efﬁcient mixing when blending dry mixtures, it may

be necessary to stop the Blender and remove ingredients

from the sides of the Jug with a spatula.

• When pureeing cooked or raw fruit or vegetables, cut into

small pieces to help blending.

• When blending a variety of ingredients together, blend the

liquids ﬁrst and then add dry ingredients.

• Always ensure stones are removed from fruit and bones from

meat as these can damage the blades.

• Do NOT blend hot liquids in your blender. Allow it to cool

before blending.

• Always ventilate the Glass jug when pureeing warm

ingredients. Lift the Jug lid cup out of the lid, after starting

the blender.

• The matching 500ml sport bottle is a great accessory for

taking your delicious home blended smoothie or milk shake

on the go!!!

• Wash the glass jug, lid, lid cup and sport bottle & lid in

warm soapy water. These parts can also be cleaned in the

dishwasher. Rinse and dry.

DO NOT IMMERSE THE BASE UNIT IN WATER

• Half ﬁll the Glass jug with warm water and a small amount of

detergent.

• Use the ‘Pulse’ function and hold for 1-2 seconds and release.

Repeat 3-4 times.

• Remove the jug and rinse under running water.

• CAUTION: Take care when cleaning the blades as they are

extremely sharp.

• WARNING: Do not remove the blade assembly from the jug

base when cleaning, this could lead to an injury.

• To clean the Base unit, use a damp, soft sponge with

detergent and wipe over.

CARE AND CLEANING

SAFETY LOCKING SYSTEM

This Blender was designed with a safety locking system. Unless

the Glass jug is positioned correctly and locked in place, the

Blender will not operate. Follow the below steps to operate:

• Place the Base unit on the table with the front facing toward

you.

• Place the Glass jug onto the Base unit with the handle to the

right.

• Hold the Base unit with one hand and turn the Glass jug

clockwise with the other hand holding the jug handle until

you hear a click. The Blender is now ready for use.

We have developed some handy recipes and tips for you to

use with the Boutique Stand Blender. These include basics

as crushing ice to making delicious vegetable purees and

smoothies.

NOTE: The maximum processing time should not be any longer

than 120 seconds to avoid damage to the motor and blades.

RECIPES & TIPS

RECIPES - VEGETABLE PUREE

Ingredients

• 20-100g carrots

• 20-100g potatoes

• 20-100g onions

• 70-200g water

1. Cut vegetables into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 2 on the Speed dial and blend for 30-40

seconds.

RECIPES - FRUIT SMOOTHIE

Ingredients

• 200g fruit of your choice

• 50g ice cubes (25 x 25 x 25mm)

• 100g milk or yoghurt

1. Cut fruit into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 2 on the Speed dial and blend for no more than

120 seconds.

RECIPES - MILK SHAKE

Ingredients

• 1/2 banana

• 200-400g vanilla ice cream

• 150-300ml milk

• 30-60g chocolate syrup

1. Cut fruit into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 1 or 2 on the Speed dial and blend for 30-50

seconds.

RECIPES - POTATO & LEEK SOUP

Ingredients

• 150g potatoes

• 150g leeks

• 300g water

1. Cut vegetables into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 1 or 2 on the Speed dial and blend for 60-90

seconds.

RECIPES - PANCAKE BATTER

Ingredients

• 170g our

• 8g salt

• 3 eggs

• 260ml milk

• 240ml water

• 50g butter

1. Add ingredients to the glass jug.

2. Select setting 1 or 2 on the Speed dial and blend for 60-90

seconds.

ICE CRUSHING

The maximum amount of ice should be 200g and the ice cubes

should be no larger than 25mm × 25mm × 25mm. The maximum

operating time must be less than 50 seconds.

Use the Pulse setting and alternate from turning on for 3

seconds, turning off for 3 seconds and perform this 7 to 10 times.

Damage to the blades may occur if the ice crushing is any longer

than above.

ICE SLUSH

For creating an ice slush mixture, the maximum quantity should

be less than 800g and should be a ratio of 1 part ice to 3 parts

water. The maximum operating time must be less than 90

seconds.

Use speed setting 2 or Pulse and combine 200g ice with 600g

water.

Damage to the blades may occur if the ice crushing is any longer

than above.

Ingredients

• 1 cup chopped very ripe mango,

frozen chopped mango, or canned

mango pulp

• 1 cup plain yogurt

• 1/2 cup milk

• 4 tsp honey or sugar, more or less

to taste

• Dash ground cardamom, optional

• Ice, optional

Method

1. Cut fruit into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 2 on the Speed dial and blend for no more than

120 seconds (90 seconds if ice is used).

4. If ice is being used, use cubes smaller than 25 x 25 x 25mm to

avoid damage to the blades.

5. Blend a little more if required, after a 1-2 minute break for the

motor to cool.

RECIPES - MANGO LASSY

RECIPES - GREEN SMOOTHIE

Ingredients

• 1 ripe avocado, stoned, peeled

• 60g pkt Baby Spinach

• 1 Lebanese cucumber

• 1 Granny Smith apple, cored

• 2 cups (500ml) chilled coconut

water

• 2 tsp nely chopped fresh ginger

• 1 lime, zested, peeled, coarsely

• 1 cup ice (25 x 25 x 25mm cubes)

• 1 tsp pepitas (pumpkin seeds)

• 1/2 tsp Black Chia seeds

Method

1. Cut fruit and vegetables into 2-3cm cubes.

2. Add ingredients to the glass jug.

3. Select setting 2 on the Speed dial and blend for no more than

120 seconds (90 seconds if ice is used).

4. Blend a little more if required, after a 1-2 minute break for the

motor to cool.

For more inspirational recipes for your blender,

visit our website

www.morphyrichards.com.au

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Morphy Richards Mixer

Morphy Richards

Morphy Richards 501027 Manuel utilisateur

Morphy Richards

Morphy Richards Nutrition Express 403049 Manuel utilisateur

Morphy Richards

Morphy Richards PROFESSIONAL BLENDER AND MILL - REV 1 Manuel utilisateur

Morphy Richards

Morphy Richards Blender Manuel utilisateur

Morphy Richards

Morphy Richards Total Control Manuel utilisateur

Morphy Richards

Morphy Richards 48821 SOUP MAKER Manuel utilisateur

Morphy Richards

Morphy Richards Cordless hand blender Manuel utilisateur

Morphy Richards

Morphy Richards Accents 48924 Manuel utilisateur

Morphy Richards

Morphy Richards Saute & Soup 501014 Manuel utilisateur

Morphy Richards

Morphy Richards Total Control 402060 Manuel utilisateur

Morphy Richards

Morphy Richards soupmaker Manuel utilisateur

Morphy Richards

Morphy Richards MRPBW24EG Manuel utilisateur

Morphy Richards

Morphy Richards Accents 48987 Manuel utilisateur

Morphy Richards

Morphy Richards MRPB20B Manuel utilisateur

Morphy Richards

Morphy Richards 501010 Manuel utilisateur

Morphy Richards

Morphy Richards soupmaker Manuel utilisateur

Morphy Richards

Morphy Richards Accents Serrator Blade Manuel utilisateur

Morphy Richards

Morphy Richards HAND BLENDER 48959 - AUTRE Manuel utilisateur

Morphy Richards

Morphy Richards Accents 48917 Manuel utilisateur

Morphy Richards

Morphy Richards Cordless hand blender Manuel utilisateur

Morphy Richards

Morphy Richards Easy Blend 48415 Manuel utilisateur

Morphy Richards

Morphy Richards Total Control Manuel utilisateur

Morphy Richards

Morphy Richards Smooth 48953 Manuel utilisateur

Morphy Richards

Morphy Richards Accents Manuel utilisateur

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
