Système de démarrage à distance

NOTICE D’INSTALLATION

Installation par un spécialiste conseillée

Warning! Remote Start Systems are only appli-

cable to vehicles with automatic transmission!

Jeep Liberty (KJ)

Remote Start System

INSTALLATION INSTRUCTIONS

Professional Installation Is Recommended

This device complies with part 15 of the FCC rules and with RSS-210 of the

industry Canada. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

This product was manufactured in environmentally friendly manufacturing

facility and may contain certain recycled materials. All materials meet or

exceed original specifications for quality and reliability.

Jeep Liberty (KJ)

Remote Start System

Table of Contents

VehiclePreparation..................................................................................4

ModulePreparation..................................................................................5

ComponentInstallation.............................................................................6

SystemProgramming.............................................................................10

SystemTesting.........................................................................................14

ServiceMode...........................................................................................14

Reassembly..............................................................................................15

OptionBankChart...................................................................................16

Troubleshooting.......................................................................................17

ChangingTransmitterBatteries.............................................................17

SystemLayout.........................................................................................18

The soldering procedure illustrated below must be followed when perform-

ing wire connections under the hood. Failure to use this procedure could

result in improper performance of the remote start system.

PARTS REQUIRED

Part Number 82208859

5 AMP 1X 15 AMP 4X

WARNING: / AVERTISSEMENT

This vehicle is equipped with a remote controlled engine starter.

To reduce the risk of serious Injury or death, switch engine starter

system into service mode and disconnect the vehicle battery

before performing any service on the vehicle.

Ce véhicule est doté d'un démarreur à distance. Pour réduire les

risques de blessures graves ou mortelles, mettre le démarreur à

distance en mode service et débrancher la batterie du véhicule

avant d'effectuer des travaux d'entretien sur celui-ci.

Owner's Manual

VehicleRemote Start System

FeaturingPowerCodeTechnology

FortheUltimate inComfort,Convenience andSecurity

1024256 12/03

Remote Control

CarStarterSystem

Remote Start

Activation

Remote Start

Shutdown

2 sec.

2X 4X 10X

Part Number 82208998 (2005 KJ) 82209474(2004 KJ)

TOOLS REQUIRED

10mm 1/4”

RTV SEALENT

VEHICLEPREPARATION

1. Lower one or more of the passenger windows so the keys do not get locked

in the vehicle.

2. Disconnect and isolate the negative battery cable. The battery will need to be

re-connectedbeforeprogramming.

3. Vehicle requires 2 valid Sentry Keys present at the time of installation.

2X(French&English)

Vehicle Preparation

1. Remove driver’s side lower dash

panels, located directly under the

steering column.

A.Pull downlowerdash &remove.

B.Remove(2) screwsholding lower

under-dashpanel. Removepanel.

C.Remove (2)screws on bottomof

steeringcolumnshroud.

D.Unsnap &remove steeringcolumn

shroud.

Overview

The remote starter module harness will interface with the existing KJ ignition switch

connector, four center-spliceconnections, anda ground termination. Twowireswill

berouted through thecowl panel, toahood-mounted safety switchand tachometer

connection.

2. Remove driver’s side dash panel,

located on left side of dash.

A. Gently pull to remove dash panel.

3. Remove driver kick panel cover.

A. Gently pull up & remove driver sill

cover. Gently pullandremove

driverkickpanelcover.

Module Preparation

1. Place fuses into the control module.

A.Observefuseamperageratings.

Place the 5 Amp fuse into the

“MainB+” location. Populatethe

remaining fuse locations, as

shown in the diagram, with the 15

Amp fuses. Ensure the 15Amp

fuse is placed in the “OPEN”

locationnext to “PK LIGHTS”.

2. Install DNA into the control module

A. Insert DNA into the control module.

Ensure the DNA assembly snaps

completely in place.

DNA

Component Installation

1. Install Hood Safety Switch.

A.Using (2) of the supplied1/4”

screws, secure hood safety switch

ondriver’sside rear cornerof hood

perthediagram. Note:Wire exits

top of switch. Switch must be

bentat 45degree angle.

B. Using a supplied 1/4” screw,

securethe groundlead fromthe

switch to the cowl as shown in the

diagram. Theremaining wirewill be

connectedlater.

C. Locatea visible areain the frontof

theengine compartmenttomount

theunderhood warningsticker as

shownin thediagram.

2. Install Dipole Antenna

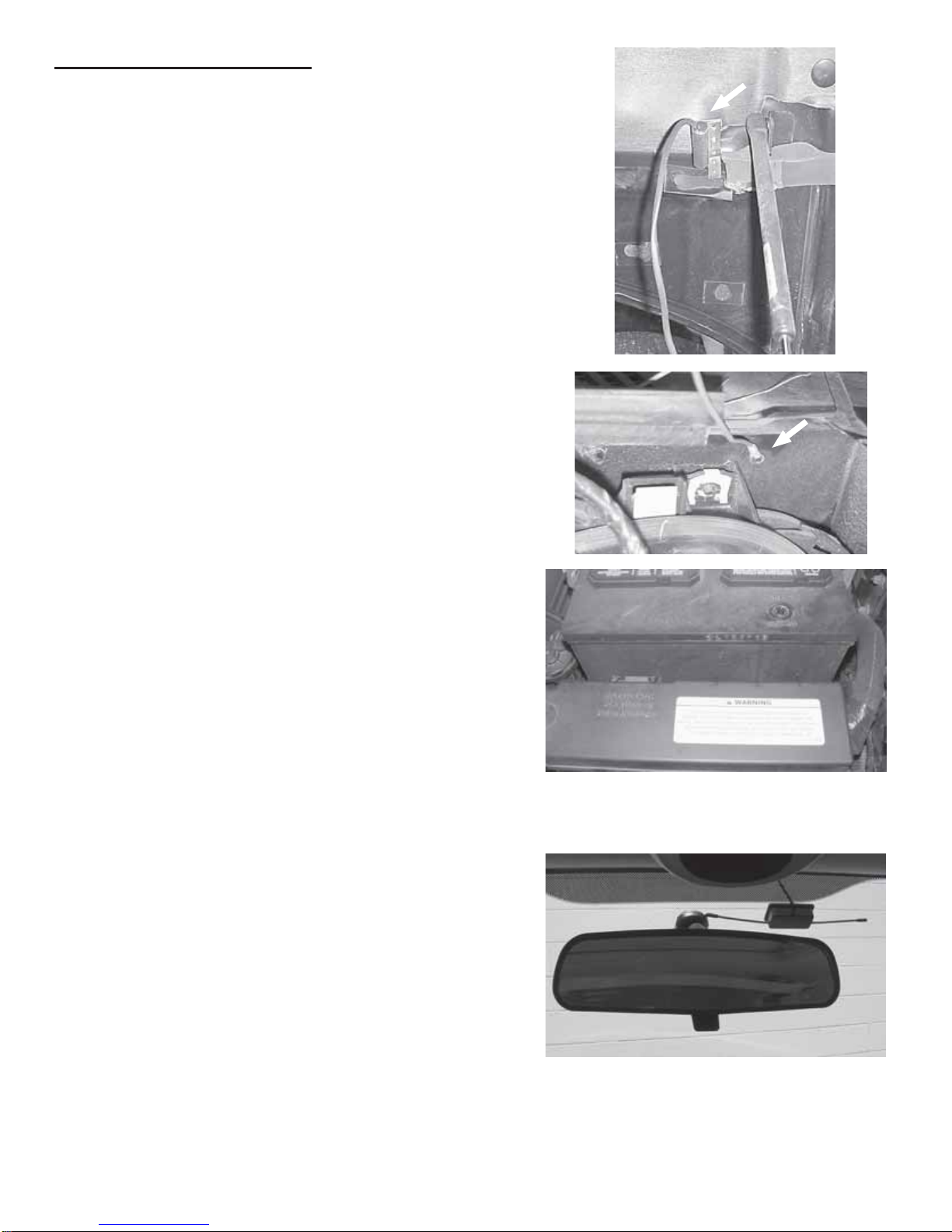

A.Mount dipole antenna to the

windshieldabove andtotherightof

therearviewmirrorandbelow the

black windshield trim.

B.Run theantennawire abovethe

headlinertothe driver’sA-pillar.

Temporarilyremove theA-pillar

rubbergasket andrun theantenna

leaddown through the left side

dashopening. Replace therubber

gasket. Ensure the antenna is

securelytuckedabovethehead-

liner and is not visible along the

entirelength.

B.Connect the harness10-way

femaleconnector tothe vehicle’s

ignition switch.

C. Connect the harness 10-way male

connectorto thevehicle’s 10-way

ignitionconnectorpreviously

removedfromthe ignitionswitch.

Using a supplied wire tie, secure

the custom harness away from the

tilt steering assembly as shown.

D. Using a supplied 1/4” screw,

securethe black groundwire with

ring terminal to the left kick panel

metal as shown in the diagram.

aasshown indiagram.

3. Install Custom Harness.

A. Locate ignition switch connector,

located on the left side of the

steering column. Release the red

secondary lock. While pushing on

mainrelease,removeconnector

fromignition switch.

E. Run the harness White/Tan wire to

the brake switch. Connect by

center-splice to the White/Tan wire

inCavity #2 ofthe 6-way brake

connectorfollowingthe center-

spliceprocedureabove.

Caution: Keep wire away from the

exposed steering column!

Caution: Do not remove the brake

lamp switch from the mounting

bracket. If the switch is re-

moved from the mounting

bracket, it MUST be replaced

with a new switch.

Center-SpliceProcedure

I. Using the supplied butt connector,

connect the black/white wire to the

remaining wire from the hood

safety switch.

J. For gas engines, route the Red/

Yellow wire to the top of the engine

at the coil connection point as

shown. Center-splicethe Red/Yellow

harnesswire into theBlue/Yellow

wire(2005 KJ)or Red/Yellow wire

(2004KJ)at the coil following the

center-spliceprocedureon page7.

Solderthe connection.

K. For diesel engines, route the Red/

Yellow wire tothedriver’sside ECM

at the connection point as shown.

Center-splicetheRed/Yellowwire

into the Dk Blue/Grey wire at pin #38

ofthe 57-wayECM connector.

Solderthe connection.

Gas Engines

Diesel Engines

F. Locate the Pink/Red wire (2005 KJ)

orLtGreen/Orange wire(2004 KJ)in

pin#5 of thegrey 10-way multifunc-

tionswitchconnector,foundabove

thesteering column. Center-splice

theharnessLt Green/Orangewire

intothis wire, followingthe center-

spliceprocedure onpage 7.

G. Locate the Green/Violet wire (2005

KJ)or Black/Red wire(2004 KJ) in

pin#2 of thewhite6-way connec-

tor, founddirectly below thesteer-

ing column. Center-splice the

harness Black/Red wire into this

wirefollowingthe center-splice

procedureonpage7.

H. Route the two remaining wires

(Black/Whiteand Red/Yellow)

throughthe cowl panel and intothe

enginecompartment.

4. Install SKIM/SKREEM Interface

Module.

A. Following the directions on the

suppliedampule ofadhesive

primer, apply a thin coating of

primer to the entire SKIM/SKREEM

transceiverantenna coil. Allow the

primerto dry for5 minutes before

proceeding to the next step.

Note: Use goggles and gloves to

protect yourself from any acci-

dental contact.

B. Remove backing from one side of

thesupplied two-waytape and

applytapearound thetransceiver

antennacoil.

C. Routethe antennaloop fromthe

SKIM/SKREEMInterface moduleto

theignition cylinder.

D. Removethe remainingbacking on

thetape and positionthe antenna

loopon the tapearound the trans-

ceiverantenna coil. Ensure thered

stripe faces out towards key.

Press down on antenna coil to

ensurea strongbond.

E. Using a supplied wire tie, secure

the antenna coil as shown.

L. Connectthe 24-way and10-way

connectorsinto thePC-12 Remote

Start module. Also, connect the 2-

wayantennaconnector (onend

oppositethe mainharness connec-

tions).

24-Way 10-Way

Antenna

Notes:

1. Reconnectthe negativebattery terminal priorto programming.

2. Up to a total of 8 transmitters can be programmed into memory.

3. Transmittersshipped with completekits are pre-programmed tothe DNA

and do not need to be programmed at this time.

1. Transmitter Programming.

A. Make sure battery is connected.

B.Close hood.

C.Turn theignition tothe “on”position.

D. Press and hold the programming button. After 10 seconds the horn will

chirp and the lights will flash 3 times indicating the system is now in

transmitterlearn mode.

E.Releasethe programmingbutton.

F. Press button on transmitter to be programmed. The horn will chirp and the

lights will flash 1 time indicating that the transmitter has been learned.

G. Repeat step F for additional transmitters.

2. Option Programming.

The remote start system has several installer programmable options which

can be changed to accomodate different circumstances. In most cases, there

will be no need to change any default settings. There will be cases (such as

dieselvehicles),where the delay before crank option must be set.

Note:

This system has 2 option banks. Bank 1 has 7 options, and Bank 2 has 2

options. Refer to the Option Bank Chart on page 16 for details.

A.Follow the steps above toenterTransmitterLearn Mode.

B.Press and releasetheprogramming button. The hornwill chirp andthe

lights will flash 4 times indicating the system has entered Option Bank 1.

C. Press and release the brake pedal. The horn will chirp and the lights will

flash 1 time indicating the system is at option 1. Additional press and

releases of the brake pedal will advance to the next option. The horn will

chirp and the lights will flash according to which option is selected (i.e.

Two chirps and flashes indicates option 2).

D. Pressing the transmitter button changes the setting of the option. The

status LED (located in the main harness approximately 4” from the

module) indicates the setting of the option. LED “on” indicates the option

is on, LED “off” indicates the option is off.

System Programming

Autres manuels pour Remote Start System

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Mopar Démarreur à distance

Mopar

Mopar EVS II Manuel utilisateur

Mopar

Mopar 82213587 Manuel utilisateur

Mopar

Mopar 82212610AB Manuel utilisateur

Mopar

Mopar Remote Start System Manuel utilisateur

Mopar

Mopar 82211019xx Jeep Commander (XK) 2008 Manuel utilisateur

Mopar

Mopar 82215277AB Manuel utilisateur

Mopar

Mopar 82211023 Series Manuel utilisateur

Mopar

Mopar 82208859 Manuel utilisateur

Mopar

Mopar DR Manuel utilisateur

Mopar

Mopar 82212423AB Manuel utilisateur

Mopar

Mopar Jeep Commander 82211019xx Manuel utilisateur

Mopar

Mopar XBM Manuel utilisateur

Mopar

Mopar K6861211 Manuel utilisateur

Mopar

Mopar 82212517 Manuel utilisateur

Mopar

Mopar 82215575AB Manuel utilisateur

Mopar

Mopar CHRYSLER 300C Manuel utilisateur

Mopar

Mopar 82209982AH Manuel utilisateur

Mopar

Mopar 82212895 Manuel utilisateur

Mopar

Mopar 82209870AG Manuel utilisateur

Mopar

Mopar 82210888xx Manuel utilisateur

Mopar

Mopar 82208861 Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel
