montpellier MTG60LS Manuel utilisateur
60cm Twin Cavity Gas Cooker
MTG60LW/LS - White/Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Thank you for choosing this Montpellier freestanding cooker.
Our cookers have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your freestanding cooker to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your cooker is covered by a comprehensive two year Parts & Labour Guarantee.
In the unlikely event that you experience a problem with your Integrated
Dishwasher, you can rest assured that you are fully protected against the cost
of repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
3

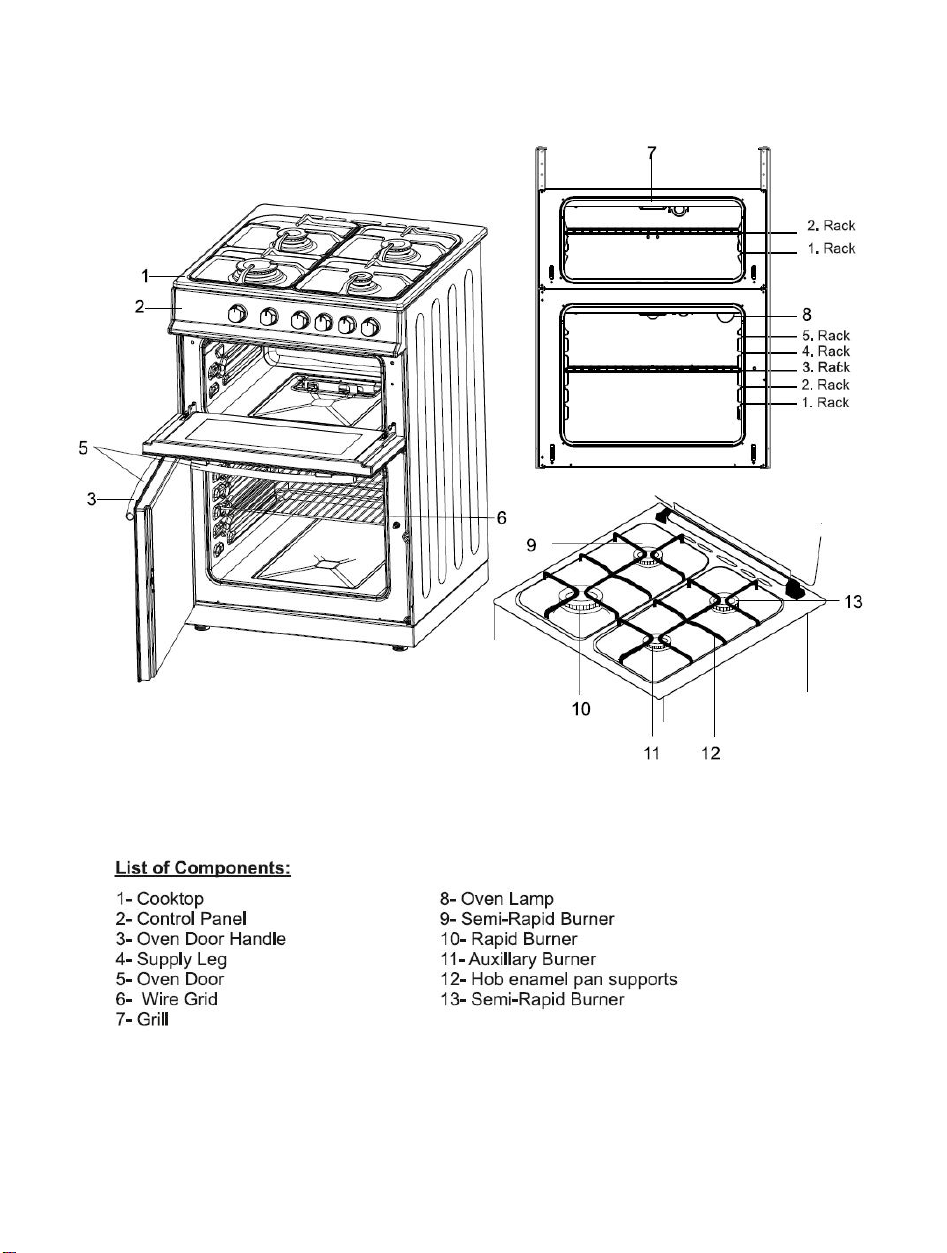

Description Of The Appliance
Your Oven may be fitted with a fold-down lid (Not Shown above)
(Line Drawings indicative of model supplied)
(N.B. Model supplied may not have all features shown in this User
Manual).
4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance
5
S
ection
1.
Installation
-This appliance must be installed by a ‘Gas Safe’ gas engineer.
-Remove all packaging, protective film and securing tape from
the appliance.
-Position the appliance in a dry atmosphere.
-The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
-Your ‘Gas Safe’ gas engineer will connect the cooker in
accordance with the current regulations.
To install this appliance, please proceed as follows:
1.1. Positioning the Cooker
You must ensure a minimum gap of 2cm between the back
of the appliance and the rear wall to allow for ventilation. You
must ensure a minimum distance of 70cm between the
hotplate and overhanging cupboards or a cooker hood (as
shown above).
6
Adjust the height and stability of the cooker by adjusting the
two front feet as shown below. Rotate in a clockwise direction
to decrease the height and in an anti-clockwise direction to
increase the height.
1.2. Electrical Connection
This appliance can be fitted with a 13 Amp plug and plugged
into a standard, switchable 13 Amp socket.
Alternatively, the product can be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing. In this case the
product must be installed by a Qualified Electrician. Please
note that a switchable spur should be accessible above the
work surface in order that the power can be turned off.
7
1.3. Gas Connection
THE GAS CONNECTION MUST BE CARRIED OUT BY A ‘GAS-
SAFE’ REGISTERED GAS ENGINEER!
Connection to the gas supply should be with either rigid or
semi-rigid pipe, i.e. steel or copper. The connection should be
suitable for connecting to RC 1/2 (1/2 BSP male thread).
When the final connection has been made, it is essential that
a thorough leak test is carried out on the cooker and
installation. Ensure that the main connection pipe does not
exert any strain on the cooker. When a flexible tube is used,
make sure that it does not come into contact with hot areas
or adjacent housing units.
It is important to install the elbow correctly, with the shoulder
on the end of the thread, fitted to the cooker connecting pipe.
Failure to ensure the correct assembly will cause leakage of
gas.
8
1.4. Technical Specifications
Power supply: 230v – 50Hz
G30 28-30 12 mbar kW 873 g/h
II2H3+ GB Class:1
NG
G20 20 mbar
LPG
G30/31 23-30/37
mbar
LARGE BURNER
DIA. of INJECTOR (1/100mm) 115 85
NOMINAL RATING (KW) 2,9 3
CONSUMPTION 276 l/h 218,1 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166.7 l/h 127,2 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166.7 l/h 127,2 g/h
SMALL BURNER
DIA. of INJECTOR (1/100mm) 72 50
NOMINAL RATING (KW) 11
CONSUMPTION 95.2 l/h 72,7 g/h
MAIN OVEN BURNER
DIA. of INJECTOR (1/100mm) 115 75
NOMINAL RATING (KW) 2,4 2,4
CONSUMPTION 228,6 l/h 174,5 g/h
GRILL BURNER
DIA. of INJECTOR (1/100mm) 110 69
NOMINAL RATING (KW) 2,2 2,1
CONSUMPTION 209,5 l/h 152,7 g/h
9
G30 28-30 12 mbar kW 873 g/h
II2H3+ GB Class:1
NG
G20 20 mbar
LPG
G30/31 23-30/37
mbar
LARGE BURNER
DIA. of INJECTOR (1/100mm) 115 85
NOMINAL RATING (KW) 2,9 3
CONSUMPTION 276 l/h 218,1 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166.7 l/h 127,2 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166.7 l/h 127,2 g/h
SMALL BURNER
DIA. of INJECTOR (1/100mm) 72 50
NOMINAL RATING (KW) 11
CONSUMPTION 95.2 l/h 72,7 g/h
MAIN OVEN BURNER
DIA. of INJECTOR (1/100mm) 115 75
NOMINAL RATING (KW) 2,4 2,4
CONSUMPTION 228,6 l/h 174,5 g/h
GRILL BURNER
DIA. of INJECTOR (1/100mm) 110 69
NOMINAL RATING (KW) 2,2 2,1
CONSUMPTION 209,5 l/h 152,7 g/h
9
Section 2. Safety Advice
-This appliance must be installed by a ‘Gas Safe’
approved gas engineer.
-It is important that you use only metal pans specifically
designed and/or approved for use with Gas Hobs. Never allow
melamine or plastic containers to come in contact with the gas
burners.
-It is important that you use only ‘oven proof’ pans and dishes
when using the appliance for cooking or grilling. Never allow
cookware and/or utensils to come into contact with the top
heating element/grill.
Do not use melamine or plastic containers when cooking or
grilling.
Always take care when removing ovenware from the oven and
in particular avoid touching the Grill Element.
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-This appliance shall not be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction on how
to use the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
-This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-Do not twist or bend the connection/power cable, and keep it
away from hot surfaces.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could lead
to the appliance malfunctioning.
