montpellier MR90CEMX-K Manuel utilisateur
90cm Double Oven Range Cooker
MR90CEMX-K - All Electric - Ceramic
Stainless Steel/Black
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Thank you for choosing this Montpellier All Electric, Ceramic Range Cooker.
Our Range Cookers have been designed to provide you with the best combination of style, reliability and
performance to give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Cooker to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Range Cooker is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
Cooker, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
2

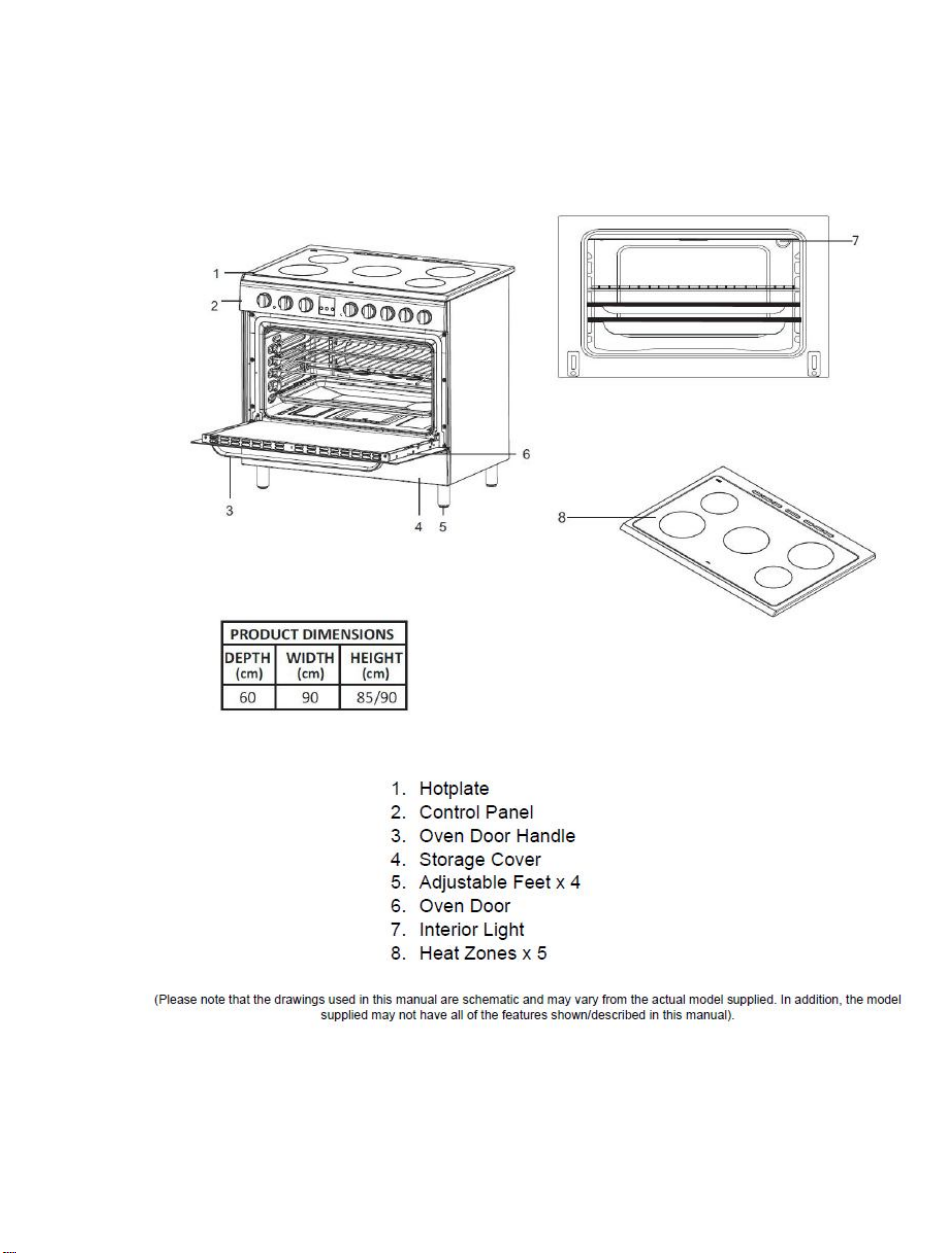

Description
Of
The
Appliance
3
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance
4
S
ection
1.
Installation
•Remove all packaging, protective film and securing tape from
the appliance.
•Position the appliance in a dry atmosphere.
•The following dimensions are provided as a guide for
installation – your installer will carry out the installation in
accordance with the current regulations.
•Your installer will connect the power cable in accordance with
the current regulations.

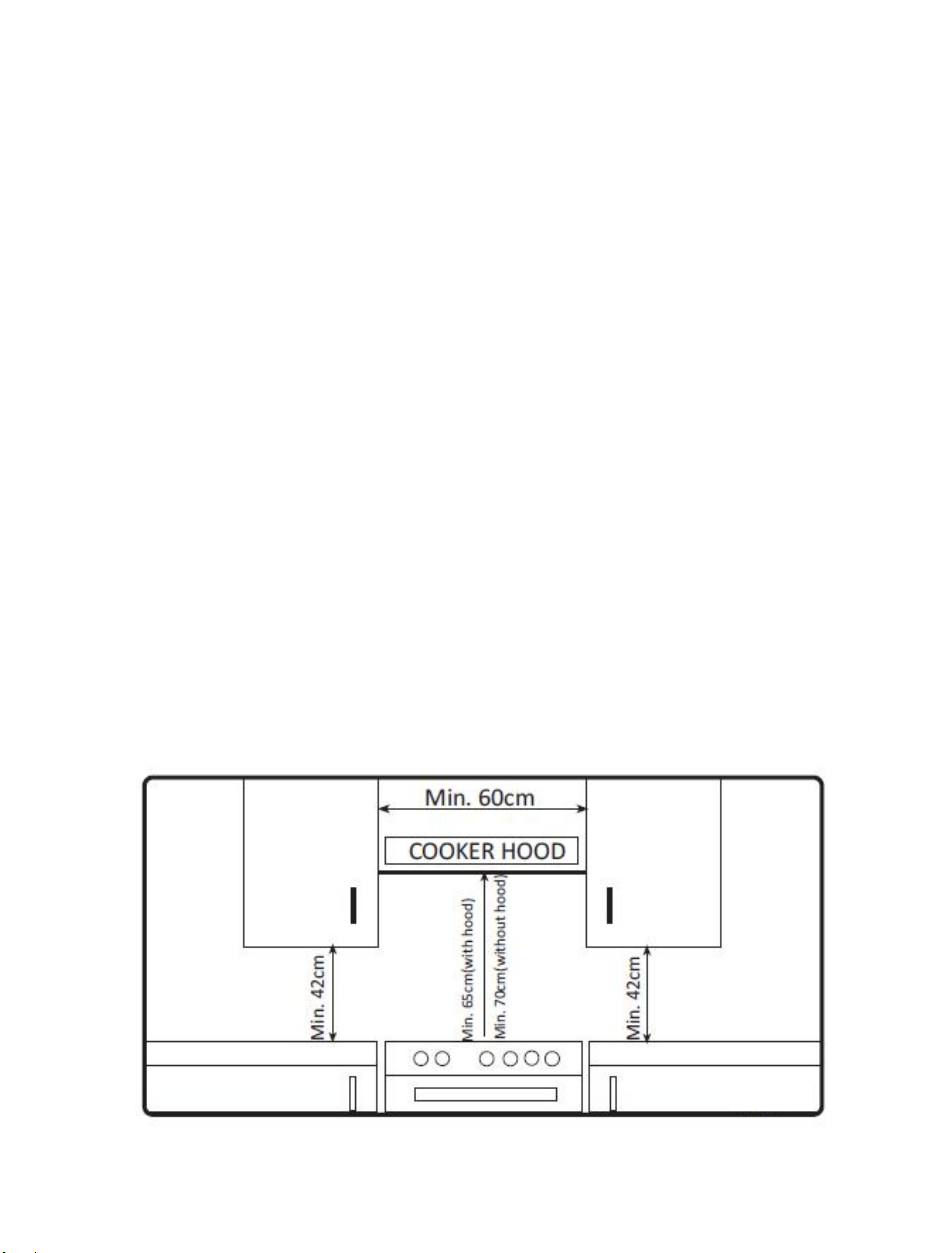

1.1. Positioning the Appliance
•Position the appliance as shown in the diagram below.
•Ensure an air gap of at least 2cm on all sides of the appliance.
•You must ensure a minimum gap of 65cm between the top of
the appliance and a cooker hood. The gap must be 70cm if
there is no cooker hood installed above the appliance.
5
1.2. Electrical Connection
This appliance must be ‘hard wired’ into a suitable
fused spur adjacent to the appliance housing, by a Qualified
Electrician. Please note that a switchable spur should be accessible
above the work surface in order that the power can be turned
off by the consumer.
Your installer will supply and use the appropriate diameter of
electrical cable based on the Power Rating of the appliance as
shown on the Rating Label affixed to the appliance.

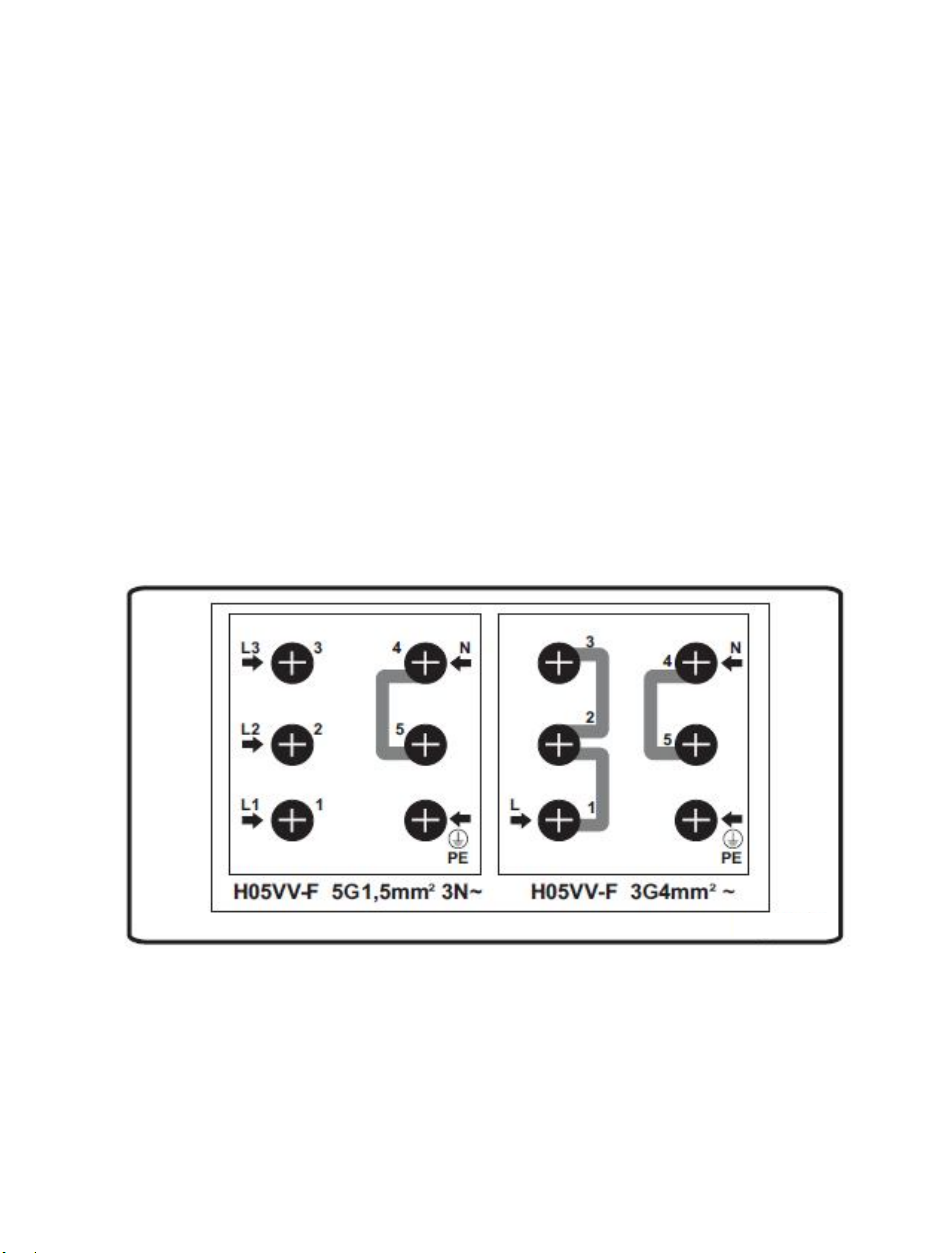

Electrical Connection Diagram:
6

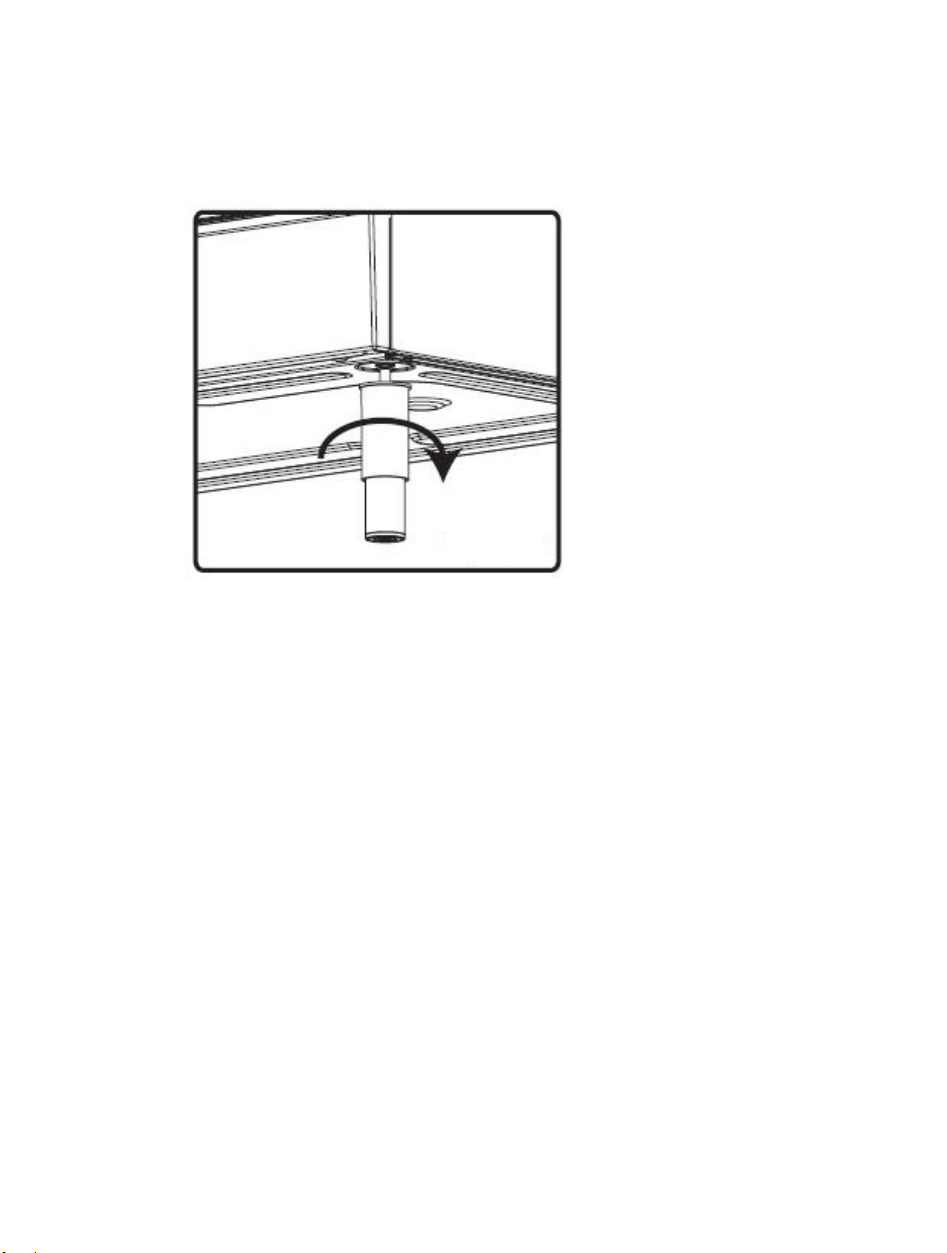

1.3. Level the Appliance
Finally, ensure that the appliance is level by adjusting the 4
feet as shown below.
7
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the
appliance.
-This appliance must only be used for cooking/heating food
items. Do not use it for any other purpose.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical
circuit is not overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot
surfaces.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Keep the appliance surfaces clean. Failure to do this could lead
to the appliance malfunctioning.
-The surface of this appliance will get extremely hot during use.
Take care when using the appliance and keep children well
away.
-The interior and surface of this appliance will remain hot after it
has been turned off. Do not touch or clean the appliance until it
has completely cooled down.
-Never lift this appliance using the door handle or ‘open’ door.
-If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in
order to avoid a hazard.
8
Section 3. Operating the Appliance
3.1. Oven Control Panel
1. Oven Function Control Knob
2. Oven Thermostat Operation Light
3. Oven Thermostat Control Knob
4. Digital Timer
5. Rear Left Heat Zone Control Knob
6. Front Left Heat Zone Control Knob
7. Centre Heat Zone Control Knob
8. Front Right Heat Zone Control Knob
9. Rear Right Heat Zone Control Knob
3.2. Cooking & Functions
3.2.1. Operating the Hotplate

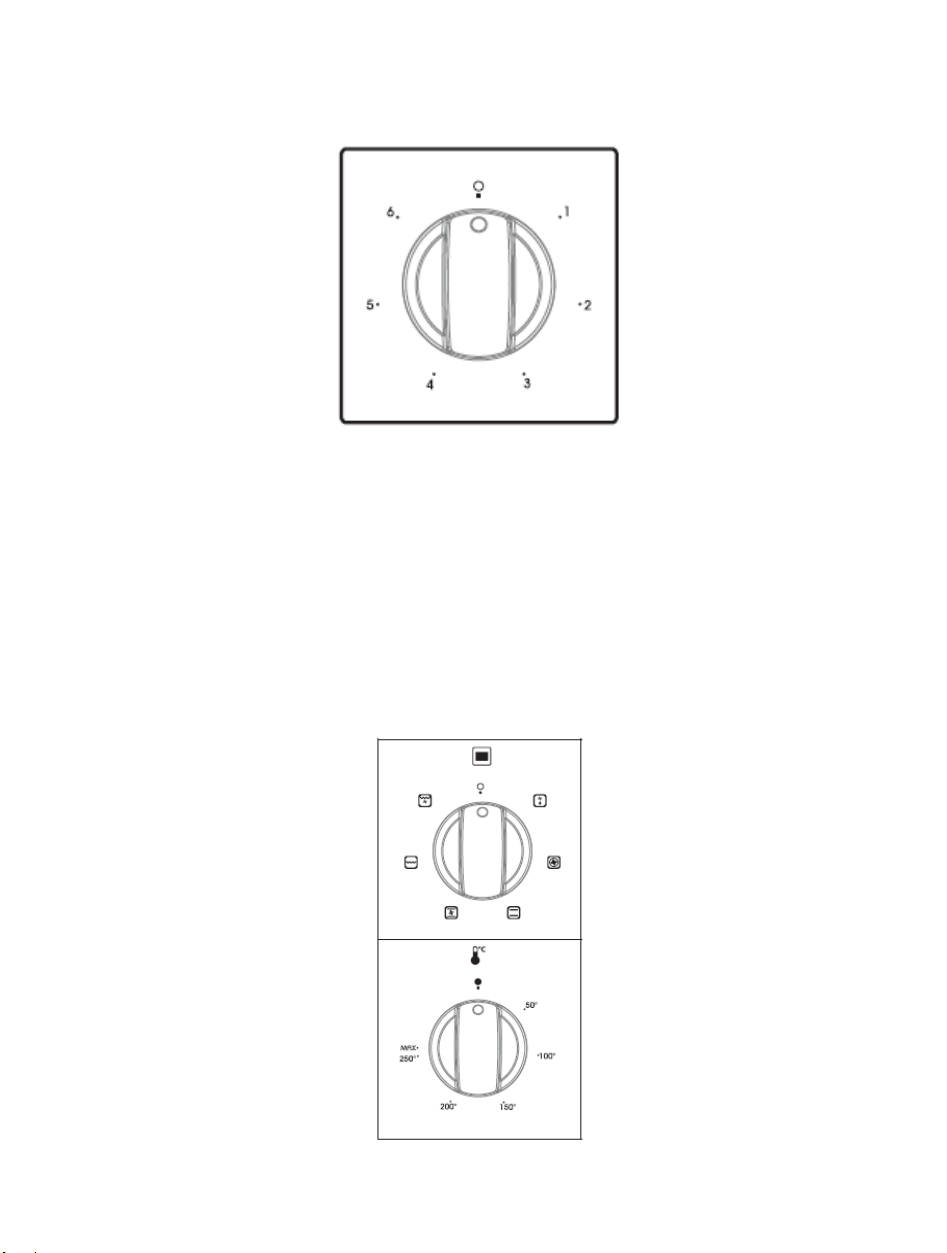

•Turn the appropriate Heat Zone control knob to the required
heat setting (Position 1 is low and position 6 is high – see
diagram below).
•Use only flat bottomed pans.
•Never use a pan with a smaller diameter than that of the heat
zone.
9
•Remember to turn the Heat Zone control knob back to Zero
when you have finished cooking.
3.2.2. Operating the Oven
•Turn the Oven Function Control Knob to the required setting
(See diagram below). See Section 3.2.4 for function list.
•Turn the Oven Thermostat Control Knob to the required heat
setting (See diagram below)
•The Oven Thermostat Operation Light will illuminate whilst the
oven heater is operating.
