ZET3058SH/WH/BH – GE Monogram 30" Built-In Double Oven

with Trivection™ Technology

Specification Revised 6/04

130313

Dimensions (in inches)

2 x 4 or

equivalent

runners

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

(Must support 375 lbs.)

Note: Cabinets installed adjacent to wall ovens must have an

adhesion spec of at least a 194°F temperature rating.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

® GE Profile™ or

GE® appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Electric wall ovens are not approved for installation

with a plug and receptacle. They must be hard wired in

accordance with installation instructions.

KW Rating

240V 8.9

208V 6.7

Breaker Size

240V 40 Amps

208V 40 Amps

21" min.

Door Opening

Allowance

Cutout Height

51-13/16" min.

51-15/16" max.

Recommended

Cutout Location

12" from the floor

Cutout Width

28-1/2'' min.

28-5/8'' max.

Cabinet

Width 30"

23-1/4''

29-3/4''

52-7/8''

Note: Most 30'' wall cabinets can be used with this unit.

The opening between the inside walls must be at least 28-1/2'' wide.

A = Allow 11/16" - 3/4" for overlap of oven over side edges of cutout.

B = Allow 1" overlap of oven over top and 1-1/4" overlap at the bottom

edges of cutout.

Cutout Depth

23-1/2'' min.

Bottom of

Cutout

Acceptable

junction box

location area

DWO

jt980_install_ii.eps

32"

25"

ZET3058SH/WH/BH – GE Monogram 30" Built-In Double Oven

with Trivection™ Technology

Specification Revised 6/04

130313

ZET3058SHSS

12 3

45 6

UPPER OVEN

CLEAR

OFF

CLEAR

OFF

OVEN

LIGHT

OVEN

LIGHT

TIMER

ON / OFF

LOCK

LOWER OVEN

Features and Benefits

• Trivection technology – Combines thermal, convection

and microwave energies to produce quality food

remarkably fast

• Sophisticated styling

• Cooking versatility

• Full-size oven capacity

• Glass touch electronic controls

• Halogen interior light

• Model ZET3058SHSS – Stainless steel

• Model ZET3058WHWW – White

• Model ZET3058BHBB – Black

Ce manuel convient aux modèles suivants

Autres manuels Monogram Four

Monogram

Monogram Advantium ZSC2202JSS Manuel utilisateur

Monogram

Monogram Advantium ZSB9131NSS Manuel utilisateur

Monogram

Monogram ZTSX1DP Manuel utilisateur

Monogram

Monogram Advantium ZSA2201 Manuel utilisateur

Monogram

Monogram ZEK7000SHSS Manuel utilisateur

Monogram

Monogram JKP47G Instructions d'installation

Monogram

Monogram Advantium ZSC1001 Manuel utilisateur

Monogram

Monogram Advantium ZSC1001JSS Manuel utilisateur

Monogram

Monogram ZTS90DS Manuel utilisateur

Monogram

Monogram Advantium Manuel utilisateur

Monogram

Monogram ZTD90DSSNSS Manuel utilisateur

Monogram

Monogram ZMB9031 Manuel utilisateur

Monogram

Monogram ZSA1202PSS Manuel utilisateur

Monogram

Monogram Advantium ZSA2201 Manuel utilisateur

Monogram

Monogram ZET2PMSS Manuel utilisateur

Monogram

Monogram ZEP30FLSS Manuel utilisateur

Monogram

Monogram Advantium ZSB9231NSS Manuel utilisateur

Monogram

Monogram Monogram ZET1038PFSS Manuel utilisateur

Monogram

Monogram ZEP30FLSS Manuel utilisateur

Monogram

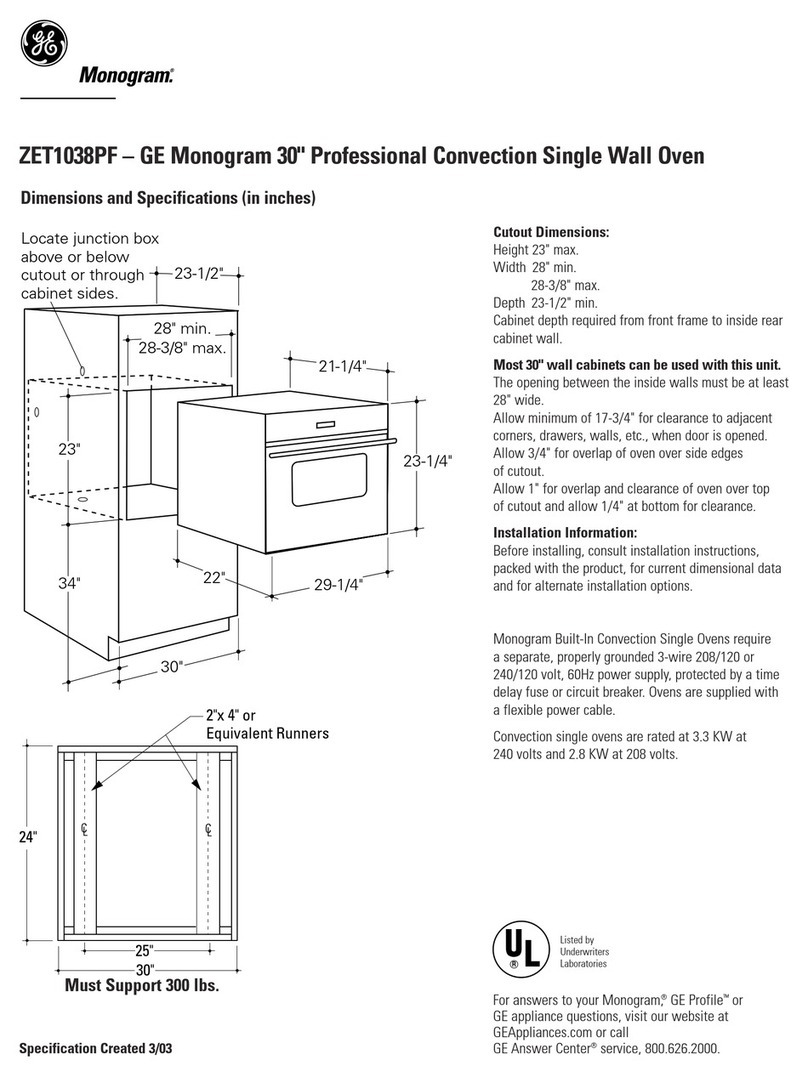

Monogram Monogram ZET1038PFSS Guide de l'utilisateur
