1225 Cartridge: Moentrol with Integrated Transfer Valve
This article will provide step-by-step instructions on how to replace a 1225 cartridge in a 3320, 3330 and 3350 Moentrol
with an Integrated Transfer Valve shower system. In this two handle shower system, the 1225 cartridge is located
behind the lower handle and controls the flow and temperature of the water.
Preparation:
•The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the
Faucet.
• Recommended Tools: Phillips Screwdriver & Pliers
• The following instructions assume the handle and associated handle pieces have been removed. For additional
details, visit Vertical Spa: Moentrol with Integrated Transfer Valve and select the type you are repairing. The
faucet guide will contain specific information on handle assemblies associated with that style of product.
• We recommend covering the drain before beginning so to not loose any parts down the drain.
Egg-Shaped Escutcheon Plate (Prior to 2007):
Disassembly:
1. To remove the upper mounting cup (#2A), use a Phillips screwdriver
to unthread the upper mounting cup screws (#1A) counter-clockwise.
Repeat this step for the lower mounting cup (#4A) and lower mounting
cup screws (#3A).
Assembly:
1. Slide
the new
cartridge
(#8A) into
the brass
valve
body
(#9A). Use
the
twisting
tool to
position
the
cartridge
(#8A)
correctly
in the
valve
https://solutions.moen.com/Article_Library/1225_Cartridge%3A_Moentrol_with_Integrated_Transfer_Valve
Updated: Wed, 14 Sep 2022 18:42:34 GMT
Powered by
1
2. Slide off the escutcheon plate (#5A).
3. Grab ahold of the stop tube (#6A) and pull it forward until it has been
removed.
4. Lift the tab at the top of the U-shaped copper colored retaining clip
(#7A) just enough to grab it with your hand to fully remove. Be
careful not to drop the clip (#7A) behind the wall.
5. Using the plastic twisting tool (see Image A below) provided in the
1225 cartridge kit (#8A), rotate the cartridge (#8A) 1/4 of a turn (90
degrees) in either direction. This will help loosen the cartridge (#8A).
Remove the twisting tool from the top of the cartridge (#8A). Pullout the
stem of the cartridge (#8A) until it stops. Using pliers, grab the stem of
the cartridge (#8A) and pull the cartridge (#8A) out. This may require
some effort. If you are replacing the 92451 service kit, see 92451
Cartridge Service Kit Repair Guide for additional details.Note: It is
highly recommended to clean and flush the valve body (#9A)
before installing the new cartridge (#8A). See Valve Body Cleaning
and Flushing for additional details.
Image A:
body
(#9A). The
plastic
tabs on
the
cartridge
(#8A)
must be
centered
on the
slots on
the valve
body
(#9A),
which are
located at
the 12 and
6 o'clock
positions.
2. Gently slide the
copper clip (#7A)
back into the brass
valve body (#9A)
on top of the
cartridge (#8A). If
you encounter any
resistance, do not
force the copper
clip (#7A). The
cartridge (#8A)
may not be
properly aligned
(see step 1). If for
any reason the
copper clip (#7A)
cannot be
installed, the
water cannot be
turned back on to
the shower
system until the
copper clip (#7A)
is replaced.
https://solutions.moen.com/Article_Library/1225_Cartridge%3A_Moentrol_with_Integrated_Transfer_Valve
Updated: Wed, 14 Sep 2022 18:42:34 GMT
Powered by
2

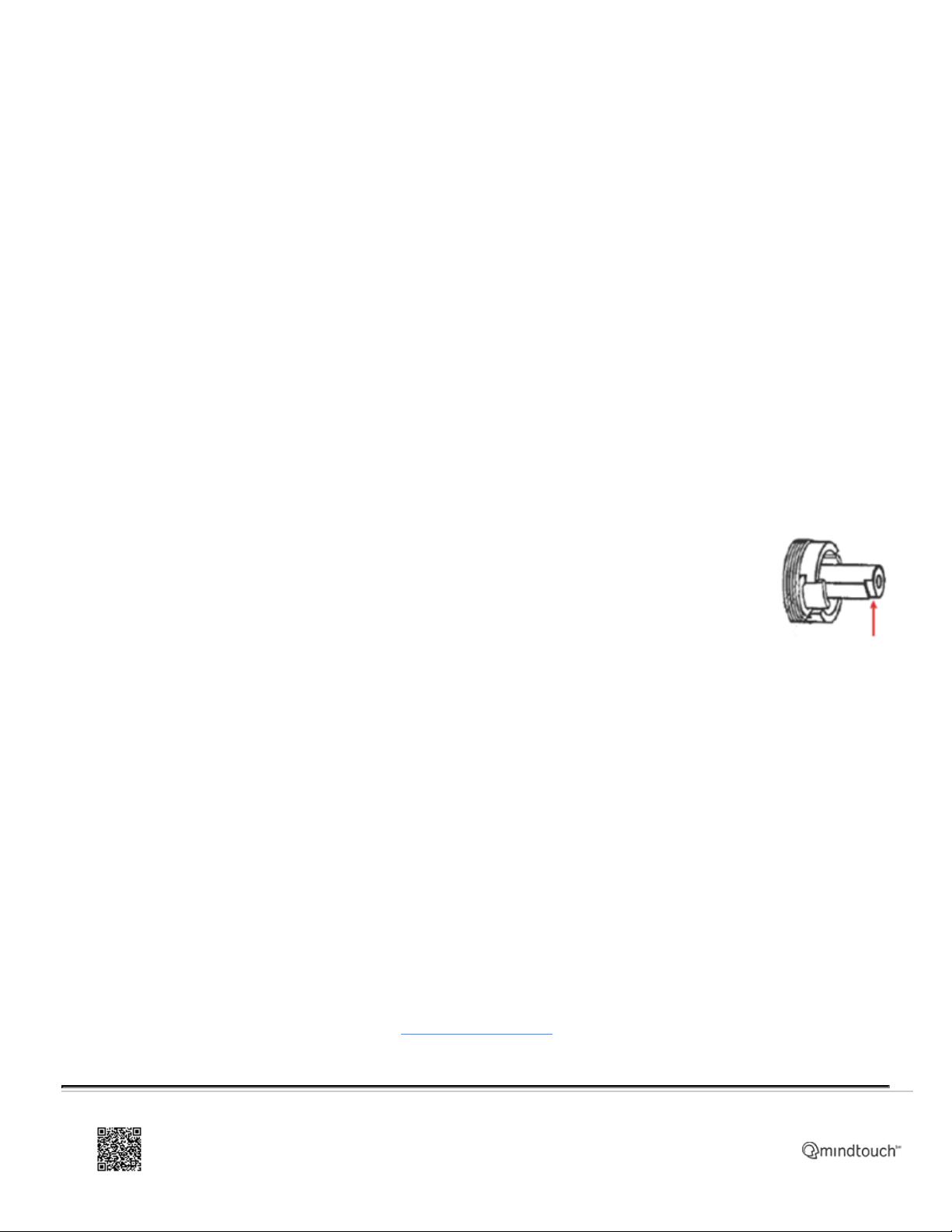

3. Rotate
the stem of the
cartridge (#8A)
so the small
notch is facing
down. The notch
on the stem of
the cartridge
(#2) determines
the hot and cold
location. If the
hot and cold are
reversed, rotate
the stem of the
cartridge (#8A)
180 degrees.
4. Slide the stop tube (#6A) back
onto the valve body (#9A).
5. Position the escutcheon plate
(#5A) with the word "Moen" upright
and slide it onto the valve body
(#9A).
6. Position the upper mounting cup
(#2A) so the screw holes lines up
with the screw holes on the valve
body (#9A). While holding the
upper mounting cup (#2A) in
position, use a phillips screwdriver
to thread the upper mounting cup
screws (#1A) clockwise until tight.
Repeat this step with the lower
mounting cup (#4A) and lower
mounting cup screws (#3A).
Oval Shaped Escutcheon Plate (After 2007):
https://solutions.moen.com/Article_Library/1225_Cartridge%3A_Moentrol_with_Integrated_Transfer_Valve
Updated: Wed, 14 Sep 2022 18:42:34 GMT
Powered by
3
Disassembly:
1. To remove the escutcheon plate (#2B), use a Phillips screwdriver
to unthread each of the four escutcheon screws (#1B) counter-clockwise.
2. Grab ahold of the stop tube (#3B) and pull it forward until it has been
removed.
3. Lift the tab at the top of the U-shaped copper colored retaining clip (#4B)
just enough to grab it with your hand to fully remove. Be careful not to drop
the clip (#4B) behind the wall.
4. Using the plastic twisting tool (see Image 1 below) provided in the 1225
cartridge and cartridge repair kit, rotate the cartridge (#5B) 1/4 of a turn (90
degrees) in either direction (see Image 2 below). This will help loosen the
cartridge (#5B). Remove the twisting tool from the top of the cartridge (#5B).
Pullout the stem of the cartridge (#5B) until it stops. Using pliers, grab the
stem of the cartridge (#5B) and pull the cartridge (#5B) out (see Image 3
below). This may require some effort. If you are replacing the 92451 service
kit, see 92451 Cartridge Service Kit Repair Guide for additional
details. Note: It is highly recommended to clean and flush the valve
body (#6B) before installing the new cartridge (#5B). See Valve Body
Cleaning and Flushing for additional details.
Image 1 Image 2 Image 3
Assembly:
1. Slide
the new
cartridge
(#5B) into
the brass
valve body
(#6B). Use
the
twisting
tool to
position
the
cartridge
(#5B)
correctly in
the valve
body
(#6B). The
plastic
tabs on the
cartridge
(#5B) must
be
centered
on the
slots on
the valve
body
(#6B),
which are
located at
the 12 and
6 o'clock
positions.
2. Gently slide
the copper clip
(#4B) back into
the brass valve
body (#6B) on
top of the
cartridge (#5B).
If you encounter
any resistance,
do not force the
copper clip
(#4B). The
https://solutions.moen.com/Article_Library/1225_Cartridge%3A_Moentrol_with_Integrated_Transfer_Valve
Updated: Wed, 14 Sep 2022 18:42:34 GMT
Powered by
4
cartridge (#5B)
may not be
properly aligned
(see step 1). If
for any reason
the copper
clip (#4B)
cannot be
installed, the
water cannot be
turned back on
to the shower
system until the
copper clip
(#4B)
is replaced.
3. Rotate
the stem of the
cartridge (#5B)
so the small
notch is facing
down. The notch
on the stem of
the cartridge
(#5B) determines
the hot and cold
location. If the
hot and cold are
reversed, rotate
the stem of the
cartridge (#5B)
180 degrees.
4. Position the escutcheon plate
(#2B) so the word "Moen" appears
upright and slide it onto the valve
body (#6B).
5. Using a Phillips screwdriver,
thread each of the four escutcheon
screws (#1B) clockwise until tight.
For additional information on Moen products visit solutions.moen.com and select the type of product you are repairing.
The guide will contain repair details, troubleshooting and specific information on assembling handles associated with
that style of product.
