Modway MOD-6335 Manuel utilisateur

Before you start, here is some helpful advice:

Thank you for purchasing the MODWAY BED !

1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step

instructions.

2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted

or padded area, in the room that it is intended for. Approx assembly time: 20 minutes.

4.Please do not throw away any of the packaging or the instruction until you have checked all the components

and hardware and the furniture is fully assembled.

3.Please do not use any tools other than those provided or recommended in these instructions.

5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten

the components from time to time, so please save the tools that have been provided.

6.Please keep all small pieces out of reach of children.

Customer Service 908-368-1025 ; www.modway.com

Page 1/4

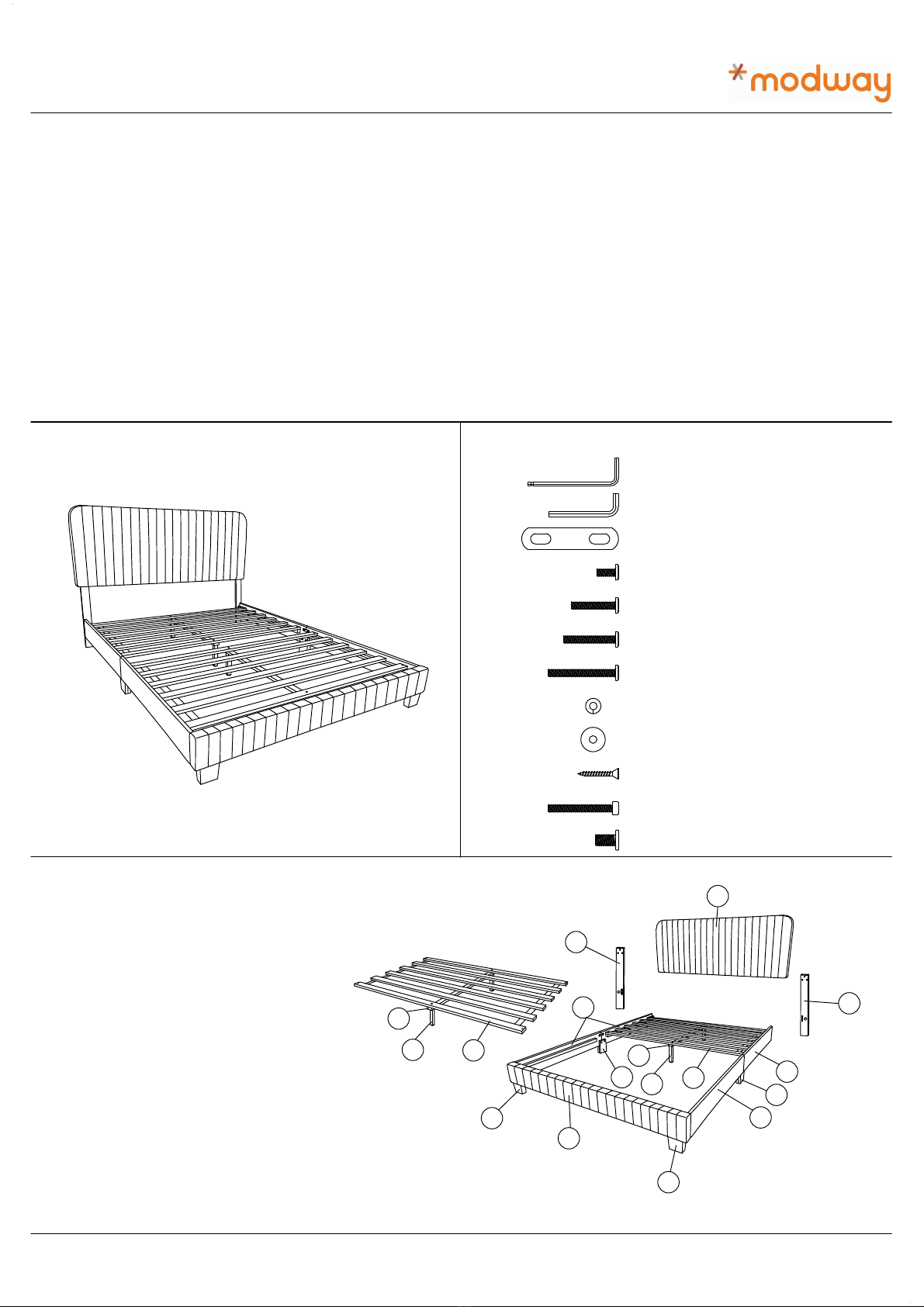

Hardware

x14

x10

JCBC Bolt M6 x 50mm

JCBC Bolt M6 x 40mm

JCBC Bolt M6 x 35mm

JCBC Bolt M6 x 15mm

Side Rail Connect

Allen Key M5

Allen Key M4

Spring Washer

Flat Washer

CBS Screw M4 x 32mm

JCCA Bolt M6 x 50mm

JCBB M8 x 16mm

COMPONENT

1- Headboard

2- Footboard

3- Side Rail Right

4- Side Rail Left

5- Support Leg

6- Footboard Leg

7- Side Rail Leg

8- Slat(6pcs)

9- Slat Support

10- Headboard Left Leg

11- Headboard Right Leg 3

MOD-6335

Customer Service 908-368-1025 ; www.modway.com

Page 2/4

Hardware & Tool required

Ax1 Fx6 Hx6 Ix6

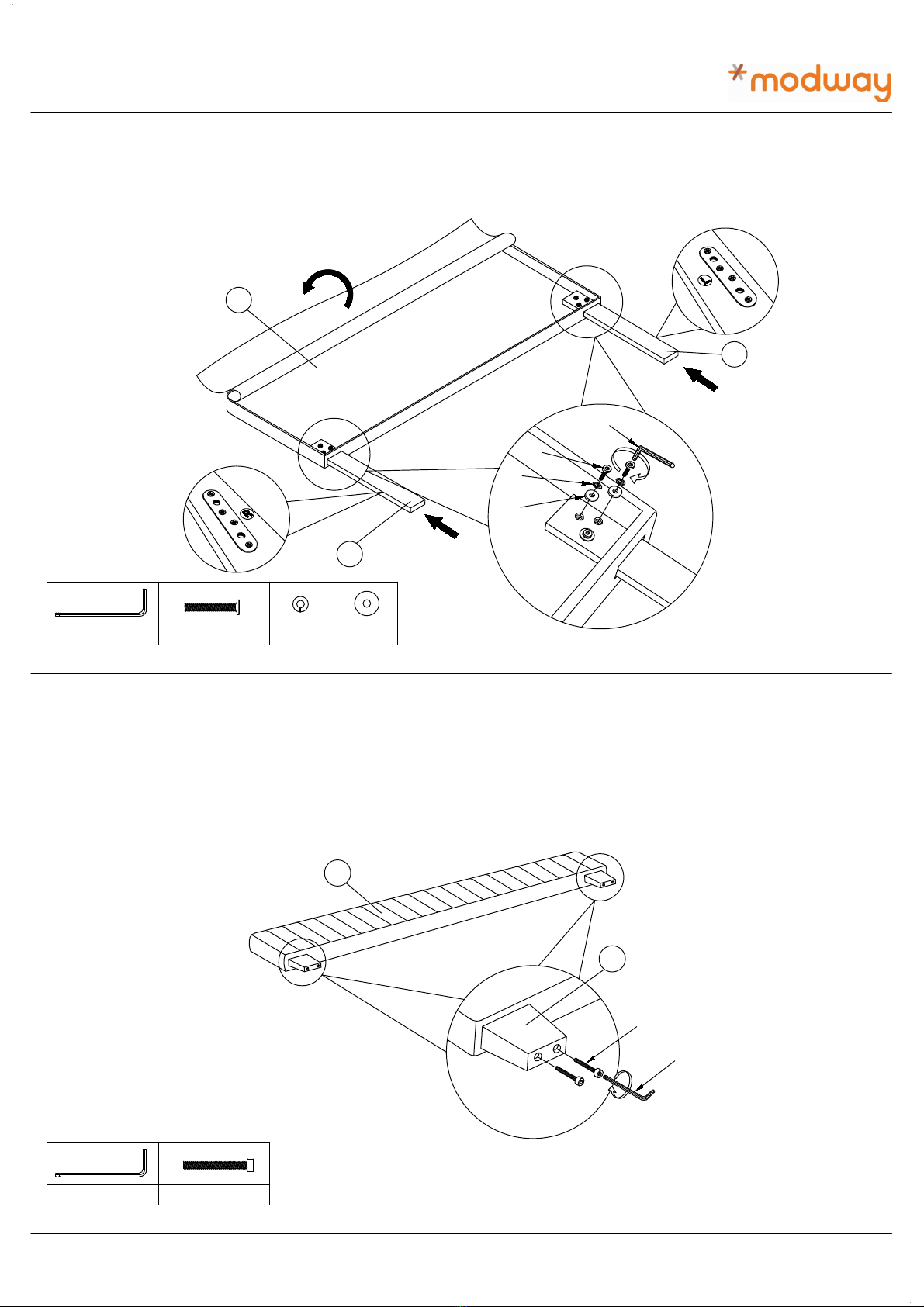

STEP 1 :

Ax1 Kx4

STEP 2 :

Attach the Footboard Leg (6) (2pcs) to Footboard (2) use JCCA Bolt 50mm (K) and Allen Key (A) to fix.

1- Unzip the cover at the back-facing of the Headboard(1) and unpack the hardware & headboard parts

as shown.

2- Secure the Right Leg (11) & Left Leg (10) using JCBC Bolt 40mm (F), Spring Washer (H),

Flat Washer (I), tighten with Allen Key (A).

MOD-6335

Customer Service 908-368-1025 ; www.modway.com

Page 3/4

Hardware & Tool required

Ax1 Gx4

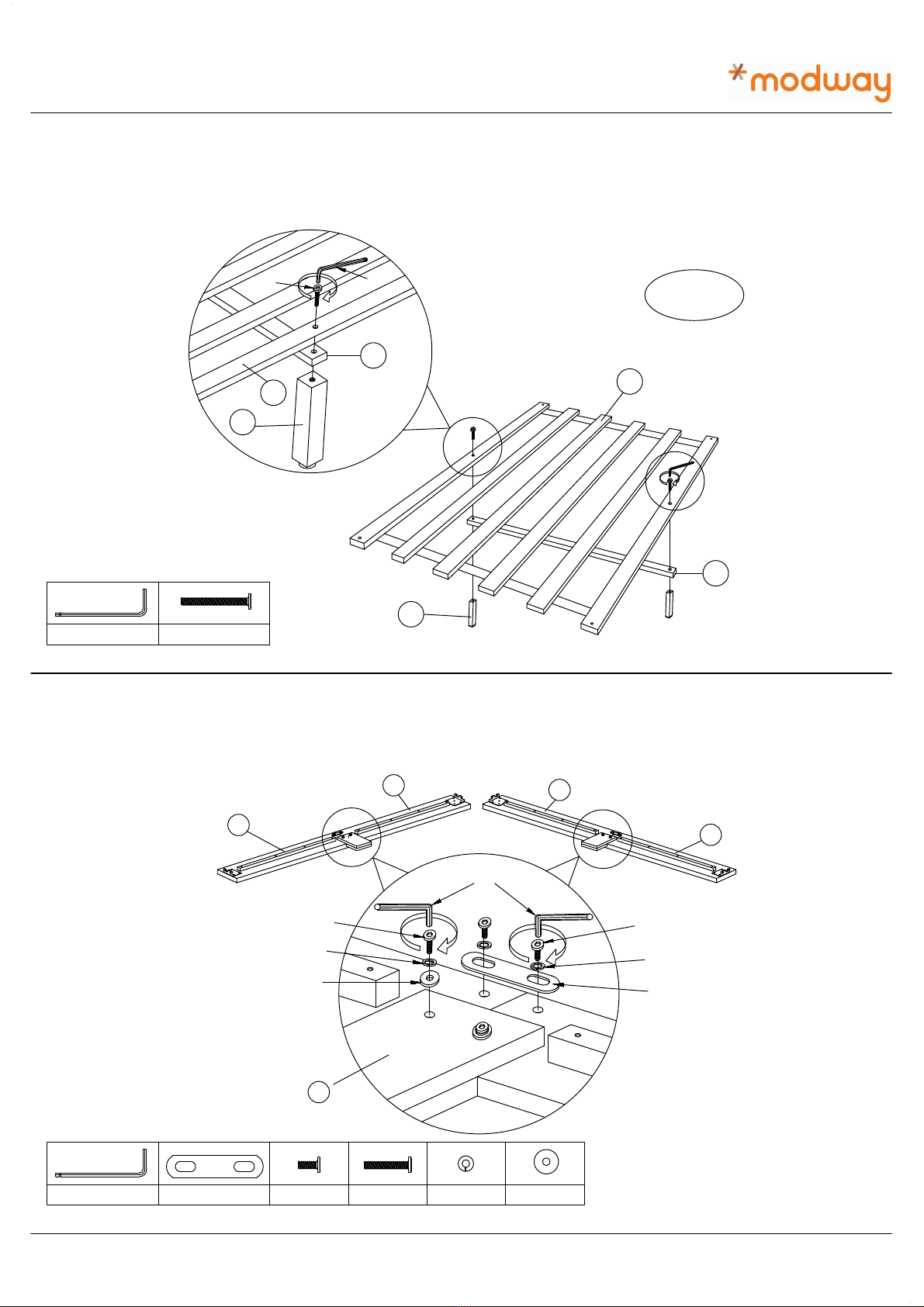

STEP 3 :

Attach the Slat (8) to Slat Support (9) and Support Leg (5). Use JCBC Bolt 50mm (G) and Allen Key (A)

to fix.

Ax1 Cx2

STEP 4 :

Attach and tighten the Side Rail Right (3) (2pcs) and Side Rail Left (4) (2pcs) to Side Rail Leg (7) (2pcs).

On the Side Rail use Side Rail Connect (C), Spring Washer (H), JCBC Bolt 15mm (D) and Allen Key (A) to fix.

On the Side Rail Leg use JCBC Bolt 35mm (D), Spring Washer (H), Flat Washer (I) and Allen Key (A) to fix.

G2 x Slats

Dx4 Ex4 Hx8 Ix4

MOD-6335

Customer Service 908-368-1025 ; www.modway.com

Page 4/4

Hardware & Tool required

Bx1 Lx8

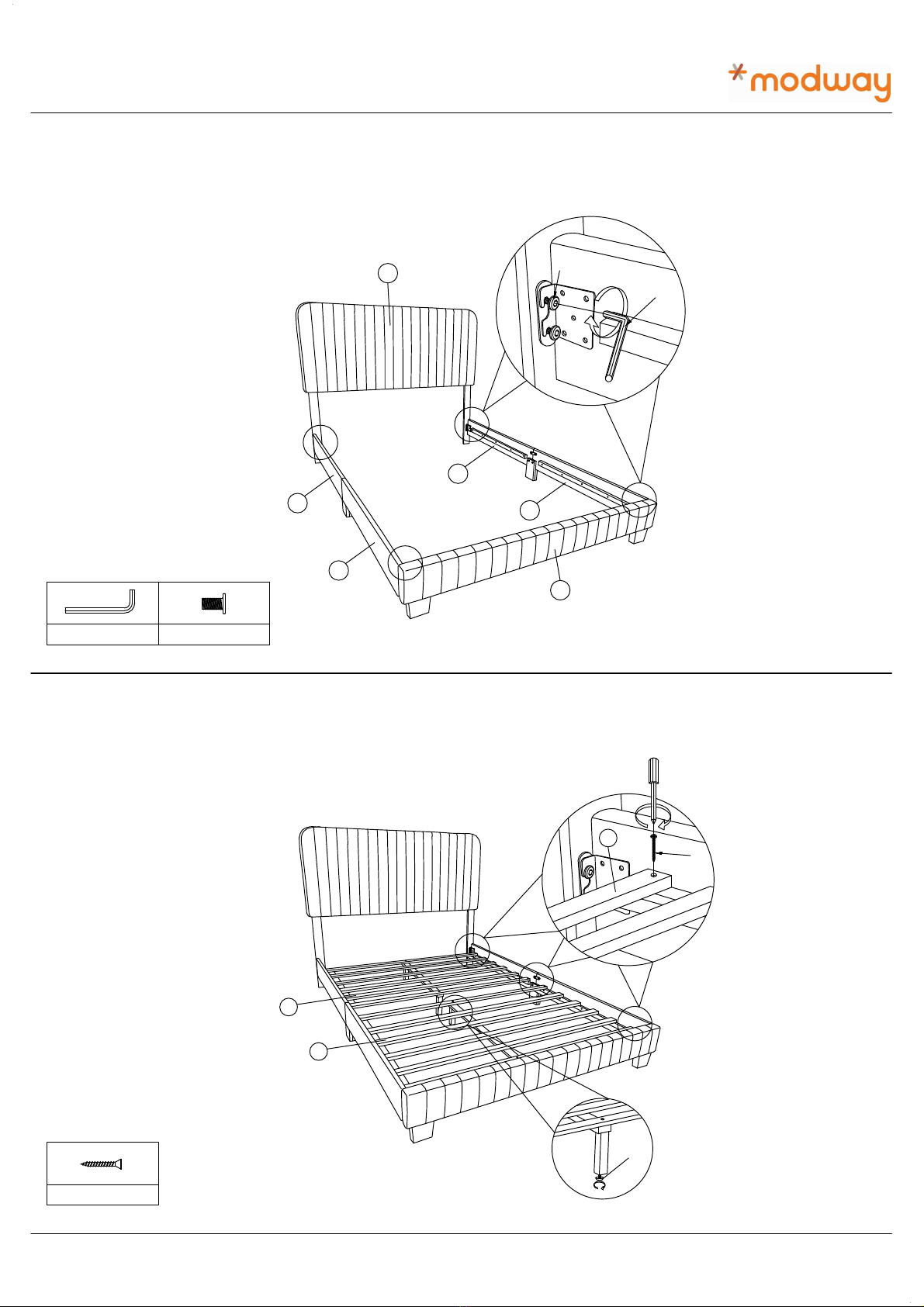

STEP 5 :

Jx8

STEP 6 :

Attach and tighten the Slats (8) to Side Rail.

Adjusting the leg adjuster to the floor.

Use CBS Screw 32mm (J) and screwdriver to fix.

Adjuster

Screw

Attach both Side Rail (3&4) to the bracket of Headboard (1) and Footboard (2).

Use JCBB Bolt 16mm (L) and Allen Key (B) to fix.

MOD-6335
