modway MOD-6003 Manuel utilisateur
Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approx assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.

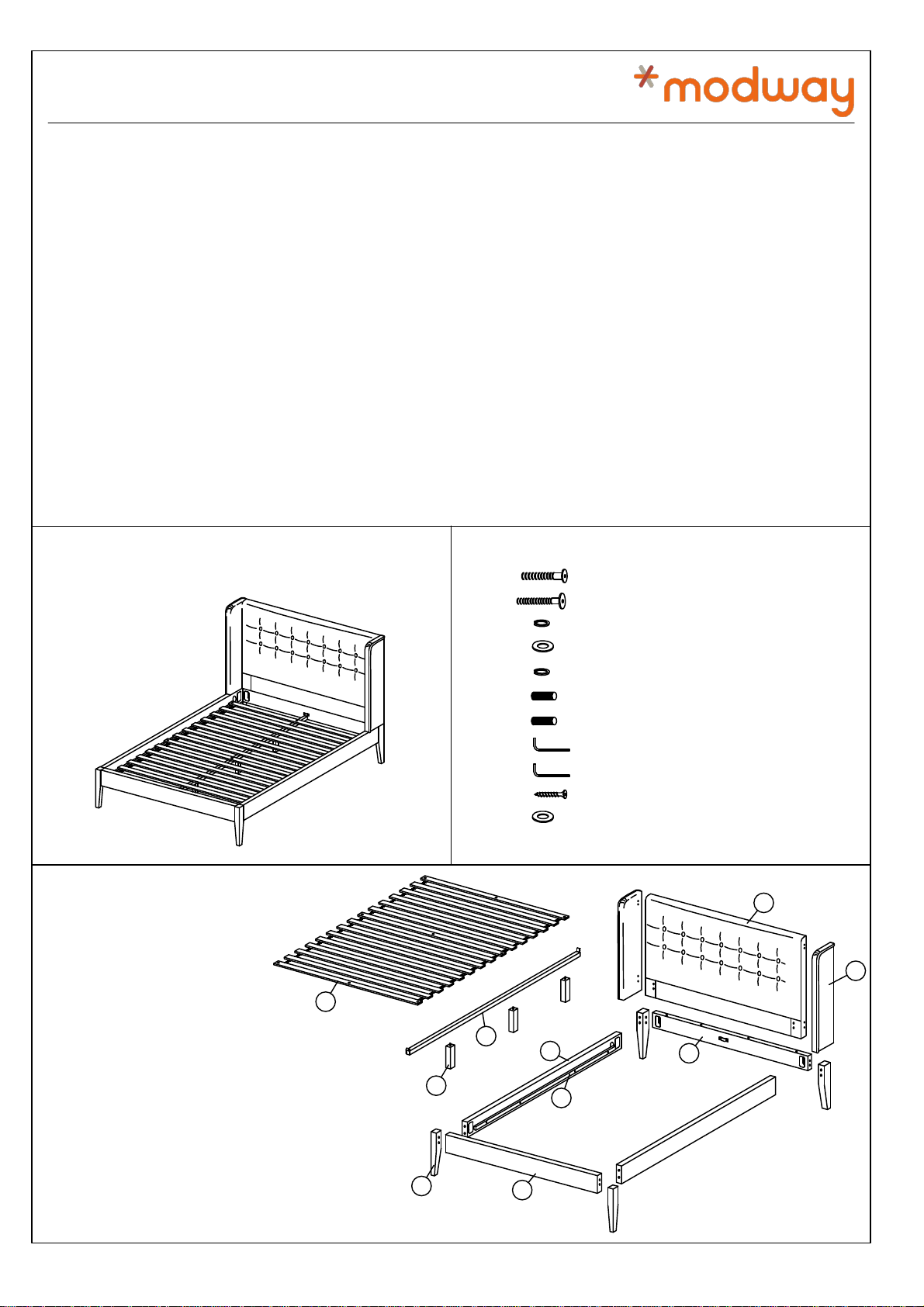

Hardware:
1JCBC BOLT M6 x 45 18 PCS
2 JCBB BOLT M8 x 50 16 PCS
3SPRING WASHER M6 10 PCS
4FLAT WASHER M6 8 PCS
5SPRING WASHER M8 16 PCS
6WOOD DOWEL M8 x 30mm 4 PCS
7WOOD DOWEL M10 x 30mm 8 PCS
8ALLEN KEY (BALL SHAPE) M4 1 PC
9ALLEN KEY (BALL SHAPE) M5 1 PC
10 WOOD SCREW M4 x 38mm 9 PCS
11 FLAT WASHER M8 16 PCS
Component:
A
B
C
D
E
F
G
H
I
J
A. HEADBOARD x 1
B. HEADBOARD WING (L&R) x 2
C. HEADBOARD SUPPORT x 1
D. FOOTBOARD x 1
E. SIDE RAIL (L&R) x 2
F. CENTER RAIL x 1
G. CENTER SUPPORT LEG x 3
H. LEG x 4
I. BED SLAT x 1
J. SIDE RAIL SUPPORT x 2
01 of 07
MOD-6003 QUEEN BED
STEP 1
F
G
1.1 Fasten center support leg (G) to center rail (F) attach by screwing the protruding nut into
the corresponding holes.
x 2
6
B
1.2 Fit wood dowels (6) into HEADBOARD WING (L&R) (B).
1.3 Fit wood dowels (7) into LEG (H).
6. WOOD DOWEL M8 x 30mm x 4pcs
x 4
7
H
7. WOOD DOWEL M10 x 30mm x 8pcs
02 of 07
MOD-6003 QUEEN BED
STEP 2
2.1 Insert and secure the headboard wing (B) to the headboard (A) using hardware parts
4,3,1 and 8. Repeat the same for other side of headboard wing.
(Note : Don't screw tied).
8
1
3
4
B
A
STEP B
STEP A
B
A
1. JCBC BOLT M6 x 45 x 4pcs 3. SPRING WASHER M6 x 4pcs 4. FLAT WASHER M6 x 4pcs 8. ALLEN KEY (BALL SHAPE) M4 x 1pc
2.2 Insert and secure the leg (H) to the side rail (E) using hardware parts 2,5,11 and9.
Repeat the same for other side of leg.
E
E
H
529
H
R
L
11
STEP A STEP B
2. JCBB BOLT M8 x 50 x 8pcs 5. SPRING WASHER M8 x 8pcs 11. FLAT WASHER M8 x 8pcs 9. ALLEN KEY (BALL SHAPE) M5 x 1pc
03 of 07
MOD-6003 QUEEN BED

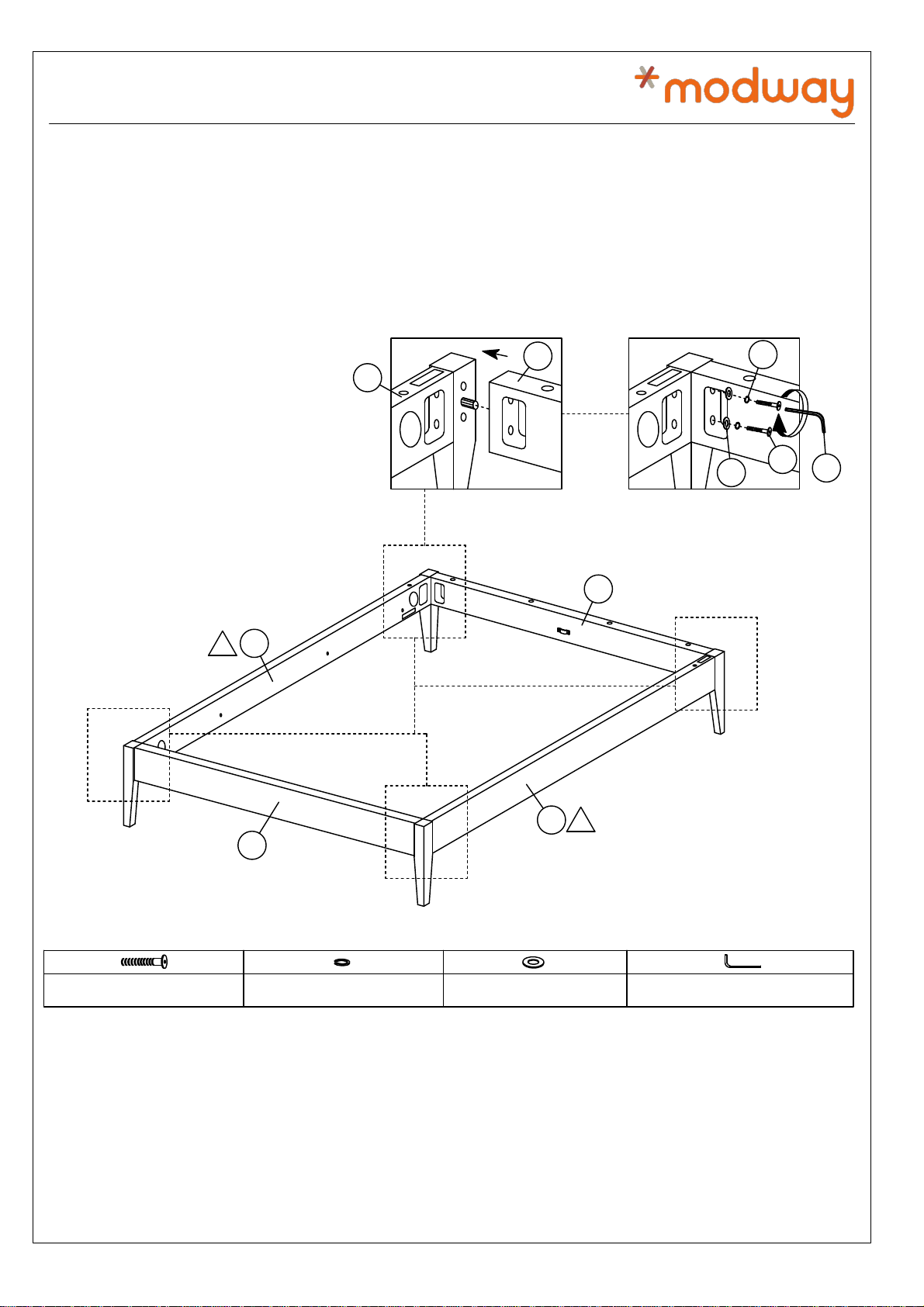

STEP 3
3.1 Insert and secure the headboard support (C) and footboard (D) to the side rail (E) using
hardware parts 2,5,11 and 9. Repeat the same for other side of side rail.
E
D
E
C
EC
2
5
9
L
R
STEP B
STEP A
11
HEADBOARD
2. JCBB BOLT M8 x 50 x 8pcs 5. SPRING WASHER M8 x 8pcs 11. FLAT WASHER M8 x 8pcs 9. ALLEN KEY (BALL SHAPE) M5 x 1pc
04 of 07
MOD-6003 QUEEN BED
STEP 4
F
C
4.1 Locate center rail (F) into the corresponding brackets inside of headboard support (C) and
footboard (D).
STEP 5
8
1
4
3
Don't screw tied
x 4
A
C
5.1 Insert and secure the headboard (A) to the headboard support (C) using hardware parts
1,3,4 and 8. Repeat the same for other side of side rail.
(Note : Don't screw tied).
1. JCBC BOLT M6 x 45 x 4pcs 3. SPRING WASHER M6 x 4pcs 4. FLAT WASHER M6 x 4pcs 8. ALLEN KEY (BALL SHAPE) M4 x 1pc
05 of 07
MOD-6003 QUEEN BED
STEP 6
8
1
3x 2
6.1 Insert and secure the headboard wing (B) to the side rail (E) using hardware parts 1,3 and
8. Repeat the same for other side of side rail.
(Finish step 6, Please screw tied the step 2 bolt & step 5 bolt.)
1. JCBC BOLT M6 x 45 x 2pcs 3. SPRING WASHER M6 x 2pcs 8. ALLEN KEY (BALL SHAPE) M4 x 1pc
STEP 7
J
8
J
1
7.1 Insert and secure the side rail support (J) to the side rail (E) using hardware parts 1 and
8. Repeat the same for other side of side rail.
1. JCBC BOLT M6 x 45 x 8pcs 8. ALLEN KEY (BALL SHAPE) M4 x 1pc
06 of 07
MOD-6003 QUEEN BED

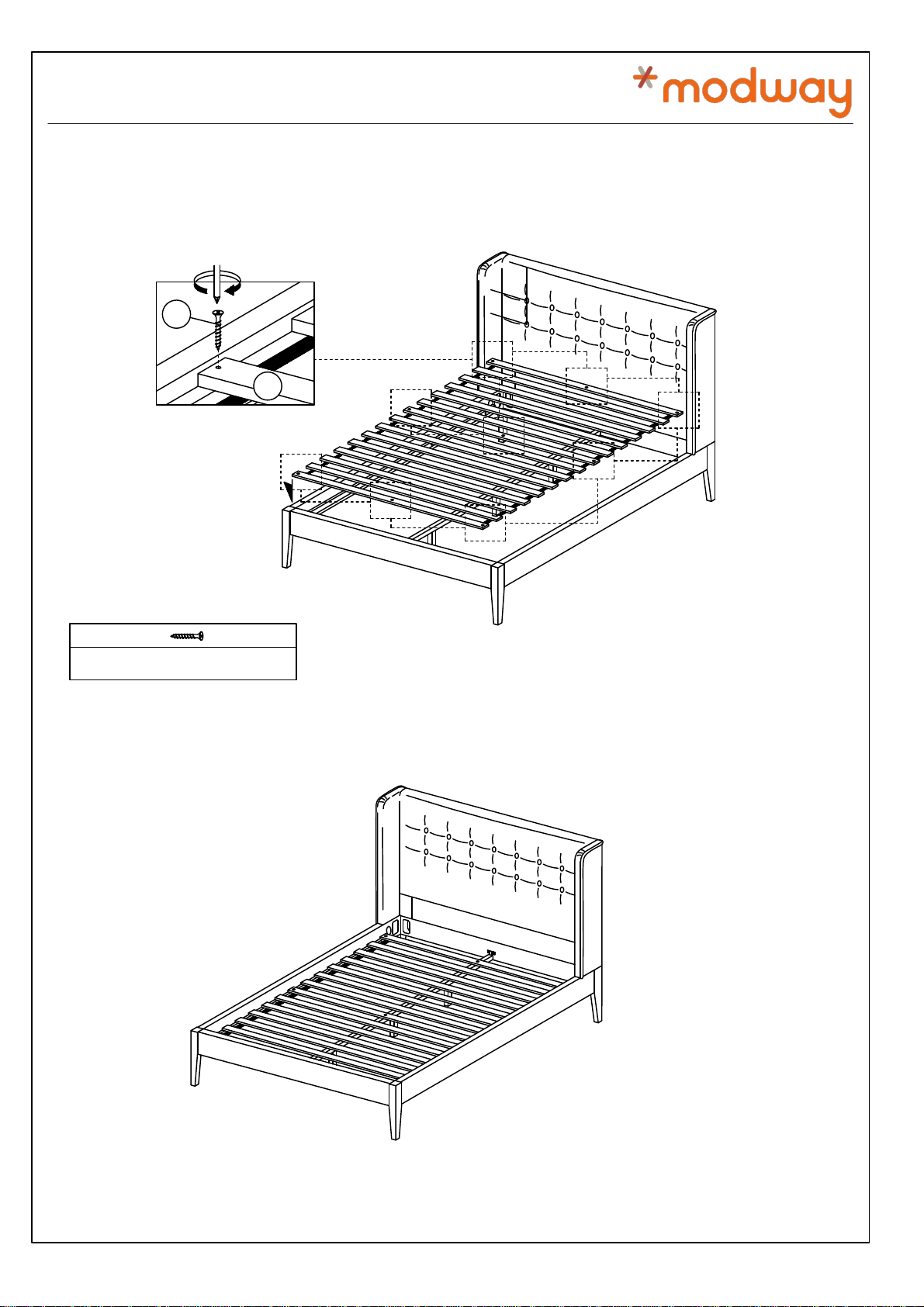

STEP 8
8.1 Assemble bed slat (I) into bed frame in between side rail (E) and center rail (F) screw it
using hardware parts 10.
10. WOOD SCREW M4 x 38mm x 9pcs
I
10
STEP 9
9.1 Carefully position the assembled bed to the desired location by four adults.
Assembly is complete. The bed is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight. 07 of 07
MOD-6003 QUEEN BED
