modway MOD-5357 Manuel utilisateur
Customer Service 908-368-1025︱ Page 1 of 6

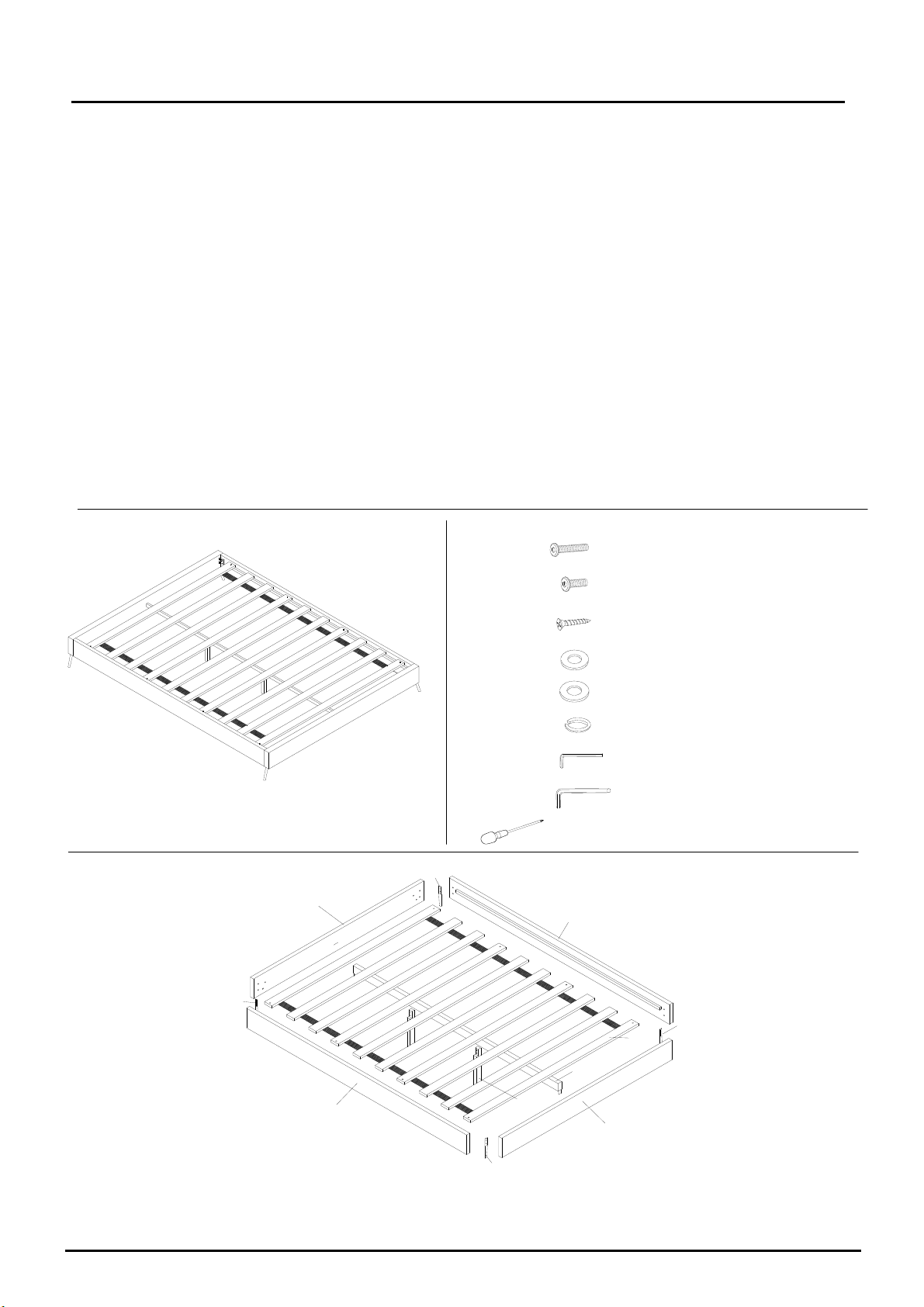

Hardware:
Component:
A Bolt M6x45mm x8
E Flat Washer M8 x8
H Allen Wrench M5 x1
1 Short Board x2
Thank you for purchasing the MOD-5357/5358/5359/5360/5361/5362 TWIN/FULL/QUEEN BED FRAME！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approx assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
B Bolt M8x30mm x8
C Screw M4x35mm x12
D Flat Washer M6 x8
F Spring Washer M8 x8
G Allen Wrench M4 x1
2 Long Board x2 3 Center Rail x1 4 Support Leg x2
5 Leg Ⅰx2 6 Leg Ⅱ x2 7 Slat x10
1
3
7
4
5
5
6
6
2
21
PHILLIPHS HEAD SCREW DRIVER
NOT PROVIDED
BED FRAME
Customer Service 908-368-1025︱ Page 2 of 6
Ax8 Dx8 Gx1

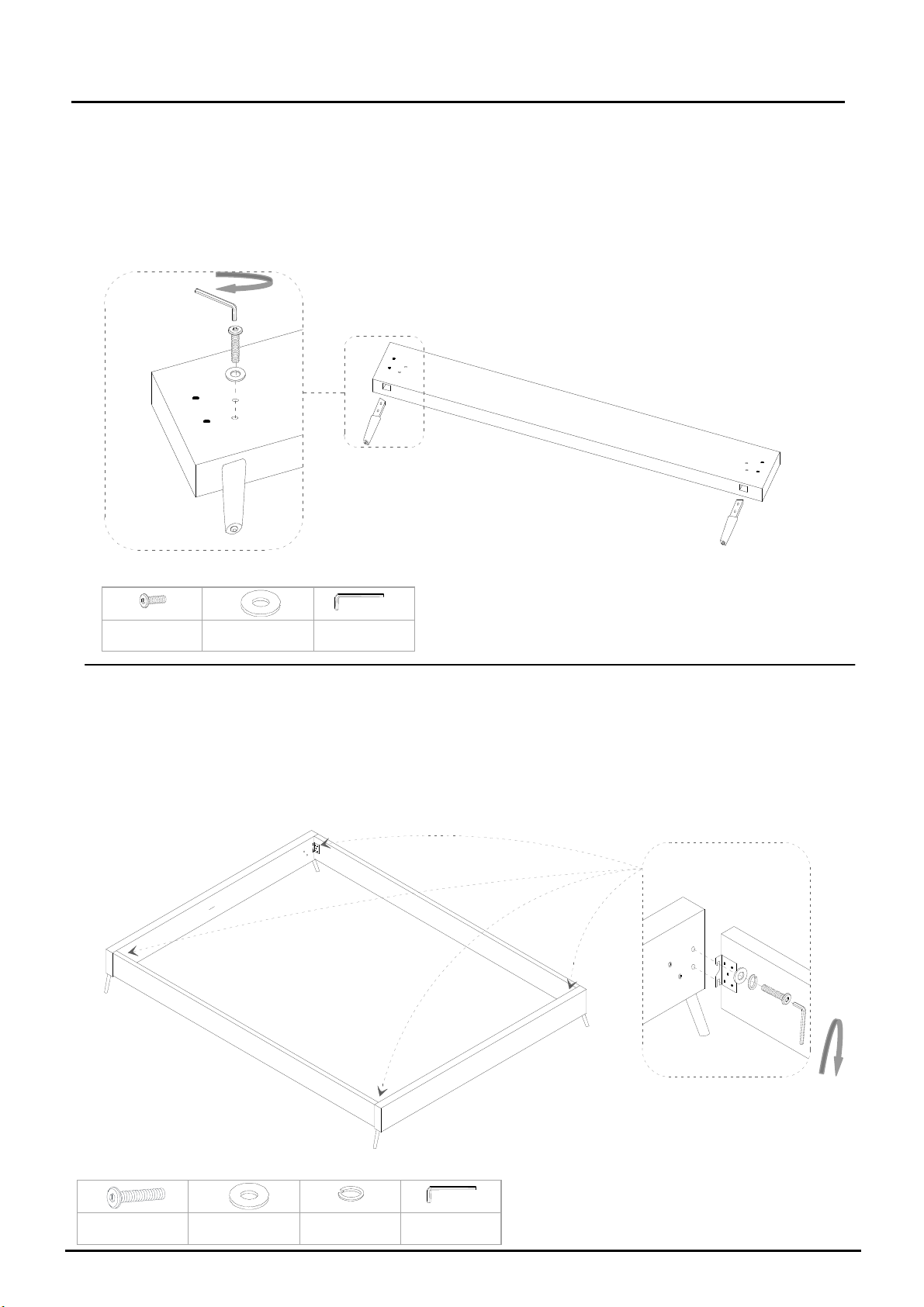

STEP 1:
Put 1 piece of Short Board (1) upside down on a carpeted or padded area by two adults
Insert 1 piece of Leg (6) and 1 piece of Leg (5) into the Short Board (1) as shown.
Secure them by using 4 pieces of Bolt (A) and 4 pieces of Flat Washer (D).
Use Allen Wrench (G) to tighten the Bolts (A) clockwise until secure.
Repeat the same steps for the remaining 1 piece of Short Board (1), 1 piece of Leg (5) and 1 piece of Leg (6).
Hardware & Tool required
STEP 2:
1
6
5
1
6
D
A
Hardware & Tool required
Place 1 piece of Long Board (2) to 2 pieces of assembled Short Board (1) by two adults
Attach them by using 4 pieces of Bolt (B),4 pieces of Spring Washer (F) and 4 pieces of Flat Washer (E) as shown.
Use Allen Wrench (H) to tighten the Bolts (B) clockwise until secure.
Repeat the same steps for the remaining 1 piece of Long Board (1).
1
1
2
2
2
1
B
F
E
G
Bx8 Ex8 Hx1
Fx8
H
BED FRAME
Customer Service 908-368-1025︱ Page 3 of 6
Cx4 Phillips Head Screw
Driver( not provided)

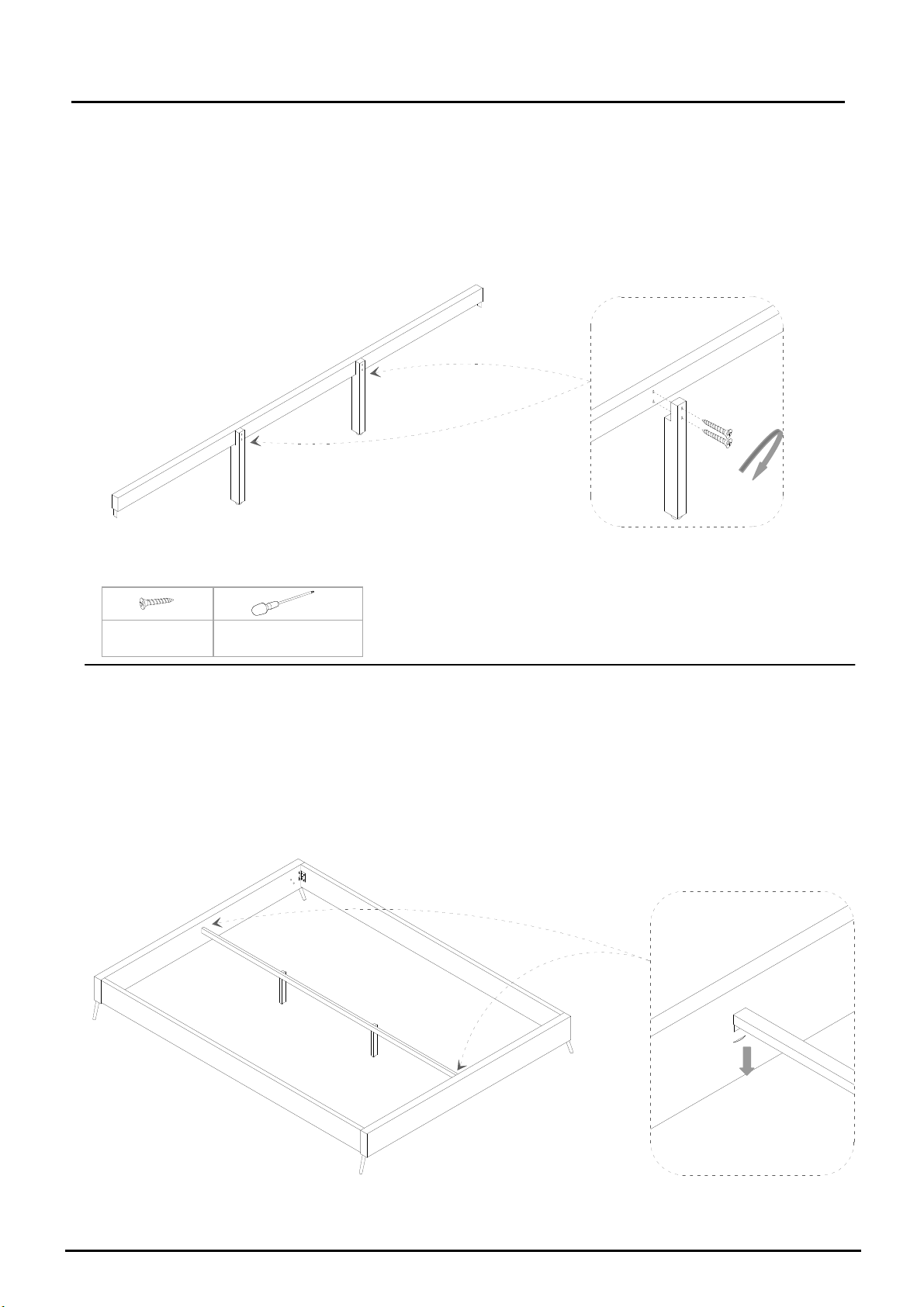

STEP 3:
Attach 1 piece of Support Leg (4) into the Center Rail (3) as shown.
Secure the Support Leg (4) into the Center Rail (3) by using 2 pieces of Screw (C) as shown.
Tighten the Screws (C) with Phillips Head Screw Driver (Not provided).
Hardware & Tool required
STEP 4:
3
4
C
Place the assembled Center Rails (3) to the Short Board(1).
Insert the hook on the each end of Center Rail(3) into the notch on the Short Board (1).
1
C
4
3
1
3
Notch on the
Short Board
Hooks on the
end of Center Rail
3
4
1
2
2
BED FRAME
Customer Service 908-368-1025︱ Page 4 of 6

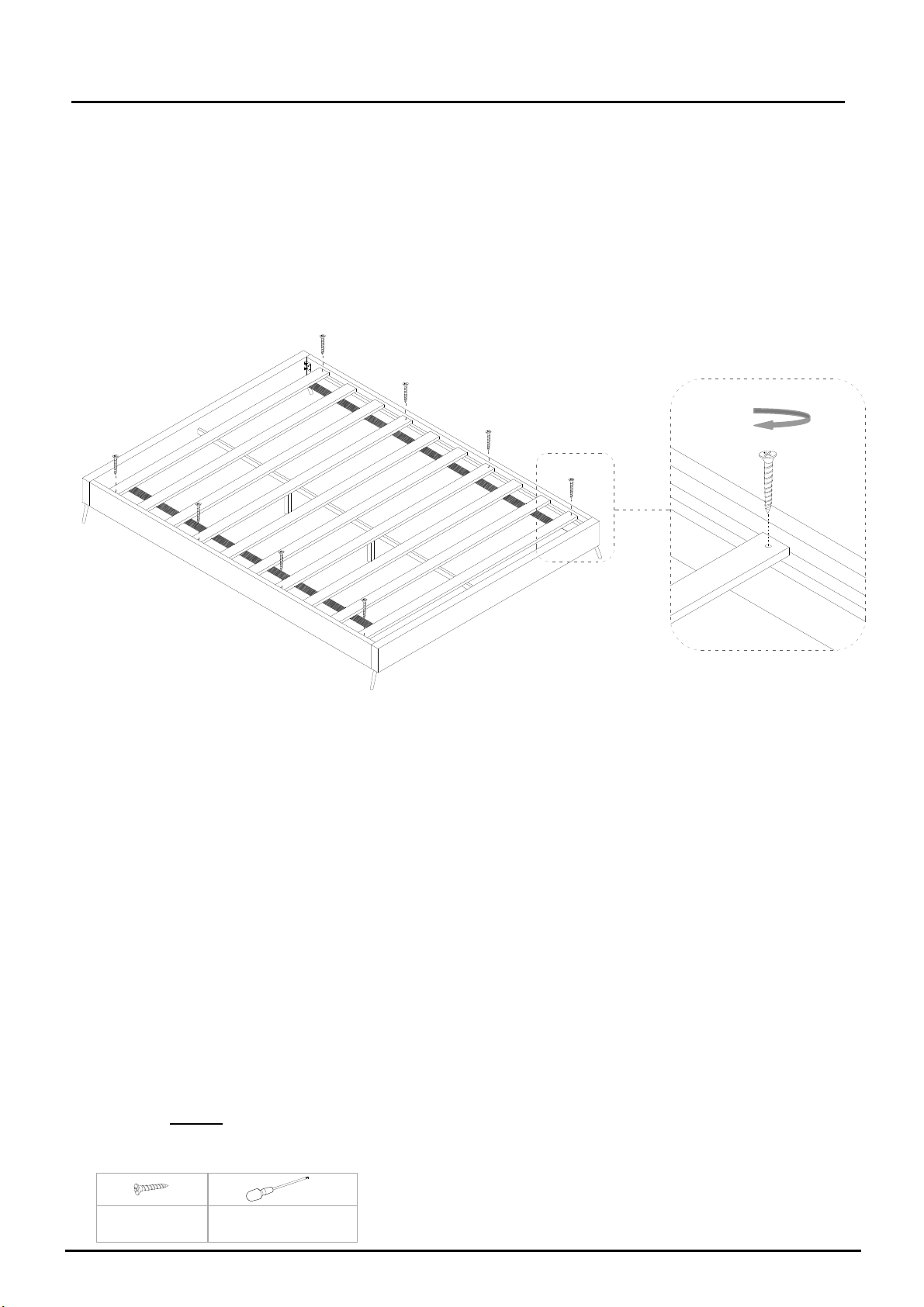

STEP 5:
Place the Slats (7) to the Long Boards (2) as shown.
Secure 4 pieces of Slat (7) which have countersink Holes on each end into the Long Board (2) by using 8 pieces of
Screw (C) as shown.
Tight the Screw (C) with Phillips Head Screw Driver (Not provided).
Hardware & Tool required
Assembly is completed. The bed frame is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
Cx8 Phillips Head Screw
Driver( not provided)
2
2
7
7
7
7
7
7
7
7
7
7
C
2
7
BED FRAME
Customer Service 908-368-1025︱ Page 5 of 6
B Bolt M6x65mm x4
C Flat Washer M6xD22mm x4
F Allen Wrench M4 x1
D Spring Washer M6 x4
Hardware:
1 2 Bed Frame x1
(Style may vary)
Headboard x1
(Style may vary)
1
2
Component:
ASSEMBLY INSTRUCTIONS
MODWAY CONNECTING BED FRAME TO HEADBOARD
Important: All the hardware is packed with the
headboard you are buying. Please only use the
above hardware from Headboard Hardware Package
to assemble the Bed Frame and Headboard.
Note: This is assembly instruction for Twin/Full/Queen/King Bed Frame MOD 5357/5358/5359/5360/
5361/5362/5363/5364 to connect Headboard MOD 5365/5366/5367/5368/5369/5370/5371/5372/5373/5374/
5375/5376/5377/5378/5379/5380/5381/5382/5383/5384/5385/5386/5387/5388/5389/5390/5391/5392/5393/5394/
5395/5396/5397/5398/5399/5400/5401/5402/5403/5404/5405/5406/5407/5408.
Customer Service 908-368-1025︱ Page 6 of 6
Bx4 Cx4 Dx4 Fx1 Hardware & Tool required
STEP 2:
2
Assembly is completed. The bed is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
1 1
2
B
D
C
F
Line up the Bed Frame (2) board’s pre-drilled holes to match those of the Headboard (1).
Secure the Headboard (1) to the Bed Frame (2) by using 2 pieces of Bolt (B) with 2 pieces of Spring Washer (D), 2 pieces
of Flat Washer (C) into the Bed Frame (2).
Then tighten the Bolts (B) by using the Allen Wrench (F).
Repeat the same procedure for each bolt and each side of the Bed Frame (2).
STEP 1:
CONNECTING BED FRAME TO HEADBOARD
Carefully position the assembled bed to the desired location by four adults.
