MODENO OCK50-NG01 Manuel utilisateur
Manual No.: ANGM50-A0
Natural Gas Conversion Kit
OCK50-NG01
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or
fire department.
Failure to follow these instructions could result in
fire or explosion,which could cause property
damage, personal injury, or death.
!
WARNING
!
IMPORTANT
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
!
US
R
C
Contact Ocean Rock USA for Technical Support.
Customer Service:800-678-7294
EN
This conversion kit shall be installed by a
qualified service agency in accordance with
the manufacturer’s instructions and all
applicable codes and requirements of the
Authority Having Jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation is not
proper and complete until the operation of
the converted appliance is checked as
specified in the manufacturer’s instructions
supplied with the kit.
Important Safety Information -----------------------------------------------------------------------3
Parts List ------------------------------------------------------------------------------------------------7
Natural Gas Conversion Instruction--------------------------------------------------------------12
Leakage Test ------------------------------------------------------------------------------------------13
Lighting Instructions ---------------------------------------------------------------------------------14
TABLE OF CONTENTS
WARNING: This product can expose you to Carbon
monoxide, which is known to the Sate of California to cause birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov .
!DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
2 / 40
IMPORTANT SAFETY INFORMATION
!WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
IF YOU SMELL GAS
• Shut off gas supply to the fire table.
• Extinguish any open fame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning may
be required as necessary. It is imperative that the control compartment, burners, and circulating air
passageways of the appliance are kept clean.
• WARNING: Installation and service must be performed by a qualified installer, service agency or gas
supplier.
• WARNING: Failure to follow with the safety warnings and precautions in this manual may result in
serious bodily injury or death, a fire or an explosion causing damage to property.
• IMPORTANT NOTICE: Read and understand all warnings and precautions prior to assembly and
use your gas fire table. Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage.
3 / 40
!This conversion kit is for changing a liquefied Petroleum(LP) fire table into a Natural Gas
Fire Table.

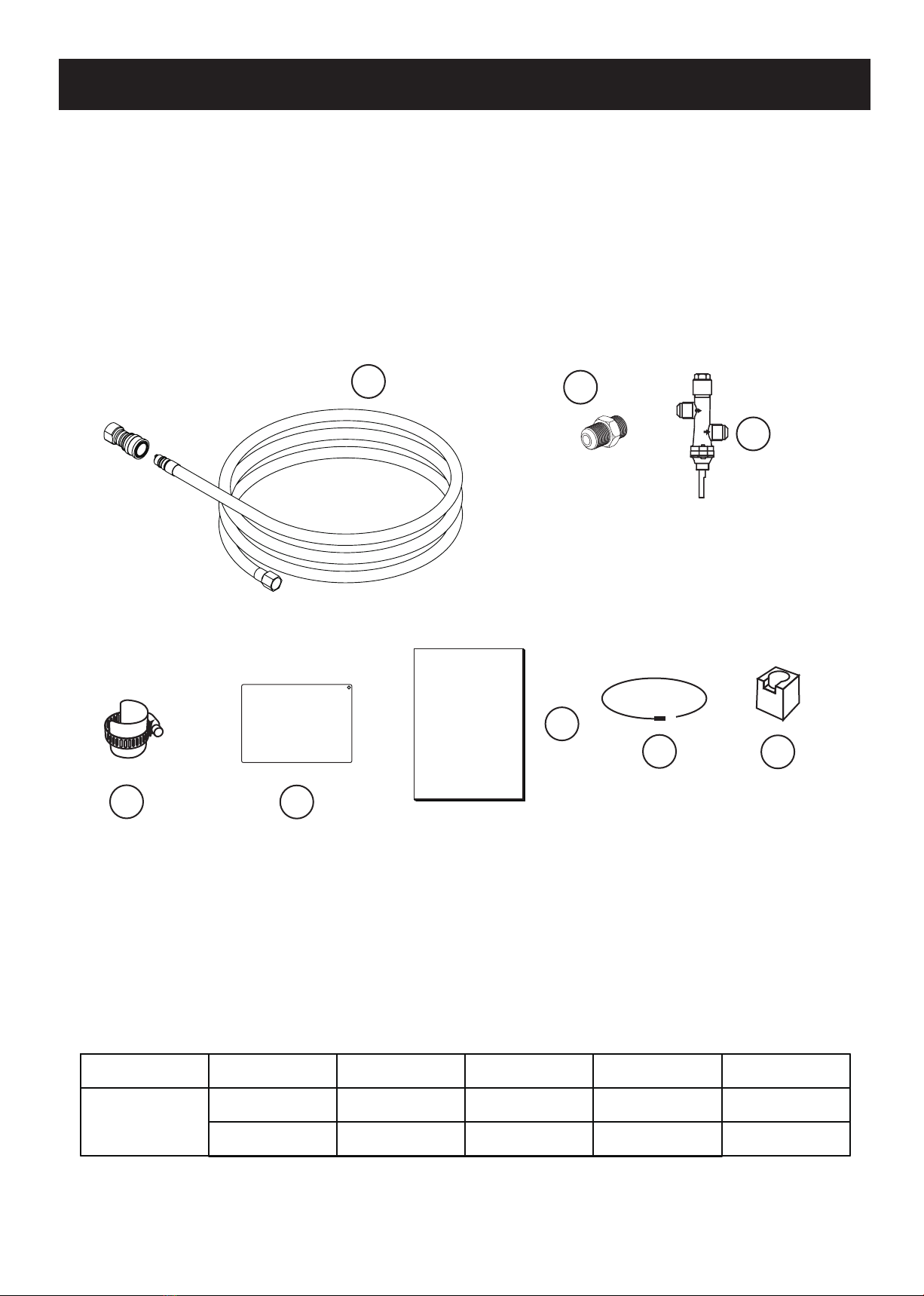

PARTS LIST
Plaque
1, Natural Gas Hose and Quick Disconnect x 1 pc
2, Natural Gas Orifice 3.86mm or 3.9mm x 1 pc
3, Natural Gas Valve x 1 pc
4, Sleeve x 1 pc
5, Natural Gas Conversion Plaque x 1 pc
6, Natural Gas Conversion Kit Manual x 1 pc
7, Cable Kit x 1 pc
8, Knob Fixing Block x 1 pc
1
Applicable Model:
2
3
5
4
4 / 40
OFG107LP2 Bellows
1 Bellow OFG148LP
OFG114LP
OFG141LP OFG132LP OFG113LP OFG135LP
Manual 6
78
NATURAL GAS CONVERSION INSTRUCTION

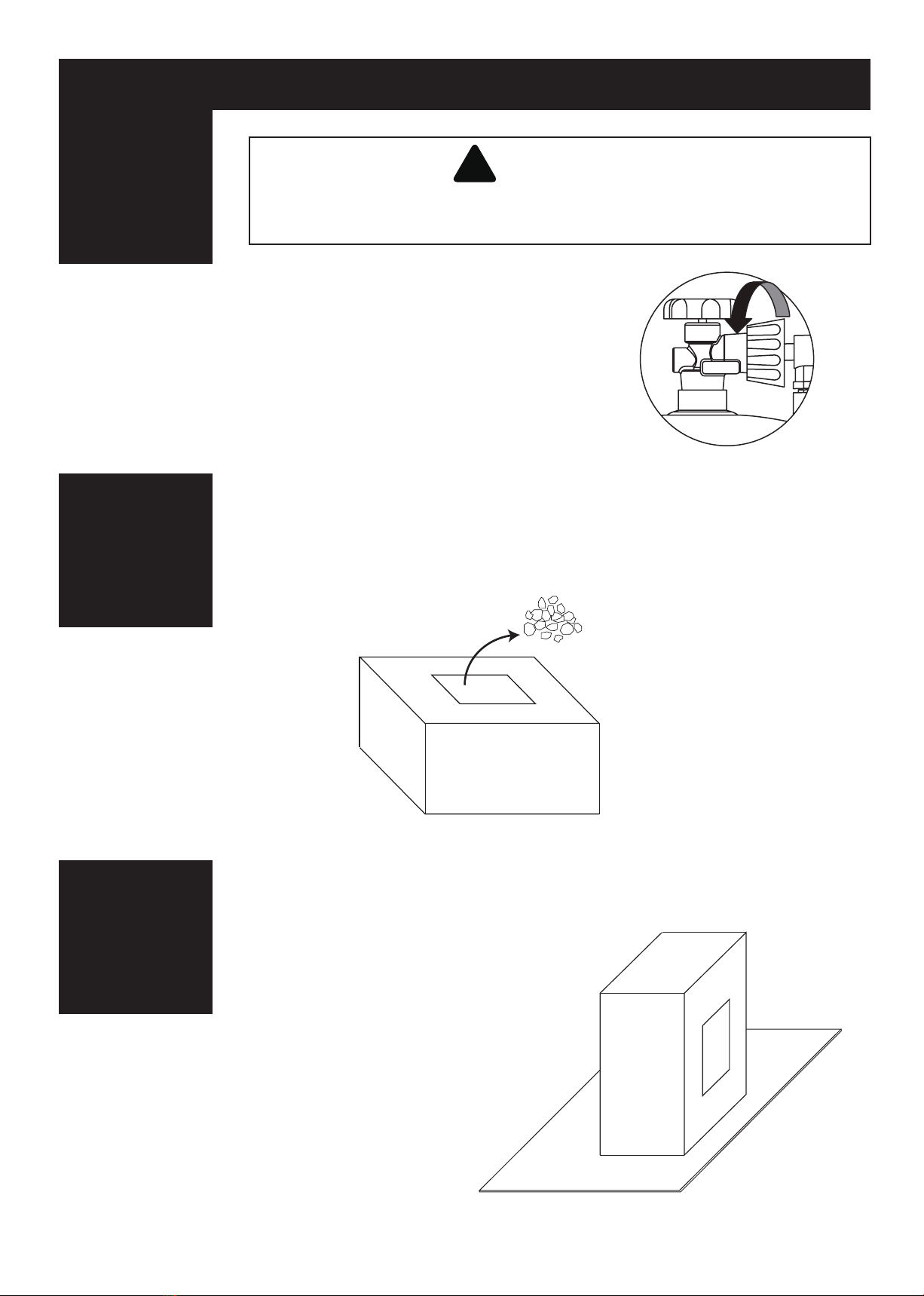

1ENSURE THE UNIT IS OFF AND COMPLETELY COOL, AND THE GAS
SUPPLY TO THE UNIT IS TURNED OFF.
!WARNING
Disconnecting the LP Gas Tank
Make sure the valve on the LP gas tank is OFF.
Disconnect by turning the knob counter clockwise until it is
detached from the valve.
2Remove lava rock from burner pan area carefully.
Fire Table
3
Fire
Table
Lay down blanket or cardboard to avoid
damaging the finish, carefully tilt unit on
its side.
Blanket or cardboard
5 / 40
NATURAL GAS CONVERSION INSTRUCTION
6 / 40
4
5

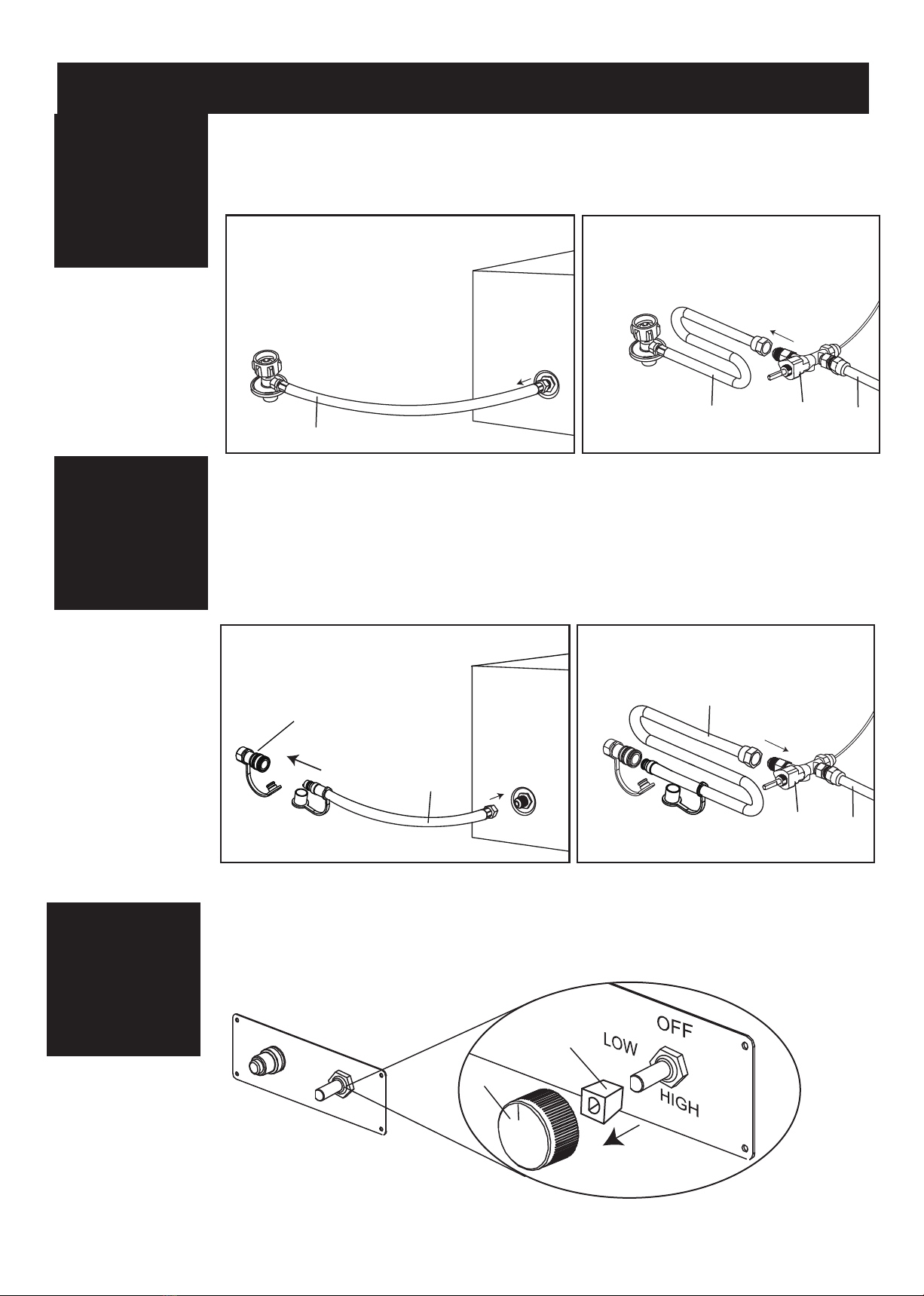

Disconnect the Propane regulator from the fire table.
For TWO piece Bellows models, please see A.
For ONE pieces Bellows models, please see B.
Attach NG hose to the unit.
For TWO piece Bellows models, please see A.
For ONE pieces Bellows models, please see B.
6
Fire table
Propane Regulator and Hose
Propane Regulator and Hose LP valve Bellows
AB
NG Hose
Quick Disconnect Socket
Natural Gas Hose and Quick Disconnect
LP valve Bellows
AB
Hold the knob and knob fixing block, pull it out of the LP valve.
Knob
Knob Fixing
Block
NATURAL GAS CONVERSION INSTRUCTION
7
ONLY turn the brass joint counterclockwise on the bellows when disconnecting it from valve.
DO NOT rotate the stainless steel tube. Excessive rotation of the stainless steel tube will cause the gas pipe to
twist or break,causing gas leaks.
!WARNING
Brass joint
SS tube
Brass joint
8
7 / 40

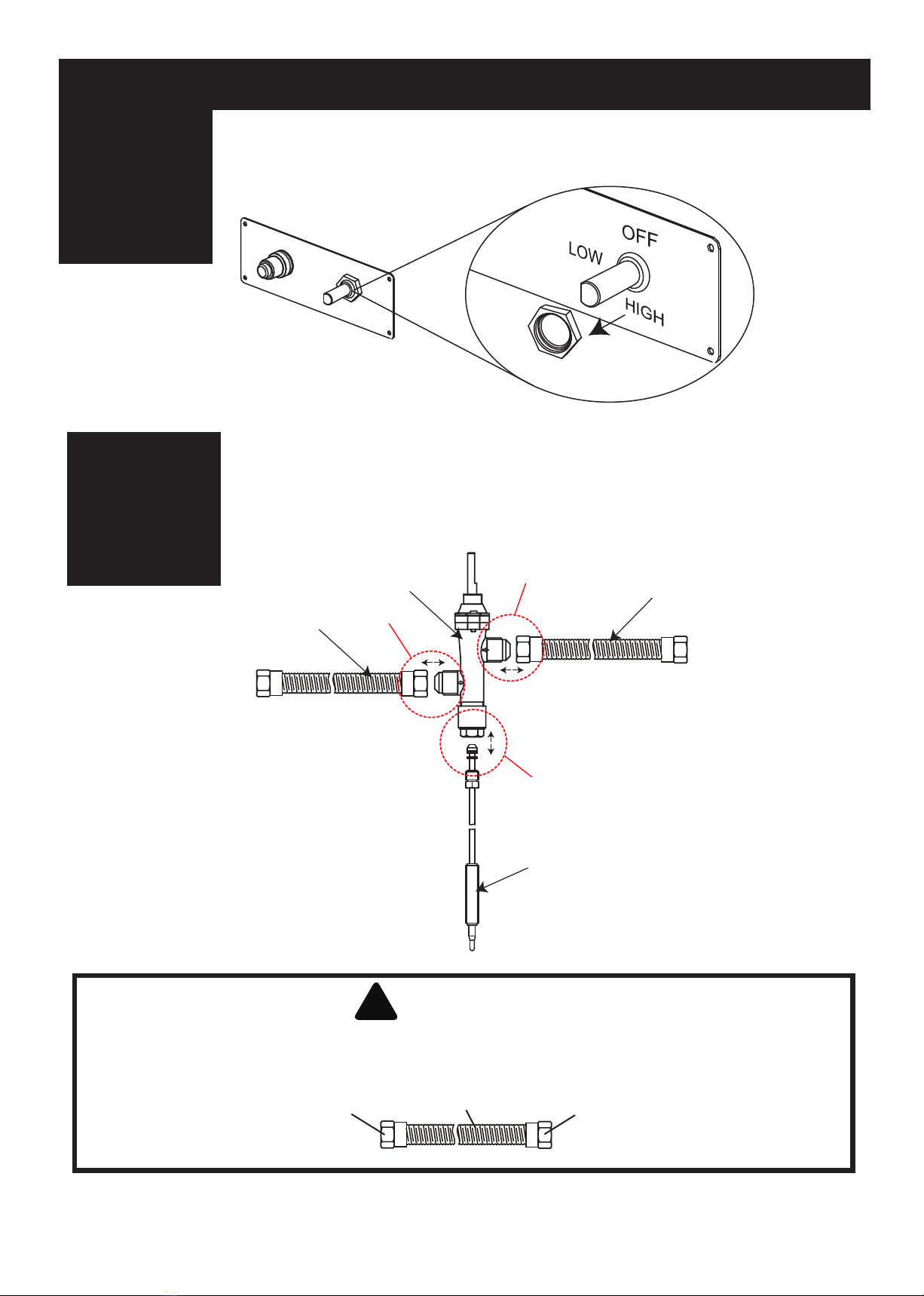

Turn the hex nut counterclockwise to disconnect the LP valve from the control
panel.
Disconnect
Disconnect
Disconnect
Bellows
Bellows
LP Valve
Thermocouple
Gas inlet
(connect to regulator)
Gas outlet
(connect to burner)
A
B
C
Disconnect the bellows from the LP valve.
For ONE piece Bellows models, please see A.
For TWO pieces Bellows models, please see A&B.
Disconnect the thermocouple from the LP valve.(see C)
NATURAL GAS CONVERSION INSTRUCTION

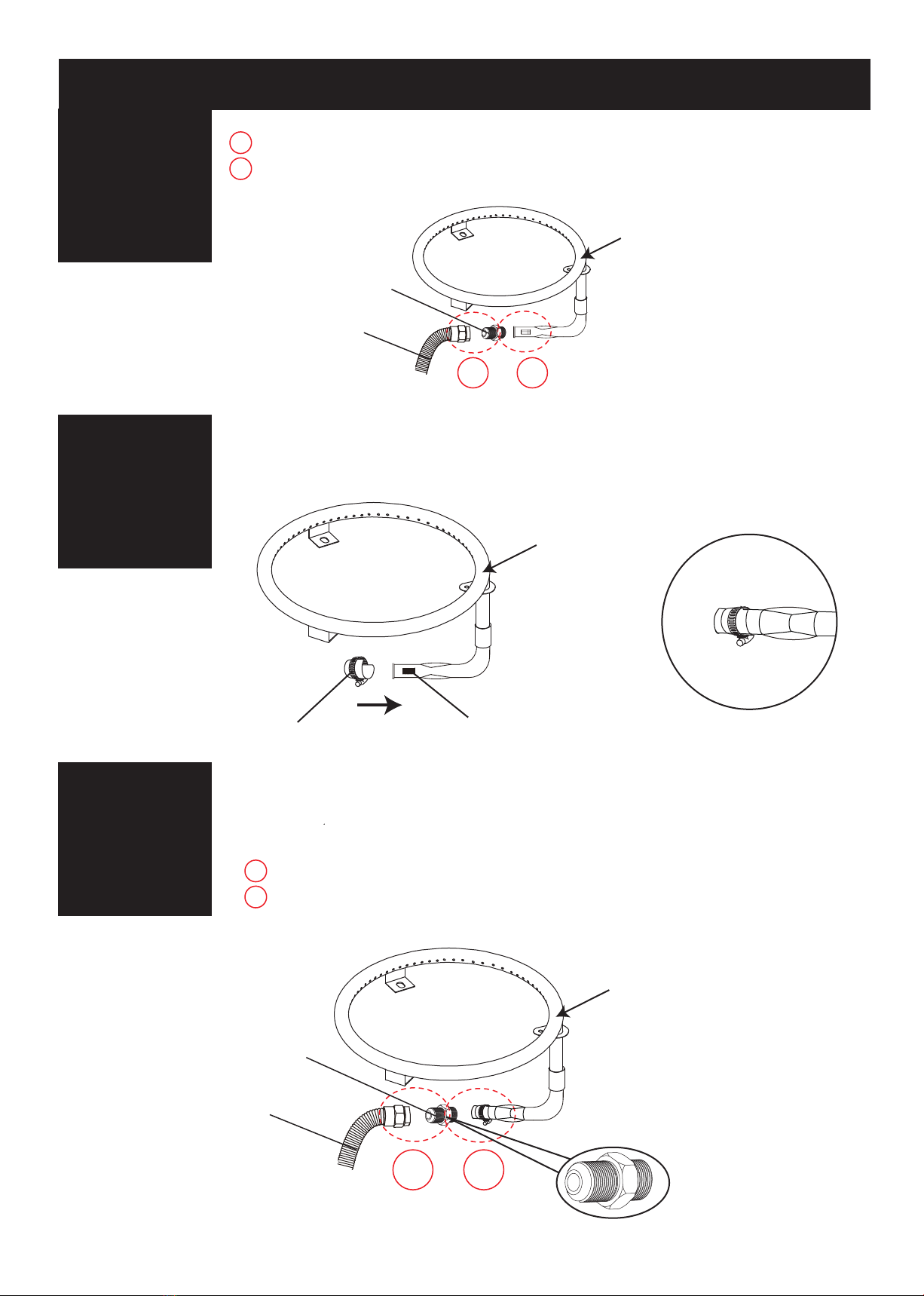

9Disconnect the bellows.
Disconnect the LP orifice spud from the Burner tube.
Burner Tube
Bellows
LP Orifice Spud
1 2
Burner Tube
Bellows
NG Orifice Spud
1
2
1
2
8 / 40
10 Slip sleeve over the end of burner tube and cover the LP primary air hole,
then screw it.
11
After
After
Burner Tube
LP Primary Air HoleSleeve
1
2
Find the new NG orifice spud, verify it is the correct size, the sign 3.86mm
(3.9mm for OFG107 Rock Fire Table ) should be on the side of the orifice spud.
Screw the new NG orifice spud into Burner tube.
Re-attach bellows to the NG orifice spud.
3.86
NATURAL GAS CONVERSION INSTRUCTION

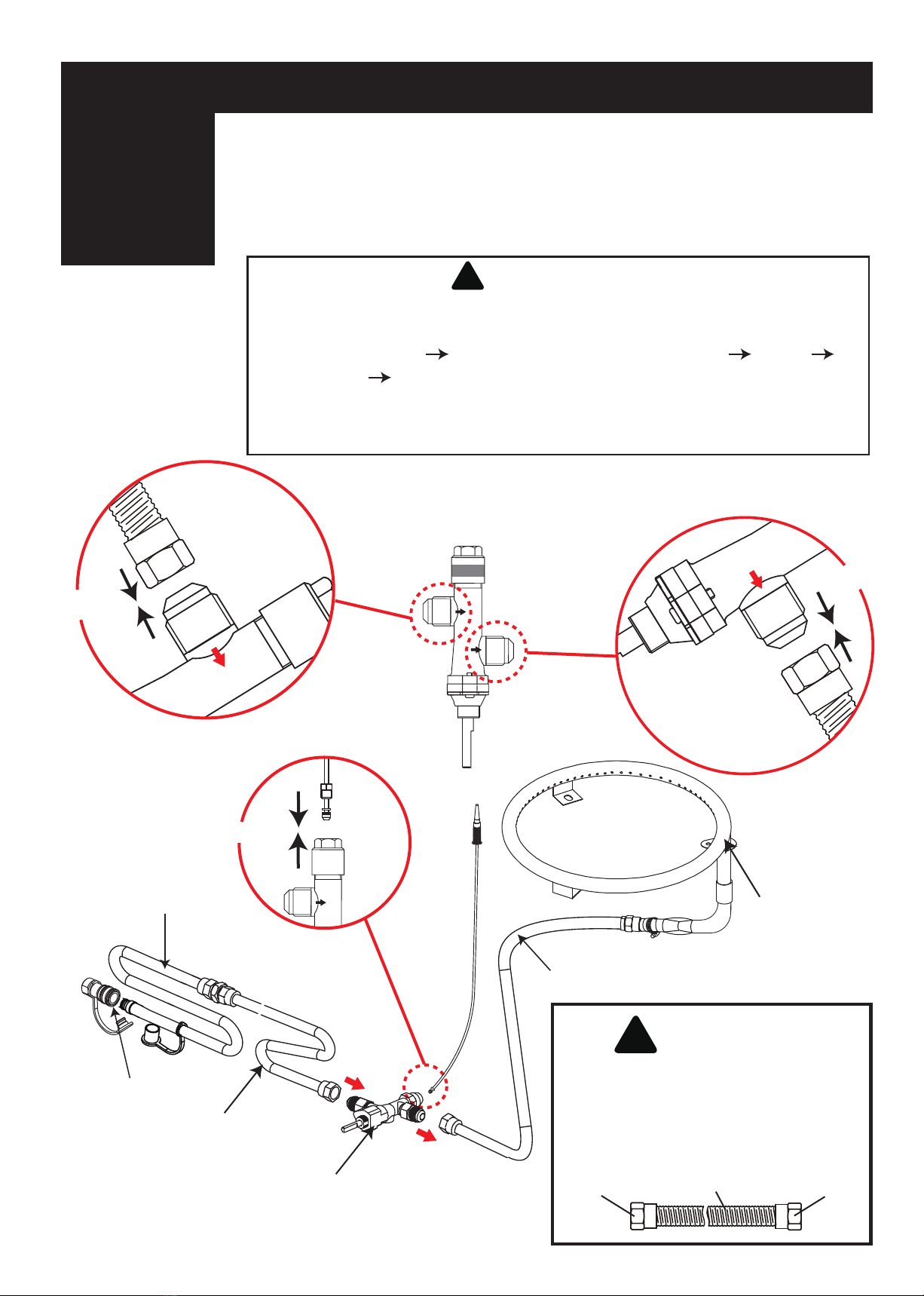

12 Locate the new NG valve, verify it is the correct one, the lable
with NATURAL GAS VALVE should be on the new NG valve.
Re-attach bellows to the NG Valve.
For ONE piece Bellows models, please see E.
For TWO pieces Bellows models, please see D&E.
Re-attach thermocouple to NG Valve.(see F)
Please note that the valve has an air inlet and an air outlet with arrows
indicating the flow direction of the gas,the gas comes out of from the
Natural Gas Piping Quick Disconnect and NG Hose Valve
Orifice Spud Burner.
Failure to follow the instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
IMPORTANT
!
When connecting the bellows, please ONLY
turn the brass joint counterclockwise on the
bellows.Do not rotate the stainless steel tube.
Excessive rotation of the stainless steel tube
will cause the gas pipe to twist or break,
causing gas leaks.
!WARNING
Brass joint
SS tube
Brass joint
9 / 40
Gas inlet
Gas outlet
F
Connect
Connect
NATURAL GAS VALVE
VANNE A GAZ NATUREL
Gas inlet
(bellows connect to
NG source)
Gas outlet
(bellows connect to
burner)
D
E
Natural Gas Hose
Quick Disconnect
Valve
Bellows
Bellows
Burner
Connect
NATURAL GAS CONVERSION INSTRUCTION

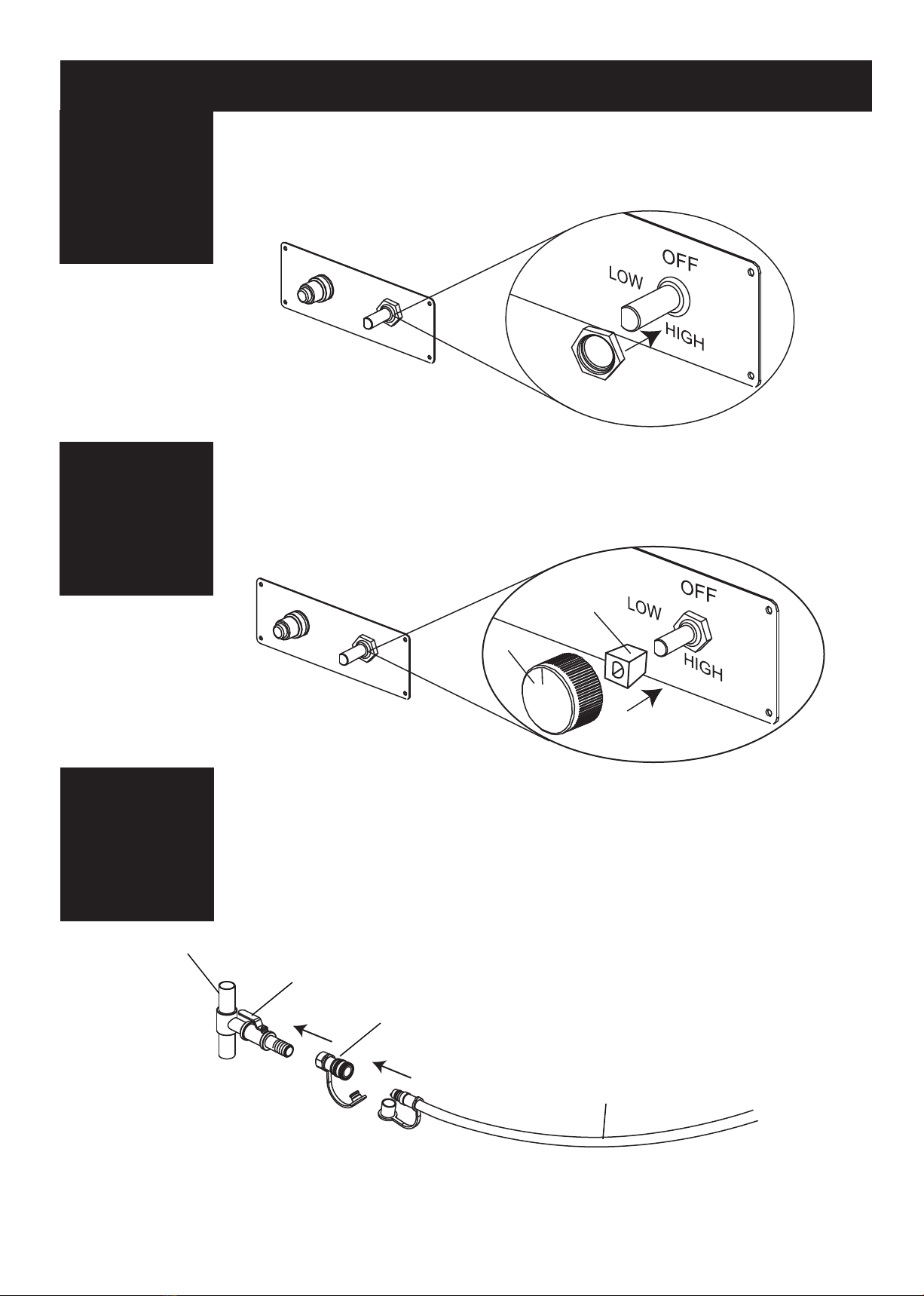

13 Connect the new NG valve to the control panel.
14
15 Attach quick disconnect to the gas supply.
NG Hose
Quick Disconnect Socket
House Natural gas piping
Shut-off Valve
10 / 40
Connect the knob and knob fixing block to the new NG valve.
Attention: There is a spare knob fixing block in the conversion kit to prevent
it from being lost or damaged.
Knob
Knob Fixing
Block
