Duo X User Guide
Warnings
Overview
Device features
Inputs and outputs
Audio input jacks
Expression/CV Input
Audio output jacks
Headphone/CV Output
Power jack
Control Chain port
USB Host port
USB computer port
DIN-MIDI I/O
SPDIF out
Actuators
Endless knobs
Left endless knob actions
Right endless knob actions
Knobs
Buttons
Performance buttons
Instant snapshots
Pagination
Displays
Left Display
Right Display
Dimensions
LED Audio meters
Adjusting Volumes
Tuning
Playing
Instant Snapshots
Switching pages
True Bypass
Device Settings
Editing
Accessing the graphical interface
Accessing via USB cable
Accessing via Bluetooth
Warnings
RISK OF FIRE, ELECTRICAL SHOCK OR PRODUCT DAMAGE
Do not expose the apparatus to rain, moisture, dripping or splashing and avoid placing objects filled with liquid, such as vases, on or near the
apparatus.
Only use accessories approved by the manufacturer.
• Do not open the enclosure. There are no user repairable parts inside. Leave service and repairs to trained service personnel only.
AUDIO OUTPUTS WARNING !
• Always mute or turn down the volumes before connecting any equipment to the audio or headphone outputs. • The apparatus is capable of
outputting loud signals via the audio and headphone outputs. These volume levels may damage your gear. Verify that the output volume is set to a
level that your equipment can handle. • High volume levels may damage your hearing, please protect your hearing by paying attention to the output
volume.
The MOD Duo X when powered up
Contents
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
2/11
POWER ADAPTER WARNING !
• The adapter may only be used indoors • To ensure adequate ventilation, do not place the power adapter in tight spaces. • To prevent risk of electric
shock and fire because of overheating, please ensure that curtains and other objects do not prevent adapter ventilation.
Overview

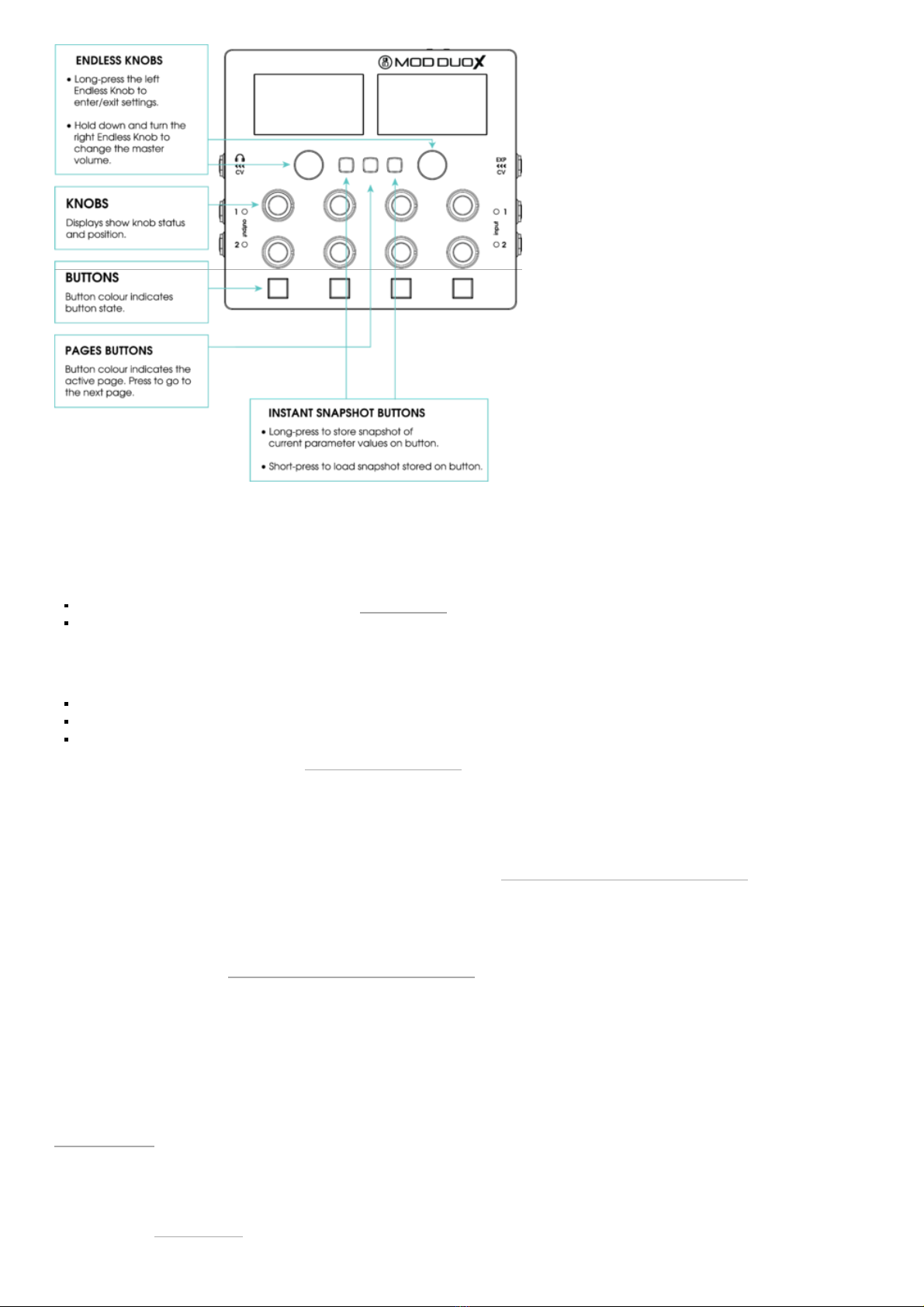

The wireframe images below expose the controls and inputs/outputs that the MOD Duo X has.
Device features
Inputs and outputs
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
3/11
The MOD Duo X has two independent audio inputs, with configurable input gain for each input. You can set up the input gain through the device
menu.
The MOD Duo X has a port to connect an expression pedal or two control voltage inputs. You should define how you want to use it in the device
menu.
The MOD Duo X has two independent audio outputs, with configurable output gain for each output. You can set up the output gain through the
device menu.
The headphone output on the MOD Duo X monitors output 1 and 2. It is possible to set the volume level of the headphone output through the device
menu.
On the MOD Duo X you can also use this port to get two control voltage outputs. For that you must select this option on the device menu.
The MOD Duo X comes with its own approved power supply which outputs 12V, 2A over a center-positive barrel-type plug.
In order to work, the MOD Duo X requires at least 12W, 1.5A although this can cause problems when you connect Control Chain devices or other
controllers. You also need to pay attention to the polarity of your plug, it must be central positive.
Audio input jacks
Expression/CV Input
Audio output jacks
Headphone/CV Output
Power jack
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
4/11
The plug diameter of the power supply must be Φ5.5*2.1*10mm
Power supplies such as this (https://www.amazon.com/Adapter-Transformers-Supply-Output-Listed/dp/B00DKSI0S8/ref=sr_1_5) are capable to
power the MOD DUO X.
In summary, the power consumption of the MOD Duo X varies depending on the peripherals connected to the device. For example: Hooking up a
USB-hub to the USB-A port, and then hooking up multiple MIDI controllers to the hub will change the power requirements.
By using the provided power supply you are sure that you will never run out of juice.
MOD Control Chain devices (such as the MOD Footswitch (https://www.moddevices.com/products/mod-footswitch)) have multiple benefits over
MIDI Controllers.
MOD Control Chain devices have screens that show you on demand what each of the footswitches or actuators is assigned to control.
You can daisy chain up to 8 Control Chain devices (this was the maximum we tested) using a single cable from one Control Chain device to the other.
MOD Control Chain devices use an open protocol, what means that you and all our community can contribute to improve it. You can also use the
Arduino Shield (https://www.moddevices.com/products/arduino-shield) and build your own Control Chain device.
Last but not least, Control Chain devices also allow you to have more resolution from your actuators than the current MIDI Controllers.
NOTE: Please do NOT connect this port to a regular Ethernet port, it can damage your MOD Duo X.
In the most common scenario, this port is used to hook up a single USB-MIDI device, such as a MIDI-keyboard to control generator plugins.
Another common scenario is using this port to hook up a Bluetooth dongle for wireless connection to your PC.
NOTE: The port can also be split up into multiple ports using a USB-hub for connecting multiple USB devices to the MOD Duo X.
This port is mostly used to connect the MOD Duo X to your PC for setting it up. When executing a manual system update, its use changes to a mass-
storage device, so that you can copy the update-file to the MOD Duo X.
The MOD Duo X also supports "old-school" DIN-MIDI devices, simply hook up your DIN-MIDI device to the appropriate port on the back and
enjoy!
The S/PDIF output on the MOD Duo X is a digital output that mirrors the two audio outputs. You can connect it to your audio interface.
Control Chain port
USB Host port
USB computer port
DIN-MIDI I/O
SPDIF out
Actuators
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
5/11
Press and hold the left knob to access and exit the Device Settings menu
Turn the left knob to scroll through the device menu
Hold the knob to activate master volume control
While still holding it, turn the knob to control the master output volumes
Release the knob to exit master volume control
Note: You can also control output volumes in Settings > System > Outputs menu
The right knob also works to scroll through the device setting items that appear on your right screen.
The MOD Duo X has 8 knobs that can be used to control plugins parameters. See how to assign plugin parameters to actuators.
The MOD Duo X has 4 buttons that can be used to control plugins parameters. It can hold switch parameters, such as a bypass switch, enumerators
and tap tempo parameters. See how to assign plugin parameters to actuators.
On the top center of the Duo X, there are three performance buttons.
The left and right buttons are the instant snapshots buttons, that allow you to create and load snapshots of your current state on the fly. See the
Instant Snapshots section below to learn how to use them.
The button on the center is the pagination button that allows you to switch between 3 different pages holding different control assignments for all
actuators. See the Switching Pages section below to learn how to use it.
Endless knobs
Left endless knob actions
Right endless knob actions
Knobs
Buttons
Performance buttons
Instant snapshots
Pagination
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
6/11
The MOD Duo X has two large (2.8") LCD displays. The displays normally give dynamic information about the actions mapped to the device
actuators, but they are also used for displaying the device menu and tuner.
You can define the display contrast for each particular display on the Device Settings.
Each part of the display corresponds to one of the actuators. (See the image on the right)
The top section of the left display shows the Current
Pedalboard name.
The section just below it shows the control mapped to the
left endless knob.
The four following sections represent the four most left
knobs of the MOD DUO X.
The bottom section represents the two most left buttons.
Notice that the background color changes to identify the
parameter status.
The top section of the right display shows the Master Volume. The Master Volume can be adjusted by pressing and holding the right endless knob.
See more information in the Adjusting Volumes section.
The rest of the sections represent each actuator in the same way as in the left display, but mapping to the knobs and button on the right.
Displays
How each section of the screen maps to each actuator
Left Display
Right Display
Dimensions
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
7/11
width: 163 mm
length: 188 mm
height: 63 mm
From the v1.9 onwards the LEDs have smooth transitions between colours. The LED colours represent the following input levels:
Off: below -40dB
Green fade in: between -40dB and -6dB
Green fully ON, fading in yellow: between -6dB and -1dB
Red: between -1dB and 0dB
Blinking strong red: 0dB (CLIPPING!)
Adjusting Volumes
To adjust the Master output volume, press and hold the right endless knob.
This will turn this knob into the master output volume control.
While pressing, turn the endless knob up and down to adjust your master
output volume.
The MOD Duo X also allows each input and output volume to be individually
adjusted.
Please refer to the Inputs and Outputs Device Settings section in the wiki for
more information on that.
Tuning

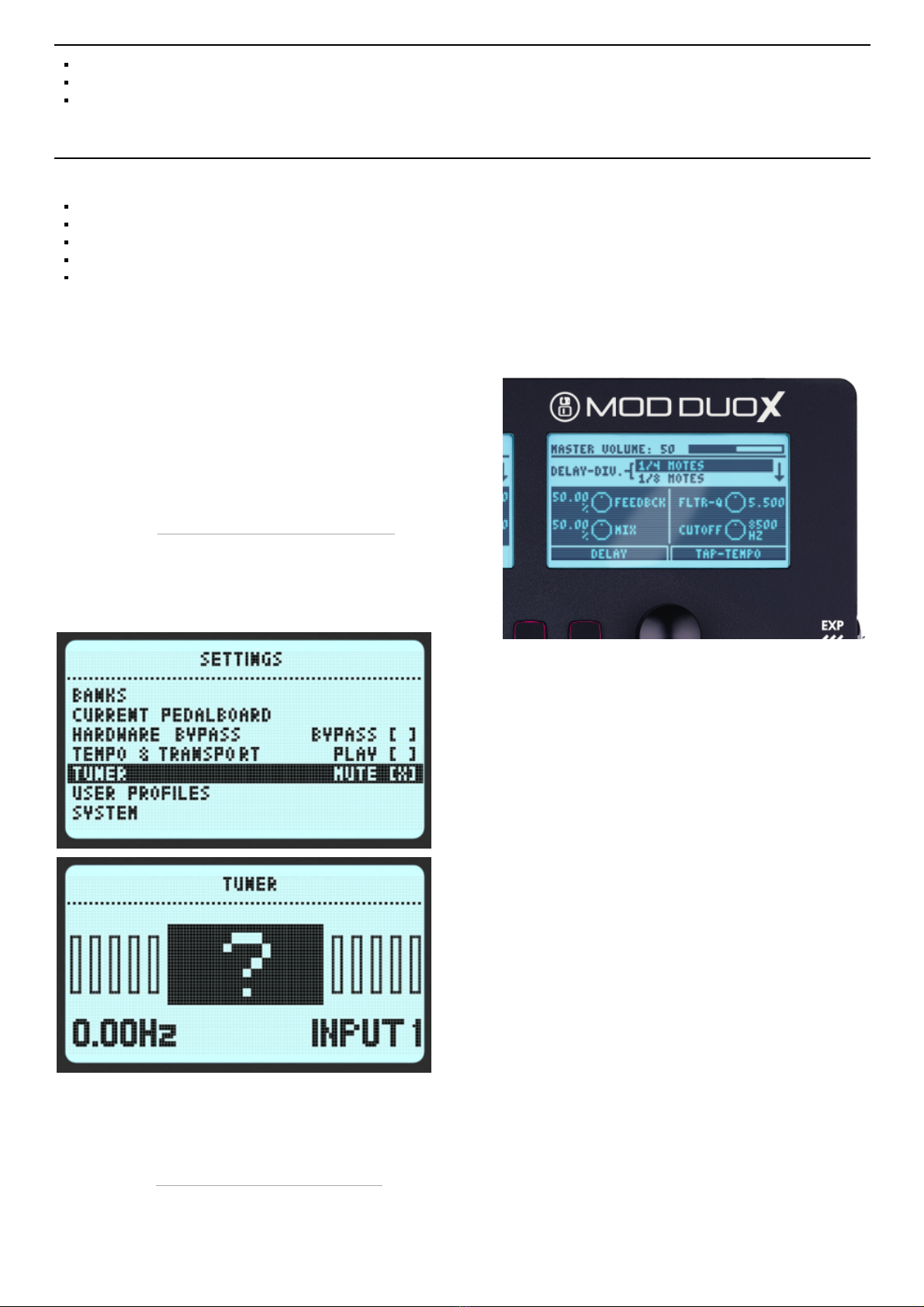

The MOD Duo X has a built-in chromatic tuner that can be accessed on the settings of your device. Both inputs can be used as the tuner input, to
select between them short press the right knob.
If you see a question mark on the tuner screen, it means the MOD Duo X is not receiving any input or the input levels are too low.
Please refer to the Tuner section in the Device Settings page for more information.
Playing
LED Audio meters
Detail of the right display showing the Master Volume
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
8/11
After you have powered on and adjusted the volumes of your MOD Duo X, it is ready for playtime.
The MOD Duo X comes with many pedalboards ready to be used. They are organized in banks and can be accessed via SETTINGS menu.
Please refer to the Banks section on the Device Settings page for more information.
When you load a pedalboard, all plugin parameters will have the last saved state. You can save a new state or restore the last saved state using the
Settings > Current Pedalboard menu.
While performing, you can create and load snapshots of your configuration on the fly. This will save/restore all parameters of all knobs, encoders
and buttons that are controlling plugin parameters.
There are two Instant Snapshots buttons you can use. They are the most left and right buttons at the top center part of the Duo X panel.
IMAGE: Details showing the position of the Instant snapshot buttons
Press and hold an Instant snapshot button for a second to save a new Snapshot. The button will quickly blink and then the light will turn on. When
the light is ON, it means there is an Instant Snapshot saved and ready to be loaded. Quickly press the button to reset your device to the state of the
saved snapshot.
Note: The animation above does not show it in details, but Buttons and Endless knobs are also paginated.
Duo X allows you to switch between 3 pages of settings. This means that the 8 knobs, 2 endless knobs and 4 buttons are actually 24 knobs, 6 endless
knobs and 12 buttons. When you address a plugin parameter to a Duo X actuator, you can choose in which page you want to address the parameter
to.
Instant Snapshots
Switching pages
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
9/11
The pagination button is the central of the 3 top buttons in the Duo X panel. It's light indicate the current selected page:
1st page: red
2nd page: yellow
3rd page: green
IMAGE: picture: detail of the pagination button
To change the page simply press the button.
True Bypass
MOD Duo X has a true bypass circuit for each pair of input/output. This allows you to physically connect input 1 to output 1, and input 2 to output 2.
The true bypass is enabled when the device is off and it is automatically disabled after the current pedalboard is loaded.
You can enable or disable the true bypass via the GUI, or use a plugin and assign this control to any actuator. See the Web GUI User Guide for more
info.
You can also enable it via the Device Settings menu. Check Hardware bypass section on Device Settings page for more info.
Device Settings
06.01.22, 11:53
Duo X User Guide - MOD Wiki
https://wiki.moddevices.com/wiki/Duo_X_User_Guide
10/11
Pressing and hold the left endless knob will open the Device Settings menu.
Access the Device Settings page to learn how to use it to Load Banks and Pedalboards, adjust volumes and MIDI Settings, manage User profiles and
more.
Editing
The MOD Duo X has a built-in graphical user interface (GUI), which means you don’t need to download any extra software in order to configure the
device. To access the interface, you only need a web browser, such as Chrome, Safari or Firefox.
Once you are connected to your device you will be able to build and share your pedalboards, download new plugins, organize your banks for offline
access and much more.
Please refer to the Web GUI User Guide to learn all about it.
Overview shot of the pedalboard builder in the web interface
The easiest way to access the GUI is through the USB cable. Simply connect the USB cable, which you received along with your MOD Duo X, to your
PC or Mac. The operating system should recognize the MOD Duo X as a network device and configure it automatically. However, this process may
fail in certain Windows versions, if that is your case please check the troubleshooting page
After successfully connecting the MOD Duo X to your PC or Mac, open your favorite browser and navigate to http://modduox.local (or
http://192.168.51.1).
It is also possible to connect to your computer using a wireless Bluetooth connection. Check this page to see how to do it!
Accessing the graphical interface
Accessing via USB cable
Accessing via Bluetooth
