GPS Dongle for Kenwood Nextedge Mobile Radio
Specification and User’s Manual
GPS Dongle Specification
Receiver type Channels 50
Frequency L1
Signals GPS C/A Code
Configuration Time pulse 0.25 Hz to 1 kHz
Navigation update rate up to 5Hz (ROM)
Time-To-First-Fix(1)
Cold Start (Autonomous) 28 s
Warm Start (Autonomous) 28 s
Hot Start (Autonomous) 1 s
Aided Starts(2) 1 s
Sensitivity(3)
Tracking & Navigation -160 dBm
Reacquisition -160 dBm
Cold Start (Autonomous) -147 dBm
Accuracy Horizontal position(4) < 2.5 m Autonomous
< 2.0 m SBAS
RMS 99% 30 ns <60 ns
Velocity(5) 0.1m/s
Heading(5) 0.5 degrees
Limits Acceleration 4 g
Altitude(6) 50000 m
Velocity(6) 500 m/s
Baudrate 9600 default
Note:
1. All satellites at -130 dBm
2. Dependent on aiding data connection speed and latency
3. Demonstrated with a good active antenna
4. CEP, 50%, 24 hours static, -130dBm, SEP: <3.5m
5. 50% @ 30 m/s
6. Assuming Airborne <4g platform
KENWOOD NX-700 GPS SETUP
STEP:
1. Connect programming cable with PC and your device then Run software KPG-111D.

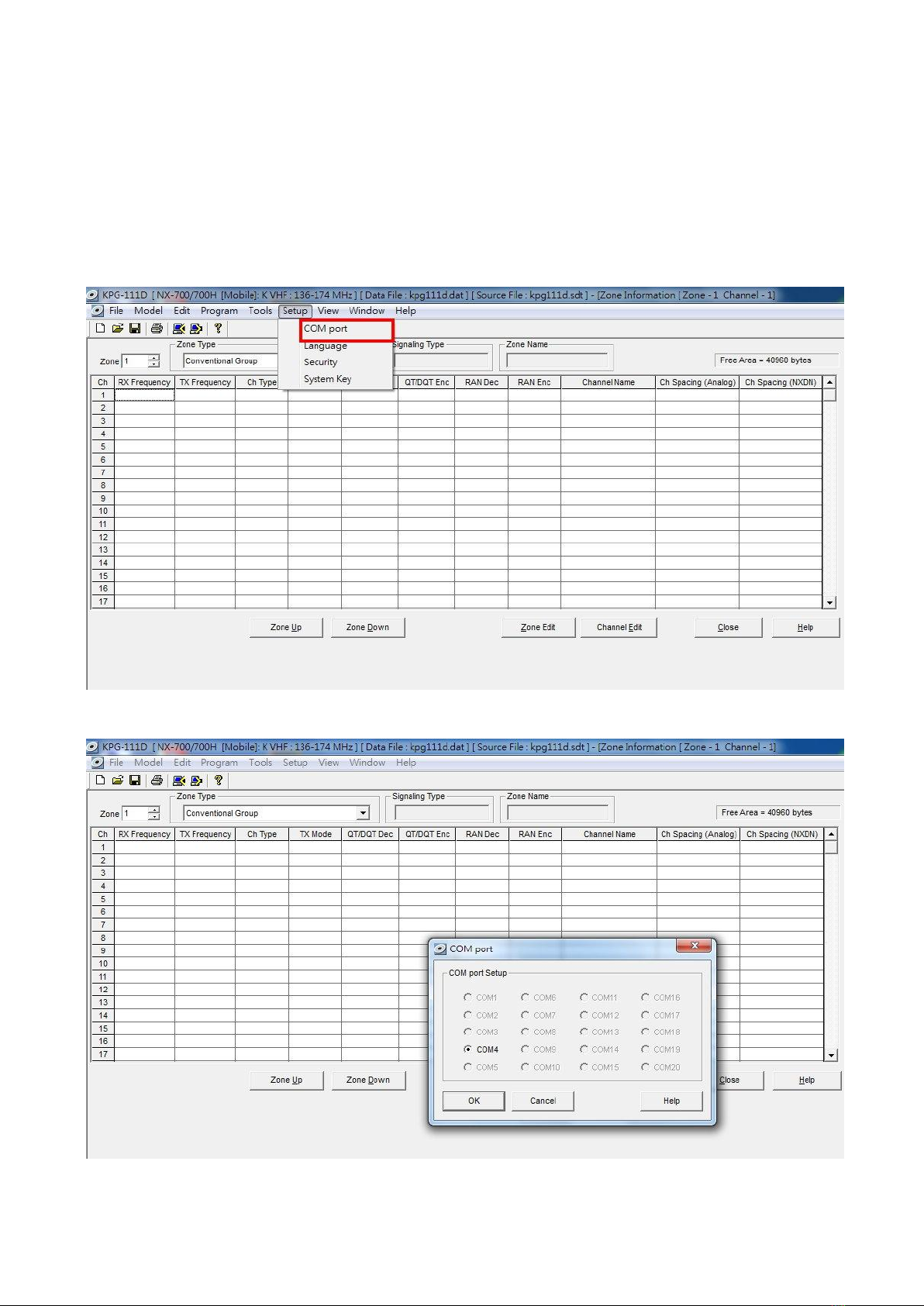

2. Select COM Port
Remark: Maybe in difference computer will be show difference COM port .
3. Read Data from the transceiver
Press “Read”will start download data from transceiver to PC.
4. Select Edit Optional features Optional features 1
5. Check Common Page1 setting
6. Check Common Page2 setting
7. Common Page 3 setting
Setting COM Port2 for GPS and Baudrate 9600 (see GPS Baudrate).
8. Check Common Page 4 setting
Setting finished press “close”icon
9600
9. Optional Optional Feature 2
10. Select GPS
Setting finished press “close”icon.
11. Key Assignment
12. Select Menu
13. Select “Utility”and add “GPS position Display”Item to function list
The “GPS Position Display”item will show in function list.
