Introduction

BE-801372.01-Digital_clocks_manual-221114

©MOBATIME

1 INTRODUCTION

Thank you for choosing MOBATIME digital clocks.

This instruction manual contains especially MENU setting, description of synchronization types, all

clock types including mounting and technical parameters table and always up-to-date time zone table.

Overall warning:

ďThe connection to the 110/230VAC power network canbe only done byauthorized personnel

withappropriate qualication and training.

ďDanger ofelectric shock whendismounting thecover with warning triangle.

ďTheconnection tothe110/230VAC power network should be carried out when the mains power

isoff.

BE-801372.01-Digital_clocks_manual-221114

©MOBATIME

www.mobatime.com

2 MENU

The clock are set and controlled by two push buttons or by remote controller. Position ofpushbuttons

depends on the clock type. Mostly pushbuttons are located on theupper side of the frame.

Description of buttons:

PB1 – push button 1, short press

PB2 – push button 2, short press

PB1L – push button 1, long press (longer than 1 second)

PB2L – push button 2, long press (longer than 1 second)

PB3L – push button 3, long press (longer than 1 second)

Function of buttons:

PB1 – moving ″up″ in menu / submenu, decreasing of the set value

PB2 – moving ″down″ in menu / submenu, increasing of the set value

PB1L – exit from menu / submenu / of set value, exit without saving

PB2L – entry into the menu / submenu / of set value, save and exit

Function of remote controller buttons:

<< – moving ″up″ in menu / submenu

>>– moving ″down″ in menu / submenu

ESC – exit from menu / submenu / of set value, exit without saving

OK – entry into the menu / submenu / of set value, save and exit

"+" – increasing of the set value

"–" – decreasing of the set value

Setting of individual items in the submenu can be found in chapters 2.3.x.

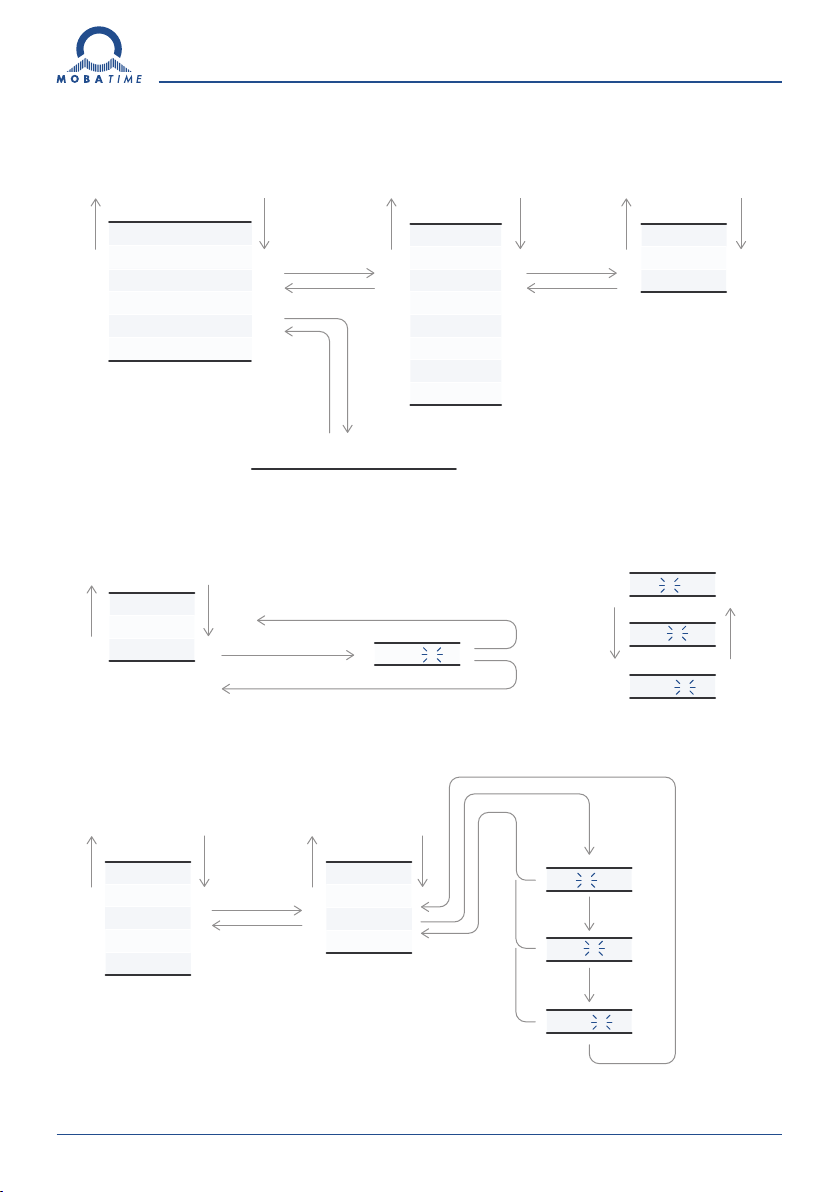

2.1 MENU navigation scheme using the push buttons

MAIN SCREENS

TIME

DATE

SENSOR 1

SENSOR 2

SENSOR 3 (DT)

SENSOR 4 (DT)

dISP

SYNC

NEt

SEN1–4

StoP

tIME

r0.01

SYSt

dISP

d1: 1

d2: 3

d3: 0

d1: 1

d2: 3

d3: 0 d2: 3

A 1 92

A19 2

NEt

n1: 0

n2: 3

n3: IP

n4: Su

n5: Gt

A 192

b 168

C 000

d 012 A1 9 2

A 1 92

A19 2

A1 9 2

dISP

PB2 PB2 PB2PB1 PB1 PB1

PB2L

PB1L

PB2 PB3L

PB2L

PB1L

PB2L

PB1L

PB2L

PB2L = SAVE

PB1L = ESC

PB2PB1

PB2

PB2L

PB1 PB1

PB1PB2

Increasing / decreasing valueExample of setting dISP MENU:

Example of setting NEt MENU:

Increasing / decreasing value

STOPWATCH DISPLAY

BE-801372.01-Digital_clocks_manual-221114

©MOBATIME

2.1 MENU navigation scheme using the push buttons

MAIN SCREENS

TIME

DATE

SENSOR 1

SENSOR 2

SENSOR 3 (DT)

SENSOR 4 (DT)

dISP

SYNC

NEt

SEN1–4

StoP

tIME

r0.01

SYSt

dISP

d1: 1

d2: 3

d3: 0

d1: 1

d2: 3

d3: 0 d2: 3

A 1 92

A19 2

NEt

n1: 0

n2: 3

n3: IP

n4: Su

n5: Gt

A 192

b 168

C 000

d 012 A1 9 2

A 1 92

A19 2

A1 9 2

dISP

PB2 PB2 PB2PB1 PB1 PB1

PB2L

PB1L

PB2 PB3L

PB2L

PB1L

PB2L

PB1L

PB2L

PB2L = SAVE

PB1L = ESC

PB2PB1

PB2

PB2L

PB1 PB1

PB1PB2

Increasing / decreasing valueExample of setting dISP MENU:

Example of setting NEt MENU:

Increasing / decreasing value

STOPWATCH DISPLAY

BE-801372.01-Digital_clocks_manual-221114

©MOBATIME

www.mobatime.com

2.2 MENU navigation scheme using the remote controller

MAIN SCREENS

TIME

DATE

SENSOR 1

SENSOR 2

SENSOR 3 (DT)

SENSOR 4 (DT)

dISP

SYNC

NEt

SEN1–4

StoP

tIME

r0.01

SYSt

dISP

d1: 1

d2: 3

d3: 0

d1: 1

d2: 3

d3: 0 d2: 3

A 1 92

A19 2

NEt

n1: 0

n2: 3

n3: IP

n4: Su

n5: Gt

A 192

b 168

C 000

d 012 A1 9 2

A 1 92

A19 2

A1 9 2

dISP

>> >> >><< << <<

ESC

OK = SAVE

ESC

>><<

<< <<

–+

>> TIMER

Increasing / decreasing valueExample of setting dISP MENU:

Example of setting NEt MENU:

Increasing / decreasing value

STOPWATCH DISPLAY

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Mobatime Horloge

Mobatime

Mobatime Profiline Manuel utilisateur

Mobatime

Mobatime MOBALine TREND Manuel utilisateur

Mobatime

Mobatime DMU 140 Manuel utilisateur

Mobatime

Mobatime SEW 30 Manuel utilisateur

Mobatime

Mobatime METRO Manuel utilisateur

Mobatime

Mobatime ECO DC series Manuel utilisateur

Mobatime

Mobatime Metroline Manuel utilisateur

Mobatime

Mobatime METROLINE Mode d’emploi

Mobatime

Mobatime ECO DC series Manuel utilisateur

Mobatime

Mobatime EuroTime Center ETC Manuel du propriétaire

Mobatime

Mobatime BU 190t 230 Manuel utilisateur

Mobatime

Mobatime PROFILINE QUAD Mode d’emploi

Mobatime

Mobatime METRO Manuel utilisateur

Mobatime

Mobatime DC Series Manuel utilisateur

Mobatime

Mobatime HN 60 Manuel utilisateur

Mobatime

Mobatime ECO-SLH-DC Series Manuel utilisateur

Mobatime

Mobatime MOBALine SEM 100 Manuel utilisateur

Mobatime

Mobatime MOBALine SEM 40 V2 Manuel utilisateur

Mobatime

Mobatime ECO-DC Manuel utilisateur

Mobatime

Mobatime TREND NTP Series Manuel utilisateur

Mobatime

Mobatime EuroTime Center ETC 12 Manuel utilisateur

Mobatime

Mobatime ECO-M-DK Manuel utilisateur

Mobatime

Mobatime MOBALINE Cristalys Date Manuel utilisateur

Mobatime

Mobatime SLH-DC series Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8256-AL Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

La Crosse Technology

La Crosse Technology WT-3141b Manuel

La Crosse Technology

La Crosse Technology W86531 Manuel utilisateur

Sharp

Sharp SPC900 Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-50447 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur
