ML Accessories FLN10 Mode d’emploi

INSTALLATION & MAINTENANCE MANUAL

FLN10 / FLN20 / FLN30 / FLN50 / FLNMIC / FLNPIR

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following products:

FLN10 / FLN20 / FLN30 / FLN50 / FLNMIC / FLNPIR

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this product is ﬁtted) does not exceed

the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location

for installation

• Do not overload this accessory or subject it to conditions outside its rating

• The FLNxx ﬁttings are Class I and must be earthed

• This FLNMIC and FLNPIR accessories are Class II double insulated

• This product series is IP65 rated

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference

and maintenance.

These instructions should be used to aid installation of the following products:

FLN10 / FLN20 / FLN30 / FLN50 / FLNMIC / FLNPIR

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this product is fitted) does not exceed the rating of

the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

•Do not overload this accessory or subject it to conditions outside its rating

•The FLNxx fittings are Class I and must be earthed

•This FLNMIC and FLNPIR accessories are Class II double insulated

•This product series is IP65 rated

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example enclosed spaces, as they are

able to detect movement through non-metallic surfaces like plasterboard and thin doors. Both sensors can be

falsely triggered by changes in temperature, therefore should not be installed near sources of heat such as

boiler flues.

•Provide power to the required point of installation (refer to BS7671 for correct cabling methods).

Suitable IP rated junction boxes should be used where required

•Round cable should be used for the mains supply, with an outer diameter of 7-9mm and a CSA of up

to 1.5mm2. The use of flat cable will cause water ingress to the fitting. A drip loop should be left on the

incoming cable

•Using the bracket as a template, mark the location for, and drill the fixing holes ensuring not to infringe

with any gas / water pipes or electrical cables. This can be done without removing the bracket from the

fitting (see Fig. 1)

Fig. 1

•Fix the luminaire to a suitable solid surface using the wall plugs and screws provided

•Tilt so that the cable entry points are accessible

•Unscrew the sealing nut from the compression gland (see Fig. 2) and fit it over the supply cable

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example

enclosed spaces, as they are able to detect movement through non-metallic surfaces

like plasterboard and thin doors. Both sensors can be falsely triggered by changes in

temperature, therefore should not be installed near sources of heat such as boiler ﬂues.

• Provide power to the required point of installation (refer to BS7671 for correct cabling

methods). Suitable IP rated junction boxes should be used where required

• Round cable should be used for the mains supply, with an outer diameter of 5-7.4mm

and a CSA of up to 1.5mm2. The use of ﬂat cable will cause water ingress to the ﬁtting. A

drip loop should be left on the incoming cable

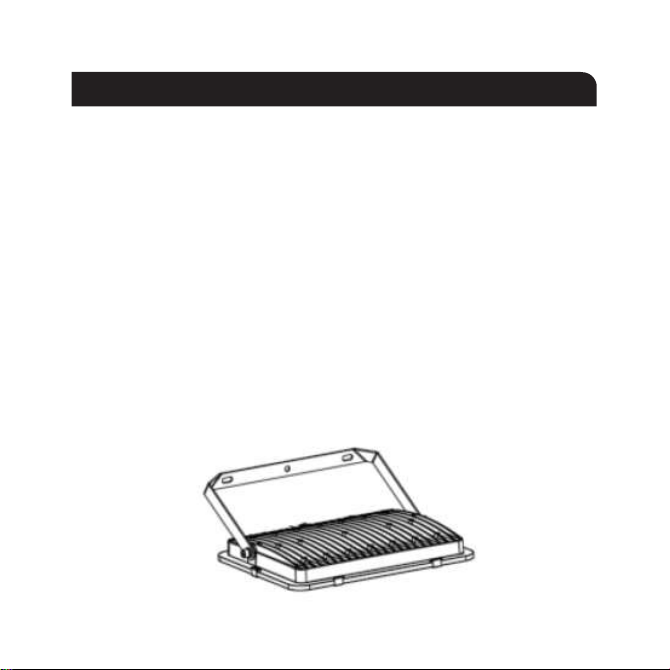

• Using the bracket as a template, mark the location for, and drill the ﬁxing holes ensuring

not to infringe with any gas/water pipes or electrical cables. This can be done without

removing the bracket from the ﬁtting (see Fig. 1)

Fig. 1

• Fix the luminaire to a suitable solid surface using the wall plugs and screws provided

• Tilt so the cable entry points are accessible

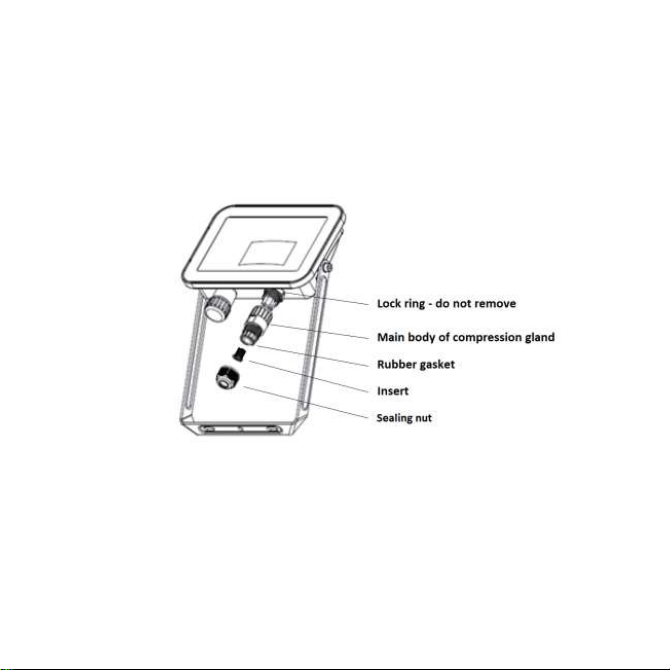

• Unscrew the sealing nut from the compression gland (see Fig. 2) and ﬁt it over the supply

cable

• Unscrew the main body of the compression gland from the ﬁtting ensuring that the

hexagonal lock ring is not dislodged (see Fig. 2)

• Remove the protective insert from the compression gland, leaving the rubber gasket in

place (see Fig. 2), and pass the supply cable through the compression gland

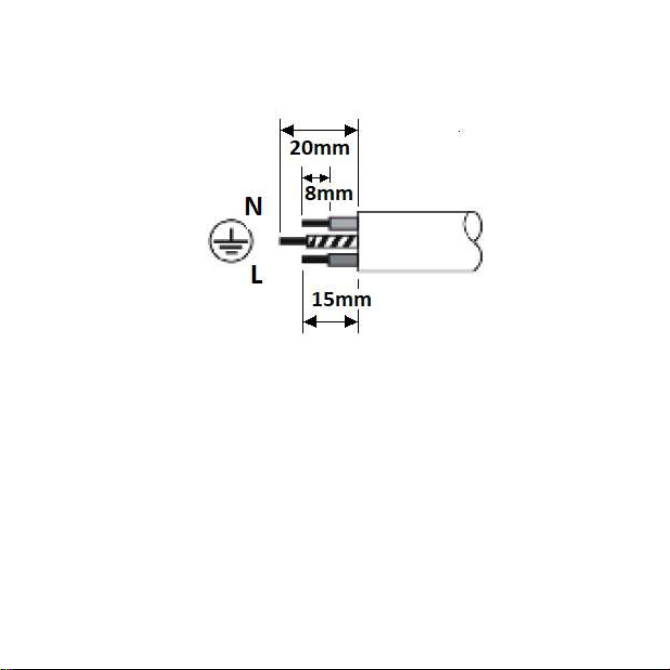

• Prepare the supply cable as shown by stripping back the outer sheath and basic insulation

to the correct length (see Fig. 3)

Fig. 2

•Unscrew the main body of the compression gland from the fitting, ensuring that the hexagonal lock ring

is not dislodged (see Fig. 2)

•Remove the protective insert from the compression gland, leaving the rubber gasket in place (see Fig.

2), and pass the supply cable through the compression gland

•Prepare the supply cable as shown by stripping back the outer sheath and basic insulation to the

correct length (see Fig. 3)

Fig. 3

•Connect the supply cable ensuring the correct polarity is observed: L - Live (brown), E - Earth

(green/yellow), N - Neutral (blue). Please be aware that undue pulling or rotating of the termination

block will cause damage to the fitting

•Tighten the compression gland and sealing nut ensuring a tight seal is made. Do not overtighten

•Tilt the fitting to the desired angle and tighten the nuts on the side

•Switch on and check for correct operation

PIR / Microwave Sensor Accessory

•Isolate the mains supply to the fitting

•Remove the capping nut, and using plyers pull out the protective insert from the fitting (see Fig. 4)

• Connect the supply cable ensuring the correct polarity is observed: L - Live (brown),

E - Earth (green/yellow), N - Neutral (blue). Please be aware that undue pulling or

rotating of the termination block will cause damage to the ﬁtting

• Tighten the compression gland and sealing nut ensuring a tight seal is made. Do not

overtighten

• Tilt the ﬁtting to the desired angle and tighten the nuts on the side

• Switch on and check for correct operation

Fig. 2

•Unscrew the main body of the compression gland from the fitting, ensuring that the hexagonal lock ring

is not dislodged (see Fig. 2)

•Remove the protective insert from the compression gland, leaving the rubber gasket in place (see Fig.

2), and pass the supply cable through the compression gland

•Prepare the supply cable as shown by stripping back the outer sheath and basic insulation to the

correct length (see Fig. 3)

Fig. 3

•Connect the supply cable ensuring the correct polarity is observed: L - Live (brown), E - Earth

(green/yellow), N - Neutral (blue). Please be aware that undue pulling or rotating of the termination

block will cause damage to the fitting

•Tighten the compression gland and sealing nut ensuring a tight seal is made. Do not overtighten

•Tilt the fitting to the desired angle and tighten the nuts on the side

•Switch on and check for correct operation

PIR / Microwave Sensor Accessory

•Isolate the mains supply to the fitting

•Remove the capping nut, and using plyers pull out the protective insert from the fitting (see Fig. 4)

Fig. 3

• Isolate the mains supply to the ﬁtting

• Remove the capping nut, and using plyers pull out the protective insert from the ﬁtting

(see Fig. 4)

• Align the pins on the sensor, push onto the ﬁtting, and tighten ensuring a good seal is

made. Do not overtighten

• The rotation and tilt of both sensors can be adjusted once ﬁtted. For the PIR accessory,

please ensure it is positioned with the adjustment dials at the bottom

• With the LUX set to Daytime, and the TIME set to the minimum, perform a walk test to

set the SENS setting so the required detection area is covered. Then set the TIME and

LUX controls to the desired settings:

PIR / MICROWAVE SENSOR ACCESSORY

Fig. 4

•Align the pins on the sensor, push onto the fitting, and tighten ensuring a good seal is made. Do not

overtighten

•The rotation and tilt of both sensors can be adjusted once fitted. For the PIR accessory, please ensure

it is positioned with the adjustment dials at the bottom

•With the LUX set to Daytime, and the TIME set to the minimum, perform a walk test to set the SENS

setting so the required detection area is covered. Then set the TIME and LUX controls to the desired

settings:

Setting

FLNMIC

FLNPIR

SENS

Minimum: up to 4m

Maximum: up to 12m

Minimum: up to 5m

Maximum: up to 10m

LUX

Minimum: 3 lux

Maximum: 2000 lux

Minimum: 10 lux

Maximum: 2000 lux

TIME

Minimum: 10 sec

Maximum: 15 min

Minimum: 10 sec

Maximum: 7 min

Override Function (FLNPIR only)

•Switch the mains supply to the fitting OFF-ON-OFF-ON within three seconds. The light flashes ON-

OFF-ON to indicate that it is in override mode. To return to automatic mode, switch the mains supply to

the fitting off for at least 10 seconds, then switch on again

•The FLNMIC has no override function

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance

testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

The LED lamps fitted in this product are non-replaceable. The product should be recycled in the correct manner

when it reaches the end of its life. Check local authorities for where facilities exist.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not

use aggressive cleaning products or solvents which may damage the product.

Do not use any source of high-pressure washers to maintain or clean this luminaire.

This product is non-dimmable.

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in accordance with

the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will

invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of

purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve

the right to alter product specification without prior notice.

Fig. 4

GENERAL

WARNING

The light source of this luminaire is not replaceable; when the light source reaches its end of

life the whole luminaire should be replaced.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm

water only, do not use aggressive cleaning products or solvents which may damage the

product.

Do not use any source of high-pressure washers to maintain or clean this luminaire.

This product is non-dimmable.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist

This product must be disconnected from the circuit if subjected to any high voltage or

insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

Override Function (FLNPIR only)

• Switch the mains supply to the ﬁtting OFF-ON-OFF-ON within three seconds. The light

ﬂashes ON-OFF-ON to indicate that it is in override mode. To return to automatic mode,

switch the mains supply to the ﬁtting off for at least 10 seconds, then switch on again

• The FLNMIC has no override function

Setting FLNMIC FLNPIR

SENS Minimum: up to 4m / Maximum: up to 12m Minimum: up to 5m / Maximum: up to 10m

LUX Minimum: 3 lux / Maximum: 2000 lux Minimum: 10 lux / Maximum: 2000 lux

TIME Minimum: 10 sec / Maximum: 15 min Minimum: 10 sec / Maximum: 7 min

DCAUG21_V3

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper

use, or removal of the batch code will invalidate the warranty. If this product should fail

within its warranty period, it should be returned to the place of purchase for a free of

charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product speciﬁcation without prior notice.

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

139

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

-20

~40°C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ML Accessories Équipement d'éclairage

ML Accessories

ML Accessories SPIKEW Mode d’emploi

ML Accessories

ML Accessories LWR2G Mode d’emploi

ML Accessories

ML Accessories T8BLED12 Mode d’emploi

ML Accessories

ML Accessories LEDFRA1 Mode d’emploi

ML Accessories

ML Accessories BA01 Series Mode d’emploi

ML Accessories

ML Accessories WP15CTP Mode d’emploi

ML Accessories

ML Accessories LED3 Series Mode d’emploi

ML Accessories

ML Accessories BATS2 Mode d’emploi

ML Accessories

ML Accessories BATSCWST4 Mode d’emploi

ML Accessories

ML Accessories AC65118 Mode d’emploi

ML Accessories

ML Accessories Knightsbridge SFPL Series Mode d’emploi

ML Accessories

ML Accessories OWALL1 Series Mode d’emploi

ML Accessories

ML Accessories WP15CTP Mode d’emploi

ML Accessories

ML Accessories TPR14LEDS Mode d’emploi

ML Accessories

ML Accessories T8BLED15EM1 Mode d’emploi

ML Accessories

ML Accessories NH0183BD Mode d’emploi

ML Accessories

ML Accessories E27PR Mode d’emploi

ML Accessories

ML Accessories AC65136EM Mode d’emploi

ML Accessories

ML Accessories AXREMC Mode d’emploi

ML Accessories

ML Accessories SPIKE5S Mode d’emploi

ML Accessories

ML Accessories BF1430S Mode d’emploi

ML Accessories

ML Accessories EMPOWER3 Mode d’emploi

ML Accessories

ML Accessories BT ACTS Series Mode d’emploi

ML Accessories

ML Accessories Knightsbridge LEDFS12WW Mode d’emploi

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
