ML Accessories BATS2 Mode d’emploi

INSTALLATION & MAINTENANCE MANUAL

BATS2 / BATS4 / BATS5 / BATS5H

BATS6 / BATS6H / BATS5UHL / BATS6UHL

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following products:

BATS2 / BATS4 / BATS5 / BATS5H / BATS6 / BATS6H / BATS5UHL / BATS6UHL

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed

the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location

for installation

• This product is for indoor use only

• This product is Class I and must be earthed

• This product series is IP20 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please

conﬁrm with the manufacturer of the sensors that they are compatible with LED luminaires.

• Provide power to the required point of installation (refer to BS7671 for correct cabling

methods)

• Squeeze the sides and hinge the diffuser away from the ﬁtting (see Fig. 1)

INSTRUCTIONS –BATSxx

These instructions should be read carefully and retained after installation by the end user for future reference and

maintenance.

These instructions should be used to aid installation of the following products:

BATS2 / BATS4 / BATS5 / BATS5H / BATS6 / BATS6H

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating

of the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

•This product is Class I and must be earthed

•This product series is IP20 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with

the manufacturer of the sensors that they are compatible with LED luminaires.

•Provide power to the required point of installation (refer to BS7671 for correct cabling methods)

•Squeeze the sides and hinge the diffuser away from the fitting (see Fig. 1)

Fig. 1

•Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas/water

pipes or electrical cables. The fitting can also be mounted over conduit boxes: for distance between

fixing centres please see below:

Part Code

Distance (mm)

BATS2

415

BATS4

600

BATS5 / BATS5H

600

BATS6 / BATS6H

600

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2. Two cables can be inserted

into the push-fit terminal block in order to achieve loop-in / loop-out wiring

Fig. 2

•Switch on and check for correct operation

Squeeze

• Mark the location of the ﬁxing holes and drill the holes

ensuring not to infringe with any gas/water pipes or

electrical cables. The ﬁtting can also be mounted over

conduit boxes: for distance between ﬁxing centres

please see below:

Fig. 1

Part Code Distance (mm)

BATS2 415

BATS4 600

BATS5 / BATS5H / BATS5UHL 600

BATS6 / BATS6H / BATS5UHL 600

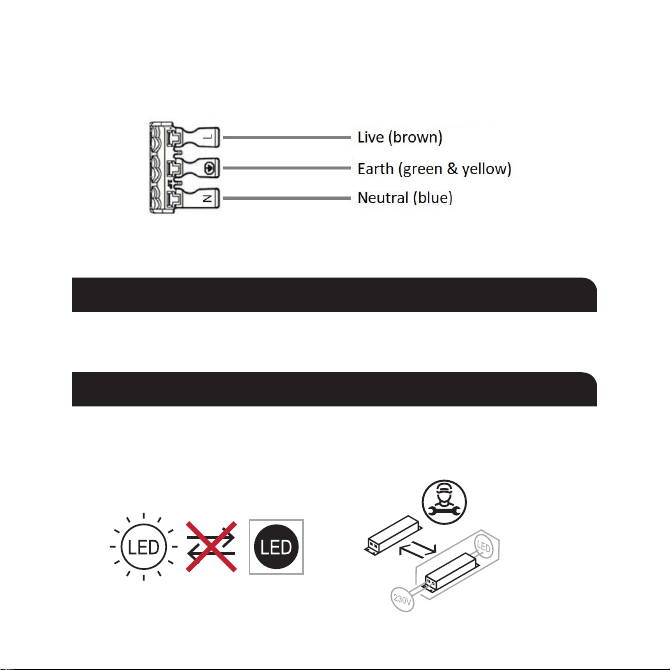

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2. Two cables can be

inserted into the push-ﬁt terminal block in order to achieve loop-in / loop-out wiring

• Switch on and check for correct operation

Fig. 2

INSTRUCTIONS –BATSxx

These instructions should be read carefully and retained after installation by the end user for future reference and

maintenance.

These instructions should be used to aid installation of the following products:

BATS2 / BATS4 / BATS5 / BATS5H / BATS6 / BATS6H

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating

of the circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

•This product is Class I and must be earthed

•This product series is IP20 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with

the manufacturer of the sensors that they are compatible with LED luminaires.

•Provide power to the required point of installation (refer to BS7671 for correct cabling methods)

•Squeeze the sides and hinge the diffuser away from the fitting (see Fig. 1)

Fig. 1

•Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas/water

pipes or electrical cables. The fitting can also be mounted over conduit boxes: for distance between

fixing centres please see below:

Part Code

Distance (mm)

BATS2

415

BATS4

600

BATS5 / BATS5H

600

BATS6 / BATS6H

600

•Ensuring correct polarity is observed, carefully wire as shown in Fig. 2. Two cables can be inserted

into the push-fit terminal block in order to achieve loop-in / loop-out wiring

Fig. 2

•Switch on and check for correct operation

Squeeze

WARNING

GENERAL

This luminaire must be disconnected from the circuit if subjected to any high voltage or

insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

This product contains a light source of energy efﬁciency class E (BATSx, BATSxH) /

D (BATSxUHL) to Regulation (EU) No. 2019/2015.

This product contains a non-replaceable LED light source and a control gear which can be

replaced by a professional.

WARRANTY

This product has a warranty of 5 years from date of purchase. Failure to install this

product in accordance with the current edition of the IEE Wiring Regulations (BS7671),

improper use, or removal of the batch code will invalidate the warranty. If this product

should fail within its warranty period, it should be returned to the place of purchase for

a free of charge replacement. ML Accessories does not accept responsibility for any

installation costs associated with the replacement product. Your statutory rights are not

affected. ML Accessories reserve the right to alter product speciﬁcation without prior notice.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which

may damage the product.

This product is non-dimmable

This product should be dismantled for disposal when it reaches the end of its life. Please

see website for dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist.

DCAUG21_V3

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

-20~

50°C
