The newly developed BrightEraTM ~ inorganic

orientation film and vertical orientation liquid crystal

bring sweeping improvements in light resistance

reliability. Paving the way for use of powerful light

sources unfeasible in the small panels used to

date, ratcheting up portable size class brightness

to a dazzling 4200lm. What's more, our new drive

system (double-speed field inversion drive) cracks

down on the nagging liquid crystal orientation

distortion caused by pixel line voltage gaps. The

result is a high pixel aperture ratio, raising light use

efficiency to a new global benchmark.

With the BrightEraTM panel onboard,

brightness soars to 4200lm

Supported by our optimum design for light source

lamp temperature control, maximum light

source lamp use soars to 5,000 hours.*1This

makes dramatic reductions in running cost,

while likewise slashing replacement hassle for

the light source lamp as a consumable part. *2

Long Life Lamp ~ Maximum 5,000 hours

Lamp Replacement Frequency*

(*): Lamp life refers to the average time required for brightness to be

reduced by half, and not the time specified in the warranty.

1,500-hour

lamp

5,000-hour

lamp

1,500 hours 5,000 hours

1st replacement Reduced

running

cost

1st

replacement

2nd

replacement

3rd

replacement

4th

replacement

(*1): When used at the low lamp mode. Maximum lamp life at standard mode

use is 2,000 hours. (*2): Lamp life refers to the average time required for

brightness to be reduced by half, and not the time specified in the warranty.

Use time may vary widely by the environment and conditions, and whether or

not cleaning and other maintenance procedures are followed.

Note: Mitsubishi Electric cannot accept responsibility for thefts occurring despite

use of this safety feature.

Security Anchor

A robust key-lock chain

may be passed through

the projector hook. This

reliable anti-theft measure

helps prevent unauthorized

removal of the projector

unit from the premises.

The lamp may be

removed from the side of

the projector unit. This

simplifies replacement

without turning the

projector around or over

when suspended from

the ceiling or resting on

a shelf.

Lamp Side Replacement

MULTIMEDIA DATA/VIDEO PROJECTORS

Driving evolution. Our high-luminosity mobile model,

simply staggering in brightness.

Long Life Lamp

5000hrs

with lamp low mode

PORTABLE XGA PROJECTOR

Brightness

4200lm

1000lm 4200lm

Lamp

VLT-XL650LP

L-188-6-B7573-A KYO-0611 Printed in Japan(MDOC) New publication, effective Nov. 2006

Specifications subject to change without notice.

*BrightEraand are trademarks of Sony corporation.

All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

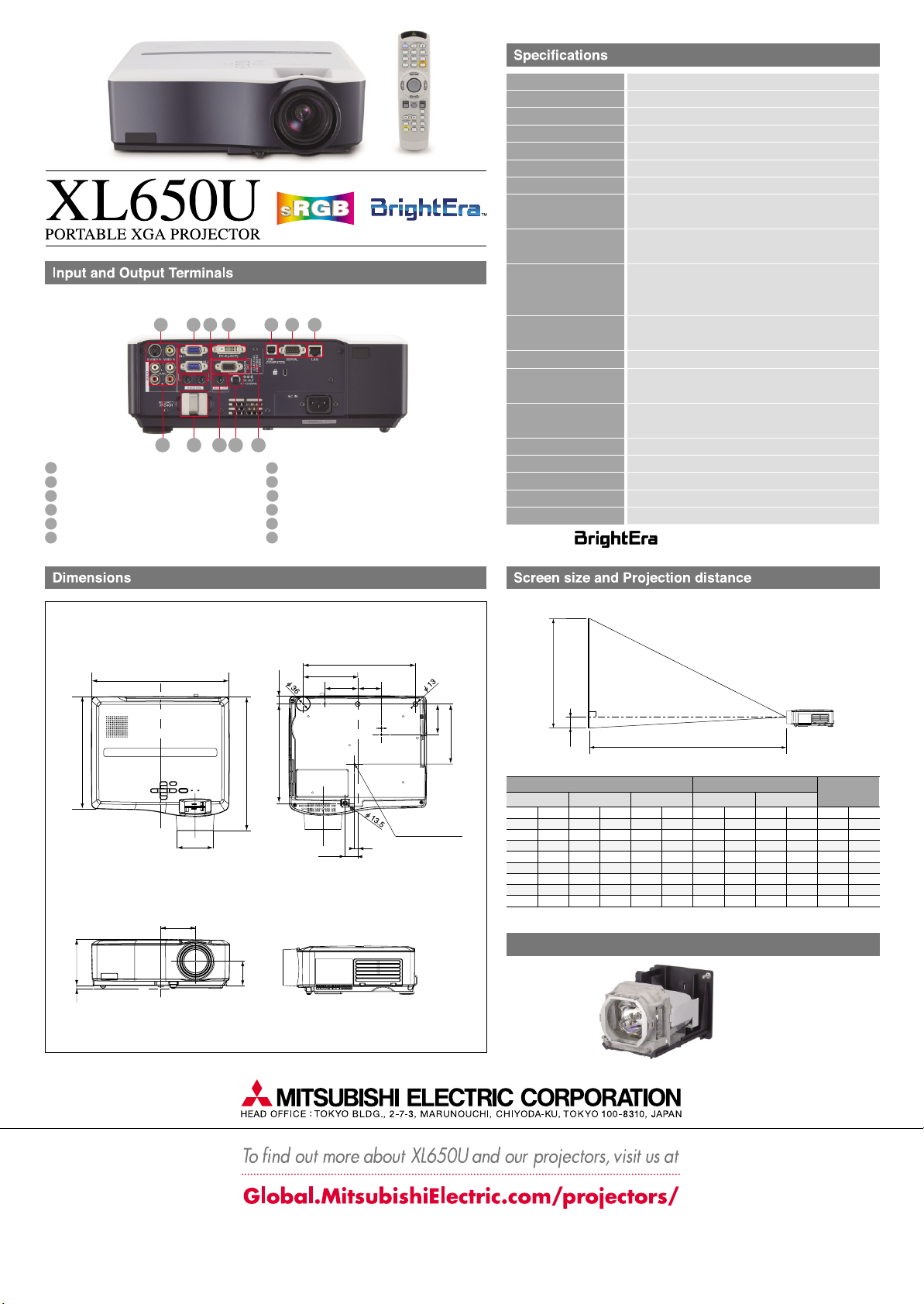

XL650U

0.8”3-LCD(with Micro Lens)

1024×768(total 786,432 pixels), 600video lines

4200lm

600: 1(on/off)

f=24-29mm, F1.7-1.9

40”~300”(100”=3.0~3.6m)

Video: RCA×1, S-video×1, Audio: RCA(L,R)×2

3W mono

333×113×272mm (excluding height adjustment)

4.7kg / 10.4lbs

AC100 - 240V, 50/60Hz

VLT-XL650LP

Model

Display technology

Resolution

Brightness

Contrast

Projection lens

Picture Size

Video input terminals

Audio speaker

Dimension (W×H×D)

Weight

Power supply

Optional lamp

Video compatibility

PC input terminals

Output terminals

Computer compatibility

NTSC/NTSC4.43/PAL(including PAL-M, N)/SECAM/PAL-60,

Component Video: 480i/p(525i/p),576i/p(625i/p),720p

(750p 50/60Hz),1080i(1125i 50/60Hz),SCART(RGB+1V sync)

Source lamp 220W (Shut Off Time 5000Hrs) with Low Mode

261W (Shut Off Time 2000Hrs)

640×480~1600×1200

True: 1024×768, Sync on green available

4 5 6 7

910 11 12

The above numbers are approximate, and may be slightly different from the actual measurements.

Screen

Diagonal size Width (W)Maximum Zoom Minimum ZoomHeight (H)

inch

Distance from screen (L)Height projected

image (Hd)

inch cm inch cm cm inch 1.2

1.8

2.4

3.0

4.5

6.0

7.5

9.1

inch 1.4

2.2

2.9

3.6

5.5

7.3

9.1

inch cm

Screen size chart (4:3 aspect ratio)

2.4

3.6

4.8

6.0

9.0

12.0

15.0

18.0

114

142

215

287

359

118

177

237

297

357

122

152

229

305

381

457

120

150

180

122

163

203

305

406

508

610

120

160

200

240

102

152

203

254

381

508

635

762

100

150

200

250

300

Unit:mm

Option

As seen from the side

XL650U

Hd Lw~Lt

PC: mini D-sub 15pin×2, DVI-D(with HDCP)×1,

Audio: stereo mini (φ3.5)×2

Monitor Out: mini D-sub 15pin×1, DC Out: 5V 1.5A(MAX)

Audio: stereo mini(φ3.5)×1

LAN(RJ-45)×1,RS-232C(D-Sub 9 pin)×1,

USB terminal for mouse control×1

Communication terminals

S-Video / Video input

PC / Component Video input(mini D-sub 15pin)

PC /

Audio input

DVI-D(with HDCP)

input

USB terminal for mouse control

Serial RS-232C(D-sub 9pin)

LAN(RJ-45)

Video

/Audio

input

Security Anchor

Audio output

DC Out 5V 1.5A(Max)

Monitor output

Enhanced terminal group realizes a versatile range of presentations.

Top view Bottom view

Side view

Front view

112.9

84.5

59.5

333.4

272.4

325.4

88.1

240.9 20.5

272.5

132.5

80 57

145.5

HOLES FOR

HANGER (3PLACES)

M4 DEPTH 8

73.5

30.55
