Installation manual

MA00778A 2005-02 English

Foreword

Mitsubishi Electric, MA00778A

Installation manual for the E1000 series operator terminals

Foreword

The E1000 operator terminal is developed to satisfy the demands of human-

machine communication. Built-in functions such as displaying and controlling

text, dynamic indication, time channels, alarm and recipe handling are

included.

The operator terminal work, for the most part, in an object-oriented way,

making it easy to understand and use. The configuration operation of the

terminal is made in a personal computer, using the configuration tool E-

Designer. The project is then transferred and stored in the operator terminal.

The operator terminal can be connected to many types of automation

equipment, such as PLCs, servos or drives. In this manual the expression “the

controller“ is used as a general term for the connected equipment.

This manual explains how to install the operator terminal. Please refer to the

reference manual for further information.

The information in this document is subject to change without notice and is provided as available at the time

of printing. The manufacturer reserves the right to change any information without updating this publication.

The manufacturer assumes no responsibility for any errors that may appear in this document.

Read the entire installation manual prior to installing and using this equipment.

Only qualified personnel may install, operate or repair this equipment. The manufacturer is not responsible

for modified, altered or renovated equipment.

Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use

the equipment properly in their specific applications.

Persons responsible for the application and the equipment must themselves ensure that each application is in

compliance with all relevant requirements, standards and legislation in respect to configuration and safety.

Only parts and accessories manufactured according to specifications set by The manufacturer may be used.

THE MANUFACTURER SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

INSTALLATION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT,

CONTRACT, OR OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR,

REPLACEMENT, OR REFUND OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICABLE

REMEDY SHALL BE AT THE SOLE DISCRETION OF THE MANUFACTURER.

Foreword

Mitsubishi Electric, MA00778A

Table of Contents

Mitsubishi Electric, MA00778A

Table of Contents

1 Safety Precautions............................................................................. 1-1

1.1 UL Installation............................................................................... 1-1

1.2 General .......................................................................................... 1-1

1.3 During Use .................................................................................... 1-1

1.4 Service and Maintenance................................................................ 1-2

1.5 Dismantling and Scrapping............................................................ 1-2

2 Installation ....................................................................................... 2-1

2.1 Space Requirements ....................................................................... 2-1

2.2 Installation Process......................................................................... 2-1

2.2.1 Mode Switches ............................................................................................... 2-3

2.2.2 Connections to the Controller........................................................................ 2-3

2.2.3 Other Connections and Peripherals ................................................................ 2-3

3 Technical Data ................................................................................. 3-1

4 Chemical Resistance ......................................................................... 4-1

4.1 Metal Casing.................................................................................. 4-1

4.2 Keyboard and Display.................................................................... 4-1

4.2.1 Autotex F157.................................................................................................. 4-1

4.2.2 Display Surface............................................................................................... 4-2

5 Operator Terminal Drawings ........................................................... 5-1

5.1 Communication Ports.................................................................... 5-1

5.2 E1100 Outline............................................................................... 5-2

5.3 E1100 Text Strip ........................................................................... 5-3

Table of Contents

Mitsubishi Electric, MA00778A

Safety Precautions

Mitsubishi Electric, MA00778A 1-1

1 Safety Precautions

Both the installer and the owner and/or operator of the operator terminal must read

and understand this installation manual.

1.1 UL Installation

Power, input and output (I/O) wiring must be in accordance with Class 1, Division

2 wiring methods (Article 501-4 (b) of the National Electric Code, NFPA 70) and

in accordance with the authority having jurisdiction.

1.2 General

– Only qualified personnel may install or operate the operator terminal.

– The operator terminal must be installed according to the installation instructions.

– The operator terminal is designed for stationary installation on a plane surface,

where the following conditions are fulfilled:

• no high explosive risks

• no strong magnetic fields

•nodirectsunlight

• no large, sudden temperature changes

– Never allow fluids, metal filings or wiring debris to enter any openings in the

operator terminal. This may cause fire or electrical shock.

– The operator terminal fulfills the requirements of article 4 of EMC directive

89/336/EEC.

– Storing the operator terminal where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to congeal/become

isotopic.

– The LCD display liquid contains a powerful irritant. In case of skin contact, wash

immediately with plenty of water. In case of eye contact, hold the eye open, flush

with plenty of water and get medical attention.

– The supplier is not responsible for modified, altered or reconstructed equipment.

– Use only parts and accessories manufactured according to specifications of the

supplier.

– Peripheral equipment must be appropriate for the application and location.

– The figures in this manual serves an illustrative purpose. Because of the many

variables associated with any particular installation, the supplier cannot assume

responsibility for actual use based on the figures.

– The supplier neither guarantees that the operator terminal is suitable for your

particular application, nor assumes responsibility for your product design,

installation or operation.

1.3 During Use

– Keep the operator terminal clean.

– Emergency stop and other safety functions may not be controlled from the

operator terminal.

– Do not use too much force or sharp objects when touching the keys, display etc.

Safety Precautions

1-2 Mitsubishi Electric, MA00778A

1.4 Service and Maintenance

– Only qualified personnel should carry out repairs.

– The agreed warranty applies.

– Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.

– Clean the display and surrounding front cover with a soft cloth and mild

detergent.

– Replacing the battery incorrectly may result in explosion. Only use batteries

recommended by the supplier.

1.5 Dismantling and Scrapping

– The operator terminal or parts thereof shall be recycled according to local

regulations.

– The following components contain substances that might be hazardous to health

and the environment: lithium battery, electrolytic capacitor and display.

Installation

Mitsubishi Electric, MA00778A 2-1

2 Installation

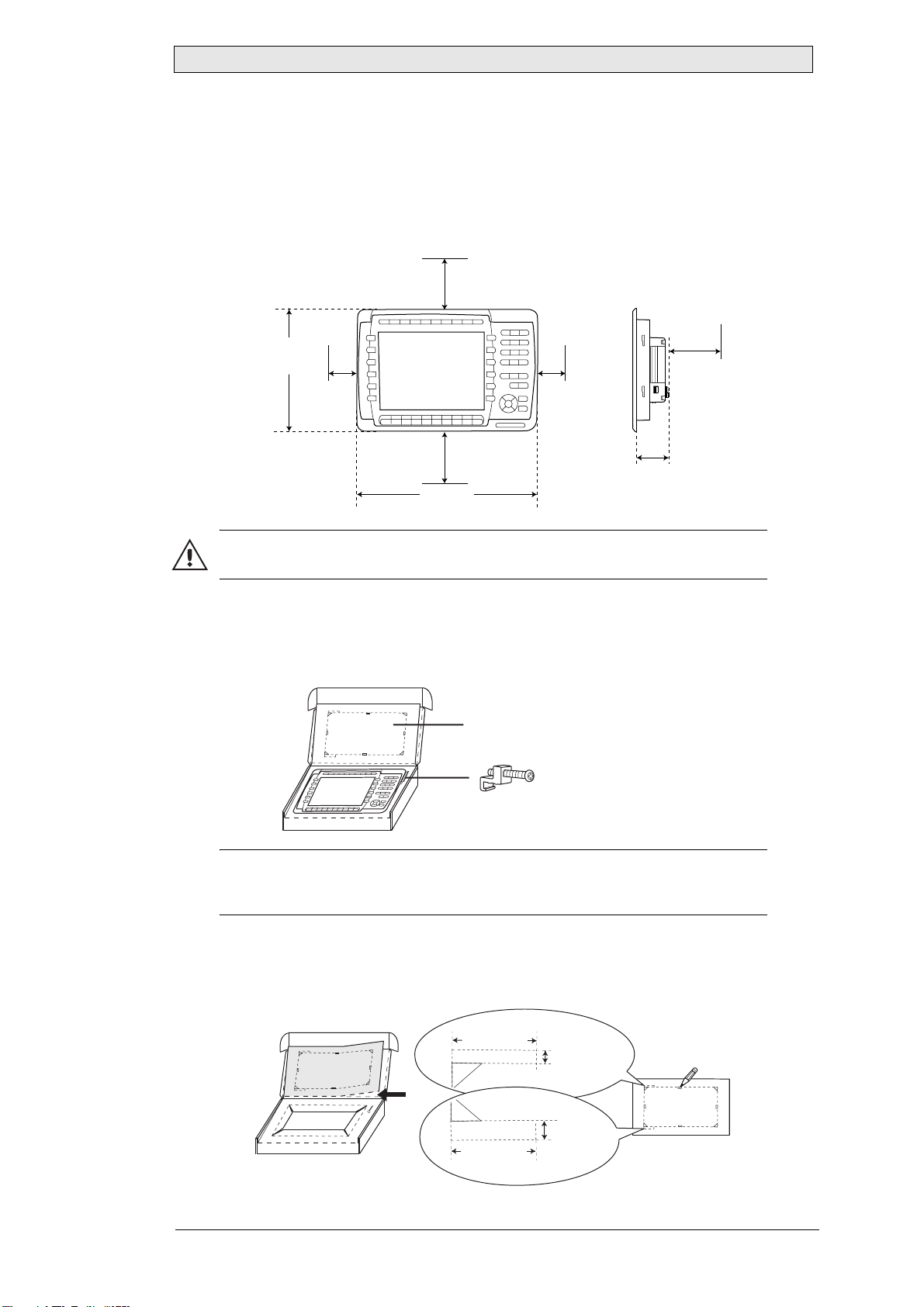

2.1 Space Requirements

– Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)

– Space requirements when installing the operator terminal:

Caution

The openings on the enclosure are for air convection. Do not cover these openings.

2.2 Installation Process

1. Unpack and check the delivery. If damage is found, notify the supplier.

Note:

Place the operator terminal on a stable surface during installation.

Dropping it or letting it fall may cause damage.

2. Place the panel cut out where the operator terminal is to be situated, draw along

the outer sides of the holes and cut according to the markings. If access to the

text strips is needed, add extra space in the left corners.

252 mm

58 mm

100 mm

(4.0 inch)

50 mm

(2.0 inch)

50 mm

(2.0 inch)

100 mm

(4.0 inch)

(9.92 inch)

382 mm

100 mm

(4.0 inch)

(15.04 inch)

(2.28 inch)

x14

Panel cut out 343 x 208 mm

(13.5 x 8.18 inch)

6.5 mm

35.0 mm

For text strip

3.5 mm

35.0 mm

(1.38 inch)

(0.14 inch)

(0.26 inch)

Installation

2-2 Mitsubishi Electric, MA00778A

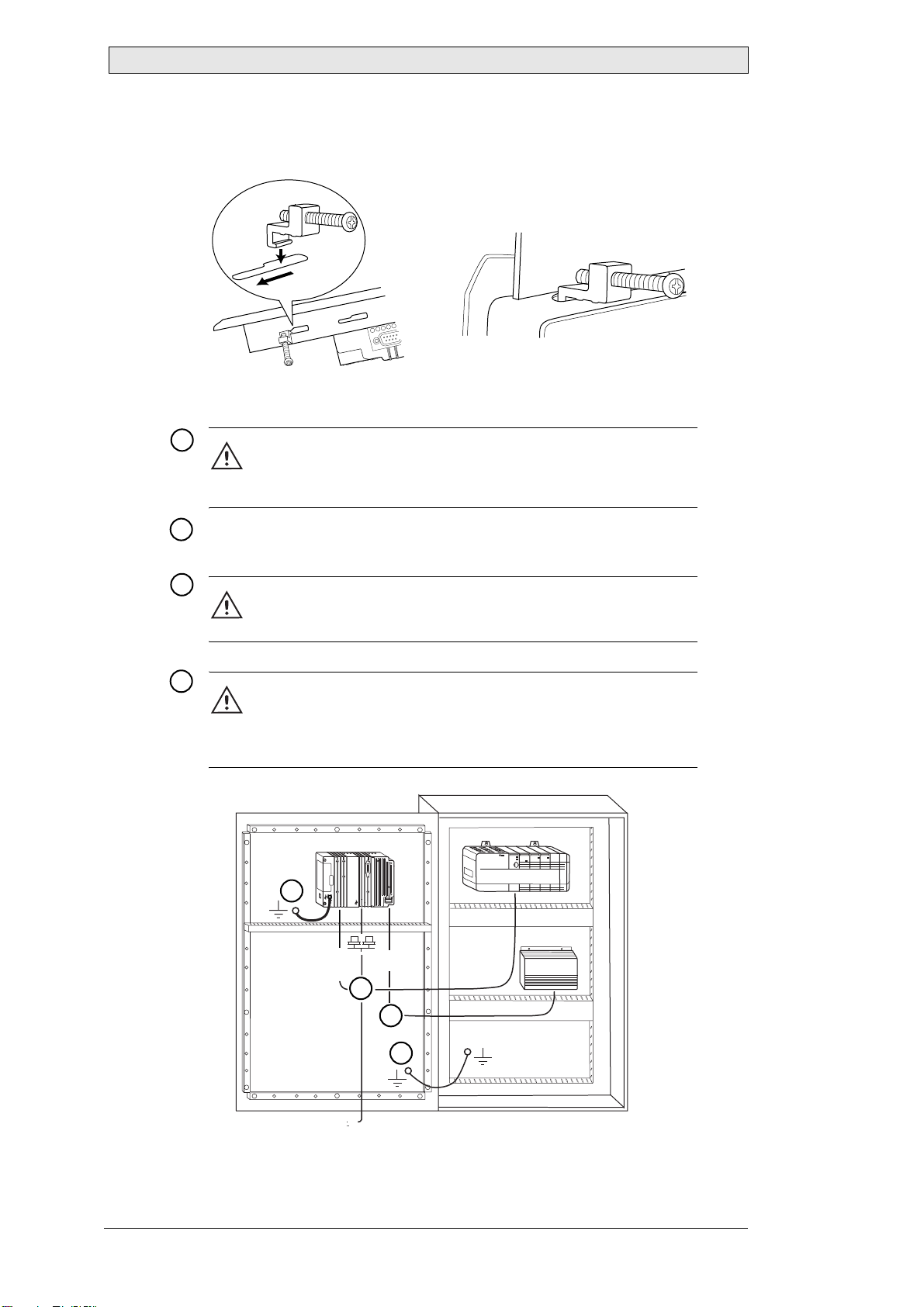

3. Secure the operator terminal in position, using all the fastening holes and the

provided brackets and screws:

4. Connect the cables in the specified order.

Use an M5 screw and a grounding conductor (as short as possible)

with a cross-section of minimum 2.5 mm2.

5. Carefully remove the laminated film over the operator terminal display, to avoid

static electricity that could damage the terminal.

x14

0.5 - 1.0 Nm

ACaution

Ensure that the operator terminal and the controller system have the

same electrical grounding (reference voltage level), otherwise errors

in communication may occur.

Caution

- Use only shielded communication cables.

- Separate high voltage cables from signal and supply cables.

Caution

- The operator terminal must be brought to ambient temperature

before it is started up. If condensation forms, ensure that the

operator terminal is dry before connecting it to the power outlet.

- Ensure that the voltage and polarity of the power source is correct.

24V DC

RS422/RS485 24V DC

CF CARD

RS232

Controller

Power

Ethernet
