High Brightness at an Affordable Cost

The XD470U is an affordable micro portable native XGA (1024x768)

projector. This DLP®projector produces a bright 3000 ANSI

lumens image and includes an impressive 2000:1 contrast ratio for

extraordinary crisp details. It includes flexible connectivity options

for both video and data connectivity and only weighs 6.2 lbs for

convenient portability. Additionally, the XD470U includes an

instant shut down feature, a filter-free design, and is backed by a

3-years parts and labor warranty and Mitsubishi’s exclusive Express

Replacement Assistance (ERA) program.

DLP®T

echnology

Native XGA Resolution (1024x768)

3000 ANSI Lumens and 2000:1

Contrast Ratio

Up to 3000 hours lamp life*

XD470U

XGA DLP®Projector

www.mitsubishi-presentations.com

Instant shut down

RS232C Communication

Digital Keystone Correction (vertical)

Anti-theft security hook

* low mode

Unit measured in millimeters (mm)

SCREEN DISTANCE FROM SCREEN (L) Hd

Diagonal Size Width Height Max.Zoom Min.Zoom

inch cm inch cm inch cm inch m inch m inch cm

40 102 32 81 24 61 50 1.3 60 1.5 3.5 8.8

60 152 48 122 36 91 76 1.9 91 2.3 5.2 13.3

80 203 64 163 48 122 101 2.6 121 3.1 7.0 17.7

100 254 80 203 60 152 126 3.2 151 3.8 8.7 22.1

150 381 120 305 90 229 189 4.8 227 5.8 13.1 33.2

200 508 160 406 120 305 252 6.4 302 7.7 17.4 44.2

250 635 200 508 150 381 315 8.0 378 9.6 21.8 55.3

300 762 240 610 180 457 378 9.6 - - 26.1 66.3

XD435U-G

The above numbers are approximate values

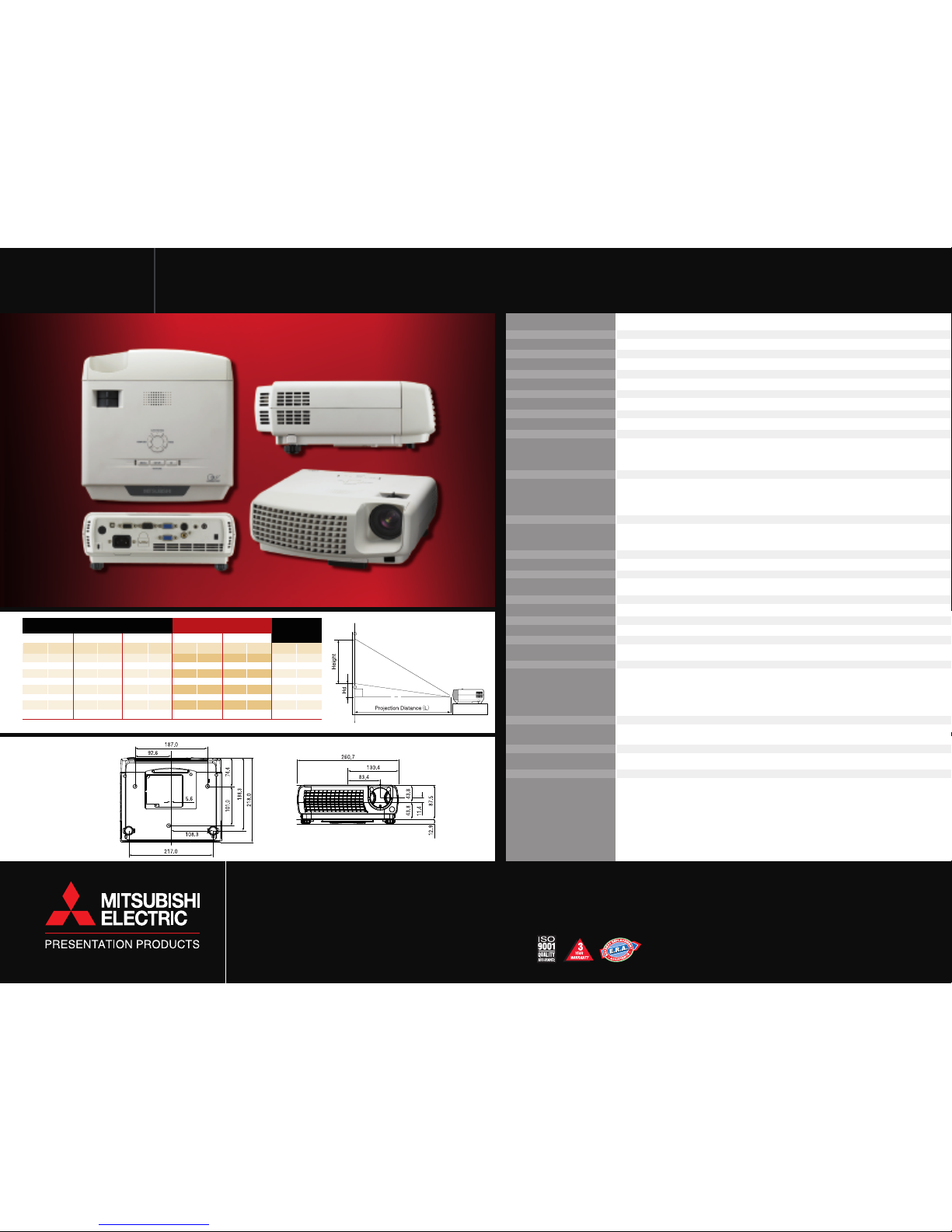

DISPLAY TECHNOLOGY

RESOLUTION

BRIGHTNESS

CONTRAST RATIO

ZOOM/FOCUS

PROJECTION LENS

THROW RATIO

OFF SET AXIS

PICTURE SIZE

COLOR WHEEL

SOURCE LAMP

PC COMPATIBILITY

VIDEO COMPATIBILITY

INPUT TERMINALS

OUTPUT TERMINAL

COMMUNICATION TERMINAL

SCANNING RATE

AUDIO SPEAKER

HEIGHT ADJUSTER

HAND REMOTE UNIT

POWER CONSUMPTION

DIMENSION

WEIGHT

POWER REQUIREMENTS

FAN NOISE

SUPPLIED ACCESSORIES

WARRANTY

OPTIONAL ACCESSORIES

OUTSTANDING FEATURES

0.55" 1-Chip DMD, 12deg.DDR, DDP2000

1024 x 768 (Total 786,432 pixels), 550 Video lines

3000 ANSI Lumens

2000:1

Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)

F=2.4-2.6, (126"-150" inches@100")

1.57-1.87

7.9:-1

40 -300 inches

4 segment (R/G/B/W)

Normal Mode: 280W (Shut Off Time: 2000hrs), Low Mode:230W (Shut Off Time: 3000hrs)

Resolution: 640 x480 - 1024 x 768 + Compressed 1280 x 1024, Sync on Green available

NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60

Component Video: 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i(1125i 60Hz),

1080i(1125i 50Hz)

RGB: Mini D-sub 15pin x 2

Audio: Stereo mini jack (ø 3.5 mm) x 1 (variable)

Video: RCA x 1 + S-VIDEO x 1

RGB: Mini D-sub 15-pin x 1

Audio: Stereo mini jack (ø 3.5 mm) x 1

Video: DC OUT; 5V 1.5A (Max)

USB terminal for Page Up/Down RS232C: D-sub 9pin x 1

[H] 15 - 80 kHz [V] 50 - 85 Hz [Dot clock] max.110 MHz

2 W Mono

Front Lifting leg x 1/ Rearward lifting leg x 2

Full Projector Control, Power Point Page Up/Down via USB

380W / 3.5A

10.3" x 3.4" x 10.4" inches (261 x 87 x 265mm) (WxHxD excluding height adjustment)

6.2lbs (2.8kg)

AC 100-240 V, 50/60Hz

39 dBA (Low Mode 36dBA)

• Soft carrying bag

• Remote control (With 2 batteries)

• Power cable

• VGA(D-sub) cable

• Composite cable

3-Years on Parts and Labor, 3-Years or 10,000-hours on the TI-DLP®DMD Chip,

3-Years Express Replacement Assistance (ERA), 90-Days on lamp

Replacement Lamp (VLT-XD470LP), Ceiling Mount (PROJ-UCM), Hard Rolling Case

(DKT1-ATAC), Soft Rolling Case (DKT1-SRCC)

• Quick shutdown

• RS232C Communication

• Digital Keystone Correction (Vertical)

• Anti-Theft Security Hook

• Password Lock (menu access only)

• User-Manual (CD-ROM)

• Safety manual (with Safety Manual and

Quick Start Guide)

• Lens Cap

options and specifications subject to change without notice. All other

trademarks are the property of their respective holders.

*The projector lamp contains mercury. Please dispose of properly.

PP6016-5/07-15M-LITXD470U
