Mitsubishi Electric ES200U Manuel utilisateur

Operation so Simple…

Easy to use and favored by all

More Functions

BrilliantColorTM*5(6-segment color wheel) Adopted

18-language On-screen Display Capable

Closed Caption (CC) Capable

Mitsubishi Electric’s original built-in color wheel is incorporated for enhanced color reproduction.

Clear, vivid images are reproduced from computer and video-player signals.

NEW

Dual RGB Input Terminal

A closed caption decoder comes installed as standard equipment. Words spoken are processed into subtitles that are projected onto the screen.

This feature conveniently addresses the needs of language students and hearing-impaired viewers.

*5:

BrilliantColor is a trademark of Texas Instruments.

MULTIMEDIA DATA/VIDEO PROJECTORS

3 Major Functions

12 3

A light 5.3lb,

2400lm brightness Ecological &

Cost-efficient

Usability

Silent 29dBA Operation

(Low Mode)

Projects natural color images not

only onto white boards, but light

yellow, blue, light-green or pink

walls as well –– turning nearly any

wall into a projection surface.

Wall Screen

The ES200U features a direct power

off function that immediately cuts

all power, eliminating the annoying

power-down time required before

unplugging the projector. When the

presentation is over, simply turn off

the power, disconnect the

projector, and you’re ready to go.

A must-have feature for people

that require mobility and have

busy schedules.

Direct Power Off

Top-loading lamp*1

*1: A lamp replacement attachment is included to

prevent the lamp from being dropped during

replacement.

The projection lamp is installed in

the upper section of the main body.

Whether sitting on a shelf or

suspended from the ceiling, lamp

replacement is simple and easy*1,

and there’s never a need to move

the whole projector.

By increasing the estimated lamp

life, we’ve added the advantages

of lower maintenance and reduced

operating cost.

Lamp Replacement Frequency*3

3,000-hour

lamp

4,000-hour

lamp 3,000 4,000 6,000

Original lamp

1st replacement

Original lamp Reduced

running cost

Long 4,000hr*2Lamp Life

Stand-by Mode under 1W

1000lm 2400lm

The ES200U weighs in at a light 5.3lbs

for excellent portability, and offers

an impressive projection brightness

of 2400lm. Whether used in a meeting

room or classroom, clear images are

reproduced even with ambient light.

Stand-by mode power consumption is

less than 1W, offering increased energy

savings and further contributing to

environmental preservation.

*2: When used in low lamp mode. Maximum lamp

life in standard mode use is 3,000 hours.

*3:

It's an estimated life time and the lamp is to

be shut off upon the arrival.

Lamp life refers to

the average time required for brightness to be

reduced by half, and not the time specified in

the warranty. Lamp service life may vary widely

depending on the environment and conditions,

and whether or not cleaning and other

maintenance procedures are followed.

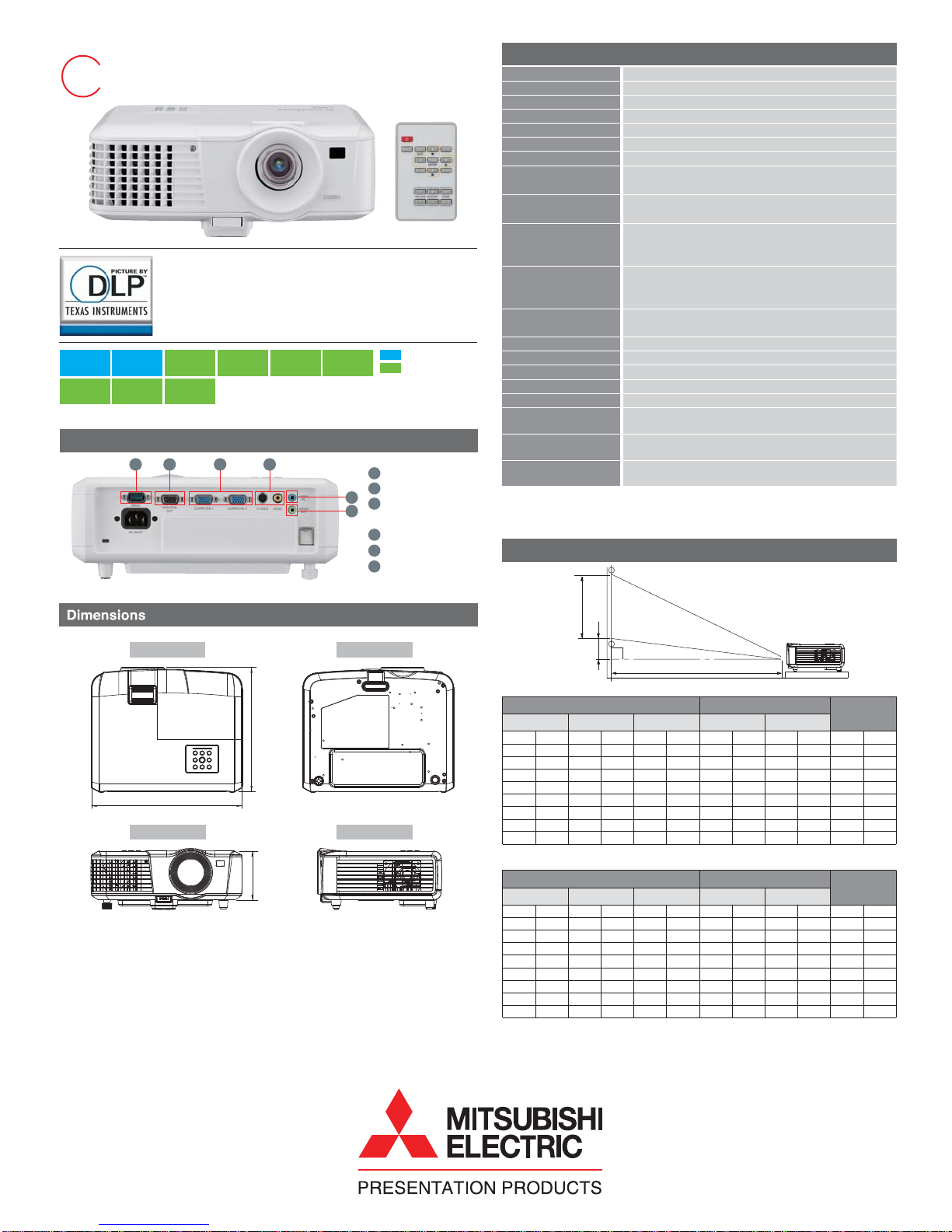

ES200U

Mobile

SVGA

Projector

SVGA

800x600

LUMENS

2400

2000:1

CONTRAST RATIO

CLOSED

CAPTION

SUPPORT

4000hr

Estimated Lamp Life*

29dBA

Noise Level*

5.3lbs

Ultra Portable

S.R.D. LAMP

TOP LOADING

USER REPLACEABLE

BrilliantColorTM •Filter-Free •Wall Screen •Password Lock •Direct Power Off •Long-life Lamp •LAN (RJ-45)

*low mode

Mobile SVGA Projector

Brilliant

ColorTM

Picture Performance

User Friendly

Wall

Screen

Direct

Power Off

Password

Lock Long-life

Lamp

Low

Standby

Power

Top

Lamp

Closed

Caption

Low

Fan Noise

ES200U

NEW

Screen size and Projection distance

As seen from the side

ES200U

Height

Projection Distance (L)

Screen

Diagonal Size Width (W)Shortest

(Wide)Longest

(Tele)Height (H)

inch

120

150

180

Distance from screen (L)Height

projected

image (Hd)

inch

100

150

200

250

300

102

152

203

254

381

508

635

762

inch

120

160

200

240

122

163

203

305

406

508

610

122

152

229

305

381

457

inch

120

150

225

300

375

450

1.5

2.3

3.0

3.8

5.7

7.6

9.5

11.4

inch

132

165

247

330

412

–

1.7

2.5

3.4

4.2

6.3

8.4

10.5

–

inch

Screen size chart (4:3 aspect ratio)

The above numbers are approximate, and may be slightly different from the actual measurements.

Screen

Diagonal Size Width (W)Shortest

(Wide)Longest

(Tele)Height (H)

inch

123

135

Distance from screen (L)Height

projected

image (Hd)

inch

100

150

200

250

275

102

152

203

254

381

508

635

699

inch

131

174

218

240

133

177

221

332

443

553

609

100

125

187

249

311

342

inch

132

166

248

331

414

455

1.7

2.5

3.4

4.2

6.3

8.4

10.5

11.6

inch

109

146

182

273

364

455

–

1.9

2.8

3.7

4.6

6.9

9.3

11.6

–

inch

103

The above numbers are approximate, and may be slightly different from the actual measurements.

Screen size chart (16:9 aspect ratio)

Serial RS-232C

Monitor output

PC/Component

video input

S-Video/Video

Audio input

Audio output

4321

Input and Output Terminals

ES200U

0.55" 1-Chip DMD

800 x 600 (Total 480,000 pixels)

2400lm

2000 : 1

40" - 300"

1.9 - 2.1

Model

Display Technology

Resolution

Brightness

Contrast Ratio

Picture Size*1

Throw Ratio*1

Specifications

PC Compatibility 640 x 480 - 1600 x 1200,

True: 800 x 600, Sync on Green available

Video Compatibility

160W (4000hr*2)with Low Mode,

185W (3000hr*2)with Standard Mode

Est. Lamp Life Rating

RGB: mini D-sub 15pin x 2

Video: RCA x 1 + S-VIDEO x 1

Audio: Stereo mini jack (ø3.5mm)x 1

RGB: mini D-sub 15pin x 1

Audio: Stereo mini jack (ø3.5mm)x 1

Input Terminals

Output Terminals

Communication Terminal

Speaker Output

Dimensions (W x H x D)

Weight

Power Requirements

RS-232C: D-Sub 9pin x 1

2W Mono

11.1” x 3.7” x 9.0” (Not including protrusion)

5.3lbs

AC 100-240V, 50/60Hz

NTSC / NTSC 4.43 / PAL (including PAL-M, N)/ SECAM / PAL-60

Component Video: 480i/p (525i/p), 576i/p (625i/p),

720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)

Unit:mm

Top View Bottom View

Front View Side View

• Compliance with ISO21118-2005

• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

*1: Value may vary a few percent from that listed in the chart.

*2: It's an estimated life time and the lamp is to be shut off upon the arrival. And it's not the time specified in the warranty.

*3: The above numbers are approximate, and may be slightly different from the actual measurements.

282

229 94

MITSUBISHI ELECTRIC

VISUAL SOLUTIONS AMERICA

Professional Product Sales

Phone: 888.307.0349

www.mitsubishi-presentations.com

MITSUBISHI ELECTRIC SALES

CANADA, INC.

Display & Imaging Solutions Division

Phone: 905.475.7728

www.mitsubishielectric.ca

LITSD220U

New publication, effective October 2011.

Specifications subject to change without notice.

Optional Accessories

Included Accessories

Warranty

Replacement Lamp (VLT-EX240LP),

Ceiling mount

(PROJ-UCM-PRO2), Hard shell case (DKT1-ATAC)

Soft carrying bag, Remote control (With 2 batteries), Power cable,

VGA(D-sub) cable, User-Manual (CD-ROM), Safety manual, Lens Cap

3-Years of Parts/Labor, 3-Years of Express Replacement Assistance

(ERA), 1-year or 500 hours lamp warranty (whichever comes first)
