MITAC Desktop Board PH10LU

Product Guide

Desktop Board Features

This chapter briefly describes the

features

Desktop Board

PH10LU.

Table 1 summarizes the major features

of the Desktop Board.

Feature

Summary

ABLE

1. M

TAC D

ESKTOP

OARD

PH1 LU F

EATURES

Form Factor Micro ATX (244 millimeters [9.6 inches] x 244 millimeters [9.6

inches])

Processor 4rd generation Intel® Core processor family with up to 95 W

TDP in an LGA1150 socket

Main Memory Support for DDR3 1066/1333/1600 MHz SO DIMMs

(DDR3 1333 MHz and DDR3 1600 MHz SO DIMMs operate

at 1066 MHz only)

Support for up to 32 GB of system memory

240 pin DDR3 DIMM 4

Chipset Intel® Q87 Platform Controller Hub (PCH)

Integrated

Graphics

Intel

Graphics Media Accelerator 4600 (Intel

GMA 4600)

External Graphics

External graphics support provided through the PCIe 3.0 x16

bus connector

Audio

RealTek* ALC662/888 audio codec for 5.1 (6 channel) High

Definition Audio (HD Audio) and AC ’97 Audio.

Front panel microphone/headphone header with support for HD

Audio or AC ’97 Audio

Legacy I/O

Legacy I/O Controller (Nuvoton* NCT6104D) that provides:

Hardware management support

Serial Port (Rear IO) 2

Serial Port (On board) 2

Parallel port via an onboard header 1

Expansion

Capabilities

PCIe 3.0 x16 (Blue) 1

PCIe 2.0 x1 (Black) Either Option

PCIe 2.0 x1 (Black) 1

PCIe 2.0 x16 (x4 Lanes)

PCI Express* Full Mini Card slot with Half Mini

Card support

Either Option

Peripheral

Inter aces

USB 3.0 back panel connectors (blue) 2

USB 2.0 back panel connectors (black) 4

USB 3.0 front panel ports 2 (Headers)

USB 2.0 front panel ports 4 (Headers)

Serial ATA (SATA) 6.0 Gb/s interfaces 6

Hardware Monitor

Subsystem

Hardware monitoring through the Nuvoton* NCT6104D legacy

I/O controller, including:

Remote thermal sensor

4 pin system fan header

LAN Support

Intel® I217 Gigabit (10/100/1000 Mb/s) LAN

Intel® I210 Gigabit (10/100/1000 Mb/s) LAN

BIOS

AMI UEFI BIOS Support for Advanced Configuration and Power

Interface (ACPI)

Instantly Available

PC Technology

Support for PCI Express Revision 3.0

Wake on USB, PCI Express, LAN, serial, PS/2, and front

panel

Power Requirement

ATX12V

Environment

Operating Temperature: 0 °C to +50 °C

Storage Temperature: 20°C to +70°C

Sa ety

CE

FCC

UL

Desktop

Board

Components

Figure 1

shows the approximate location of the

major components

the top

side of

MiTAC

Desktop

Board PH10LU.

Figure 1. MiTAC Desktop Board PH1 LU Components (Top)

ABLE

2. M

TAC D

ESKTOP

OARD

PH1 LU C

OMPONENTS

HOWN

IGURE

Back

anel

onnectors

Parallel

ort

eader

LVDS Connector (Optional)

pin Power header

LVDS power x3 pin header

(Optional)

LVDS power header (3V, 5V, 2V)

(Optional)

LVDS inverter

board header

(Optional)

CPU Socket

CPU FAN header

DIMM Sockets

Front FAN header

Speaker

Main Power Connector (2x 2)

USB 3.0

Front Panel Connector

Chipset with Heatsink

COM RESET header

Chassis Intrusion Header

Power LED

Header

Front Panel Connector

SATA Connectors

PCI Express X 6 Connector

USB 2.0 Front Panel Connector

Mini

PCIE Connector (Optional)

USB 2.0 Front Panel Connector

Serial Port Header

LPC Debug Header

Serial Port Header

Chassis

Fan Header

S/PDIF Header

Front Panel HD Audio Connector

PCI Express X 6 Connector (x4 Electrically)

PCI Express X Connector

PCI Express X Connector (Optional)

Processor

The board supports 4th generation Intel Core processors. Other processors may be

supported in the future. This board supports processors with a maximum wattage of

95 W Thermal Design Power (TDP).

NOTE

This board has specific requirements for providing power to the processor.

Additional

power required will depend on configurations chosen by the integrator.

System

Memory

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board

should be populated with D MMs that support the Serial Presence Detect (SPD) data

structure. This allows the B OS to read the SPD data and program the chipset to

accurately configure memory settings for optimum performance. f non-SPD memory

is installed, the B OS will attempt to correctly configure the memory settings, but

performance and reliability may be impacted or the D MMs may not function under the

determined frequency.

The Desktop Board has

four

240 pin DDR3 u DIMM sockets with gold plated contacts.

These sockets support:

Support for DDR3 1066/1333/1600 MHz SO DIMMs (DDR3 1333 MHz and DDR3 1600

MHz SO DIMMs operate at 1066 MHz only)

Serial

Presence Detect (SPD) memory

only

Non ECC memory

Up to 32 GB

memory

Connecting

the

Internal

Headers

and Connectors

Front panel main header

Figure 2 Front panel main header pin-out

Signal Name Description Pin Signal Name Description

1 HDD_POWER_LED Pull-up resistor (750) to +5V

2 POWER_LED_MAIN [Out] Front panel LED (main color)

3 HDD_LED# [Out] Hard disk activity LED 4 POWER_LED_ALT [Out] Front panel LED (alt color)

5 GROUND Ground 6 POWER_SWITCH# [In] Power switch

7 RESET_SWITCH# [In] Reset switch 8 GROUND Ground

9 +5V_DC Power 10 KEY No pin

ABLE

RONT PANEL MAIN HEADER SIGNALS

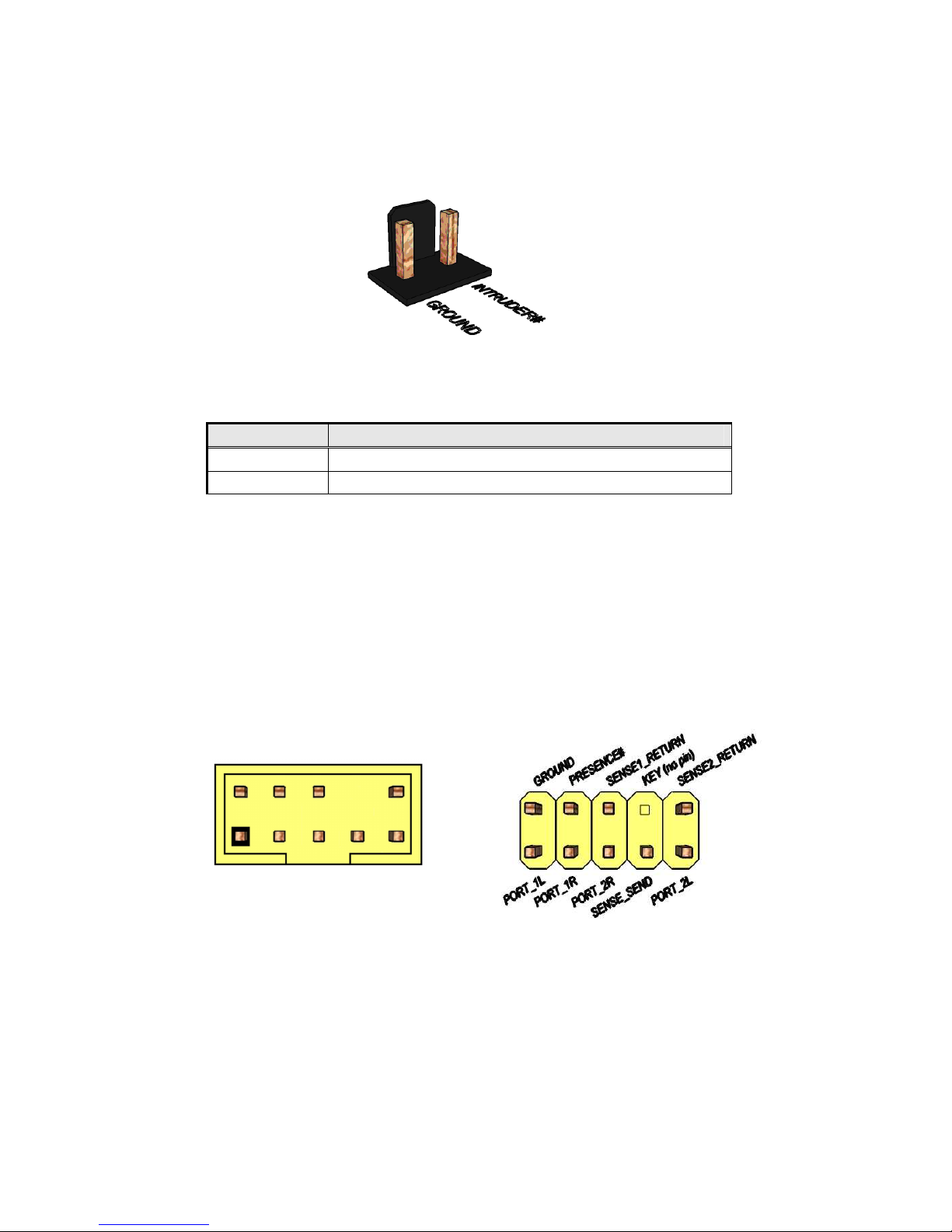

Chassis Intrusion Detection Header

The chassis intrusion detection header must be 1x2, 2.54mm pitch, colored black

and with extended back, as defined in below

Figure 3 Chassis intrusion detection header

Pin Signal Name

Intrusion Detection

2 Ground

ABLE

HASSIS INTRUSION DETECTION HEADER SIGNALS

HD Audio front panel audio header

Figure 4 HD Audio front panel audio header pin-out diagram

Signal name Description

PORT 1L Ana og Port 1 - Left channe (Microphone)

GND Ground

PORT 1R Ana og Port 1 - Right channe (Microphone)

PRESENCE#

Active ow signa that signa s BIOS that an Inte ® HD Audio dong e is connected to

the ana og header. PRESENCE# = 0 when an Inte ® HD Audio dong e is connected.

PORT 2R Ana og Port 2 - Right channe (Headphone)

SENSE1 RETURN Jack detection return for front pane (JACK1)

SENSE SEND

Jack detection sense ine from the Inte ® HD Audio CODEC jack detection resistor

network

KEY No pin

PORT 2L Ana og Port 2 - Left channe (Headphone)

SENSE2 RETURN Jack detection return for front pane (JACK2)

ABLE

UDIO FRONT PANEL AUDIO HEADER

Internal SPDIF header

Figure 5 Internal SPDIF header pin-out diagram

Signal name Description

1 GND Ground

2 SPDIF_OUT SPDIF signal from the codec

3 Key (no pin) Key (no pin)

4 +5V_DC 5V power (for optical/TOSLINK module)

ABLE

NTERNAL

SPDIF

HEADER

Front panel USB header

Figure 6 Front panel USB header pin-out

Signal Pin

Signal

1 +5V DC 2 +5V DC

3 Data (negative)

4 Data (negative)

5 Data (positive)

6 Data (positive)

7 Ground 8 Ground

9 Key (no pin) 10 No Connect

ABLE

RONT PANEL

USB

HEADER SIGNALS
