MIRKA PBS 10NV Manuel utilisateur

Mirka® Pneumatic Belt Sander

PBS 10NV & PBS 13NV

ar ..............................13

bg Инструкция за експлоатация .............17

cs Návod k obsluze......................................23

da Brugsanvisning .......................................28

de Bedienungsanleitung ............................33

el Οδηγίες χρήσης ......................................38

en Operating instructions (original)..........43

es Instrucciones de manejo .......................48

et Kasutusjuhised........................................53

ﬁKäyttöohjeet............................................58

fr Instructions d’utilisation........................63

hr Upute za rad ............................................68

hu Kezelői útmutató ....................................73

it Istruzioni per l’uso ..................................78

ja 取扱説明書 .............................................83

ko 󻸛󼐘󾖴󼜯󼯗..................................................88

lt Naudojimo instrukcijos..........................93

lv Lietošanas instrukcija.............................98

mk Упатства за ракување.........................103

nl Gebruiksaanwijzing..............................108

no Bruksanvisning......................................113

pl Instrukcje dot. użytkowania................118

pt Instruções de operação .......................123

ro Instrucţiuni de operare........................128

ru Руководство по эксплуатации .........133

sl Navodila za uporabo. . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

sr Uputstvo za rad.....................................143

sv Bruksanvisning......................................148

tr İşletim Talimatları .................................153

zh 󳸝󱠓󸛚󴁩................................................158

Mirka® Pneumatic Belt Sander

PBS 10NV & PBS 13NV

4Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV

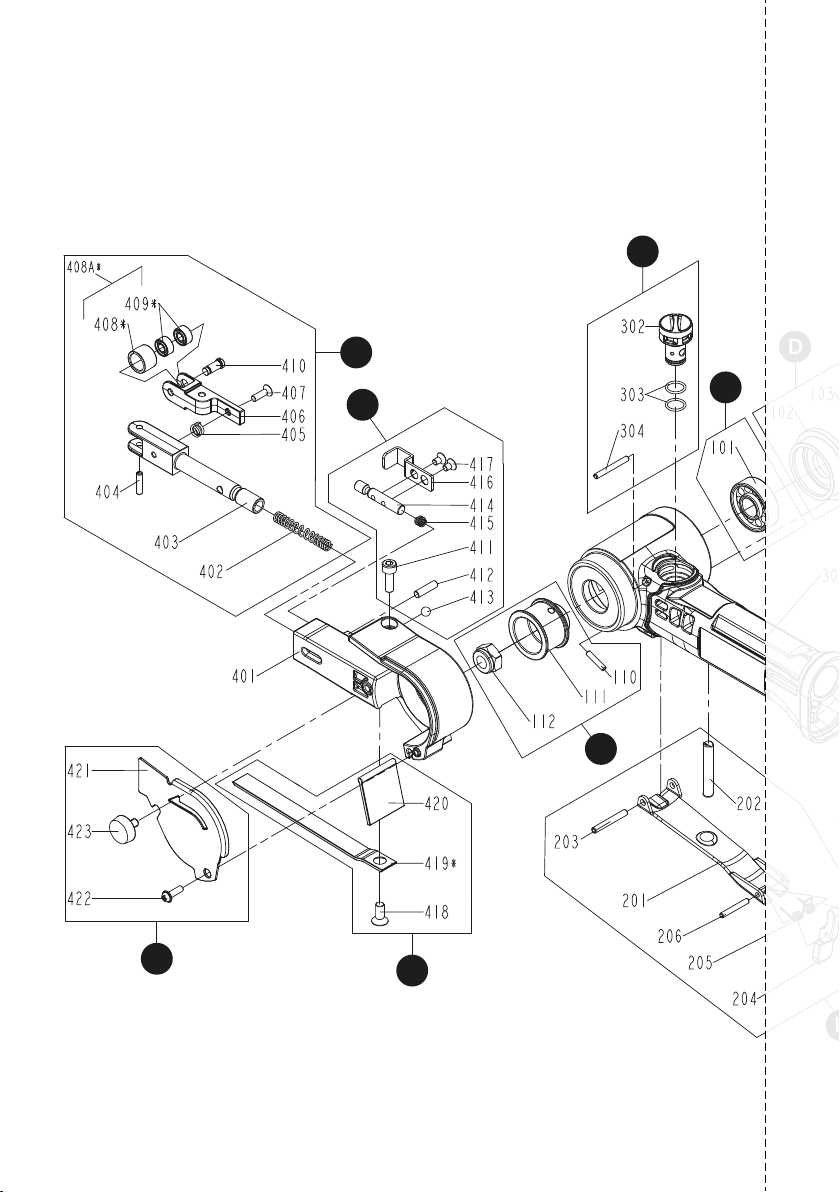

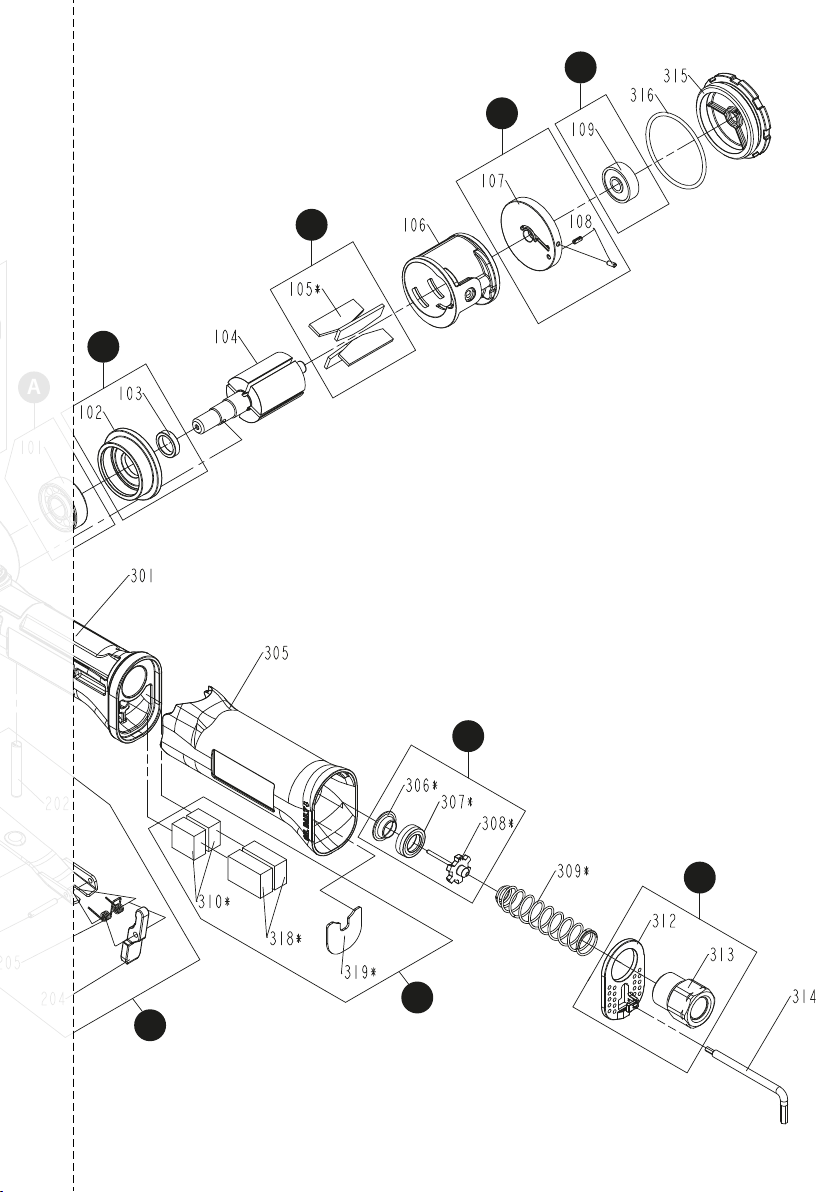

Exploded view – PBS 10NV

Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV 5

6Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV

NOTE! Repairs done by non-authorized repairer will breach the Mirka warranty.

Electrical tool must be serviced by a qualiﬁed repair person and in accordance with national requirements.

Mirka code Item Description Kit Part No Quantity

101 Bearing AMPP1101 1

102 Front bearing plate DMPP1102 1

103 Rotor washer DMPP1103 1

8995101041 104 Rotor MPP1104 1

105 Vanes CMPP1105 4

8995101061 106 Cylinder MPP1106 1

107 Rear end plate B MPP1107 1

108 Spring pin BMPP110 8 2

109 Bearing AMPP1109 1

110 Pin IMPP1110 1

111 Drive pulley IMPP1111 1

112 Lock nut IMPP1112 1

201 Lever KMPP1201 1

202 Valve stem KMPP1202 1

203 Spring pin KMPP1203 1

204 Safety KMPP1204 1

205 Compression spring KMPP1205 1

206 Spring pin KMPP1206 1

8995103011 301 Housing MPP1301 1

302 Speed valve EMPP1302 1

303 O-ring EMPP1303 2

304 Spring pin EMPP1304 1

8995121305 305 Handle grip MPP1305 1

306 Seal bushing MMPP1306 1

307 Seal MMPP1307 1

308 Tip valve M MPP1308 1

8995103091 309 Spring MPP1309 1

310 Muﬄer A LMPP1310 2

312 Deﬂector MMPP1312 1

313 Air inlet MMPP1313 1

8995121314 314 Hex wrench 2 mm and 3 mm MPP1314 1

8995103151 315 Front exhaust cover MPP1315 1

8995103161 316 O-ring MPP1316 1

318 Muﬄer B LMPP1318 2

319 Muﬄer C LMPP1319 1

8995104011 401 Guard unit MPP1401 1

402 Spring GMPP1402 1

403 Tension arm GMPP1403 1

404 Spring pin GMPP1404 1

405 Spring GMPP1405 1

406 Adjust arm GMPP1406 1

407 Flat screw GMPP1407 1

408 Idle pulley GMPP1408 1

409 Bearing GMPP1409 2

410 Pin GMPP1410 1

411 Lock screw FMPP1411 1

412 Pin FMPP1412 1

413 Ball FMPP1413 1

414 Location block FMPP1414 1

415 Positioning spring FMPP1415 1

PBS 10NV • Parts list

Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV 7

Mirka code Item Description Kit Part No Quantity

8995122101 End plate bearing kit AMPP8000

101 Bearing MPP1101 1

109 Bearing MPP1109 1

8995111071 Rear end plate kit B MPP8001

107 Rear end plate MPP1107 1

108 Spring pin MPP110 8 2

8995111051 Vanes kit CMPP8002

105 Vanes MPP1105 4

8995111021 Front bearing plate kit DMPP8003

102 Front bearing plate MPP1102 1

103 Rotor washer MPP1103 1

8995113021 Speed valve kit E MPP8004

302 Speed valve MPP1302 1

303 O-ring MPP1303 2

304 Spring pin MPP1304 1

8995114111 Belt tightening kit FMPP8005

411 Lock screw MPP1411 1

412 Pin MPP1412 1

413 Ball MPP1413 1

414 Location block MPP1414 1

415 Positioning spring MPP1415 1

416 Release switch MPP1416 1

417 Screw MPP1417 2

8995114031 Tension arm kit GMPP8006

402 Spring MPP1402 1

403 Tension arm MPP1403 1

404 Spring pin MPP1404 1

405 Spring MPP1405 1

406 Adjust arm MPP1406 1

407 Flat screw MPP1407 1

408 Idle pulley MPP1408 1

409 Bearing MPP1409 2

410 Pin MPP1410 1

8995114211 Belt cover kit H MPP8007

421 Cover MPP1421 1

422 Screw MPP1422 1

423 Hand bolt MPP1423 1

8995111101 Drive Pulley kit I MPP8008

110 Pin MPP1110 1

111 Drive pulley MPP1111 1

112 Lock nut MPP1112 1

8995114181 Belt support & protection kit JMPP8009

418 Screw MPP1418 1

419 Belt support MPP1419 1

420 Protection MPP1420 1

8995122201 Lever kit K MPP8010

201 Lever MPP1201 1

202 Valve stem MPP1202 1

203 Spring pin MPP1203 1

204 Safety MPP1204 1

205 Compression spring MPP1205 1

206 Spring pin MPP1206 1

8995122310 Muﬄer kit L MPP8011

310 Muﬄer A MPP1310 2

318 Muﬄer B MPP1318 2

319 Muﬄer C MPP1319 1

8995122306 Air inlet kit MMPP8012

306 Seal bushing MPP1306 1

307 Seal MPP1307 1

308 Tip valve MPP1308 1

312 Deﬂector MPP1312 1

313 Air inlet MPP1313 1

PBS 10NV • Parts list – kits

8Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV

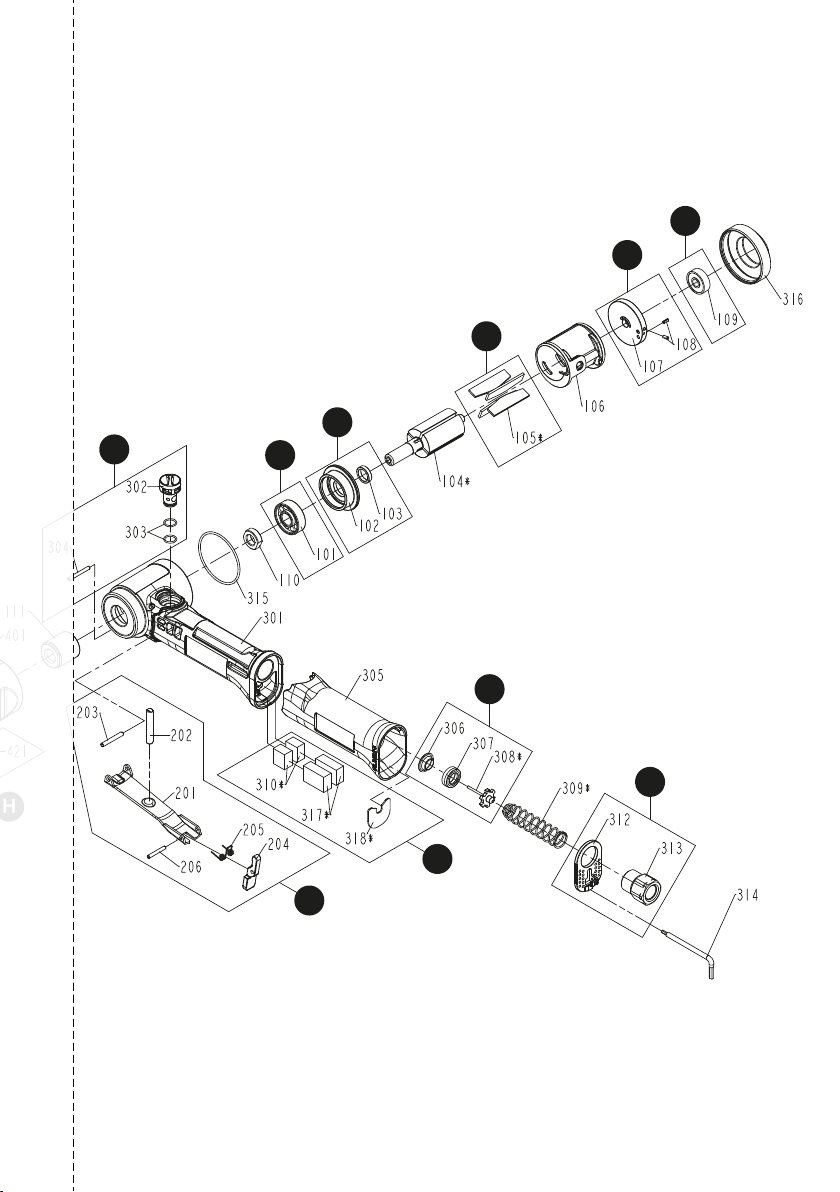

Exploded view – PBS 13NV

Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV 9

10 Mirka® Pneumatic Belt Sander • PBS 10NV & PBS 13NV

Mirka code Item Description Kit Part No Quantity

101 Bearing AMPP1101 1

102 Front bearing plate DMPP2102 1

103 Rotor washer DMPP1103 1

8995131041 104 Rotor MPP2104 1

105 Vanes CMPP2105 4

8995131061 106 Cylinder MPP2106 1

107 Rear end plate B MPP2107 1

108 Spring pin BMPP110 8 2

109 Bearing AMPP1109 1

8995131101 110 Lock nut MPP2110 1

8995131111 111 Drive pulley MPP2111 1

201 Lever JMPP1201 1

202 Valve stem JMPP1202 1

203 Spring pin JMPP1203 1

204 Safety JMPP1204 1

205 Compression spring JMPP1205 1

206 Spring pin JMPP1206 1

8995133011 301 Housing MPP2301 1

302 Speed valve EMPP2302 1

303 O-ring EMPP1303 2

304 Spring pin EMPP1304 1

8995121305 305 Handle grip MPP1305 1

306 Seal bushing LMPP1306 1

307 Seal LMPP1307 1

308 Tip valve L MPP1308 1

8995133091 309 Spring MPP2309 1

310 Muﬄer A KMPP1310 2

312 Deﬂector LMPP1312 1

313 Air inlet LMPP1313 1

8995121314 314 Hex wrench 2 mm and 3 mm MPP1314 1

8995133151 315 O-ring MPP2315 1

8995133161 316 Front exhaust cover MPP2316 1

317 Muﬄer B KMPP1318 2

318 Muﬄer C KMPP1319 1

8995134011 401 Guard unit MPP2401 1

402 Spring FMPP2402 1

403 Post assembly FMPP2403 1

404 Latch spring bushing FMPP2404 1

405 Positioning shaft FMPP2405 1

406 Tension arm FMPP2406 1

407 Spring pin FMPP2407 1

408 Angle adjusting bolt FMPP2408 1

409 Spring GMPP2409 1

410 Adjusting arm GMPP2410 1

411 Wear pad GMPP2411 2

412 Pin GMPP2412 1

413 Bearing GMPP1409 2

414 Idle pulley unit GMPP2414 1

415 Positioning spring HMPP2415 1

416 Tenon unit HMPP2416 1

417 Pin lock H MPP2417 1

418 Push lock IMPP2418 1

419 Screw IMPP2419 1

420 Cover HMPP2420 1

421 Spring pin HMPP2421 1

PBS 13NV • Parts list

NOTE! Repairs done by non-authorized repairer will breach the Mirka warranty.

Electrical tool must be serviced by a qualiﬁed repair person and in accordance with national requirements.
