Minuteman MC832085 Manuel utilisateur

Pic-A-Vac Model: MC832085

MC833085

MC832105

MC833105

MC832130

MC833130

Revised 7/02

OPERATION SERVICE PARTS CARE

FOR COMMERCIAL USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING - To reduce the risk of fire, electric shock, or injury:

•Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

•To avoid electrical shock, do not expose to rain, store indoors.

WARNING:

•To reduce the risk of electrical shock - Do not use on wet surfaces. Do not expose to rain. Store

indoors.

•Do not allow to be used as a toy. Close attention is necessary when used by or near children.

•Use only as described in this manual. Use only manufacturer’s recommended attachments.

•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return it to a service center.

•Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

hair, and anything that may reduce airflow.

•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

•Do not use without dust bag and/or filters in place.

•Turn off all controls before unplugging.

•Use extra care when cleaning on stairs.

•Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where

they may be present.

•Connect to a properly grounded outlet only. See grounding instructions.

SAVE THESE INSTRUCTIONS

INSPECTION

Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly

inspected before shipment, and any damage is the responsibility of the delivery carrier who should

be notified immediately.

ELECTRICAL - 115 Volt

This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages

below 105 volts AC or above 125 volts AC could cause serious damage to the motor.

ELECTRICAL - 240 Volt

This machine is designed to operate on a standard 10 amp. 230 volt, 50 hz, AC circuit.

WARNING

Electric motors can cause explosions when operated near explosive materials or vapors. Do not

operate this machine near flammable materials such as solvents, thinners, fuels, grain dust, etc.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path

of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped

with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed and grounded in accordance with all local codes

and ordinances.

DANGER

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service person if you are in doubt as to whether the outlet is

properly grounded. Do not modify the plug provided with the appliance — if it will not fit the outlet,

have a proper outlet installed by a qualified electrician.

This machine is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug

illustrated in Sketch A. Make sure that the machine is connected to an outlet having the same

configuration as the plug. No adapter should be used with this appliance.

WARNING

This vacuum may contain potentially hazardous dust depending on its appilcation. Special handling

of contaminated disposal bags and filters is recommended. Disposal must be in compliance with

local EPA regulations

USER MAINTENANCE INSTRUCTIONS

All service and repair should be performed by qualified vacuum service representative or electri-

cian. No user serviceable components are employed in the electrical vacuum lid head assembly. No

lubrication of the motor is required.

CLOTH BAG & HOSE ASSEMBLY

Cloth bag and hose assembly are user maintenance items and can be replaced when worn out. For

optimum performance, empty and clean filter bag regularly. A clogged and dirty bag restricts the flow

of air and results in reduced vacuum. The hose assembly can be maintained by wiping off with a

dampened cloth of mild liquid soap and water, then allowed to dry.

CORD STORAGE

While not in use storage can be accomplished by winding cord around motor lid assembly. Cord

should be completely unwound from lid assembly during operation.

•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return to service center.

•Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

•Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Always unplug the machine when removing the motor head off the tank. This equipment should be

stored indoors and not exposed to rain.

•Always unplug the machine when removing the motor head off the tank. This equipment should be

stored indoors and not exposed to rain.

HEAD AND TANK ASSEMBLY INSTRUCTIONS

Install float and float cage to the head assembly. When installing float, make sure the weighted bolt in the

float faces away from the vacuum head. The float cage snaps on the head assembly and is then secured

using 1/4-20 bolt, washer, and nut provided in the hardware package.

Handle Installation - 16 Gallon Tank Only

Install handle struts to the tank with snap button facing in towards the tank. The screws provided will pass

through struts and screw into the tank’s threaded holes. The washers and nuts, also provided, are fas-

tened on the inside of the tank. When both struts are attached, handle will slide over struts. Make certain

snap buttons lock into holes located on handle.

TO MAKE VACUUM READY FOR USE, FOLLOW THESE STEPS:

1. Set filter bag assembly in tank.

2. Set head on top of assembly installed in Step 1 and clamp onto tank with clamps attached

to tank. Make sure head is positioned and centered correctly on tank.

3. Attach hose to intake connector on front of tank.

4. Check drain plug to make sure it is securely in place. To make plug larger in diameter, turn

lever on it clockwise: to make it smaller, turn lever in opposite direction.

5. Attach vacuum cleaner attachment to loose end of hose.

6. Plug cord into electrical outlet of correct voltage. Push switch to “On” position when ready

to commence work.

Parts List

Item Part # Qty Description

1 827743 1 Handle

2 831480 1 Motor Cap

3 831518 1 Cove, Motor

4 831492 1 Shroud, Motor

5 831482 1 Pan, Motor

6 809754 1 Switch, Motor

6A 809755 1 Switch

7 450088 1 Spacer, Switch

8 381020 1 Gray Cord Set 16-3 50'

9 833237 1 Strain Relief

10 712810 2 SCR-MC 10-24 x .37 STPL

11 711553 2 WSR-Internal Lock #10

12 712638 3 Nut-Hex 10-24 SS Nyloc

13 712823 3 SCR-THMS 10-24 x 1.00 STPL

14 711126 6 SCR-ST-B 10 x .75 STPL

15 715105 1 Decal, P/V 105

15A 715085 1 Decal, P/V 85

15B 715130 1 Decal, P/V 130

16 828817 1 Decal, Warning Label

17 831478 1 Gasket, Neop 6 x 7.5 x .37

18 740116 1 Ground Wire

19 831484 1 Gasket, 3.5 x 4.5 x .31

20 380001 1 Vac Motor, Bypass 115V-85

20A 380054 1 Vac Motor, Bypass 240V-85

21 380028 2 Brush, Carbon - 85

22 255039 1 Vac Motor, Bypass 115V-105

22A 255040 1 Vac Motor, Bypass 240V-105

23 255008 2 Brush, Carbon - 105

24 831524 1 Vac Motor, 3 Stage 115V-130

24A 831526 1 Vac Motor, 3 Stage 240V-130

25 711124 1 SCR-ST-B 10 x .37

26 828995 2 Gasket, Neop 2.5 x 6 x .62

27 831626 1 Gasket 4 x 7.37 x .250

28 831576 1 Decal Warning Check Screen

29 712908 3 Nut-Flanged Wizz 10-24

30 831652 3 Spacer

31 833794 1 Gasket Seal 11.16 x 13.16

32 807051 1 Screen Filter SS 85/105

32A 832317 1 Screen Filter SS 130

33 831801 1 Receptacle

34 831801-1 1 Receptacle Clip

35 711505 2 WSR-Flat 1/4

36 711803 1 Cotter Pin

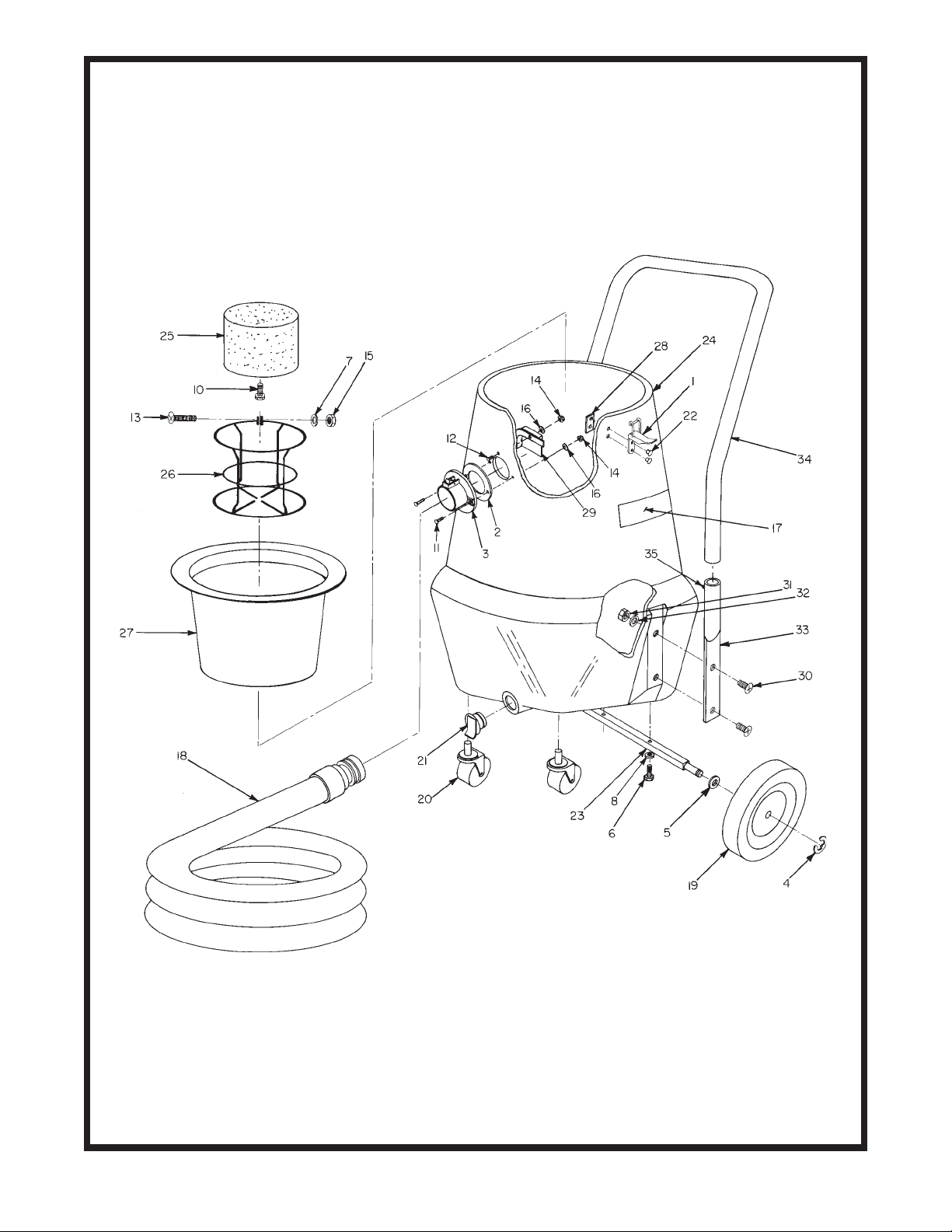

Parts List

Item Part # Qty Description

1 390035 2 Latch

2 390087 1 Gasket Diecut

3 390110 1 Intake Assy Aluminum

4 711713 2 Retaining Ring-E Ext .50

5 711524 2 WSR-Wave .52 x .87 x .01

6 712569 2 SCR-MC 1/4-20 x 1.50 SS

7 No Longer Used

8 711591 2 WSR-Rubber

10 Included in Item 25

11 712532 2 SCR-MC 10-24 x 1.00 SS

12 712819 1 SCR-MC 10-24 x .75 NIPL

13 712569 1 SCR-MC 1/4-20 x 1.50 SS

14 712638 3 Nut-Hex 10-24 SS Nyloc

15 711425 2 Nut-Flanged Wizz 1/4-20

16 711274 3 WSR SS #10

17 715382 1 Decal “Minuteman”

18 800317 1 Hose Assy 1.5 x 10 (16 Gal)

19 900008 2 Wheel, 8.00 Dia

20 804457 2 Caster 3”

21 833316 1 Drain Plug

22 828894 4 Pop Rivet

23 829837 1 Axle

24 833945 1 Tank w/Sockets, 5 Gal

24A 833950 1 Tank w/Sockets, 10 Gal

24B 833956 1 Tank w/Sockets, 16 Gal

25 830987 1 Float Assy

26 833454 1 Float Cage

27 833795 1 Filter Bag Assy

28 833831 2 Clamp Back Plate

29 900035 1 Deflector, Intake

30 710399 4 SCR-MC 3/8-16 x 1.00 STPL

31 711439 4 Nut-Flanged Wizz 3/8-16

32 No Longer Used

33 831121 2 Handle Support

34 831614 1 Handle

35 831629 2 Snap Button

*** 832005 xxx 5 Gal Tank Assy Complete

*** 832010 xxx 10 Gal Tank Assy Complete

*** 832016 xxx 16 Gal Tank Assy Complete

Parts List

Item Part # Qty Description

1 830626 1 Filter Ring

2 830634 1 Gasket

3 833797 1 Wet/Dry Filter Bag

833795 xx Wet/Dry Filter Bag Assy

833785 xx Wet Filter Bag Assy

700042 xx Paper Filter Bag 6/Pkg

833798 xx Wet Filter Bag Only
