FOR COMMERCIAL USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING - To reduce the risk of fire, electric shock, or injury:

• Do not leave appliance when plugged in. Unplug from outlet when not in use and

before servicing.

WARNING

To reduce the risk of electrical shock, do not expose to rain. Store indoors.

• Use motorized tool on carpet moistened by the cleaning process.

• Do not allow to be used as a toy. Close attention is necessary when used by or near

children.

• Use only as described in this manual. Use only manufacturer’s recommended

attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has

been dropped, damaged, left outdoors, or dropped into water, return it to a service

center.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run appliance over cord. Keep cord away from

heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free

of dust, lint, hair, and anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and

moving parts.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

• Do not use without dust-bag and/or filters in place.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids such as gasoline or use in

areas where they may be present.

• Connect to a properly grounded outlet only. See grounding instructions.

SAVE THESE INSTRUCTIONS

INSPECTION

Carefully unpack and inspect your machine for shipping damage. Each unit is tested and

thoroughly inspected before shipment, and any damage is the responsibility of the delivery

carrier who should be notified immediately.

ELECTRICAL - Model C46200-00 (115V)

This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit.

Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.

ELECTRICAL - Model C46200-02, C46200-02CE (230V)

This machine is designed to operate on a standard 16 amp. type L fused 230 volt, 50 hz, AC

circuit. Voltages below 200 volts AC or above 250 volts AC could cause serious damage to the

motor. I.E.C. Class 1.

WARNING

Electric motors can cause explosions when operated near explosive materials or vapors. Do

not operate this machine near flammable materials such as solvents, thinners, fuels, grain

dust, etc.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a

path of least resistance for electric current to reduce the risk of electric shock. This appliance

is equipped with a cord having an equipment-grounding conductor and grounding plug. The

plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

DANGER - Improper connection of the equipment-grounding conductor can result in a

risk of electric shock. Check with a qualified electrician or service person if you are in doubt as

to whether the outlet is properly grounded. Do not modify the plug provided with the appliance

-- if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

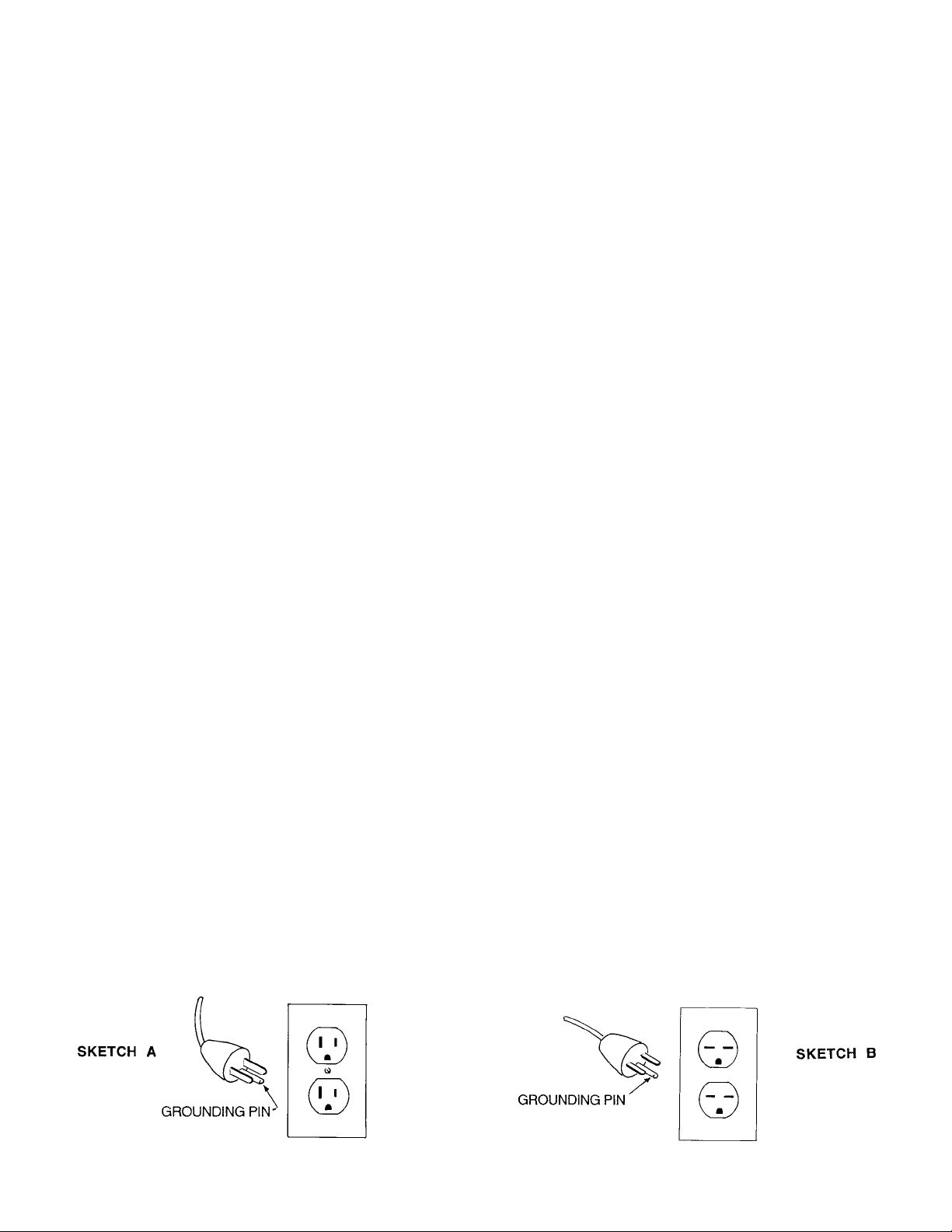

This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like

the plug illustrated in sketch A below. Make sure that the appliance is connected to an outlet

having the same configuration as the plug. No adapter should be used with this appliance.

USER MAINTENANCE INSTRUCTIONS

All service and repair should be performed by qualified vacuum service representative or

electrician. No user serviceable components are employed in the electrical vacuum lid head

assembly. No lubrication of the motor is required.

DAILY MAINTENANCE

1. Solution tank should be emptied after each use. Flush pumping system with 1 gallon of

clean water after use.

2. Check and clean vacuum inlet and solution inlet strainer daily.

3. Removable recovery tank, page 7, item 30, should be rinsed clean daily.

4. Spray jet should be checked for correct spray pattern and cleaned if plugged. Do not clean

out spray tip with pins or wire, this may cause damage to the jet spray pattern and cause

streaking.

5. Protect equipment from freezing. Severe pumping system damage can occur if allowed to

freeze.

6. Inspect vacuum hoses for tight connections. Check electrical cable for abrasion or cuts in

jacket. Cord should be replaced if worn or damaged.

MONTHLY/BI-MONTHLY MAINTENANCE

The Solution Pump System should be purged monthly to remove alkaline residue build-up. To

flush system out, use 1 quart of white vinegar to 1 1/2 gallons of clean hot water, followed by a

clear 1 1/2 gallon rinse. Clean spray jets if required.

CORD STORAGE

While not in use storage can be accomplished by winding cord around top of machine. Cord

hooks are provided.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return to service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run appliance over cord. Keep cord away from heated

surfaces.

• Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

This equipment should be stored indoors and not exposed to rain.

OPERATING INSTRUCTIONS

1. Lift the recovery tank of solution tank by releasing the two latches.

2. Add up to 1 1/2 gallons of hot water (maximum 140°F) to the solution tank. If chemicals are

required, follow dilution ratios as specified on product label. Use only commercially

available cleaning chemicals intended for use on carpet.

3. Place recovery tank back on solution tank and fasten the two latches.

4. Plug power cord into grounded wall outlet.

5. Connect the vac/solution hose assembly to machine.

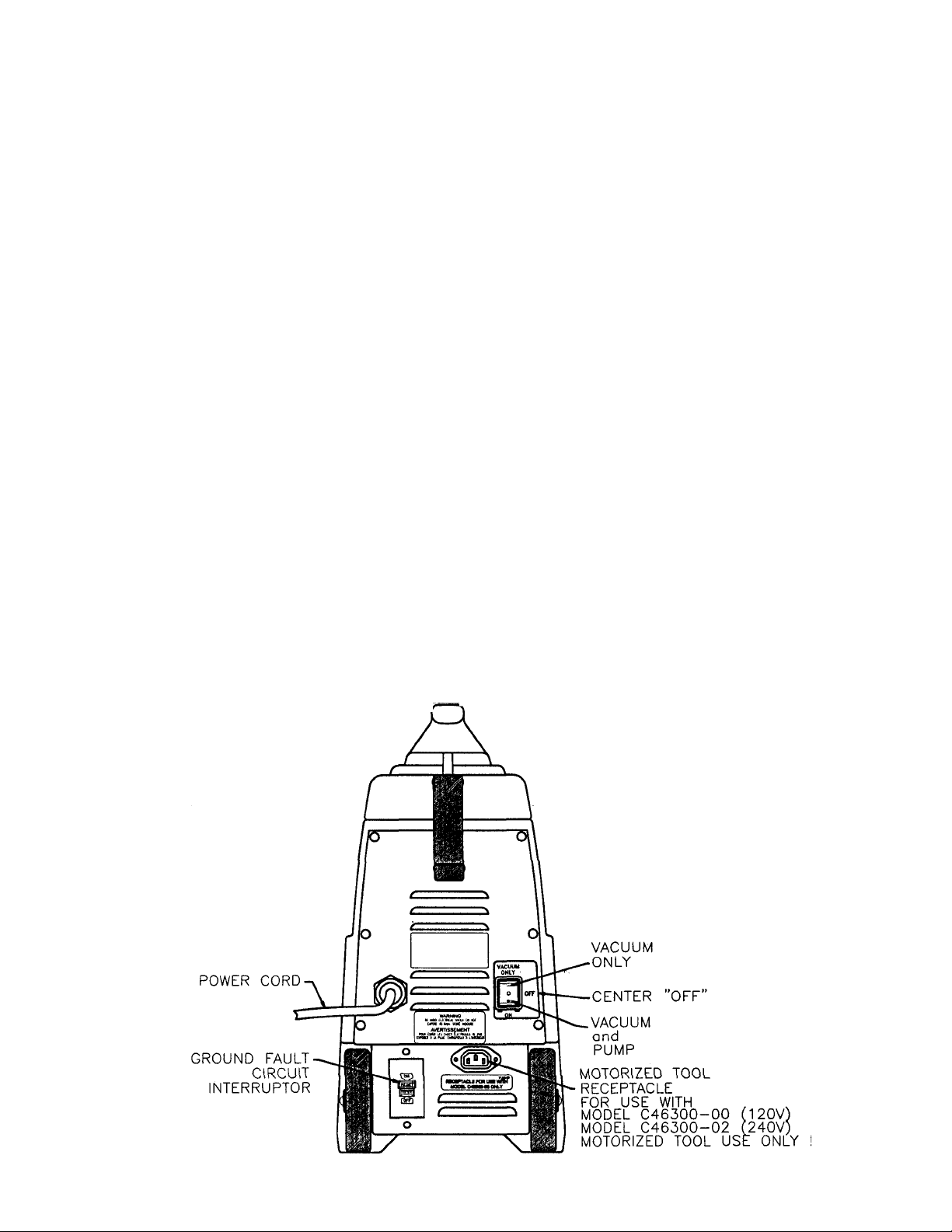

6. This machine is equipped with a 3-position power switch. Ref. to figure below. The single

bar position is for vacuum only - center position is off. Double bar position is for vacuum

pump and motorized tool (120V and standard 230V). Turn on machine in the single bar

position (CE version 230V only).

7. Always test upholstery for color fastness in a hidden area before beginning cleaning

process.

8. Warning: This unit does not contain any automatic liquid shut-off devices in the vacuum

recovery tank. Do not overfill. Always completely empty recovery tank before refilling

solution tank. If foam or liquid comes out of ventilation openings turn off immediately.

Remove recovery tank and run for 1 minute to flush all liquid from vacuum fan chamber.

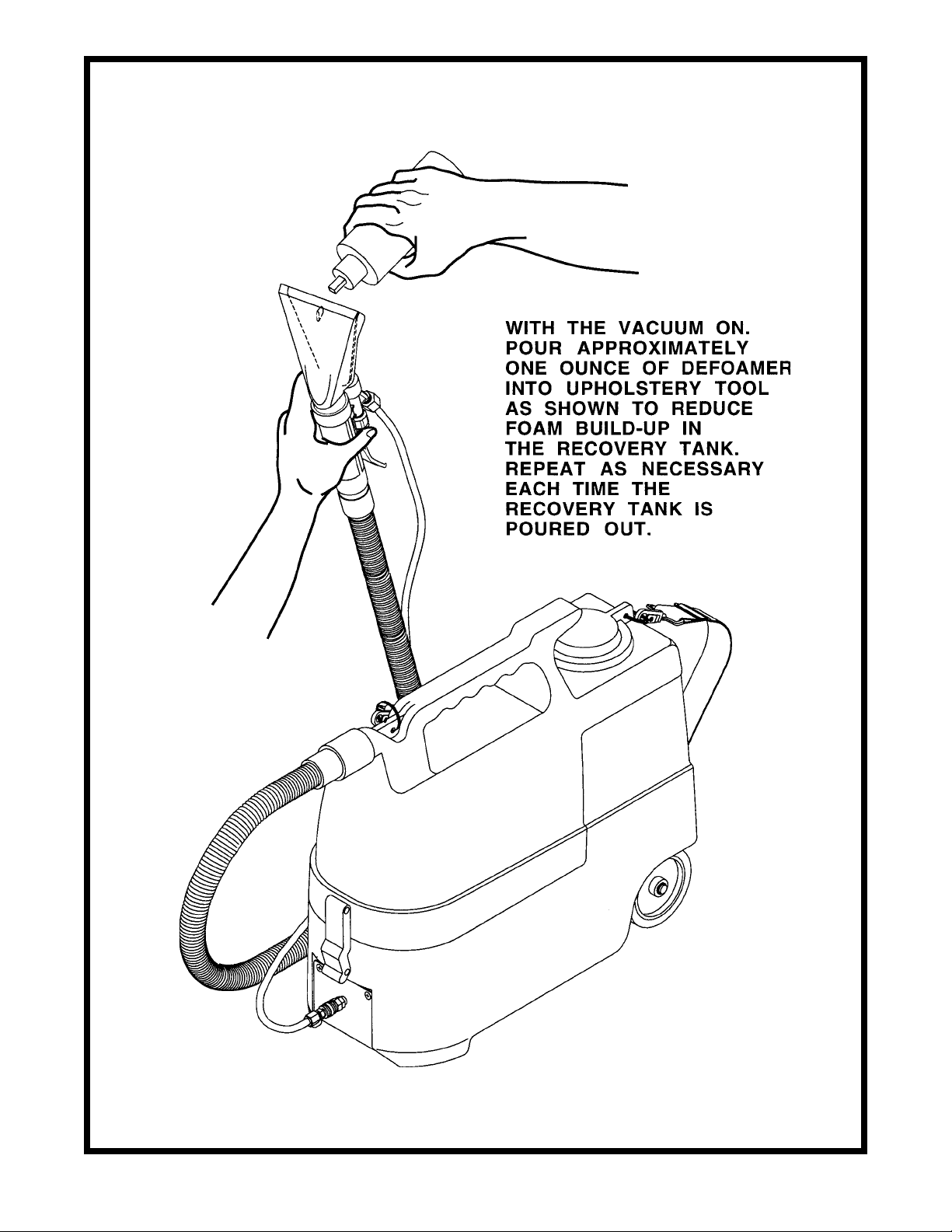

BEFORE EACH USE OF THE CARPET SPOTTER:

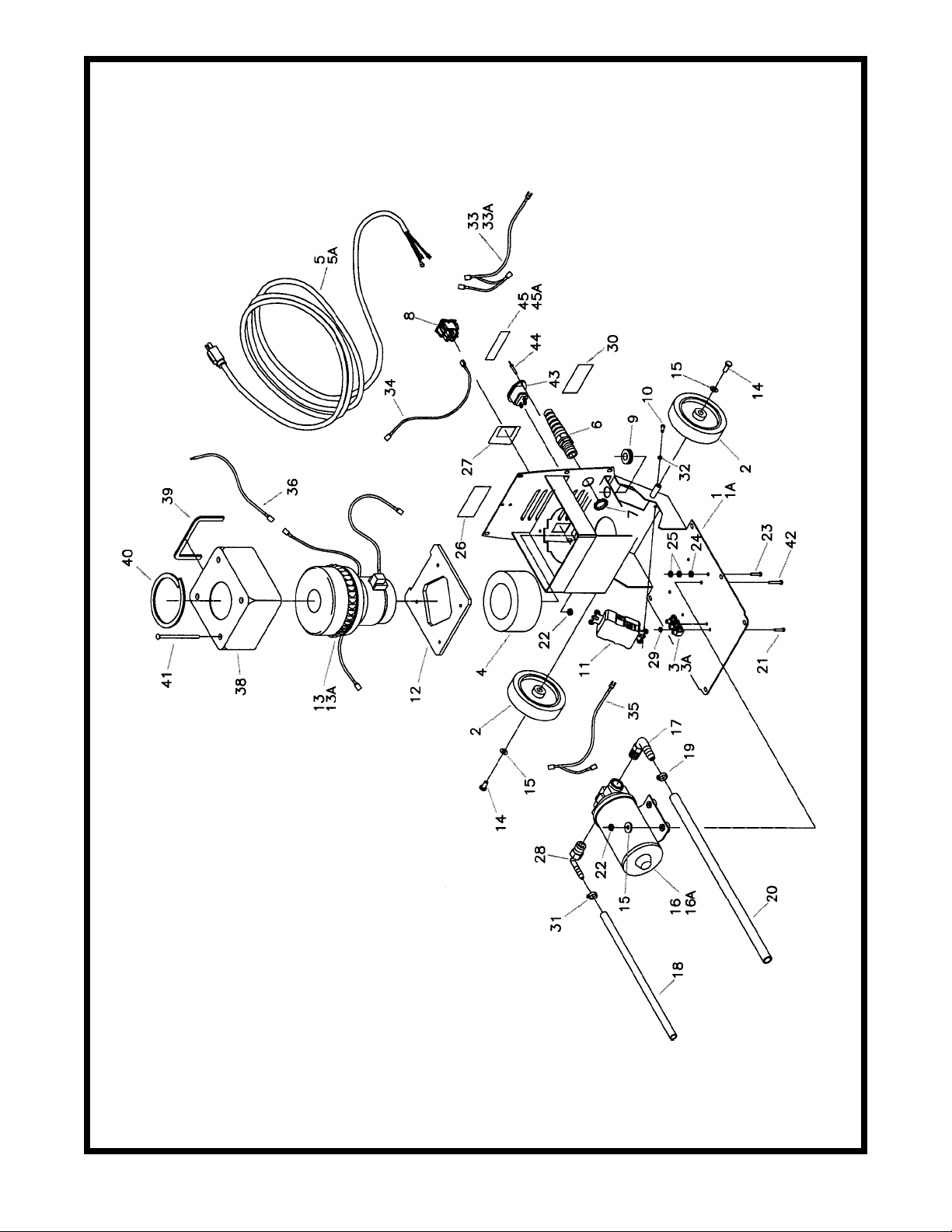

Parts Listing - 120V & 240V

ITEM PART NO QTY DESCRIPTION

1 450213 1 Frame Weldment (120V)

1A 450235 1 Frame Weldment (230V)

2 450226 2 Wheel 4"

3 740726 1 Terminal Block 3-Position

3A 742101 1 Terminal Block 4-Position

4 380064 1 Foam Ring

5 740387 1 Cord 18-3, 25 FT, Spade Term

5A 742248 1 Cord Asm 230V Crptsptr

6 150004 1 Heyco Strain Relief

7 711400 1 Nut-Pipe Lock 1/4 NPT

8 742102 1 Switch 2-Position

9 762299 2 Rubber Grommet

10 711104 2 SCR-ST B 10 x .37

11 740448 1 Ground Fault Interruptor 115V Only

12 450252 1 Bottom Gasket

13 742244 1 Vac Motor Assy. 115V

13A 742247 1 Vac Motor Assy. 230V

14 712560 2 SCR-MC 1/4-20 x .50 SS Nyloc

15 711504 6 WSR-Flat 1/4 SS

16 829757 1 Pump 50 PSI 115V

16A 742150 1 Pump 230V, Bypass

17 450040 1 Elbow PLT 3/8MPT x 3/8Barb

18 450228 1 Hose Output 1/4 ID x 15 CL

19 452037 1 Crimp Clamp 170R

20 450227 1 Hose Input 3/8 ID x 12 CL

21 710207 1 SCR-MC 6-32 x .87 ST PL

22 712638 8 Nut-Hex 10-24 SS Nyloc

23 712537 1 SCR-MC 10-24 x .75 SS

24 712908 1 Nut-Flanged Wizz 10-24

25 712905 2 Nut-Hex 10-24

26 715029 1 Decal - Serial Number

27 715179 1 Decal - Spotter Switch

28 450222 1 1/4 90° BARB x 3/8 MPT

29 711301 1 Nut-Hex 6-32

30 715009 1 Decal Warning

31 828490 1 Crimp Clamp 140R

32 712770 2 WSR-Int. Tooth 10

33 742240 1 Wire Assy. Violet 16 AWG 120V Only

33A 742250 1 Wire Assy. Violet 16 AWG 230V Only

34 742241 1 Wire Assy. Black 16 AWG

35 742242 1 Wire Assy. White 16 AWG 120V Only

36 742243 1 Wire Assy. White 16 AWG

37 740099 2 Wire Tie Small (not shown)

38 450251 1 Vac Motor Shroud

39 450253 1 Front Gasket

40 450247 1 Top Gasket

41 712543 4 SCR-MC 10-24 x 3.50 FH SS

42 712532 4 SCR-MC 10-24 x 1.00 SS

43 741038 1 Receptacle

44 410-4419AA 2 Pop Rivet

45 715340 1 Decal (120V)

45A 715341 1 Decal (240V)

ITEM PART NO QTY DESCRIPTION

1 450213CE 1 Frame Weldment

2 450226 2 Wheel 4"

3 740726 1 Terminal Screw Tab

4 380064 1 Foam Ring

5 742381 1 Cord Set 25 ft. 1.0 m.m.

6 150004 1 Heyco Stain Relief

7 711400 1 Nut-Pipe Lock 1/4 NPT

8 742102 1 Switch 2 Position

9 762299 2 Rubber Grommet

10 742292 1 Ambassador CE RFI Torrid

11 711124 2 SCR-ST B 10 x .37 NI

12 450252 1 Bottom Gasket

13 742247 1 Vac Motor Assembly 230V

14 712560 2 SCR-MC 1/4-20 x .50 SS Nyloc

15 711504 6 WSR-Flat 1/4 SS

16 742150 1 Pump 230V Bypass

17 450040 1 Elbow PLTMPT x 3/8 Barb

18 450228 1 Hose Output 1/4 ID x 15 CL

19 452037 1 Crimp Clamp 170R

20 450227 1 Hose Input 3/8 ID x 12 CL

21 710207 1 SCR-MC 6-32 x .87 ST PL

22 712638 8 Nut-Hex 10-24 SS Nyloc

450220CE 230V European Parts Listing

ITEM PART NO QTY DESCRIPTION

23 712537 1 SCR-MC 10-24 x .75 SS

24 712908 1 Nut-Flanged Wizz 10-24

25 712905 2 Nut-Hex 10-24

26 715029 1 Decal - Serial Number

27 715179 2 Decal - Spotter Switch

28 450222 1 1/4 90° BARB x 3/8 MPT

29 711301 1 Nut-Hex 6-32

30 715009 1 Decal Warning

31 828490 1 Crimp Clamp 140R

32 712770 1 EMI Filter

33 742240 1 EMI Filter Mounting Plate

34 742241 2 Terminal Insulated

35 742242 4 SCR-MC 10-24 x 1.00 SS

36 742243 4 SCR-MC 10-24 x 3.50 FH SS

37 740099 2 Wire Tie Small (not shown)

38 450251 1 Vac Motor Shroud

39 450253 1 Front Gasket

40 450247 1 Top Gasket

41 712543 4 Wire Asy Violet 16G

42 712532 4 Wire Asy Black 16G

43 741038 1 Wire Asy 16G White

44 827666 2 Wire Asy 16G White

Parts Listing

ITEM PART NO QTY DESCRIPTION

17 712621 2 Nut-Keps 8-32 SS

18 712540 14 SCR-MC 10-24 x 3/8 SS

19 712770 6 WSR-Int Tooth 10

20 710025 10 SCR-MC 8-32 x 3/8 SS

21 450207 2 Latch

22 430103 2 Spring Hook

23 450225 1 1/4 BARB x 1/8 FPT Brass

24 712767 3 WSR-Flat .406 x .75 x .03

25 450205 1 Quick Disconnect Plate

26 450221 1 Quick Connect 2202 Coupler

27 711552 6 WSR-Int Tooth 8

28 450209 1 Gasket

29 450214 1 Strap

30 450201 1 Recovery Tank

31 715188 2 Decal, Gotcha!

ITEM PART NO QTY DESCRIPTION

1 450202MCH 1 Solution Tank Machined

2 450229 1 Filter Assembly

3 450215 1 Vac Pre-filter

4 715180 1 Decal

5 832326 1 O-Ring

6 711594 3 WSR-Flat .56 x .88 x .03

7 833473 1 3/8 Hose BARB x 1/4 FPT

8 260294 1 Gasket

9 828974 1 Strainer

10 450216 1 Solution Hose

11 715380 2 Decal, Minuteman

12 828952 1 3/8 BARB x 1/4 MPT PLS

13 833906 1 1/4 Street 45 Brass

14 000708 .03 RTV Sealant

15 452037 1 Crimp Clamp 170R

16 828490 1 Crimp Clamp 140R

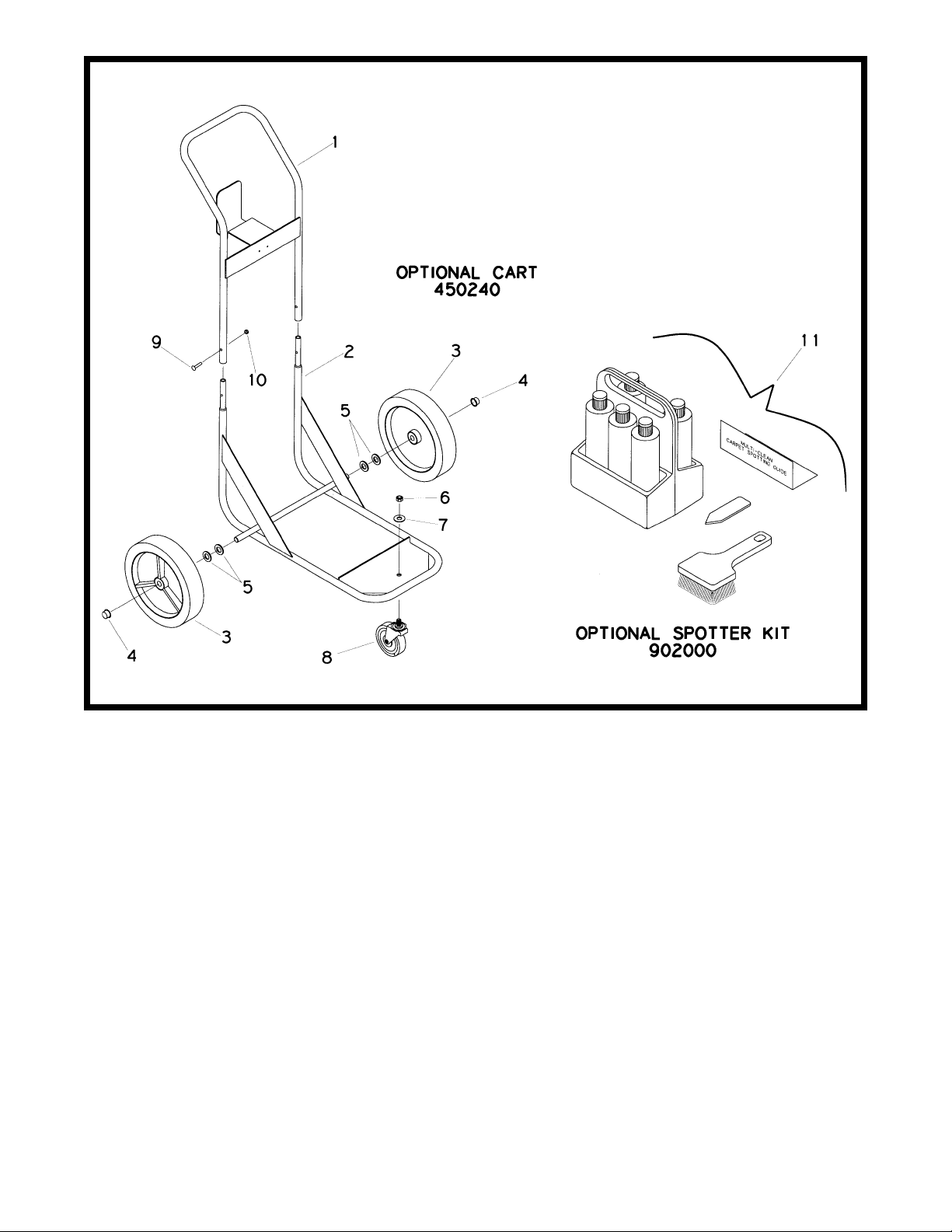

Parts Listing

ITEM PART NO QTY DESCRIPTION

1 450238 1 Handle Weldment

2 450239 1 Frame Weldment

3 900040 2 Wheel

4 130032 2 Hub Cap

5 711579 4 WSR .56 x 1.0 x .09

6 711375 1 Nut 3/8-16 Nyloc

7 711508 1 WSR .44 x 1.0 x .09

8 280016 1 3” Caster

9 712546 2 SCR-MC 10-32 x 1.0 SS

10 711350 2 Nut 10-32 Nyloc

11 902000 1 Optional - Carpet Spotting Kit

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Minuteman Aspirateur

Minuteman

Minuteman Tsunami T16WD Manuel de la liste des pièces

Minuteman

Minuteman S10-115 Mode d’emploi

Minuteman

Minuteman C84790-00 Mode d’emploi

Minuteman

Minuteman MX-1000 Series Mode d’emploi

Minuteman

Minuteman MC827968 Manuel utilisateur

Minuteman

Minuteman Parker PV9908KLP Mode d’emploi

Minuteman

Minuteman C82917-00 Mode d’emploi

Minuteman

Minuteman Asbestos 839 Series Manuel utilisateur

Minuteman

Minuteman Bio-Haz Vacuum Manuel de la liste des pièces

Minuteman

Minuteman X839 Asbestos Series Manuel de la liste des pièces

Minuteman

Minuteman C29485-02 Mode d’emploi

Minuteman

Minuteman CC-3 Series Mode d’emploi

Minuteman

Minuteman X829 Asbestos Series Manuel de la liste des pièces

Minuteman

Minuteman C82904-07 Mode d’emploi

Minuteman

Minuteman 724 Mode d’emploi

Minuteman

Minuteman C80704-01 SS Mode d’emploi

Minuteman

Minuteman V10 Pro Plus Manuel utilisateur

Minuteman

Minuteman C39085-01 Mode d’emploi

Minuteman

Minuteman C82904-04 Mode d’emploi

Minuteman

Minuteman X839 Asbestos Series Manuel de la liste des pièces

Minuteman

Minuteman 829 Series Mode d’emploi

Minuteman

Minuteman C29085-05 Manuel de la liste des pièces

Minuteman

Minuteman Phenom L1518 Manuel utilisateur

Minuteman

Minuteman C37115-13 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
